Vertical SMD Pogo Pin Connector
Vertical SMD spring loaded connector
Vertical smd pogo pin connector also known as vertical smd spring loaded connectors, vertical smd magnetic pogo pin connector, and through hole mount vertical smd spring connector, serve the core function of conducting electricity or signals.
I Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance
I Installation method: SMT Surface Mount (SMD) Reflow Soldering or Placement by Insertion Machine and Fixation by Wave Soldering
I Contact Resistance: 30 milliohms Max.
I Rated Current: 2A~15A (Continuous Current)
I Rated Voltage: 36V AC/DC
I Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)
I Operating Temperature: -40°C to +120°C (Continuous Temperature)
I Salt Spray Resistance 96 Hours Corrosion Test
I High-Precision Mold And Parts Processing
I A variety of standards are available, and samples will be sent out as soon as the same day.
I Provide Customized SMD Pogo Pin Connector Services
I Comply With EU RoHS And Reach Standards
xurui vertical smd spring loaded connector
Vertical SMD Pogo Pin Connector Product Details
What is a vertical smd spring loaded connector
Vertical SMD Pogo Pin Connectors, also known as SMD Pogo Pin Connectors, Pogo Pin connectors, or Surface Mount Spring-Loaded Connectors, are component connectors used to connect conductive or signal paths on a circuit board.
The Vertical SMD Pogo Pin Connector mainly consists of two core components: the Pogo Pin and the housing, which are assembled using precision molds and specialized equipment. The Pogo Pin features an inclined plane structure design internally, which, during operation, generates a lateral force through contact with the spring on the inclined plane, ensuring that the pinhead maintains stable contact with the inner wall of the pin tube. This design allows the electrical current to primarily pass through the gold-plated Plunger and Body, thereby achieving stable and extremely low contact resistance, ensuring a stable and reliable connection even with frequent mating and unmating.
The installation method for the Vertical SMD Pogo Pin Connector uses SMT (Surface Mount Technology) automatic pick-and-place reflow soldering technique.

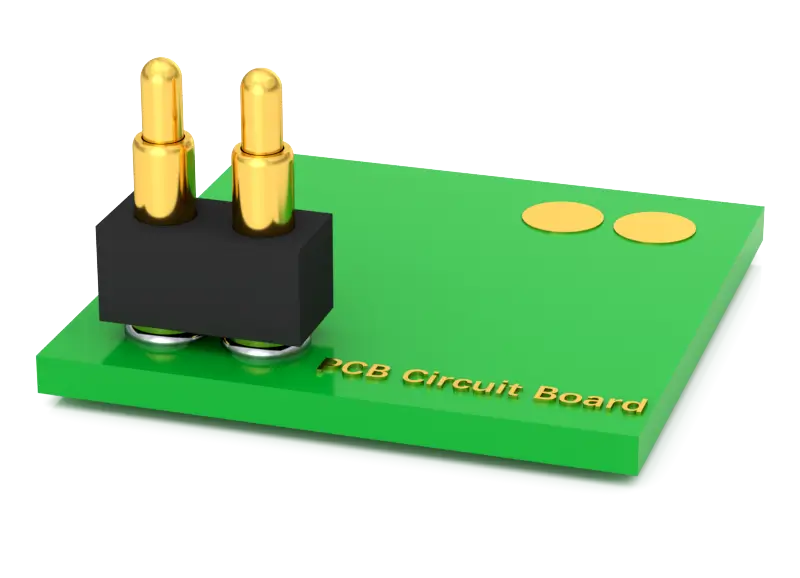

How to install vertical smd pogo pin female connector
An SMT automatic pick-and-place machine places the Vertical SMD Pogo Pin Connector onto a PCB (Printed Circuit Board) that has been printed with solder paste.
The assembly is then heated using a reflow soldering process, which melts the solder paste and, upon cooling, solidifies, thereby completing the permanent connection between the connector and the PCB pads.
This installation method is fast, highly precise, and highly automated, significantly enhancing production efficiency and product quality.

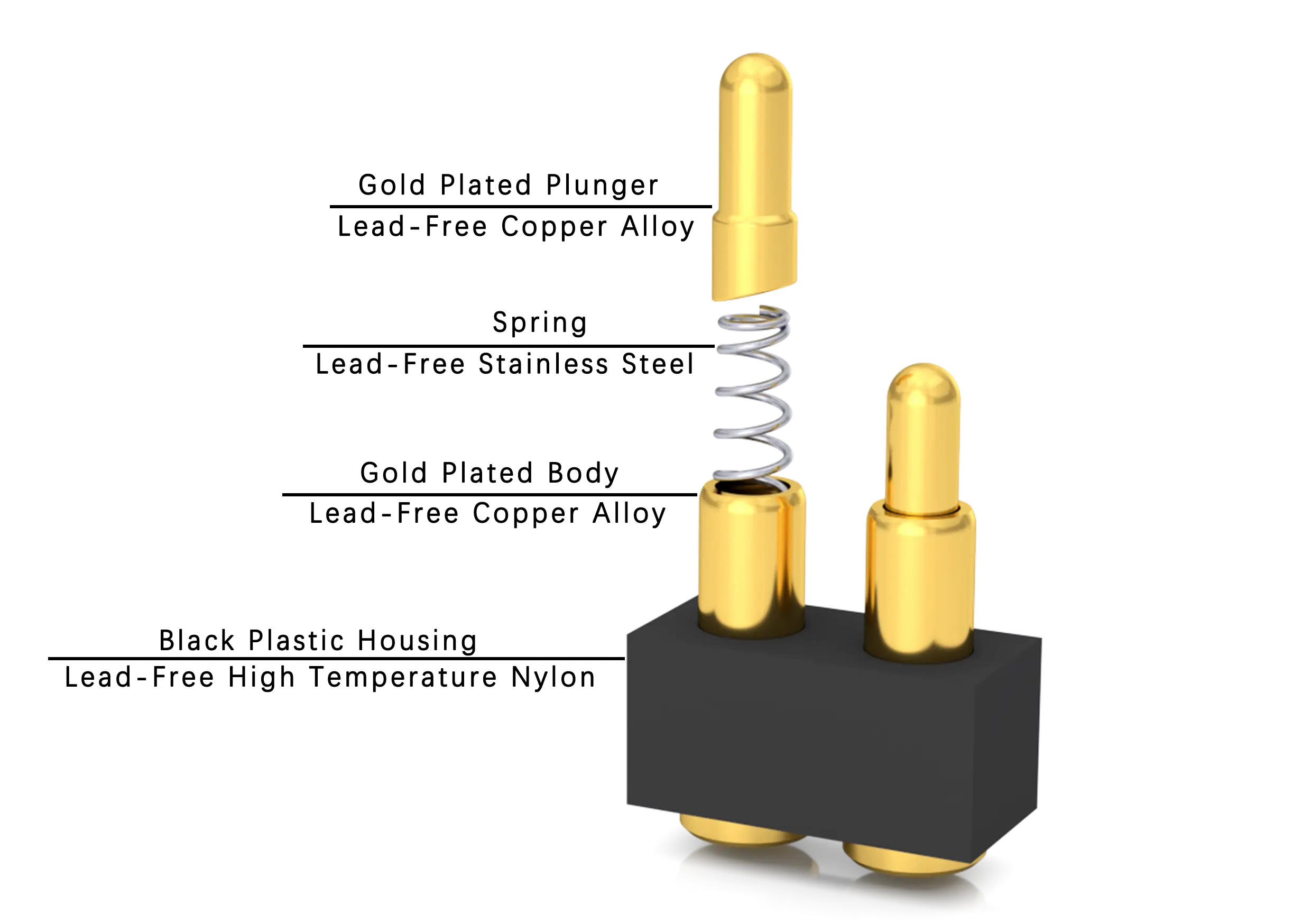

vertical smd pogo pin female connector material & Parts
The vertical smd pogo pin connectors are type of Pogo Pin connector that is manufactured based on an inclined plane structural design, incorporating an internal spring mechanism. It primarily consists of two core components: the Pogo Pin and the housing. Its main characteristic is vertical contact, with flat solder legs, typically mounted on the surface of PCB pads using the SMT reflow soldering process.
Xurui Technology
The vacuum blind hole electroplating technology is known for its superior performance, capable of quickly and accurately electroplating a layer of gold inside and outside extremely fine blind holes. This excellent electroplating process not only ensures the overall aesthetics of the metal surface but also has outstanding corrosion resistance and wear resistance. Both the inside and the outside of the hole present a bright golden color, and there will be no peeling or gold dropping issues.
vertical smd spring loaded electrical connectors contact resistance
By combining mature design concepts, high-precision processing techniques, and excellent vacuum blind hole electroplating technology, we can achieve extremely low and stable contact resistance.
XURUI vertical smd spring loaded connector
Vertical SMD Pogo Pin Connector Technical Parameters
| Items | Details |
|---|---|
| Material | Plunger: Lead-Free Copper Alloy |
| Body: Lead-Free Copper Alloy | |
| Spring: Stainless Steel | |
| SolidPin: Lead-Free Copper Alloy | |
| Housing: Lead-Free-High Temperature Nylon | |
| Main Technical Parameters | Operating temperature: -40~+120°C（Standard） |
| Operating humidity: 20-85%RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85%RH | |
| Rating voltage: 36V AC/DC（Standard） | |
| Rating current: 2A/Pin Continuous（Standard） | |
| Contact resistance: 30 mΩ Max.（Standard） | |
| Withstanding voltage: 250V AC ,1 Minute | |
| Insulation resistance： 500 MΩ Min | |
| Durability：10,000 Cycle（Standard） | |
| Working Spring Force:50~180gf（Standard） | |
| Electroplating | Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm |
| Body: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| Contact Type | Vertical Contact Type |
| Installation Method | SMT automatic placement machine+Reflow soldering |
| Environmental Protection Standard | Comply with EU RoHS and Reach standards |
XURUI vertical smd spring loaded connector
Selection Guide of Vertical SMD Pogo Pin Connector
| SN | Product Image | Number Of Pins | Pitch |
|---|---|---|---|
| 1 |
|

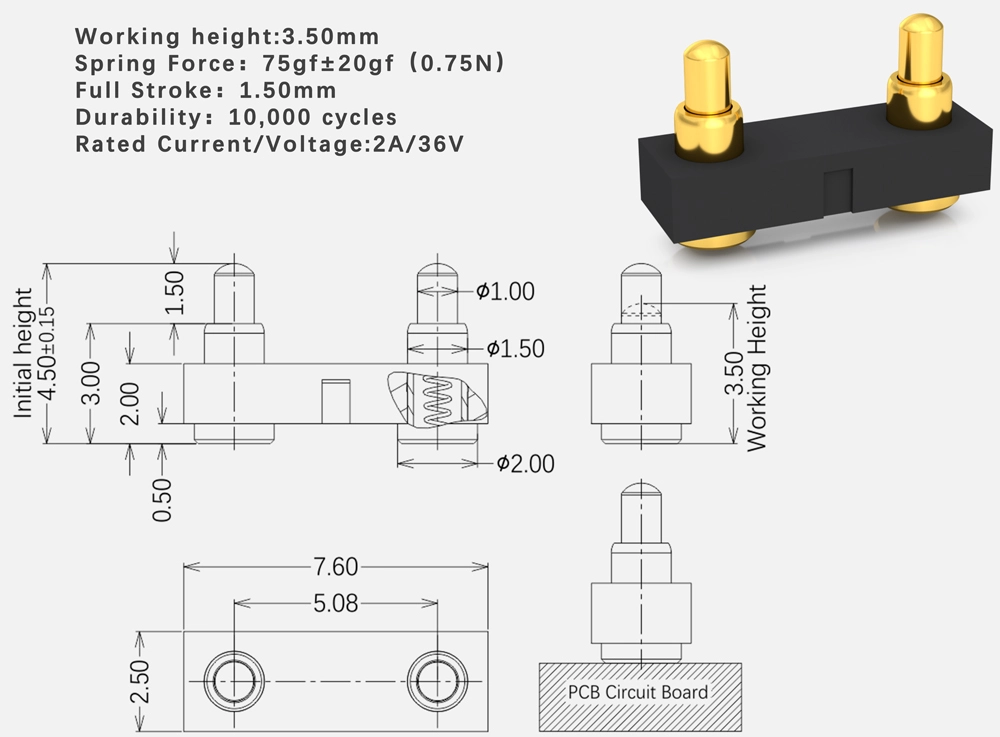

2Pin | 2.00~7.00mm |
| 2 |
|

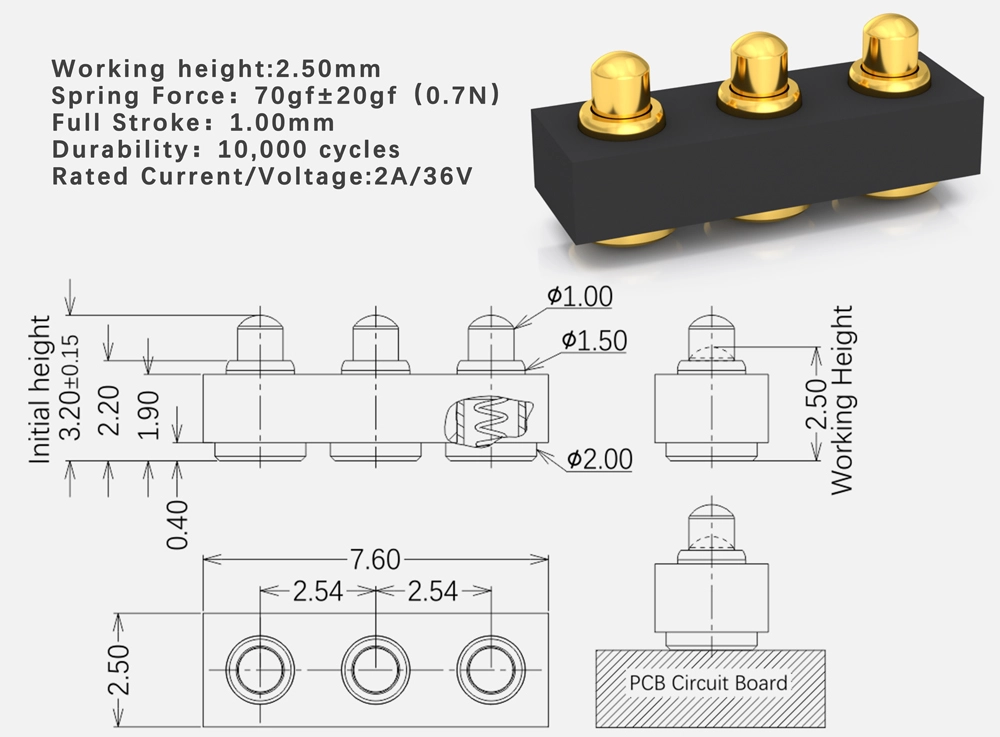

3Pin | 2.00~5.60mm |
| 3 |
|
4Pin | 2.00~6.00mm |
| 4 |
|
5Pin | 2.00~6.00mm |
| 5 |
|
6Pin | 2.00~6.00mm |
| 6 |
|

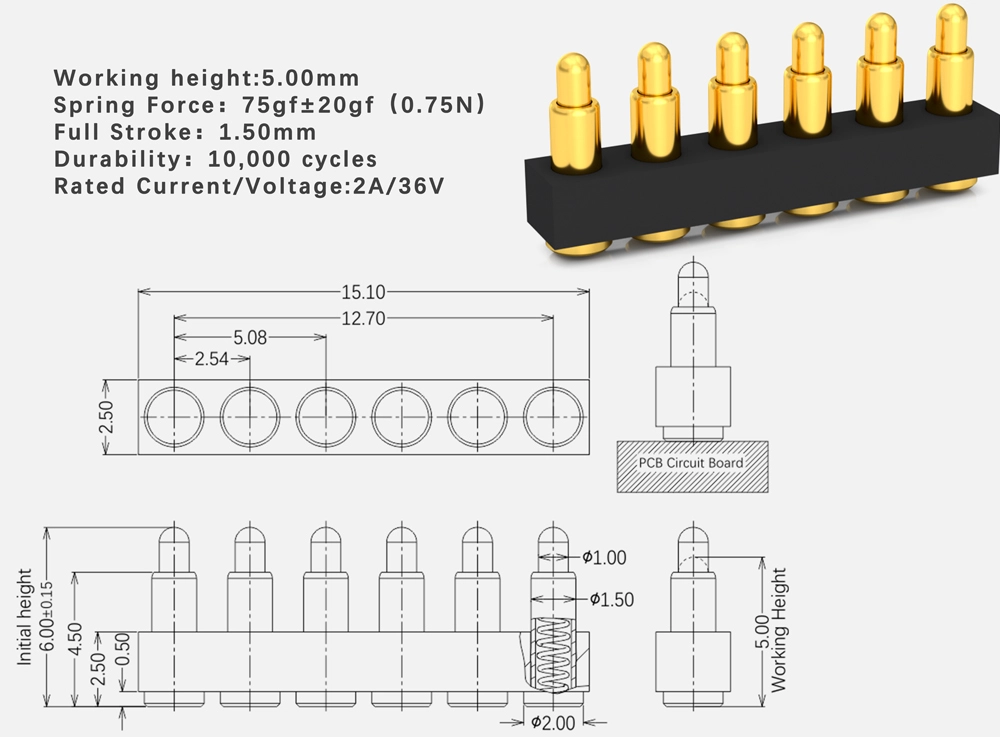

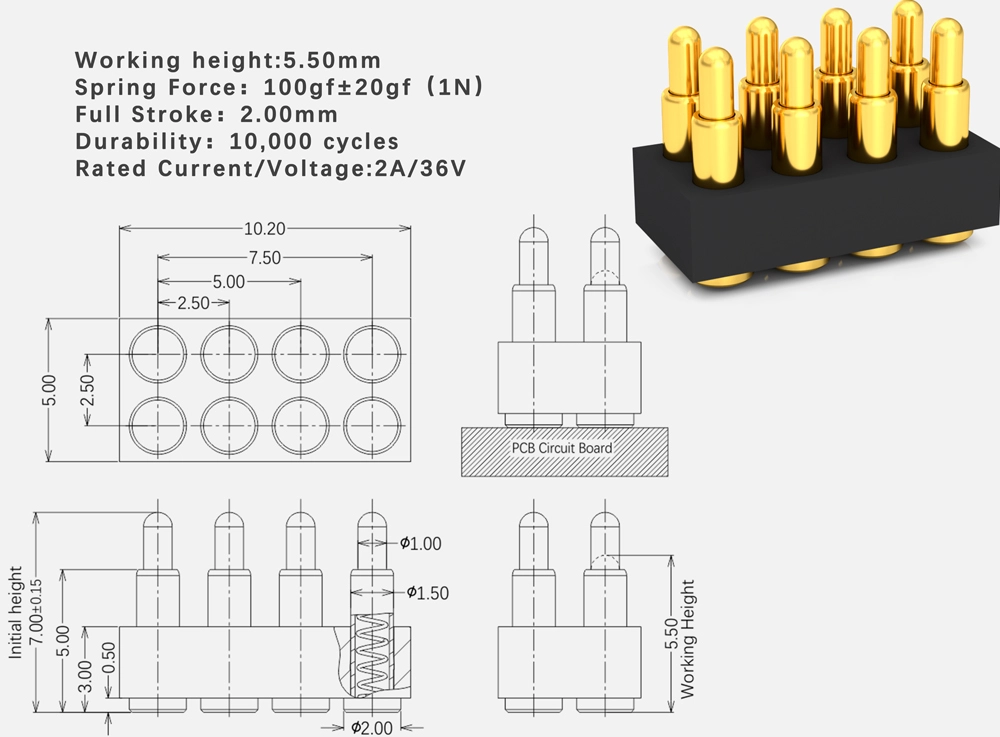

8Pin | 2.00~6.00mm |
| 7 |
|

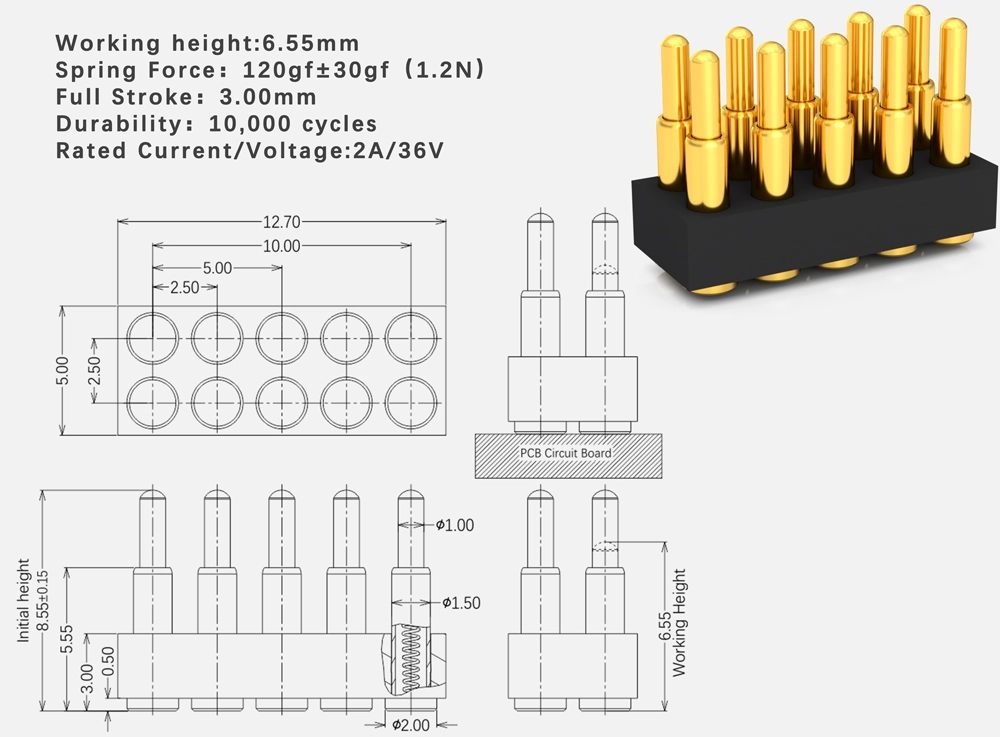

10Pin | 2.00~6.00mm |
| 8 |
|

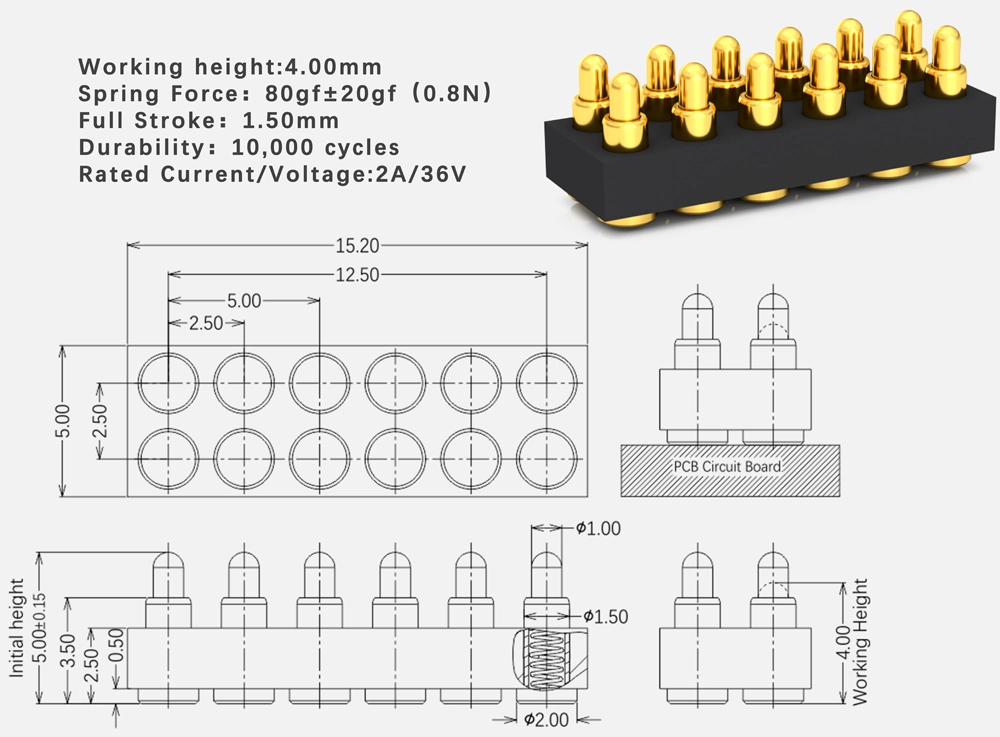

12Pin | 2.50mm |
| 9 |
|
14Pin | 2.50mm |
| 10 |
|
20Pin | 2.50mm |
xurui vertical smd spring loaded connector
Vertical SMD Pogo Pin Connector Standard Product
