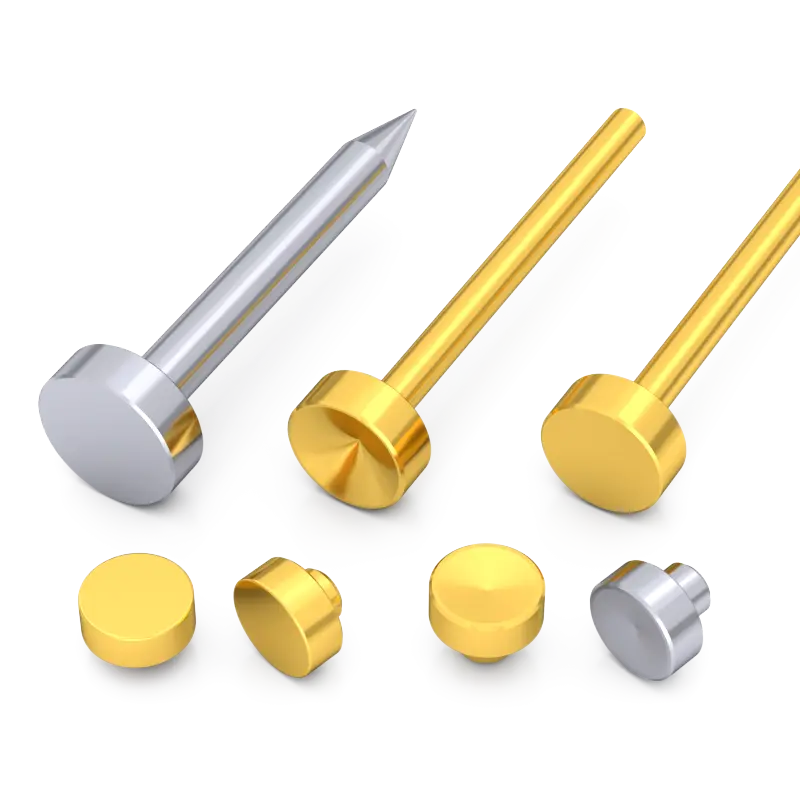

SMD & Dip Contact Pad
smd & dip contact pad
I Installation method: SMT Surface Mount (SMD) Reflow Soldering
I Contact Resistance: 30 milliohms Max.
I Rated Current: 2A~30A (Continuous Current)
I Rated Voltage: 36V AC/DC
I Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)
I Operating Temperature: -40°C to +120°C (Continuous Temperature)
I Salt Spray Resistance 96 Hours Corrosion Test
I High-Precision Mold And Parts Processing
I A variety of standards are available, and samples will be sent out as soon as the same day.
I Provide Customized Services
I Comply With EU RoHS And Reach Standards
xurui
SMD & Dip Contact Pad Product Details
What is a smd & dip contact pad
SMD & Dip Contact Pads are a type of socket connector, also known as SMD Pads, Dip Pads, Surface Mount Pads, and Through-Hole Pads. They are commonly used as the socket connectors for Pogo Pin connectors and can conduct electricity or signals. The materials and electroplating processes used for SMD & Dip Contact Pads are the same as those for Pogo Pin connectors, ensuring stable and extremely low contact resistance. This stability and reliability in connection are maintained even with frequent mating cycles, resulting in a long lifespan.

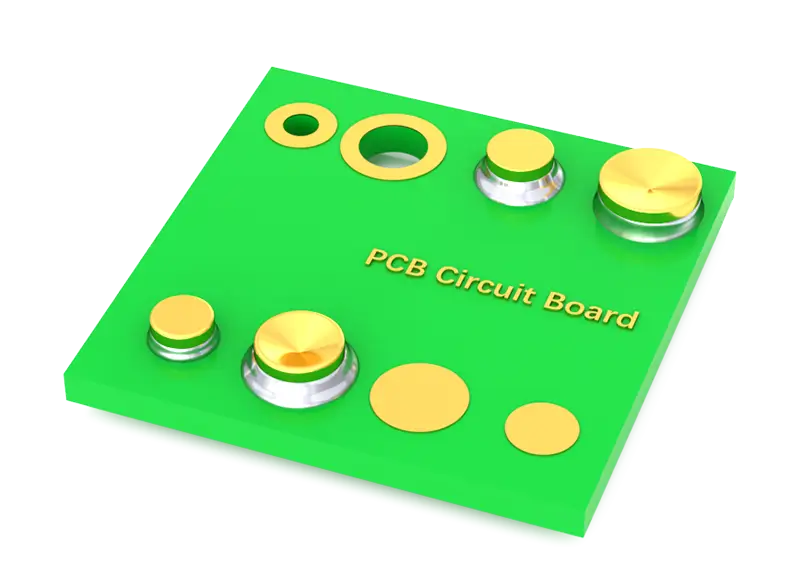

How to install smd & dip contact pad
1. Automatic placement and reflow soldering using an SMT placement machine
2. Fixation through wave soldering
Both of these installation methods are fast, highly precise, and highly automated, which can significantly improve production efficiency and product quality.
Xurui Technology
The vacuum blind hole electroplating technology is known for its superior performance, capable of quickly and accurately electroplating a layer of gold inside and outside extremely fine blind holes. This excellent electroplating process not only ensures the overall aesthetics of the metal surface but also has outstanding corrosion resistance and wear resistance. Both the inside and the outside of the hole present a bright golden color, and there will be no peeling or gold dropping issues.
smd & dip contact pad contact resistance
By combining mature design concepts, high-precision processing techniques, and excellent vacuum blind hole electroplating technology, we can achieve extremely low and stable contact resistance.
XURUI
SMD & Dip Contact Pad Technical Parameters
| Items | Details |
|---|---|
| Material | Plunger: Lead-Free Copper Alloy |
| Main Technical Parameters | Operating temperature: -40~+120°C（Standard） |
| Operating humidity: 20-85%RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85%RH | |
| Rating voltage: 36V AC/DC（Standard） | |
| Rating current: 2A/Pin Continuous（Standard） | |
| Contact resistance: 30 mΩ Max.（Standard） | |
| Withstanding voltage: 250V AC ,1 Minute | |
| Insulation resistance： 500 MΩ Min | |
| Durability：10,000 Cycle（Standard） | |
| Working Spring Force:50~180gf（Standard） | |
| Electroplating | Contact Pad: Ni Plating 1.4μm, Gold Plating 0.10μm |
| Contact Type | Vertical SMD Contact Type |
| Installation Method | SMT automatic placement machine+Reflow soldering |
| Environmental Protection Standard | Comply with EU RoHS and Reach standards |
xurui

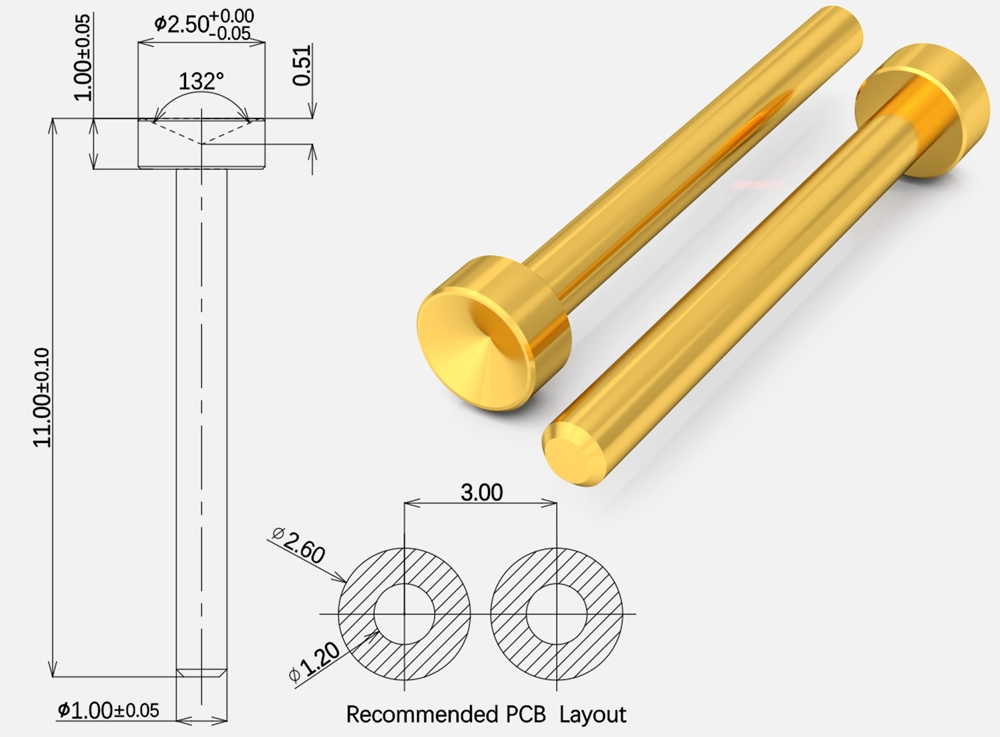

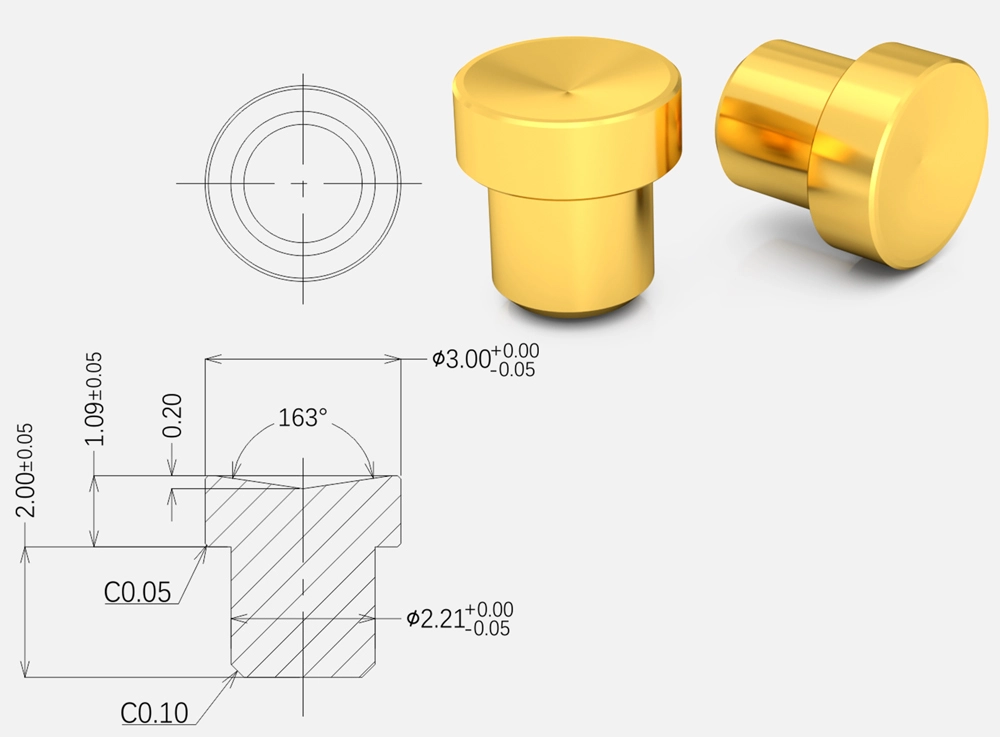

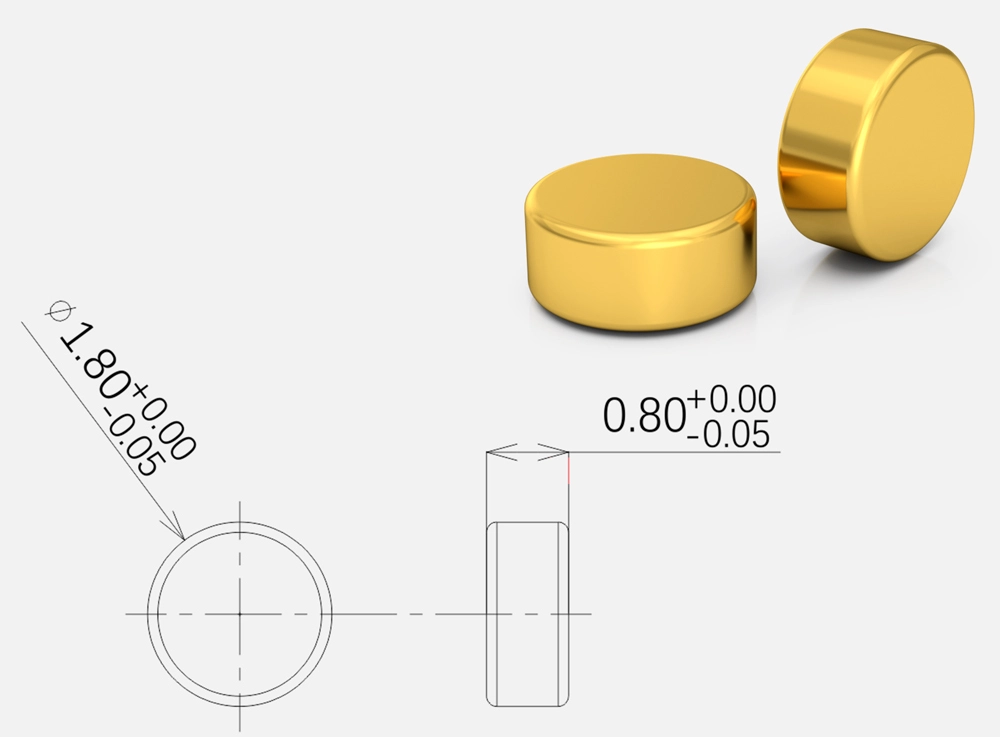

SMD & Dip Contact Pad Standard Product
