Side Contact Pogo Pin
Spring loaded right angle pin
Side contact pogo pins are also called spring loaded side contact pins, side contact spring loaded, springloaded side contact pin, and through hole mount springloaded side contact pins. Their core function is to connect conductive or signal conductors.
I Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance
I Installation method: SMT surface mount (SMD) reflow soldering
I Contact Resistance: 30 milliohms Max.
I Rated Current: 2A~30A (Continuous Current)
I Rated Voltage: 36V AC/DC
I Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)
I Operating Temperature: -40°C to +120°C (Continuous Temperature)
I Salt Spray Resistance 96 Hours Corrosion Test
I High-Precision Mold And Parts Processing
I A variety of standards are available, and samples will be sent out as soon as the same day.
I Provide Customized Services
I Comply With EU RoHS And Reach Standards
xurui
Side Contact Pogo Pin Product Details

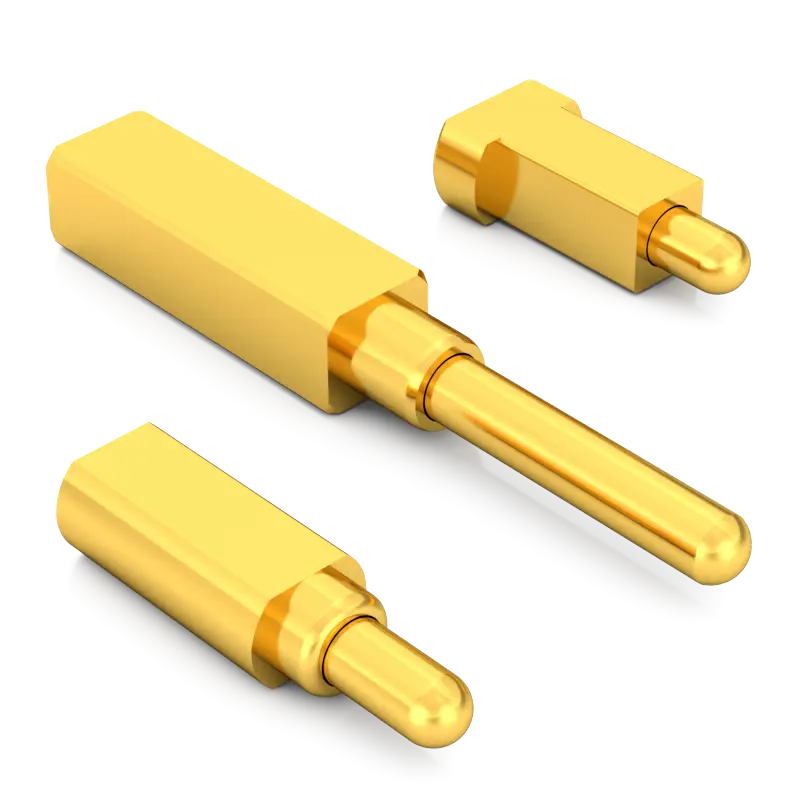

What is a side contact pogopin
Side Contact Pogo Pins are also called spring pins, Pogo Pin connectors, Right Angle spring-loaded Pins, and the core function of the Right Angle Pogo Pin is to connect conductive or conductive signals.
Side Contact Pogo Pins are designed with a bevel structure and built-in spring mechanism. They are mainly composed of three core components: Plunger, SolidPin, Spring and Body, and are assembled through precision molds and special equipment. The function of the bevel structure design is to ensure that when the Pogo Pins are working, the lateral force generated by the contact between the bevel and the spring is used to maintain a stable contact force between the needle and the inner wall of the needle tube, prompting the current path to mainly pass through the gold-plated needle (Plunger) and needle tube ( Body), resulting in stable and extremely low contact resistance, maintaining a stable and reliable connection even during frequent plugging and unplugging.
How to install side contact pogopin
SMT automatic patch reflow soldering technology: The SMT automatic patch machine automatically mounts Side Contact Pogo Pins onto the PCB circuit board with solder paste printed on it. The solder pins are accurately inserted into the PCB circuit board holes, and then the solder paste is melted through the reflow soldering process. And solidify to complete the fixed connection with the PCB pad. This process is fast, highly precise and highly automated, greatly improving production efficiency and product quality.

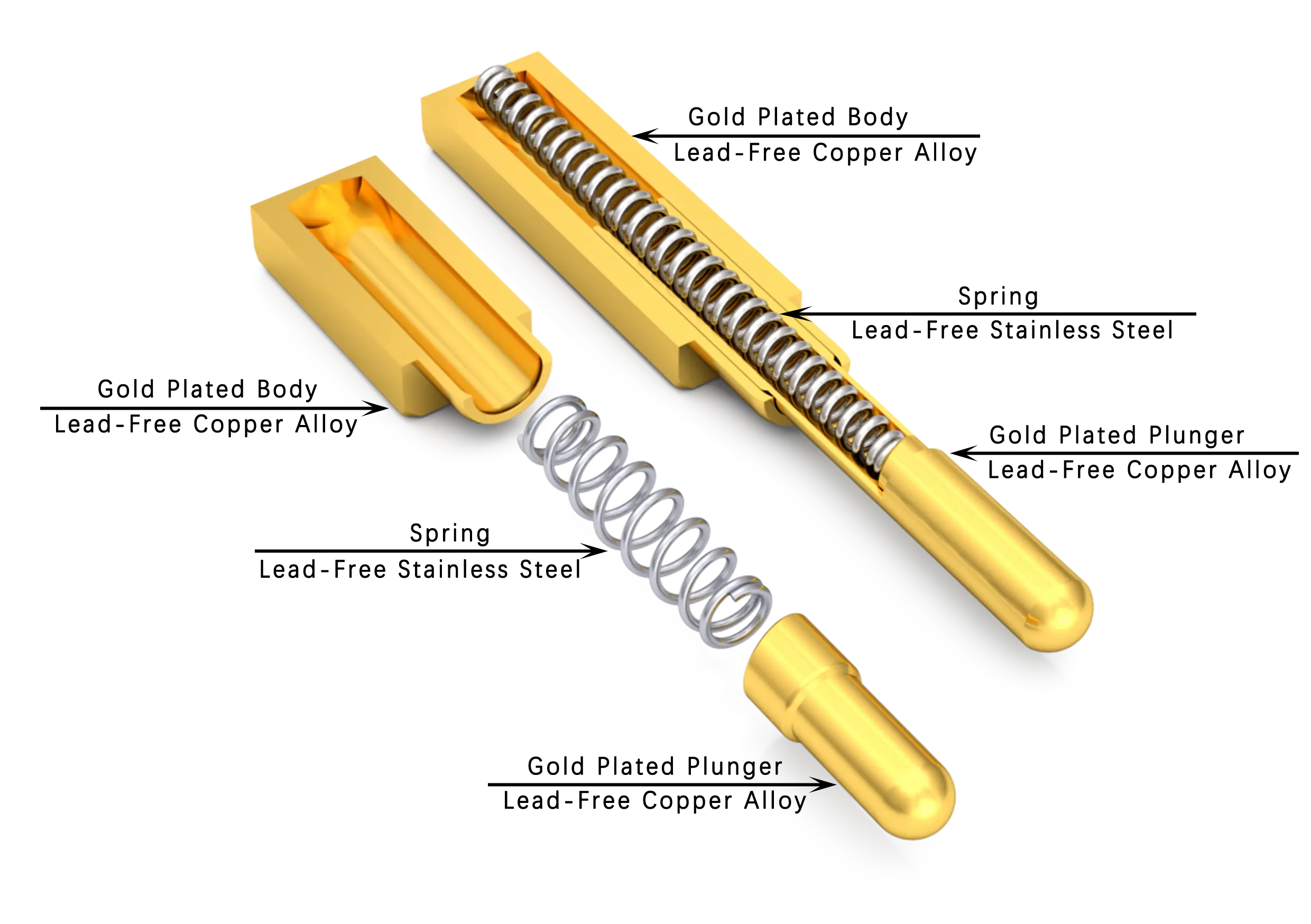

Side contact pogopin material & Parts
Side Contact Pogo Pin is a classification of Pogo Pin connector. It is a built-in spring connector designed and manufactured based on the bevel structure. It usually consists of three core parts: Plunger, SolidPin, Spring and Body. It is characterized by side contact type. Suitable for SMT automatic patch reflow soldering, high welding strength (stronger welding with PCB circuit board), low resistance, stable and reliable connection, long life, and more durable.

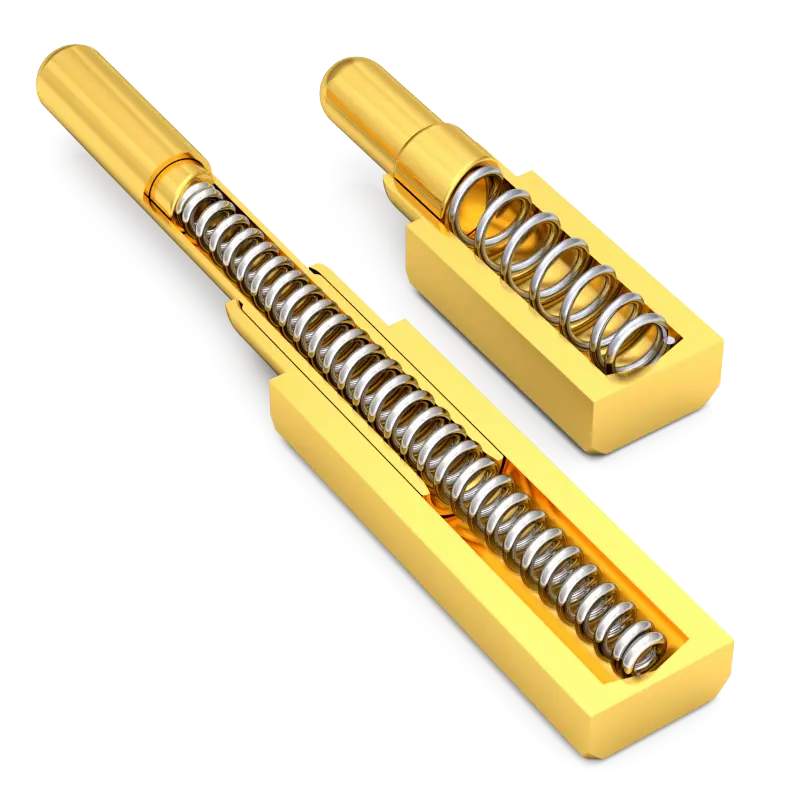

Internal structures
Side Contact Pogo Pin adopts Plunger bevel structure and Plunger inner hole bevel structure. Effectively ensure that lateral force is converted into contact force to ensure stable and reliable connection.

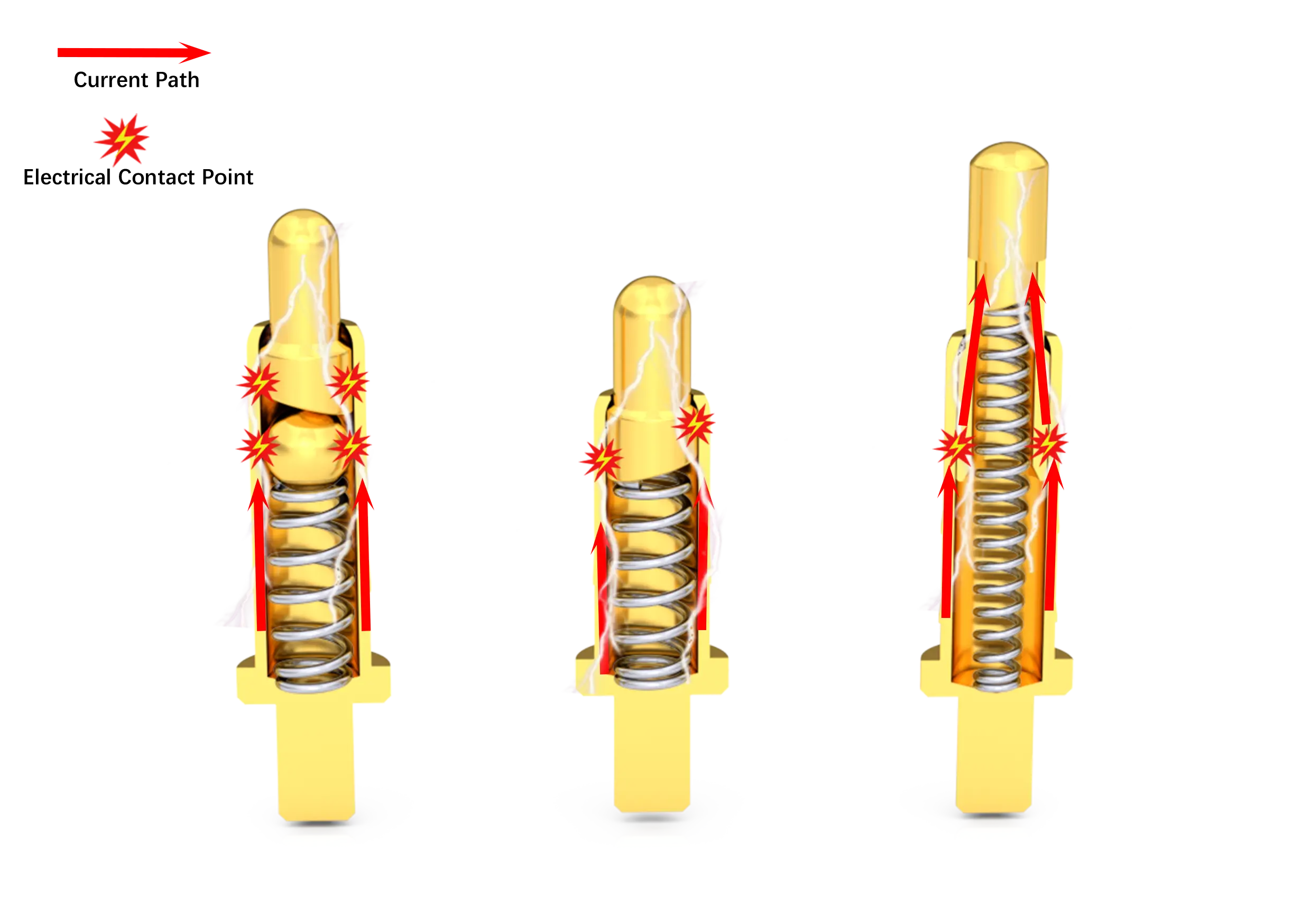

How do work
Contact force and contact resistance are the core factors forstable and reliable connections, and there is a direct relationship between contact force and contact resistance. lncreasing contact force can effectively reduce contact resistance. Therefore, achieving stable contact force and contact resistance is key to establishing a reliable connection.
When the bevel and spring are working, the lateral force generated is converted into contact force, allowing the gold-plated needle to maintain stable contact with the inner wall of the needle tube, thereby obtaining stable and extremely low contact resistance, ensuring a stable and reliable connection.
Xurui Technology
Vacuum blind hole plating technology is known for its excellent performance and can accurately plate a layer of gold inside and outside extremely fine blind holes. This advanced electroplating process not only ensures the overall beauty of the metal surface, but also provides excellent corrosion and wear resistance. Every detail, whether insideor outside the hole, shows a golden and shiny color, and there will be no peeling or gold falling off problems. The precision and stability of this technology ensure the durability and durability of the electroplated layer, meeting avariety of demanding application requirements.
Side contact pogopin contact resistance
Mature design, high-precision processing and advanced vacuum blind hole plating technology are combined to achieve extremely low and stable contact resistance.
XURUI
Side Contact Pogo Pin Technical Parameters
| Items | Details |
|---|---|
| Material | Plunger: Lead-Free Copper Alloy |
| Body: Lead-Free Copper Alloy | |
| Spring: Stainless Steel | |
| SolidPin: Lead-Free Copper Alloy | |
| Main Technical Parameters | Operating temperature: -40~+120°C（Standard） |
| Operating humidity: 20-85%RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85%RH | |
| Rating voltage: 36V AC/DC（Standard） | |
| Rating current: 2A/Pin Continuous（Standard） | |
| Contact resistance: 30 mΩ Max.（Standard） | |
| Withstanding voltage: 250V AC ,1 Minute | |
| Insulation resistance： 500 MΩ Min | |
| Durability：10,000 Cycle（Standard） | |
| Working Spring Force:40~180gf（Standard） | |
| Electroplating | Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm |
| Body: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| Contact Type | Vertical Contact Type |
| Installation Method | SMT automatic placement machine+Reflow soldering |
| Plugin machine + Wave soldering | |
| Environmental Protection Standard | Comply with EU RoHS and Reach standards |
xurui
Side Contact Pogo Pin Surface treatments
Electroplated Gold-Golden Yellow

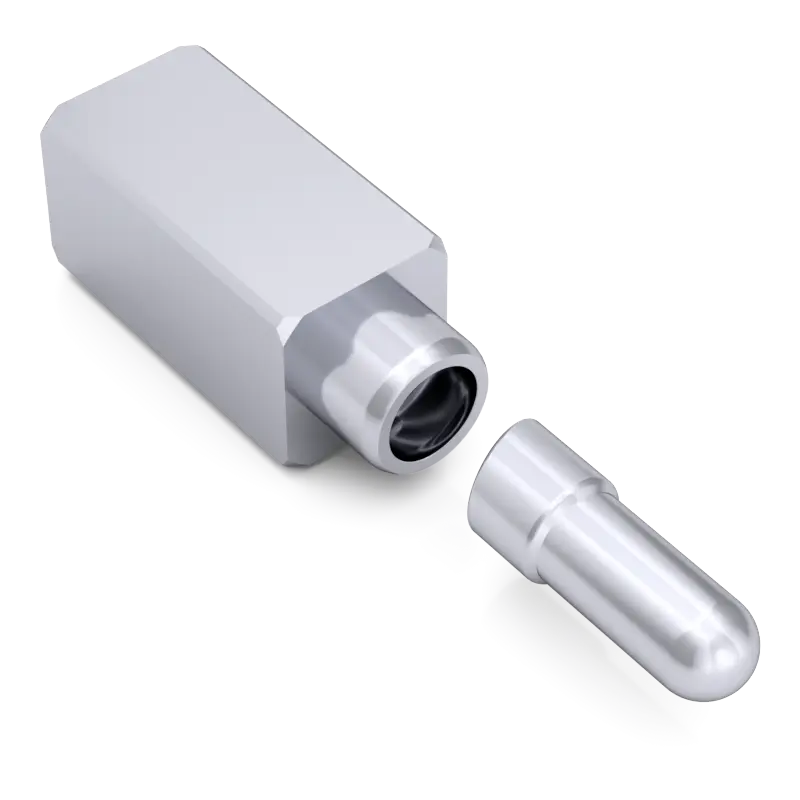

Electroplated Nickel—Silver White

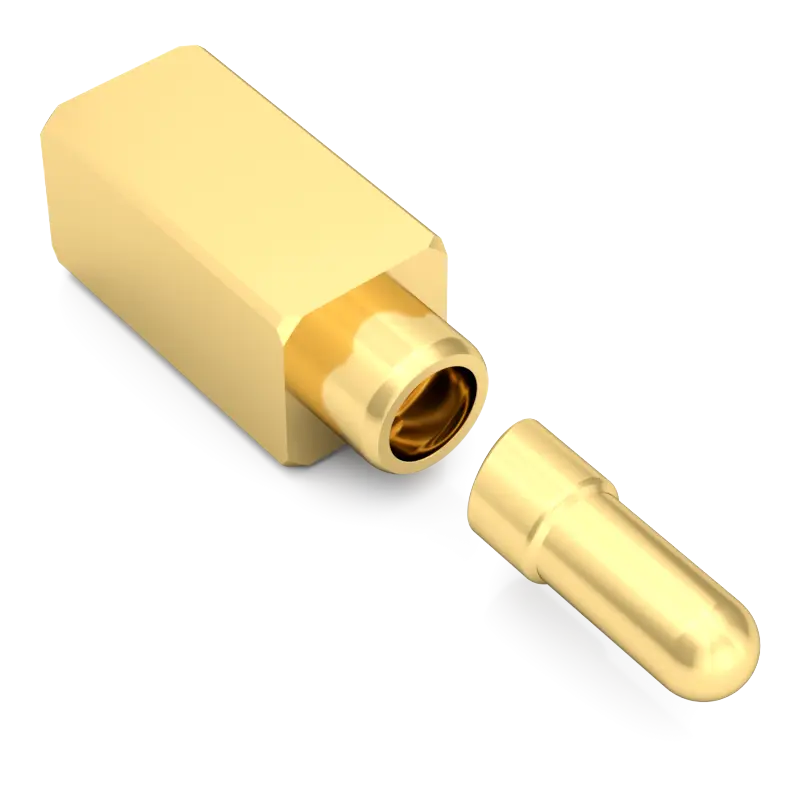

Before Electroplating - Brass Color
xurui

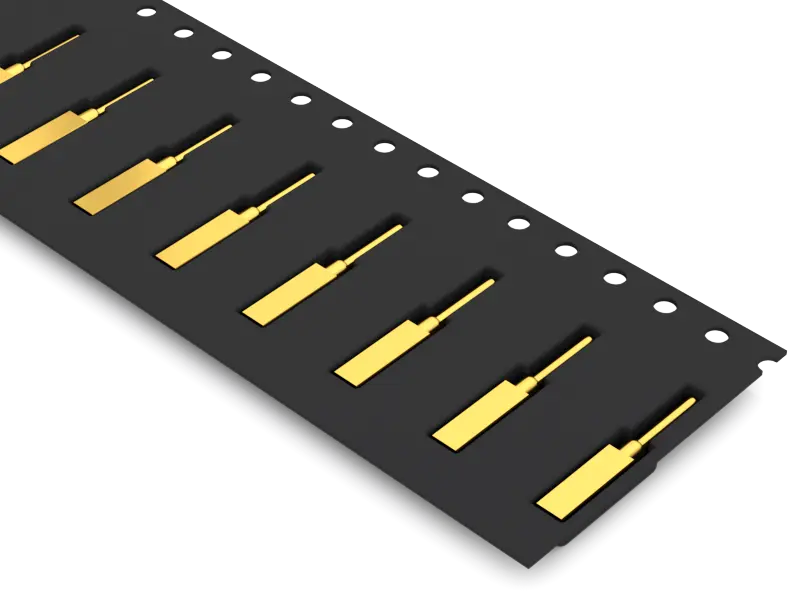

Side Contact Pogo Pin Packaging Method
Using SMD vacuum carrier tape packaging, automatic placement and reflow soldering fixation of SMT placement machines can be realized.
xurui

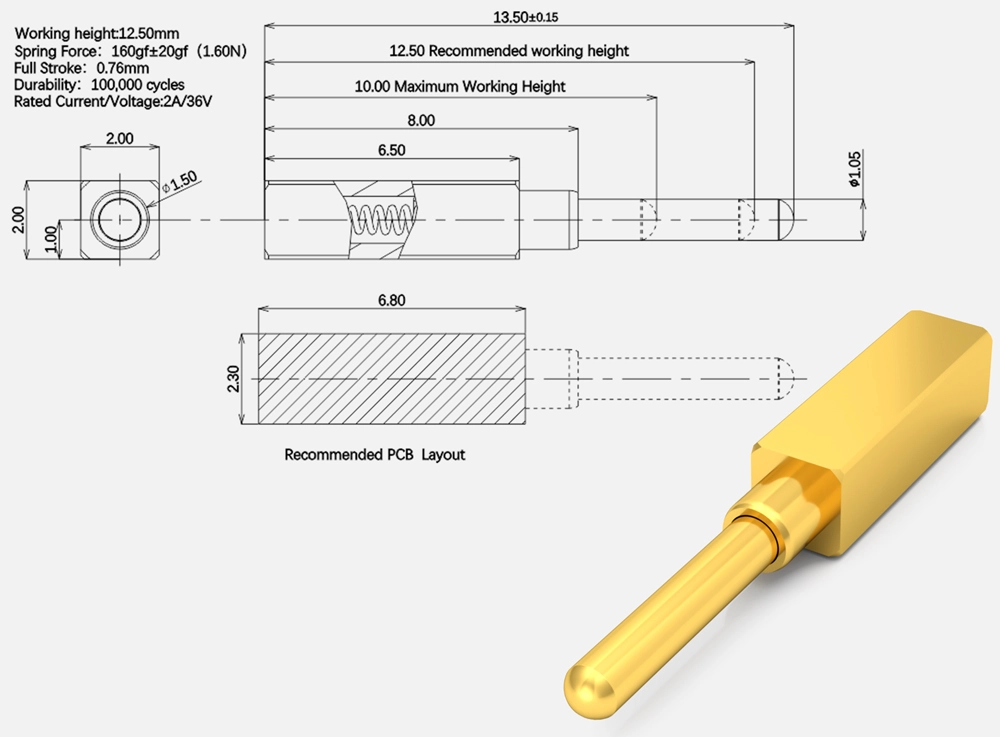

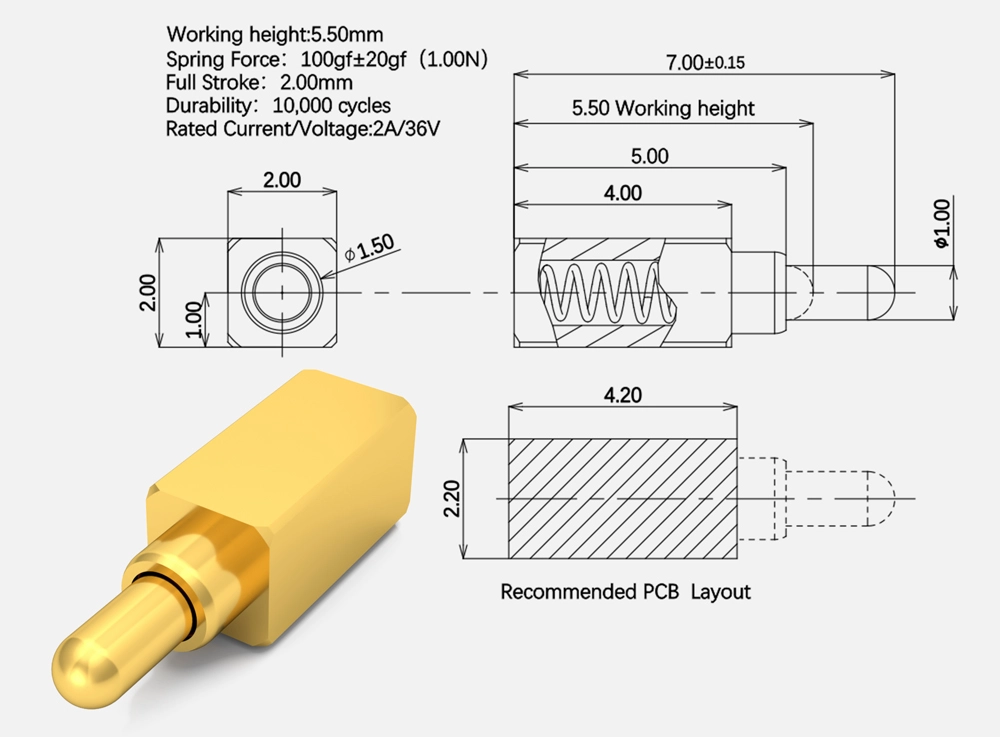

Side Contact Pogo Pin Standard Products
Pop Up Your Dreams
XURUI offers 24/7 ongoing global support, ensuring we’re there for clients whenever needed.
