Pogopin (Spring Loaded Pin)
what is a pogopin (Spring Loaded Pin)

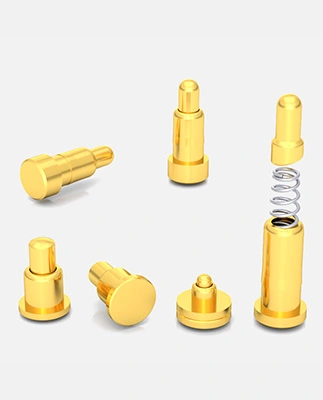

Pogopin is electronic connector designed based on a spring structure. It is mainly composed of three core parts: plunger, spring and Body, and is processed through precision molds and precision equipment. assembly. Among them, the contact surface between the needle (Plunger) and the spring is beveled. The role of the bevel design is to ensure that when the pogo-pin is working, the lateral force generated by the contact between the bevel and the spring is used to maintain stable contact between the needle and the inner wall of the needle tube. The current mainly passes through the gold-plated needle and needle tube to obtain stable and extremely low contact resistance, maintaining a stable and reliable electronic and electrical connection even during frequent plugging and unplugging.
Types of pogopins

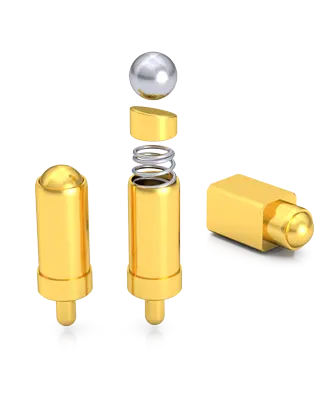

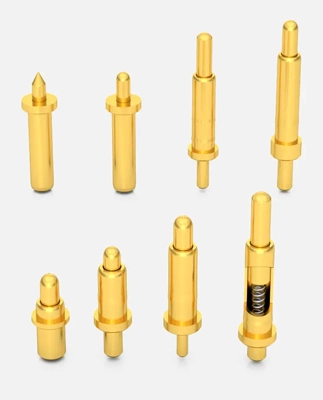

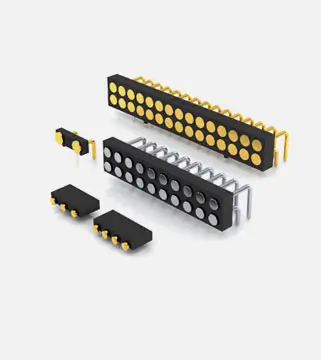

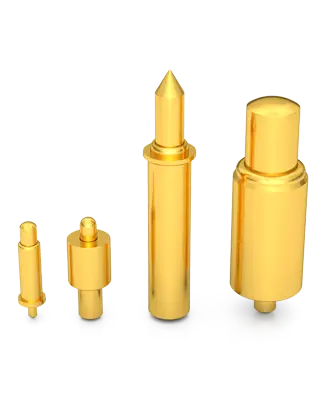

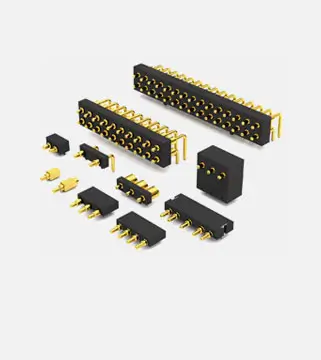

Pogo pins, also known as pogo pins, antenna pins, pogo pins, conductive pins, pogo pin connectors or pogo pin connectors. It is a commonly used component in PCB circuit boards. They can not only be soldered and fixed to the circuit board through SMT/SMD reflow soldering technology, but also soldered and fixed through wave soldering technology. The mounting and soldering methods of these pogo pins provide flexibility, allowing them to be used in a variety of applications. There are many types of pogo pins, such as SMD pogo pins, dip pogo pins, rolling ball pogo pins, right angle pogo pins, high current pogo pins and higher life pogo pins, etc. In addition, due to their wide range of applications, we have launched a variety of standard models of pogo pins for designers and engineers to choose from. At the same time, we also provide product customization services.
Application of pogopin
Because pogo pins provide a stable and reliable connection, they have become the first choice in the electronics industry, especially when high-frequency plugging and unplugging are required or in environments with vibration. They are also designed so that when components are worn or damaged, they can be replaced quickly and easily, greatly improving the maintenance efficiency and service life of electronic equipment.
Due to their excellent performance and flexibility, pogo pins have occupied an important position in the field of electronic manufacturing and are important components in the design of modern electronic products.
XUrui pogo pins
Xurui can manufacture custom pogo pin, receptacles,
or connector assemblies to your exacting-specifications.
Xurui has focused and deeply cultivated the Pogo Pin connector for more than ten years. It has turned customer’s special requirements, ideas and imagination into reality time and time again. More than 2000 kinds of customized product development experience, let Xurui understand your special After demand, we can quickly provide you with mature, stable and reliable product solutions.
Full-service Production
Xurui Connector Customization Process
I Fill in the custom Pin/Pogo Pin connector application form and send it to Xurui
I Xurui confirms the size and performance requirements through email or phone communication
I Xurui provides specification drawings (2D and 3D drawing)
I The customer confirms and signs back the plan drawings
I Xurui provides a quotation
I The customer confirms and signs the return price list
I Proofing confirmation samples (Proofing period 10-16 days)
XUrui pogo pins

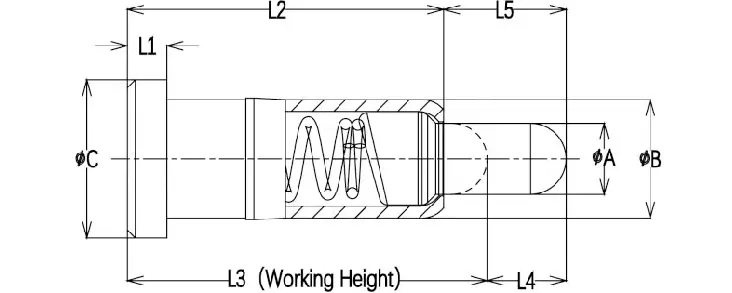

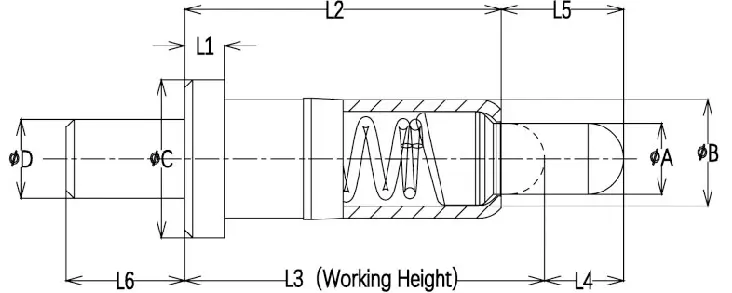

Custom Design of Spring Loaded Pogo Pin
XUrui pogo pins
Customized Design of Spring Loaded Pogo Pin Assembly (Open Mold for Plastic Part Design)
Xurui provides customized services for special requirements such as waterproof ( IPX7 / PX8 ) high-speed signal transmission, long life, high durability, high current, etc.
Pop Up Your Dreams
XURUI offers 24/7 ongoing global support, ensuring we’re there for clients whenever needed.
XUrui pogo pins

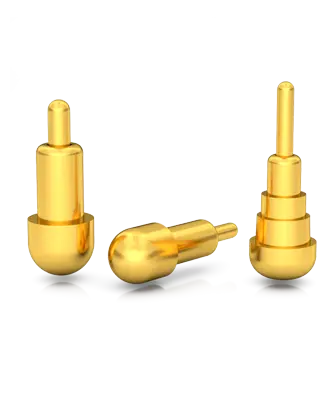

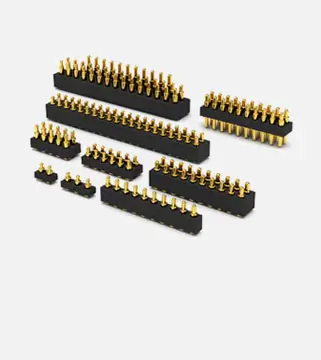

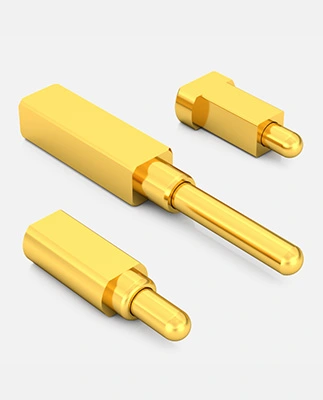

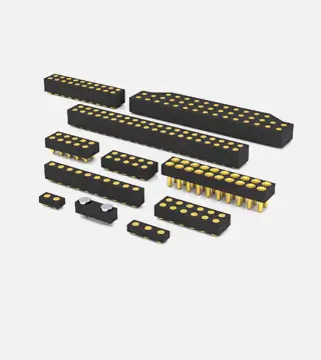

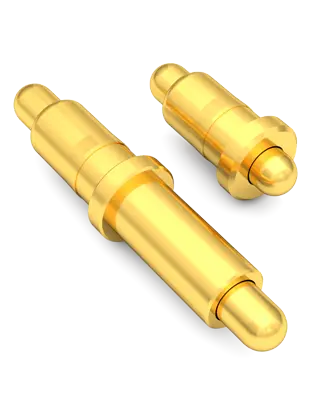

Different Types Of Pogo Pin
