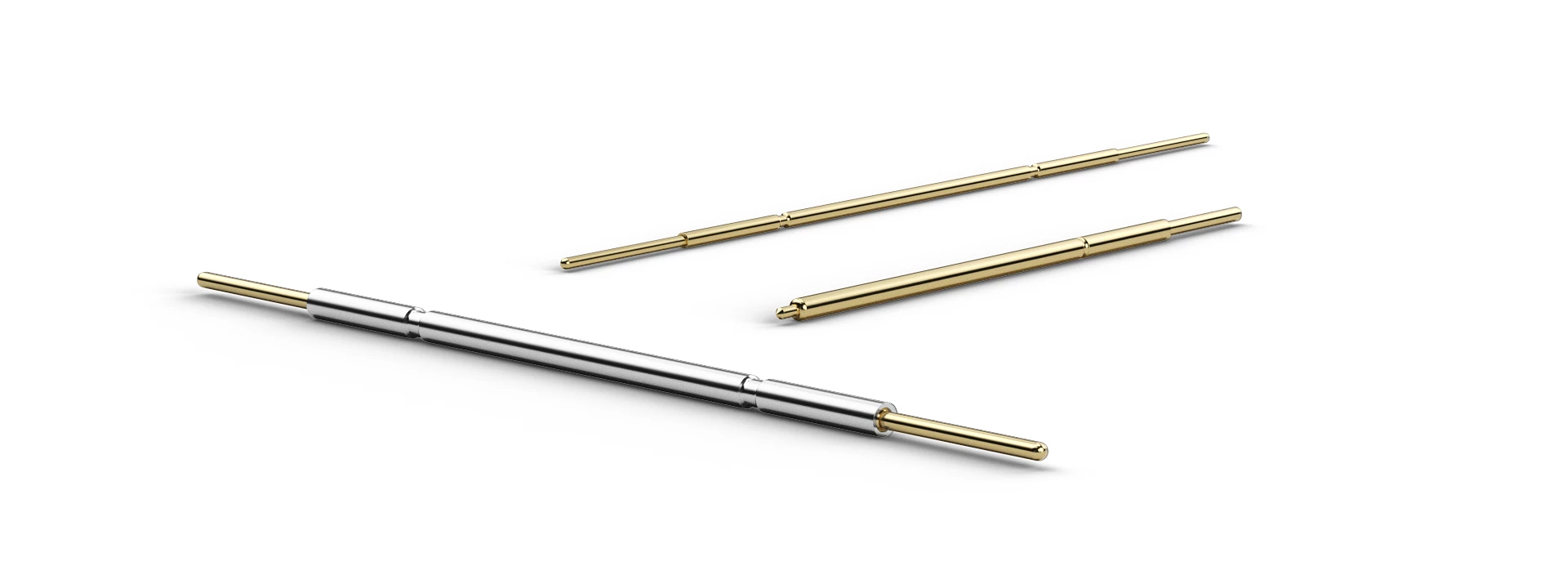

IN Circuit/Functional Test Probes
With advanced manufacturing techniques and a dedication to precision
we provide in circuit functional test probes that meet the high standards across diverse industries.
XURUI
xurui
IN Circuit/Functional Test Probes Product Detail
We offer all commercially available ICT/FCT probes for Circuit Board Testing. We also provide an innovative solution for challenging test conditions with our PROGRESSIVE series.
Testing the smallest PCBs presents special challenges. Only very small Contact Probes can access contact points that lie very close to one another. Discover our Fine Pitch Probes by clicking below.
Our portfolio’s probes, hallmarked by high precision and low resistance, are compatible with the market’s common test systems.

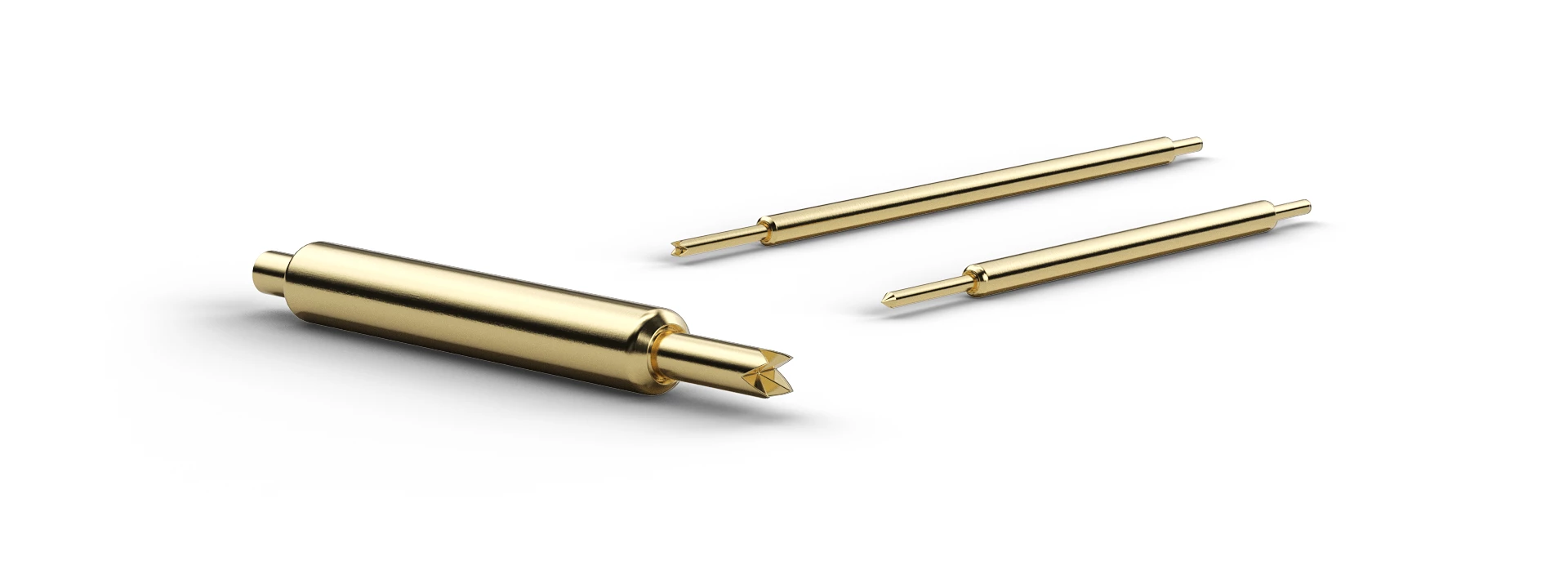

Sensors are extremely small components, which is why small pitches are a fundamental requirement. Achieve reliable testing of these sensors with our portfolio of Contact Probes. Just click below to browse our portfolio.
Xurui offers a very wide selection of Contact Probes that can establish reliable electrical connections to other components or PCBs. Click below to access our portfolio.
XURUI
Selection Guide of IN Circuit/Functional Test Probes
| ----------Product image---------- | Current Rating | Rated Resistance | Full Stroke | Rated Stroke | Spring Force | PDF Download | |
|---|---|---|---|---|---|---|---|

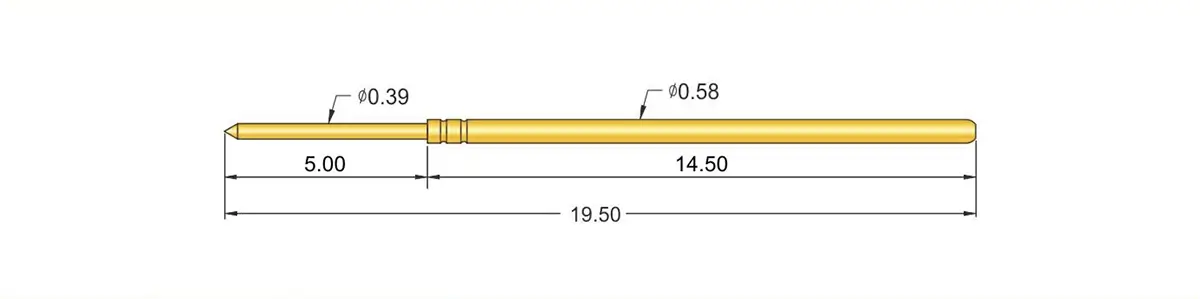

| SP-ICT058-X-2.4 |
|
2A | 50 milliohm max | 4.0mm | 2.60mm | 70gf@load 2.60mm(2.4oz) |
|

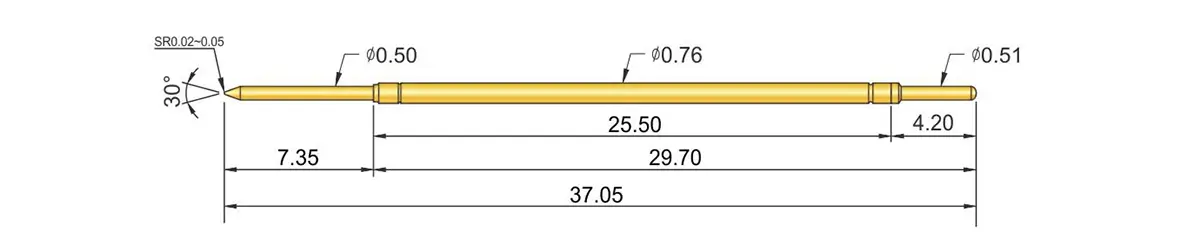

| SP-ICT076-XX-3.5-GG |
|
3A | 50 milliohm max | 6.35mm | 4.30mm | 95gf@load 4.30mm(3.5oz) |
|

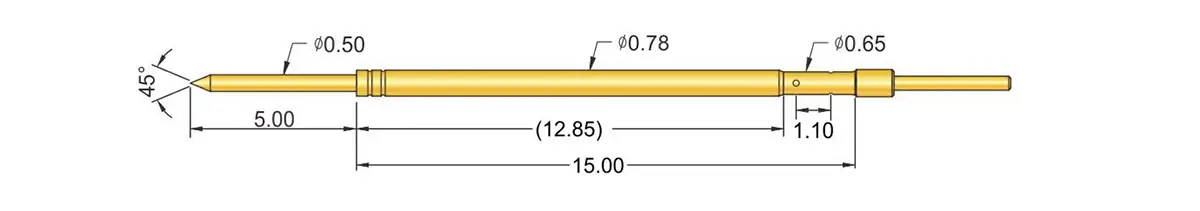

| SP-078-X-3.9 |
|
3A | 50 milliohm max | 4.00mm | 2.60mm | 110gf@load 2.60mm(3.9oz) |
|
| ----------Product image---------- | Current Rating | Contact Resistance | Spring Force at Stroke | PDF Download | |
|---|---|---|---|---|---|

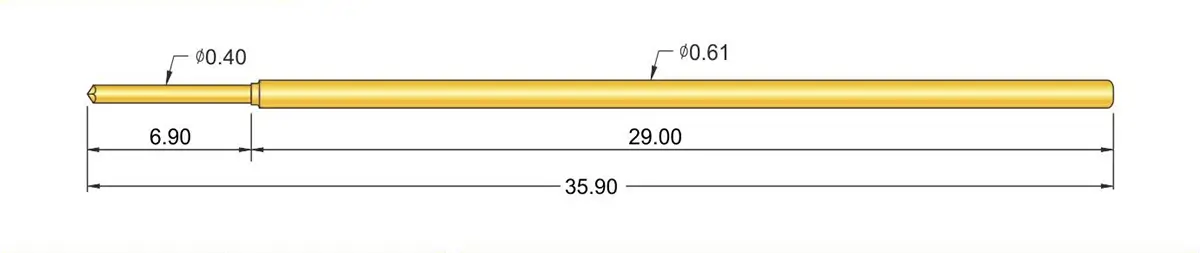

| SP040 |
|
2A | 30 milliohm max | 80gf |
|

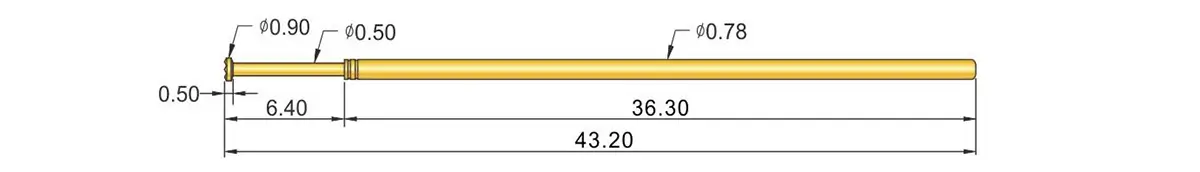

| SP050 |
|
3A | 30 milliohm max | 2N(200gf),3N(300gf) |
|

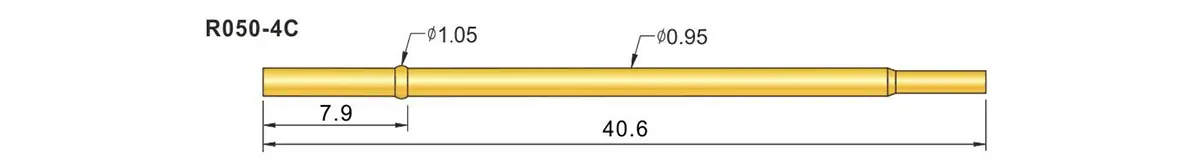

| R050 |
|
|
|||

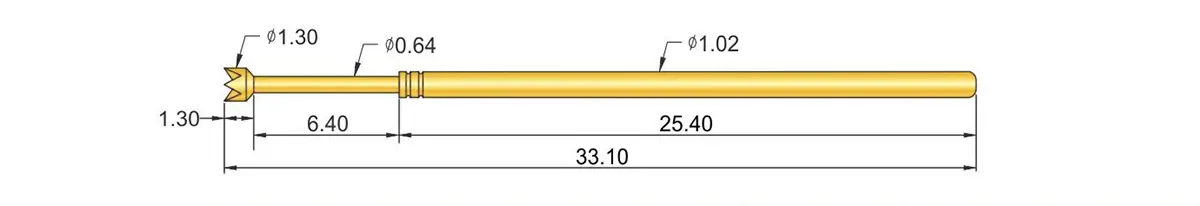

| SP075 |
|
3A | 30 milliohm max | 2N(200gf),3N(300gf) |
|

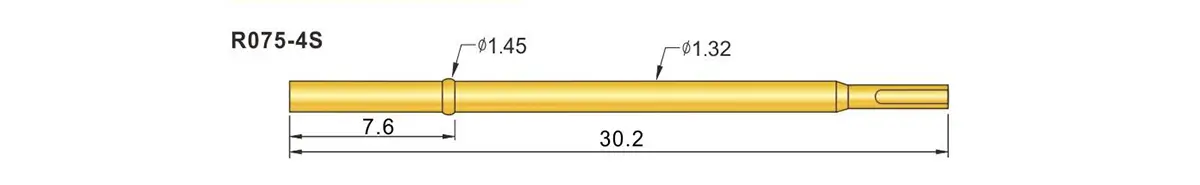

| R075 |
|
|
|||

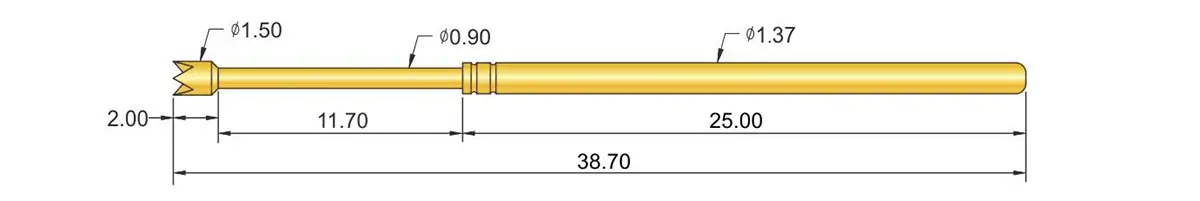

| SP135 |
|
5A | 30 milliohm max | 2N(200gf),3N(300gf) |
|

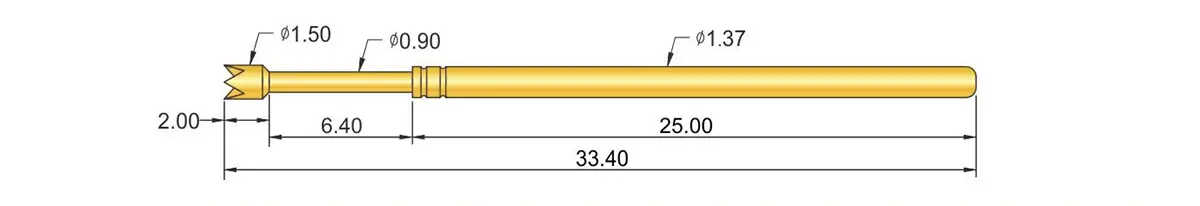

| SP100 |
|
5A | 30 milliohm max | 2N(200gf),3N(300gf) |
|

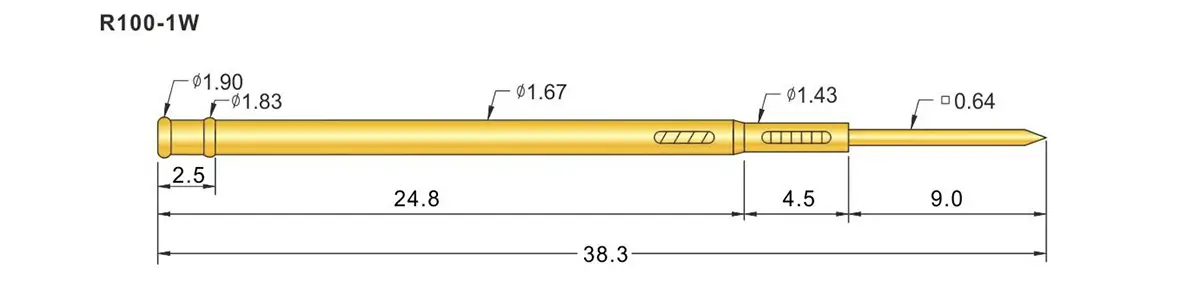

| R100 |
|
|
|||

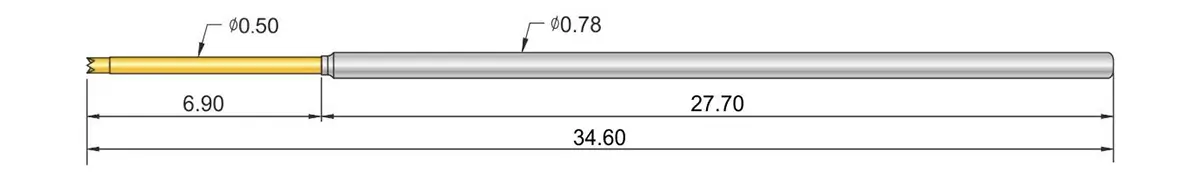

| SQ050 |
|
3A | 30 milliohm max | 2N(200gf),3N(300gf) |
|

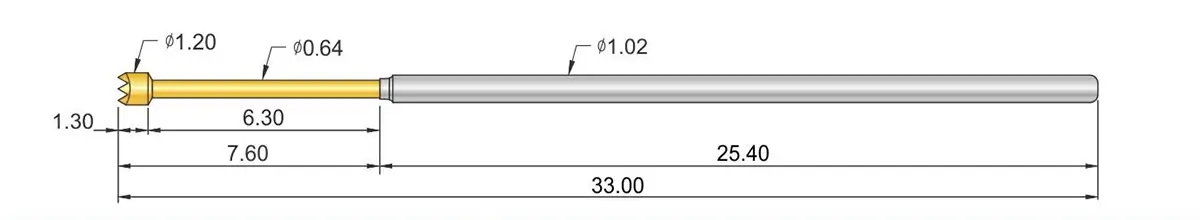

| SQ075 |
|
3A | 30 milliohm max | 2N(200gf),3N(300gf) |
|

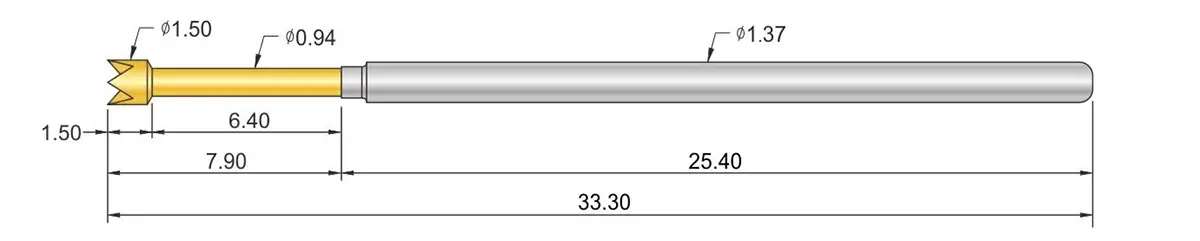

| SQ100 |
|
5A | 30 milliohm max | 2N(200gf),3N(300gf) |
|
| ----------Product image---------- | Hole Size | Current Rating | Contact Resistance | Spring Force at Stroke | PDF Download | |
|---|---|---|---|---|---|---|

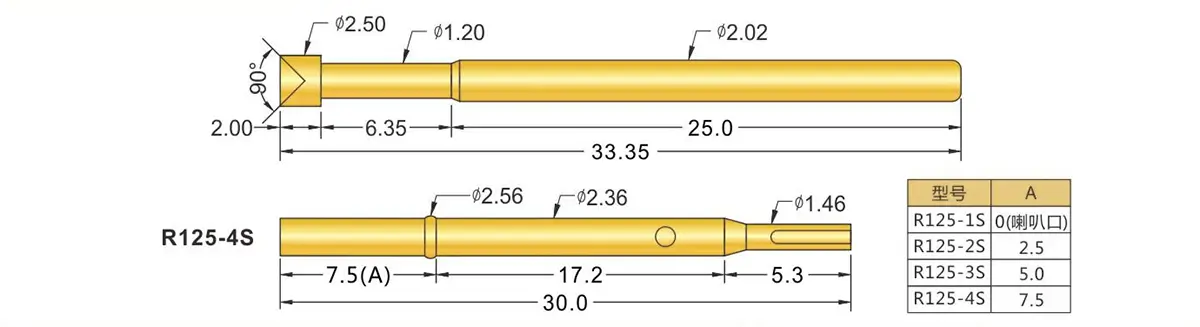

| SP125 |
|
2.4mm | 5A | 50 milliohm | 1.8N(180gf),3.5N(350gf) |
|

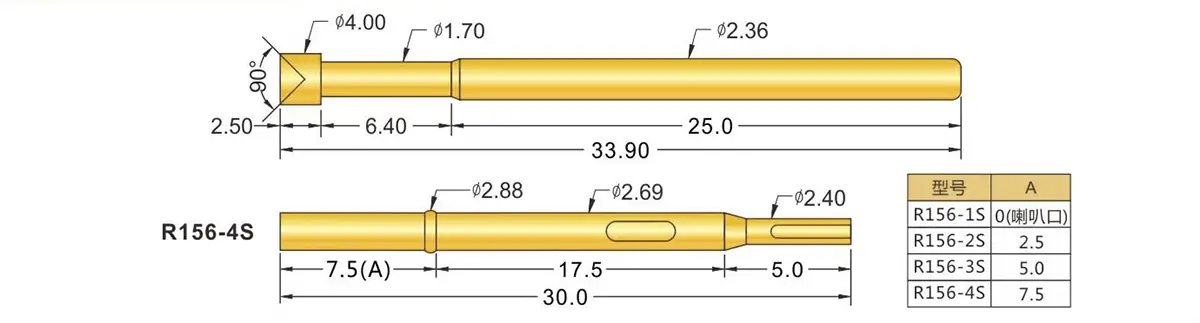

| SP156 |
|
2.75mm | 5A | 50 milliohm | 2.5N(250gf),3.5N(350gf) |
|

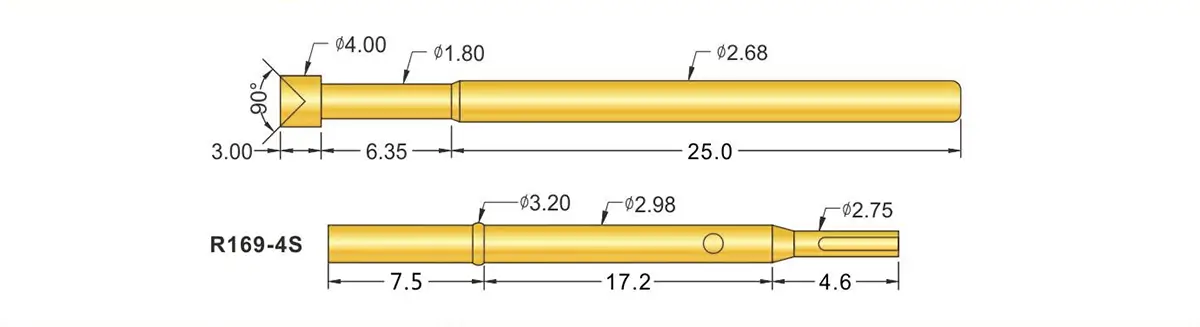

| SP169 |
|
3.0mm | 5A | 50 milliohm | 6N(600gf) |
|

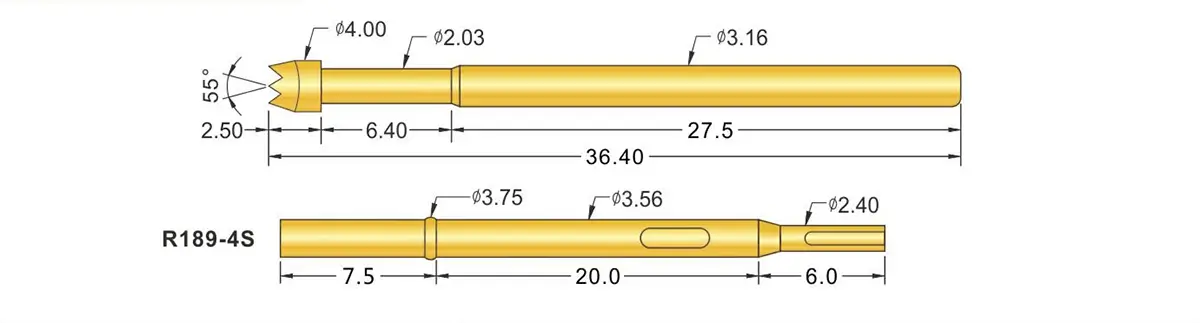

| SP189 |
|
3.6mm | 5A | 50 milliohm | 6N(600gf) |
|
IN Circuit/Functional Test Probes Solution
Solutions that guarantee the highest quality, regardless of the application. Discover more now!
