High Current Test Probes

With advanced manufacturing techniques and a dedication to precision
we provide high current test probes that meet the high standards across diverse industries.

high current test probe
high current pogo pins, crown pogo pin
high current pogo pin
circuit probe test, large diameter pogo pins
XURUI

I Pulse currents up to 1500 A

I Lowest contact resistance

I Modular designed solutions

I Customized solutions

Send Inquiry
CHAT US NOW
Send Inquiry
CHAT US NOW
xurui

High Current Test Probes Product Detail

XURUI

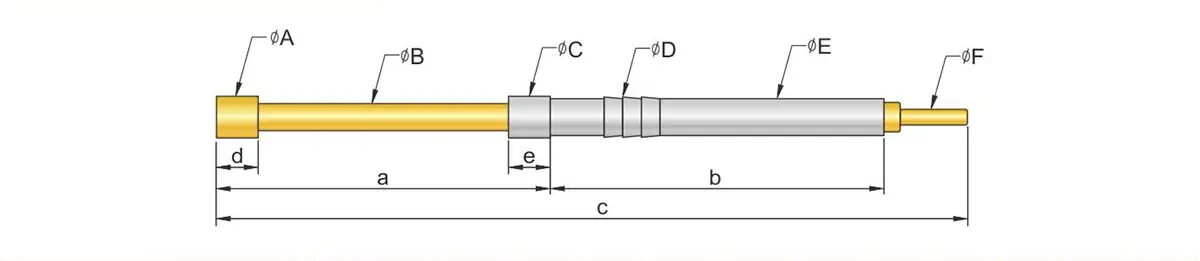

Selection Guide of High Current Test Probes

----------Product image---------- Hole Size Current Rating Rated Resistance Spring Force(The brackets are customized) PDF Download

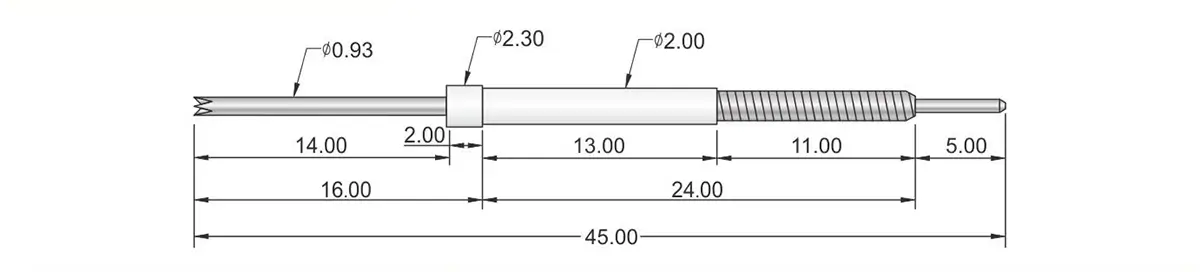

PH-101 high-current test probes manufacturer 2.0mm 200g Stroke high-current test probes manufacturer PDF

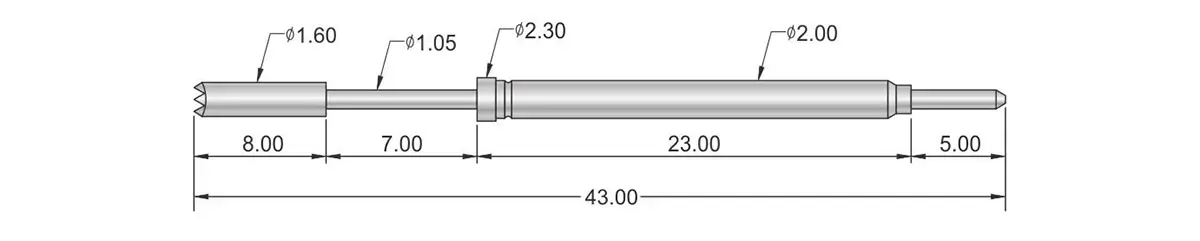

PH-10 high-current test probes for sale 2.0mm 200g Stroke high-current test probes for sale PDF

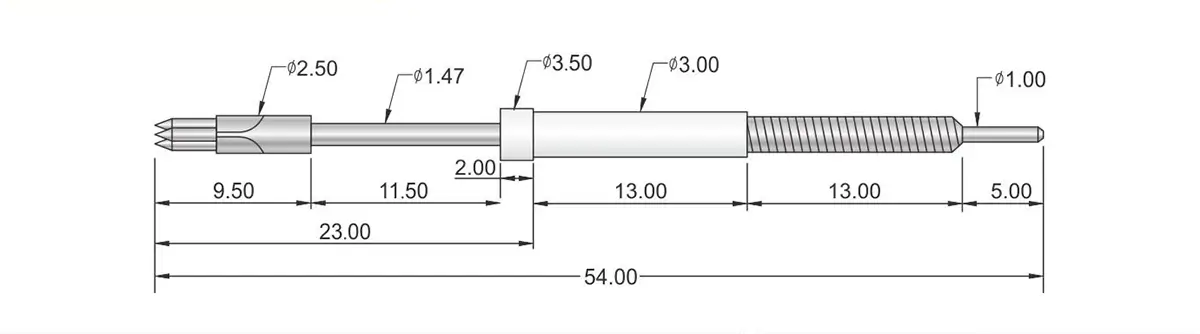

PH-15 high-current test probes factory 3.0mm 270g(100g) Stroke high-current test probes factory PDF

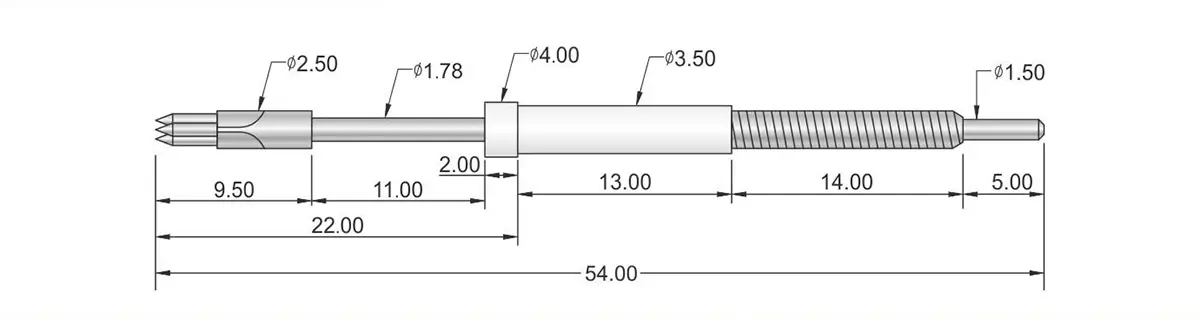

PH-18 high-current test probes company 3.5mm 200g(300g)(600g) Stroke high-current test probes company PDF
PH-1,2,3,4,5,6 high-current test probes supplier 3.5-10.5mm 100g-250g Stroke high-current test probes supplier PDF

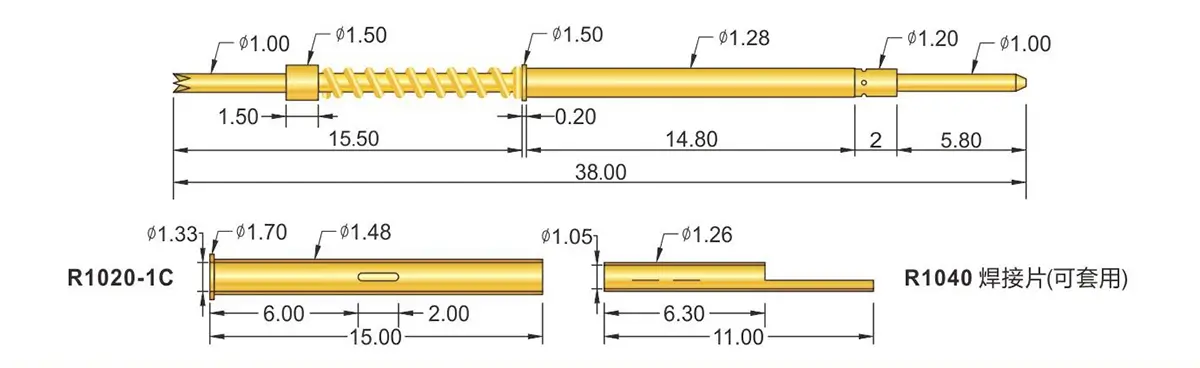

PH-1020 high-current test probes wholesale 1.33mm(or1.5mm) 150g(220g)(350g) full high-current test probes wholesale PDF

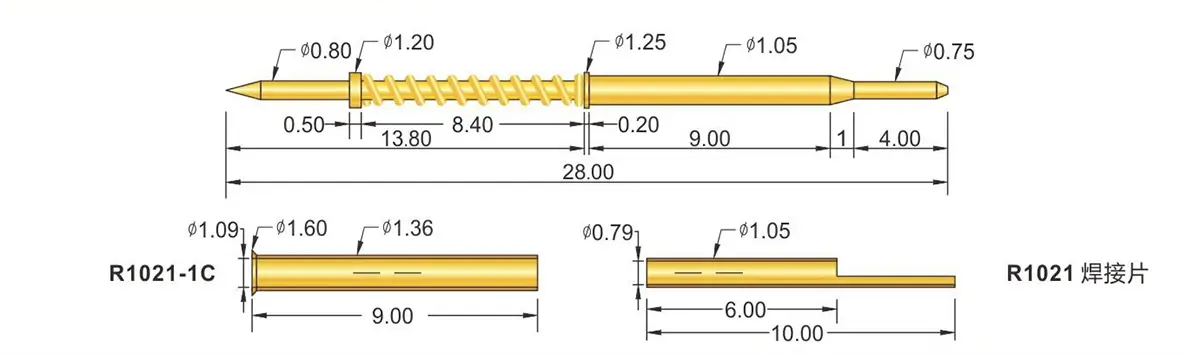

PH-1021 high-current test probes prices 1.05mm(or1.35mm) (60g)150g full high-current test probes prices PDF

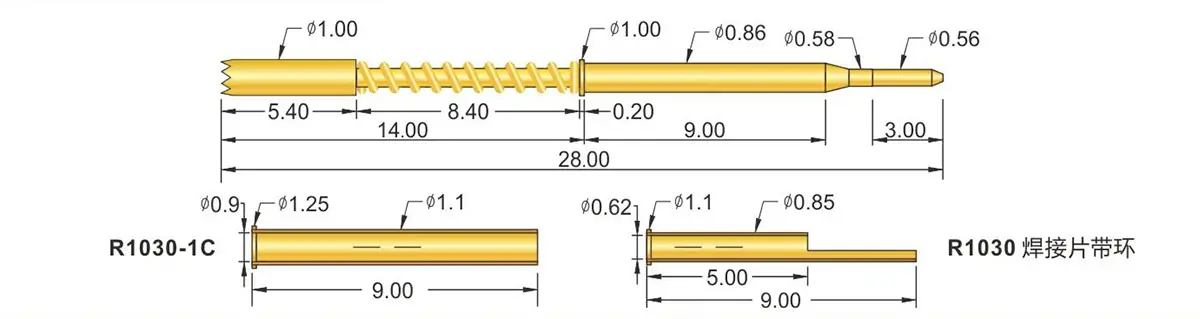

PH-1030 high-current probes manufacturer 0.85mm(or1.10mm) 100g(150g) full high-current probes manufacturer PDF

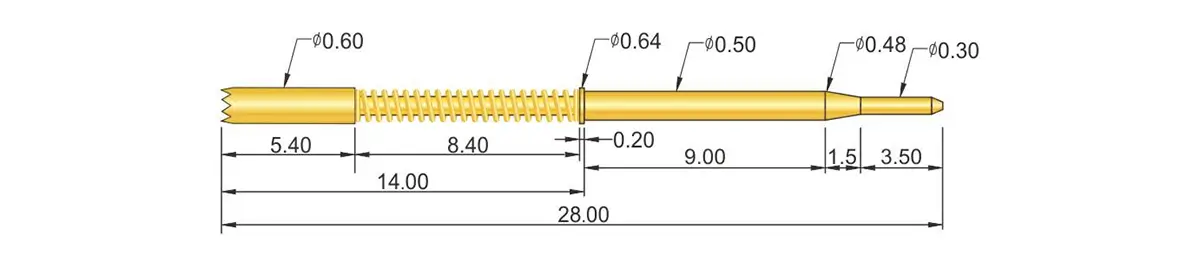

PH-1034 high-current probes for sale 0.5mm(or0.7mm) 120g(240g) full high-current probes for sale PDF

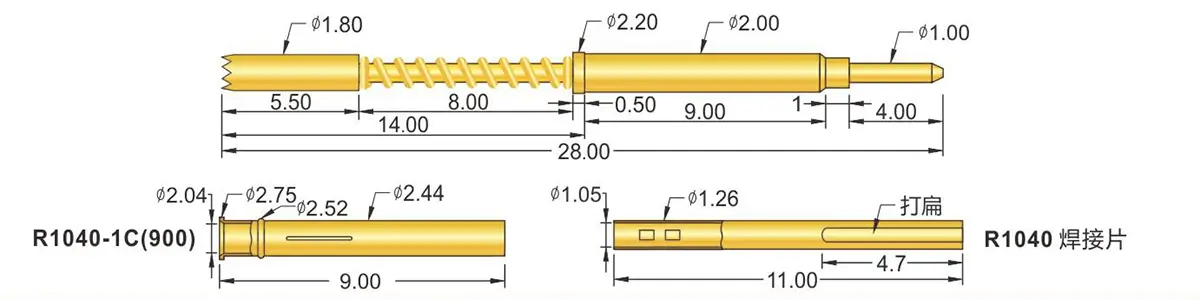

PH-1040 high-current probes factory 2.0mm(or2.5mm) 120g,240g,280g full high-current probes factory PDF

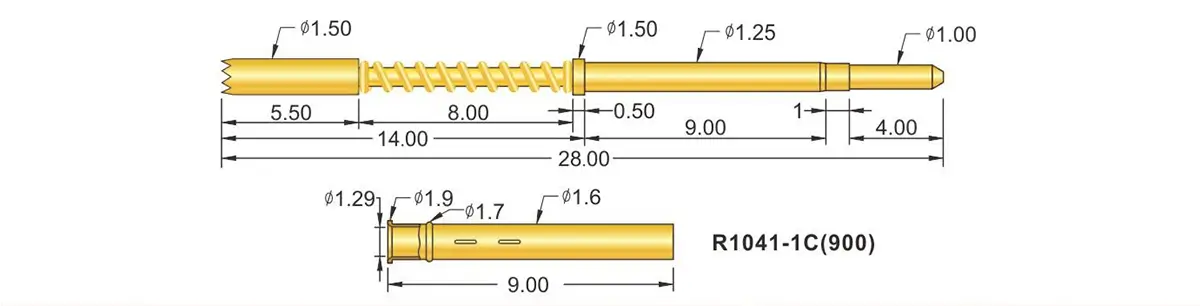

PH-1041 high-current probes company 1.25mm(or1.65mm) 120g,240g,280g full high-current probes company PDF

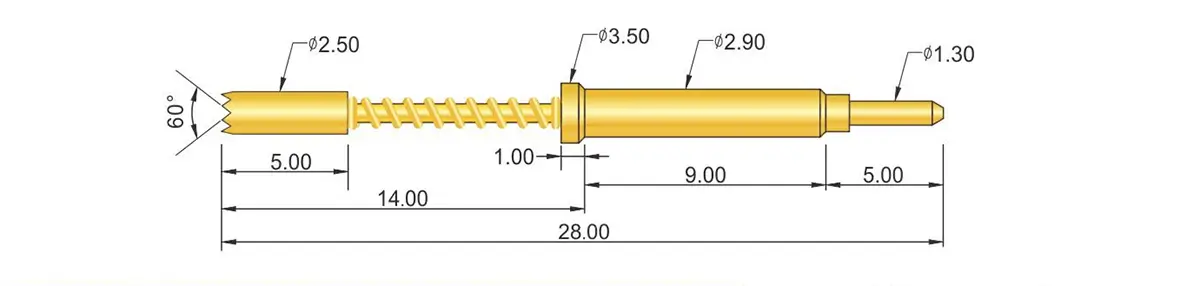

PH-1050 high-current probes supplier 2.9mm(or3.3mm) (200g)250g(350g)(400g) full high-current probes supplier PDF

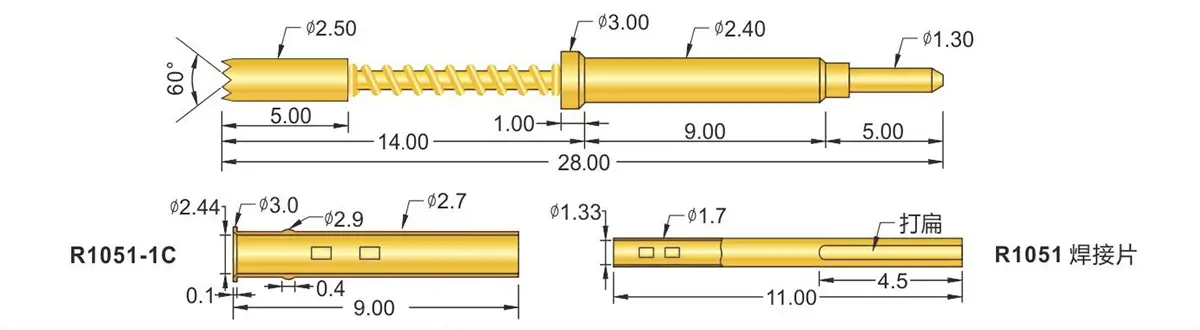

PH-1051 high-current probes wholesale 2.4mm(or2.8mm) (200g)250g(350g)(400g) full high-current probes wholesale PDF

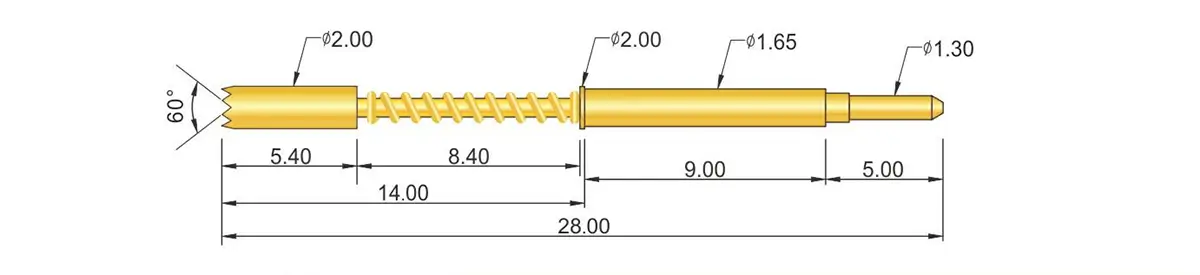

PH-1052 high-current probes prices 1.65mm(or2.05mm) (200g)250g(350g)(400g) full high-current probes prices PDF

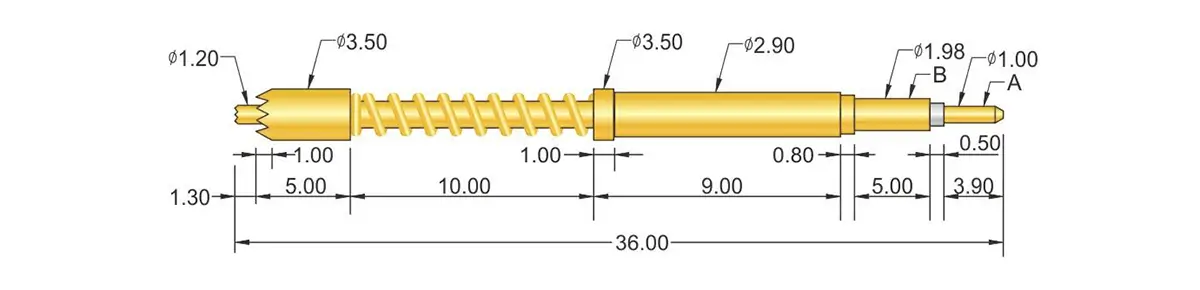

Current and voltage 290x3600 custom high-current probes 15A <30 milliohm custom high-current probes PDF

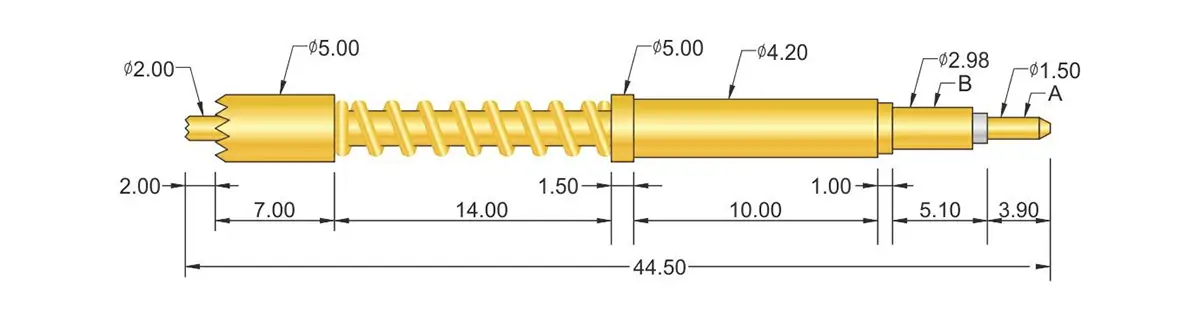

R50Current and voltage 420x4450 OEM high-current probes 15A <30 milliohm OEM high-current probes PDF

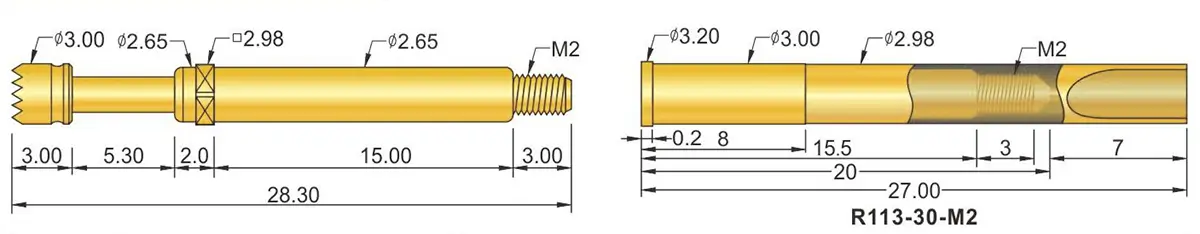

High current probe JTS120 ODM high-current probes 24A <10 milliohm 230g(300g) work ODM high-current probes PDF

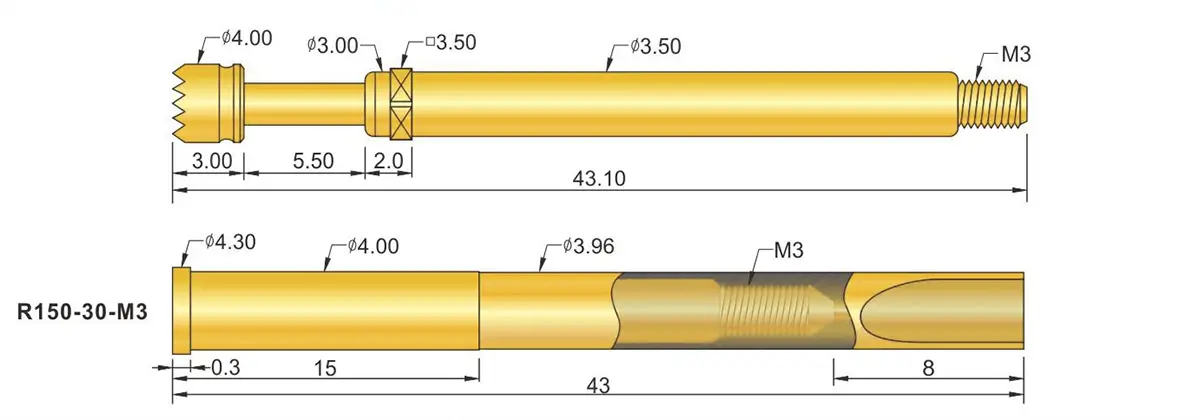

High current probe JTS150 customize high-current test probes 50A <8 milliohm 300g work customize high-current test probes PDF

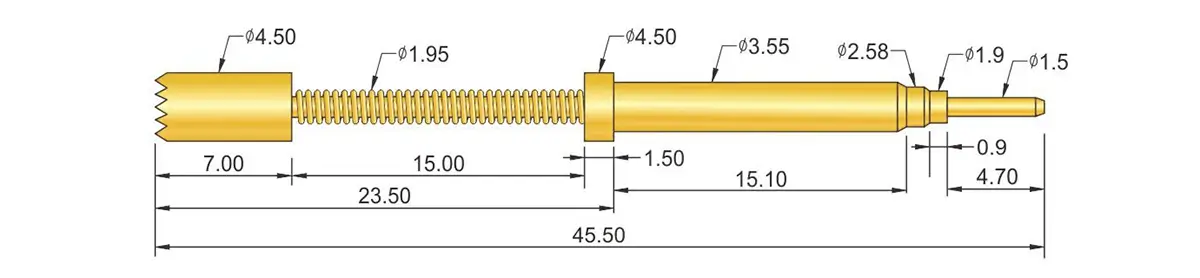

High current probe JTS355 odm high-current test probes 12A <15 milliohm (200g)480g work odm high-current test probes PDF

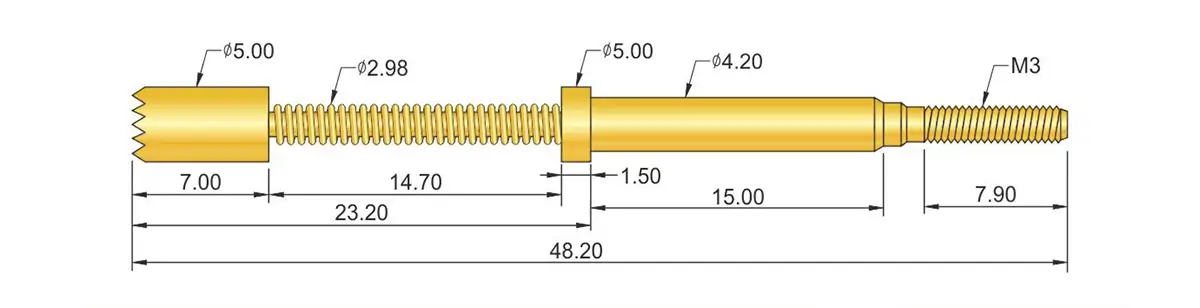

High current probe JTS420 oem high-current test probes 15A <12 milliohm 650g(1000g)(1800g) work oem high-current test probes PDF

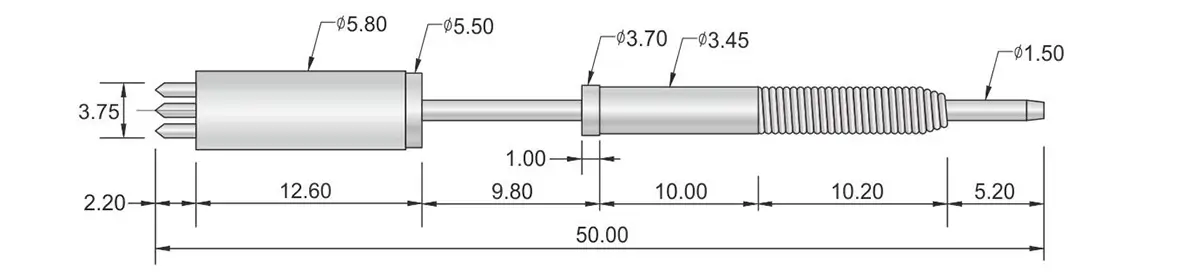

Capacitor Polarity Probe PH18 test probes prices 3.45mm 530g outer test probes prices PDF

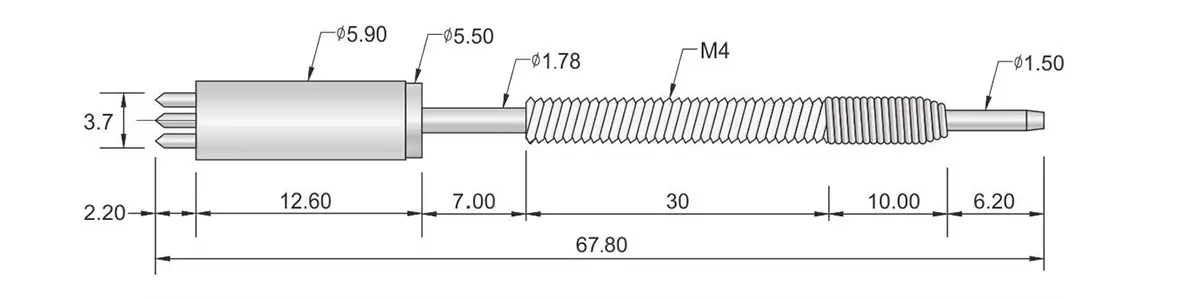

Capacitor Polarity Probe M4 X 6780 customize probes prices 4.0mm 350g outer customize probes prices PDF

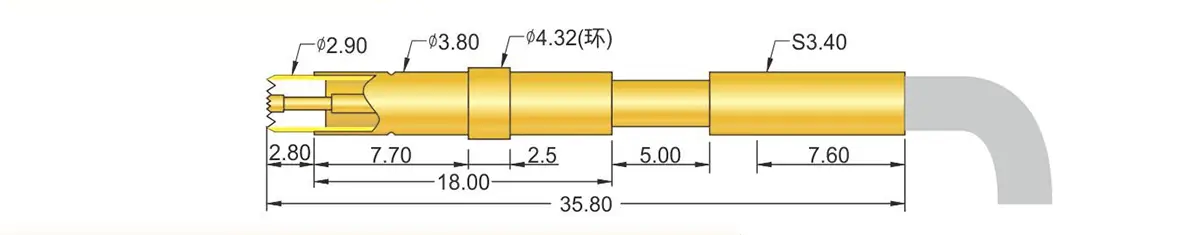

High-Frequency Probe 10445 test probes factory phone 3A test probes factory phone PDF

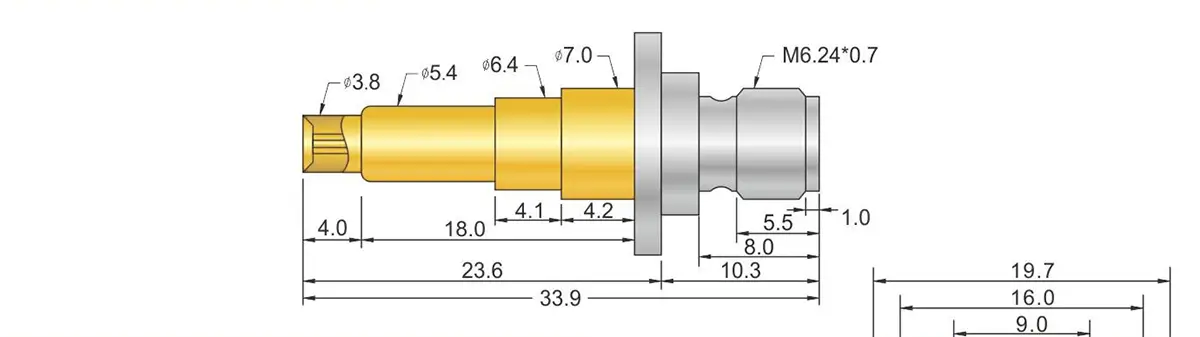

High-Frequency Probe JT-CT test probes supplier near me 3A 50 milliohm 300g test probes supplier near me PDF

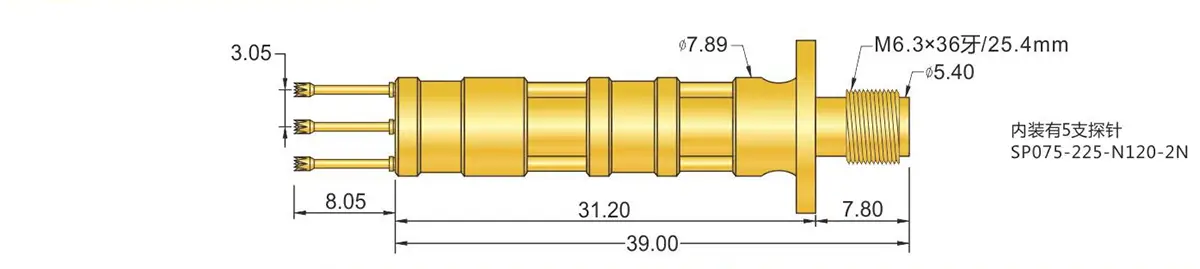

High-Frequency Probe JTK-50L-Q test probes manufacturer near me test probes manufacturer near me PDF

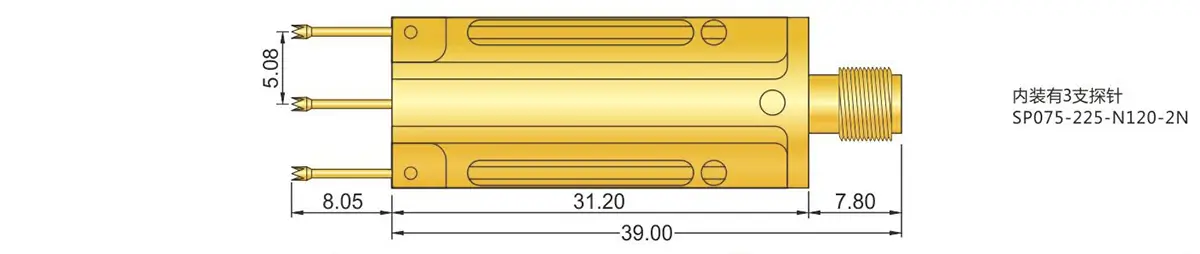

High-Frequency Probe JTK-50L customize test probes customize test probes PDF

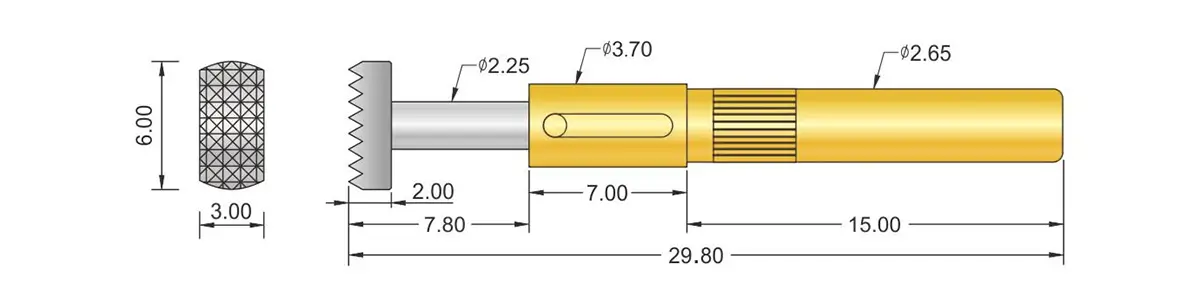

Directional probe 265X2980-H high precision high-current test probes 8-10A 50 milliohm high precision high-current test probes PDF

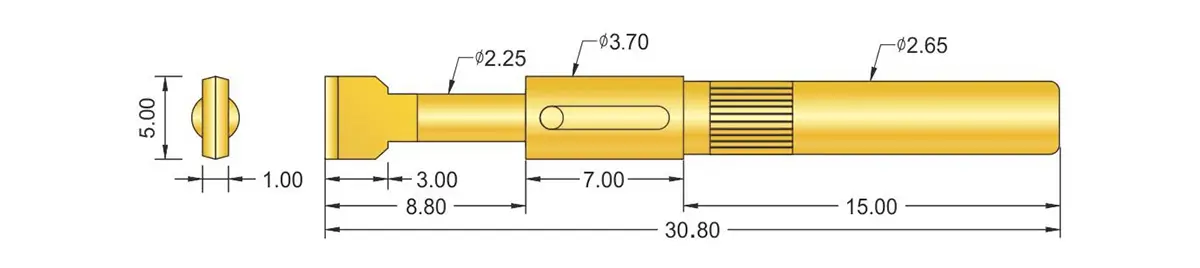

Directional probe 265X3080-T affordable high-current test probes 8-10A 50 milliohm affordable high-current test probes PDF
XURUI

Selection Guide of High Current Test Probes

Main Material: Beryllium copper
Applicable: Square case power battery
Plating: NI≥2um AU≥0.2um
----------Product image---------- Size Working Current Fixture Resistance Temperature PDF Download

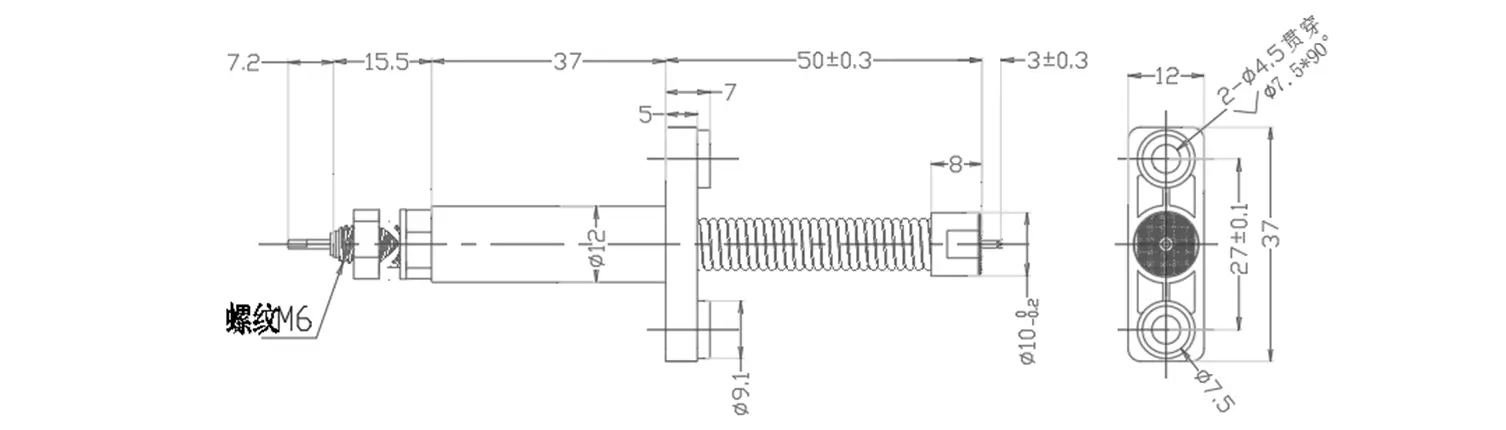

GP-11301 112.7*37*12mm 0-10A <3mΩ <120°C

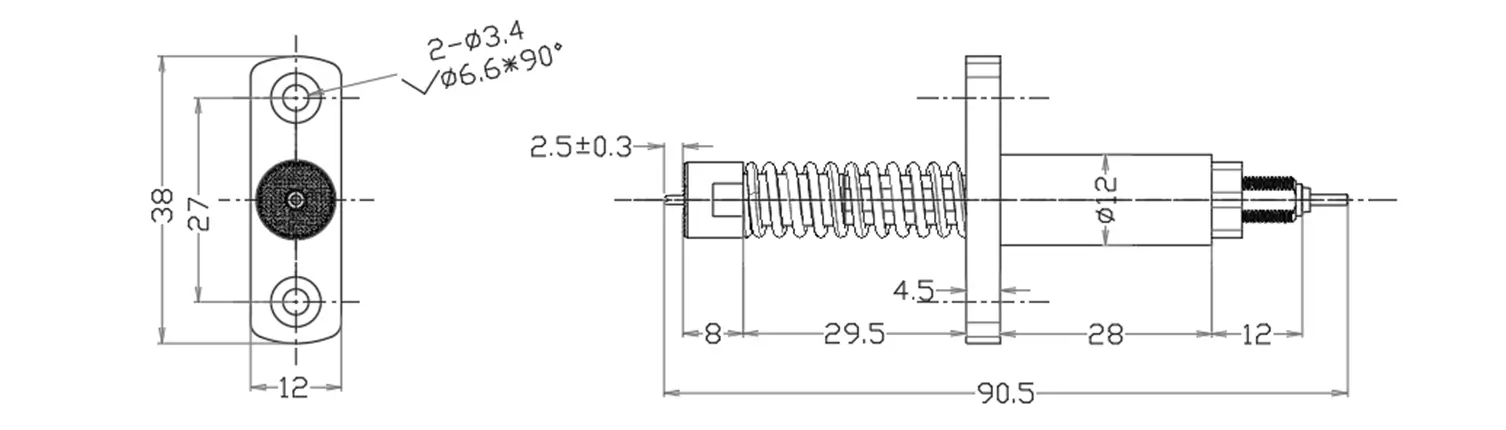

GP-11406 90.5*38*12mm 0-10A <2mΩ <120°C

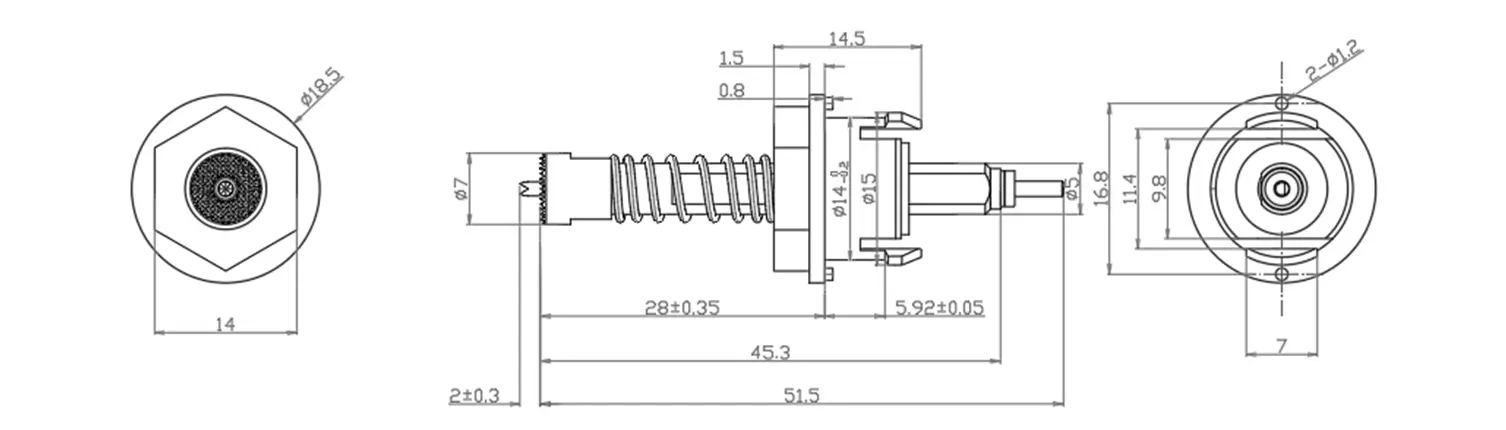

GP-11279 Φ18.5*53.5mm 0-10A <10mΩ <100°C

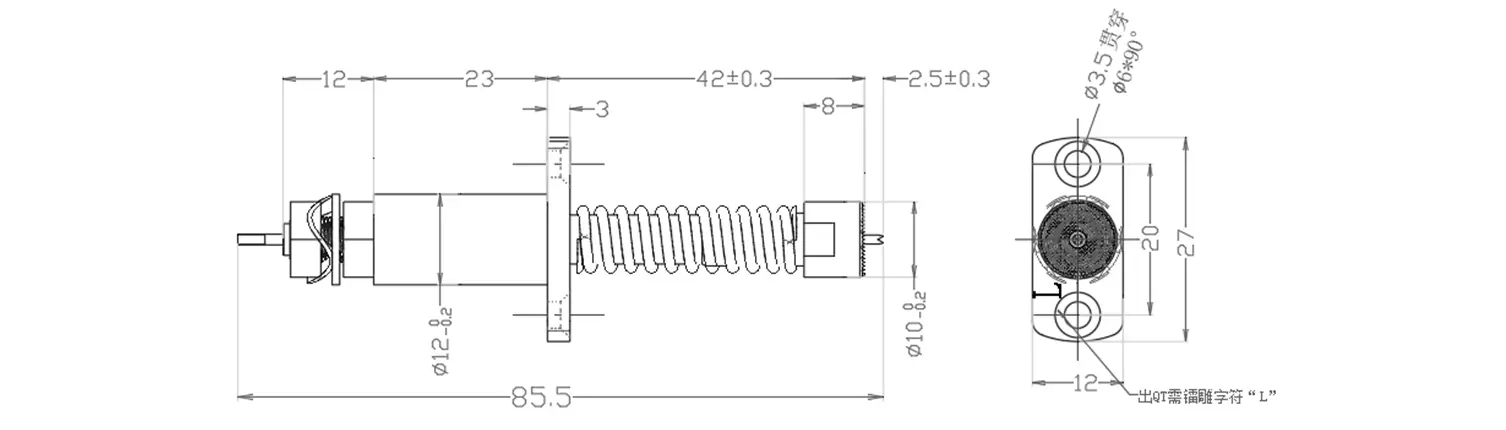

GP-11019 85.5*27*12mm 0-20A <3mΩ <120°C

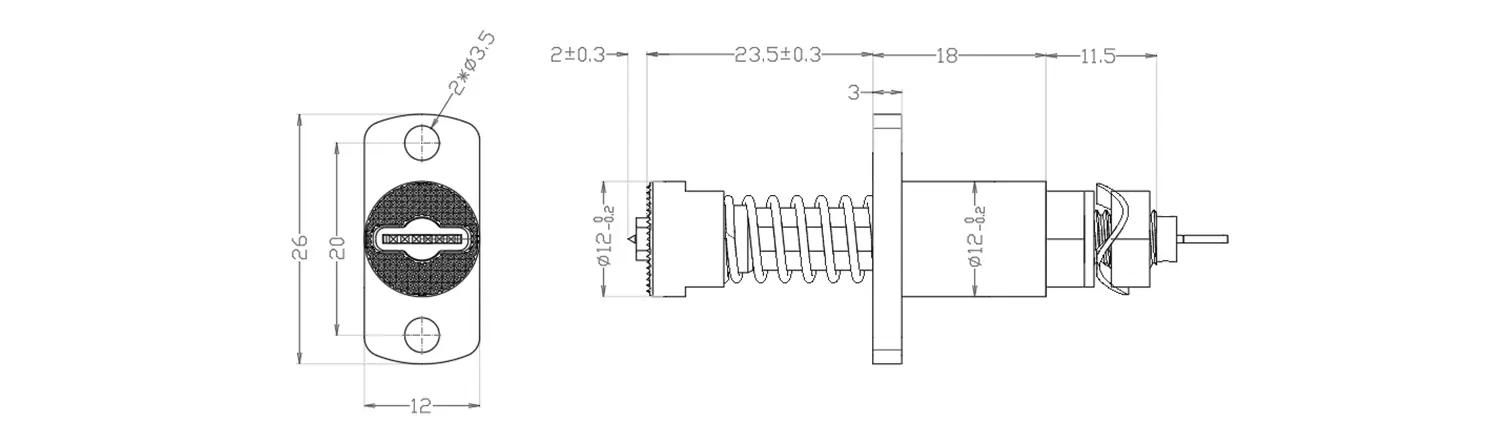

GP-11574 62.4*26*12mm 0-20A <0.5mΩ <120°C

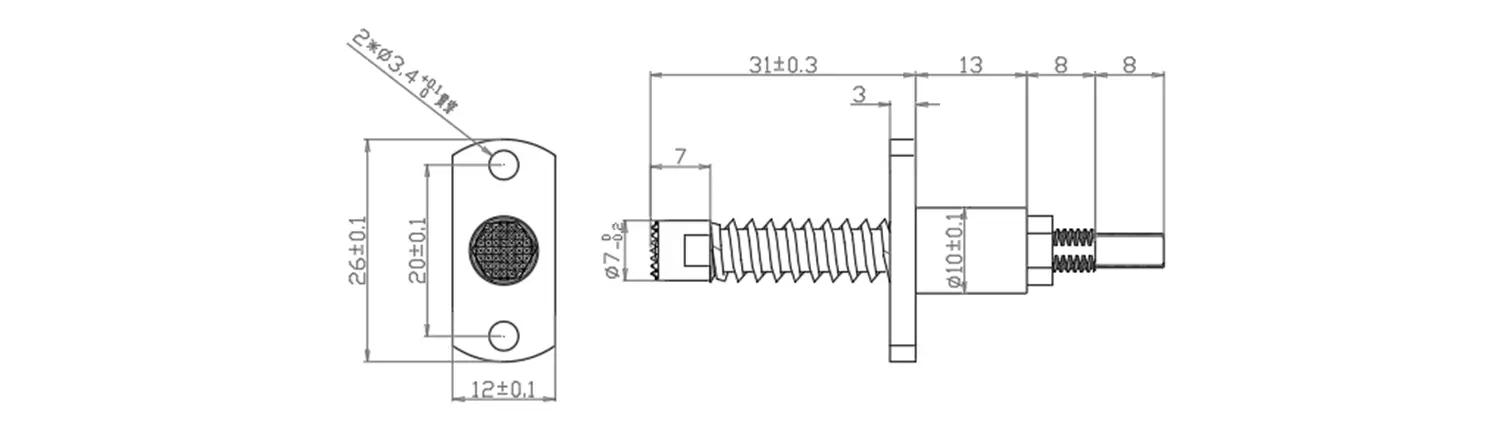

GP-11572 60*26*12mm 0-20A <2mΩ <120°C

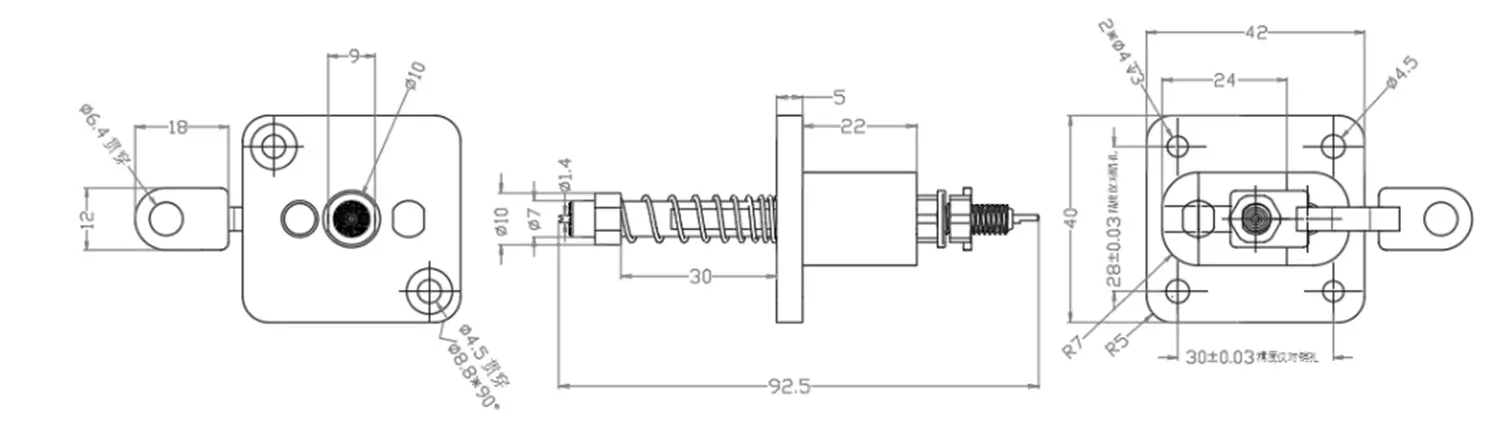

GP-11084 92.5*42*40mm 0-30A <2mΩ <100°C

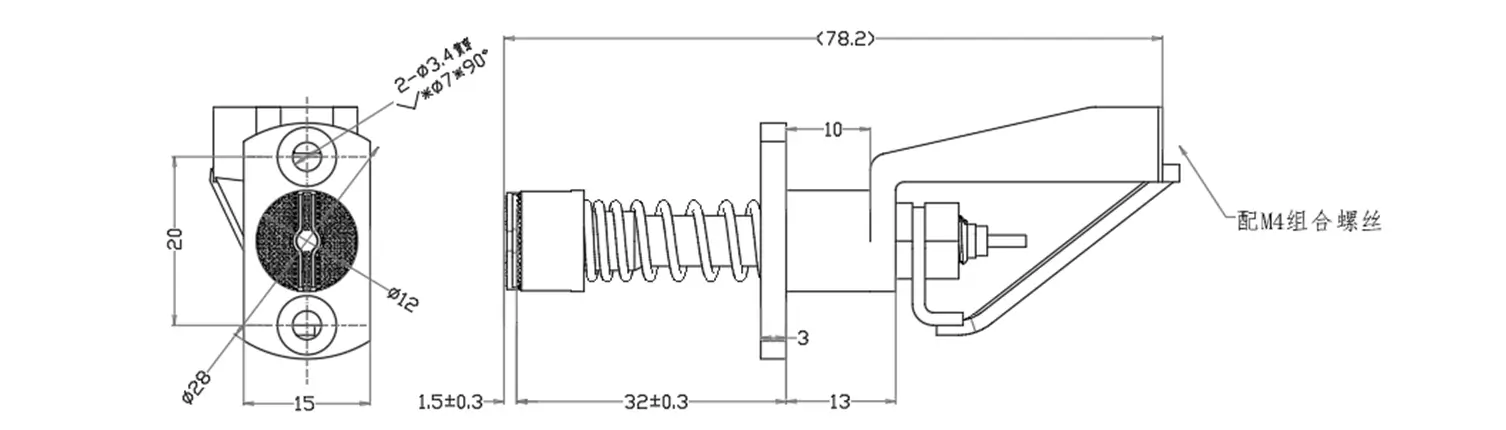

GP-11314 Ø16*70.55mm 0-30A <1mΩ <120°C

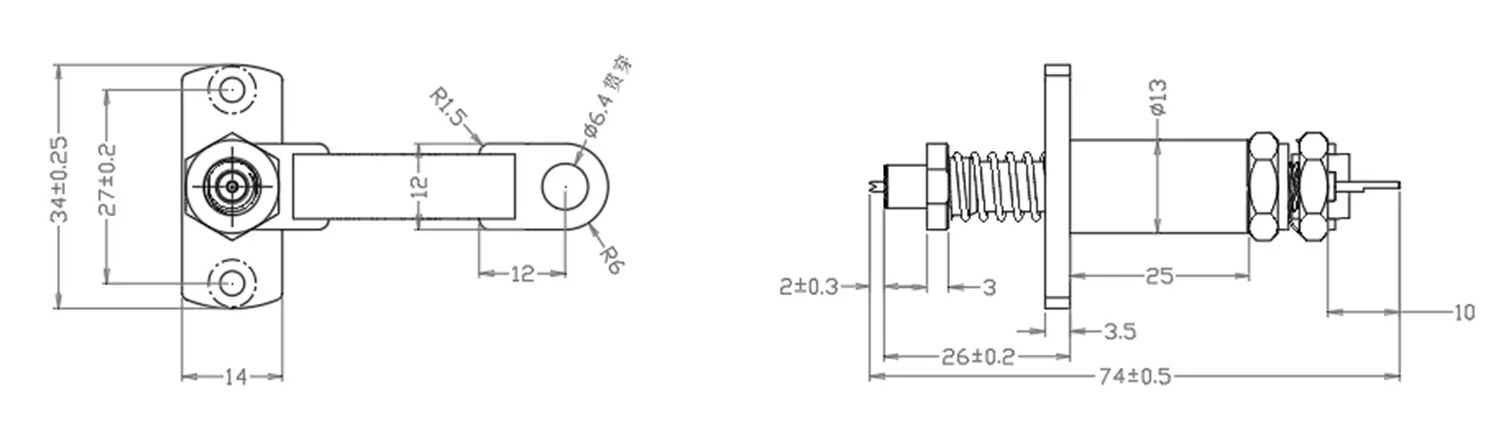

GP-10589 74*34*14mm 0-30A <2mΩ <100°C

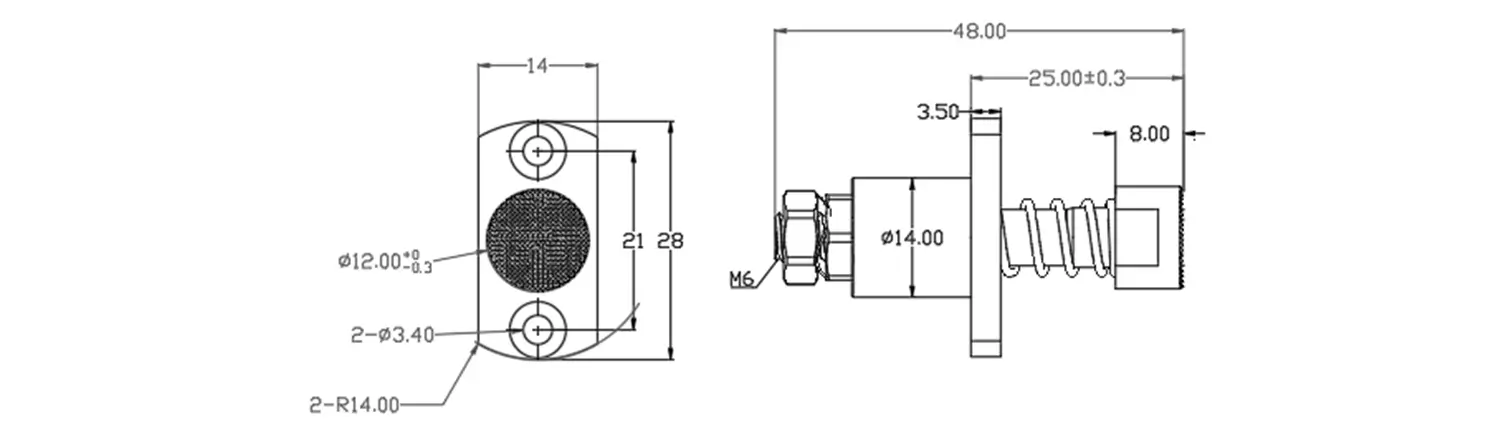

GP-10475 48*28*14mm 0-30A <1mΩ <120°C

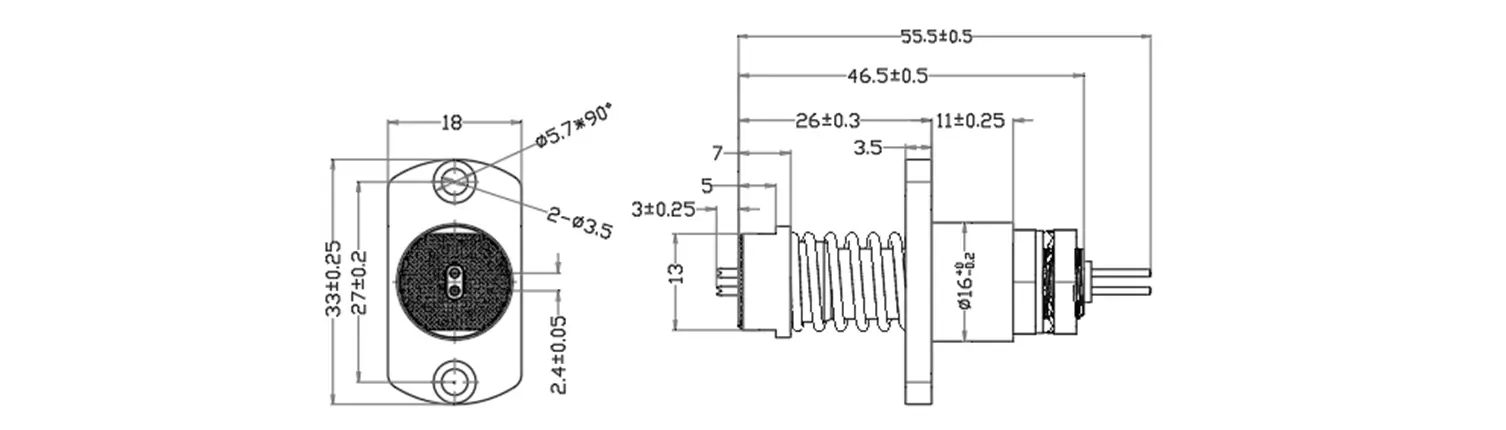

GP-10641 58.5*33*18mm 0-40A <0.3mΩ <120°C

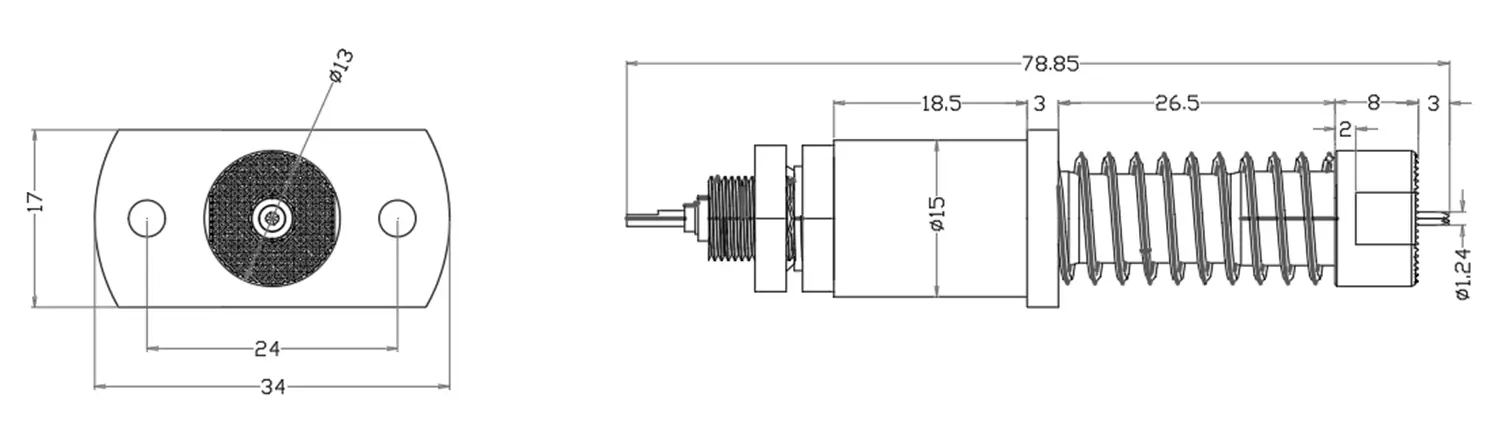

GP-10757 78.85*34*17mm 0-50A <1mΩ <120°C

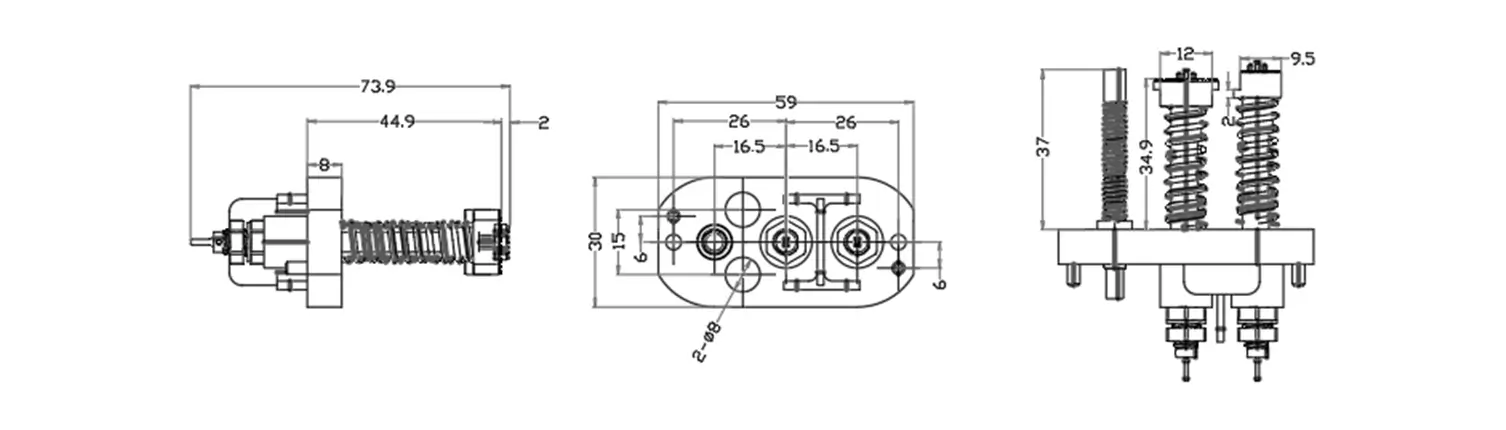

GP-11126 73.9*59*30mm 0-60A <0.5mΩ <120°C

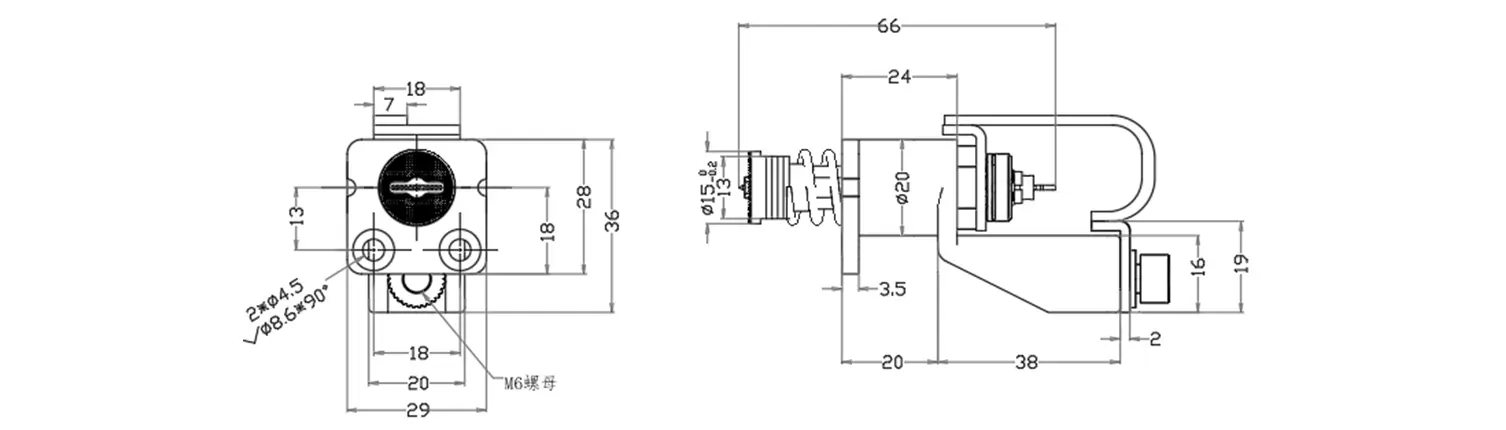

GP-11382 Ø15*66mm 0-60A <1mΩ <120°C

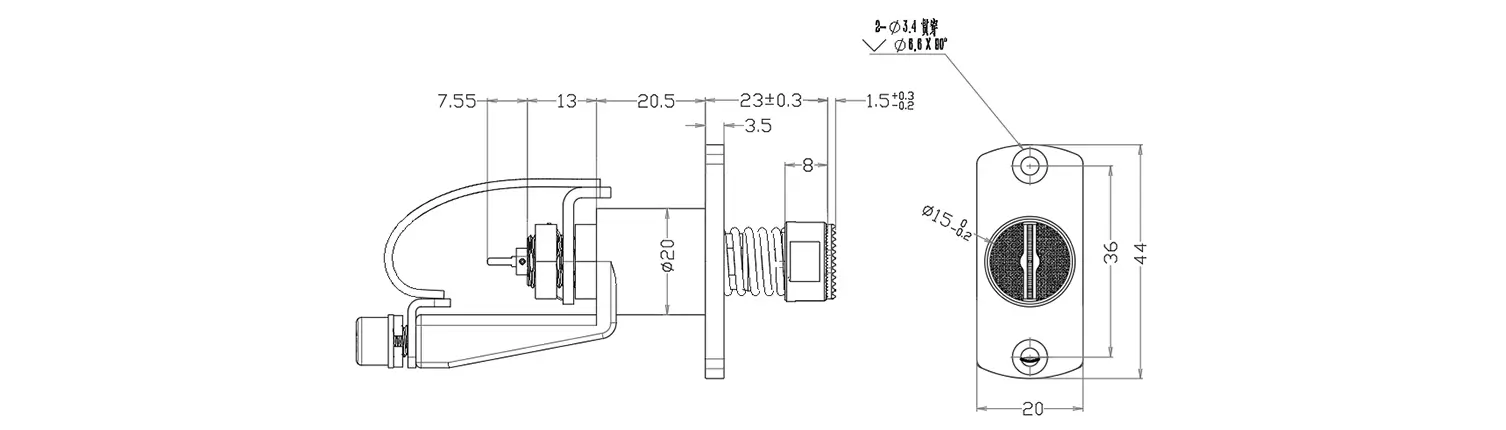

GP-10519 Ø15*65.5mm 0-60A <0.5mΩ <120°C

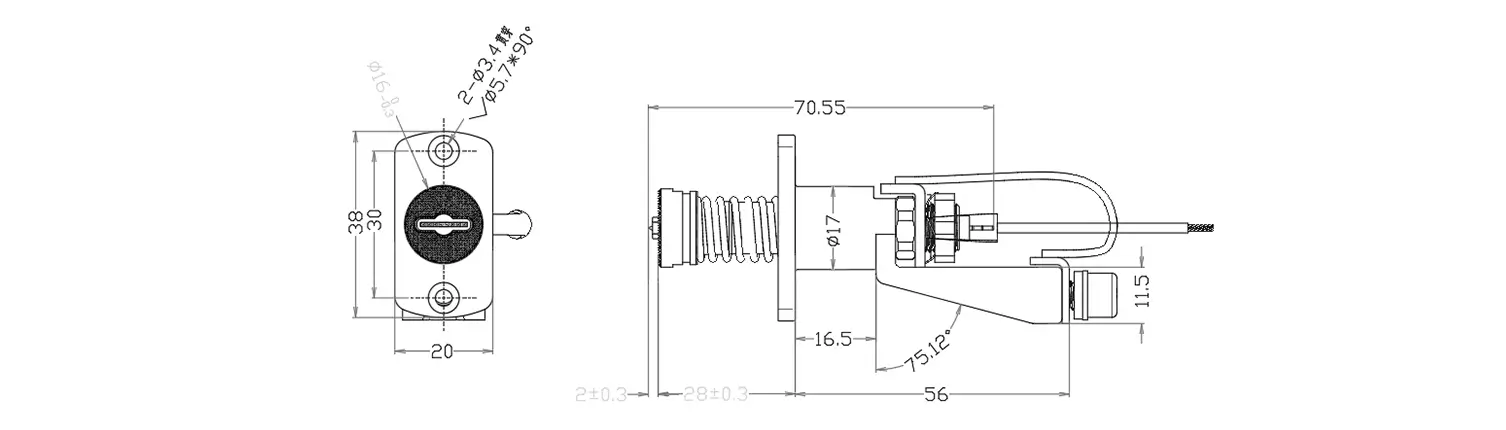

GP-11567 Ø16*70.55mm 0-60A <0.5mΩ <120°C

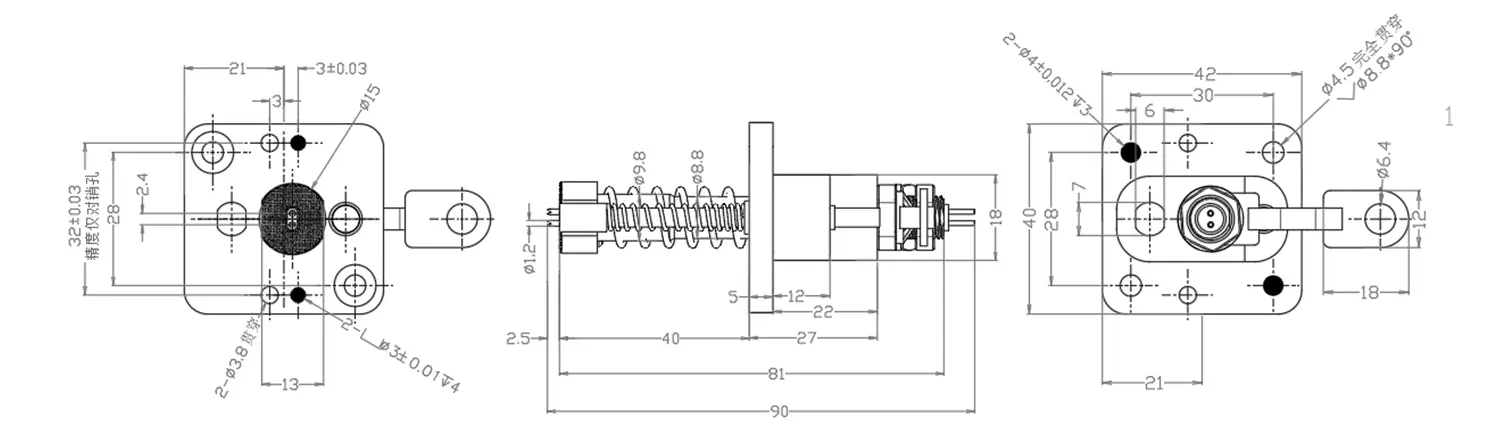

GP-11174 90*42*40mm 0-60A <0.5mΩ <120°C

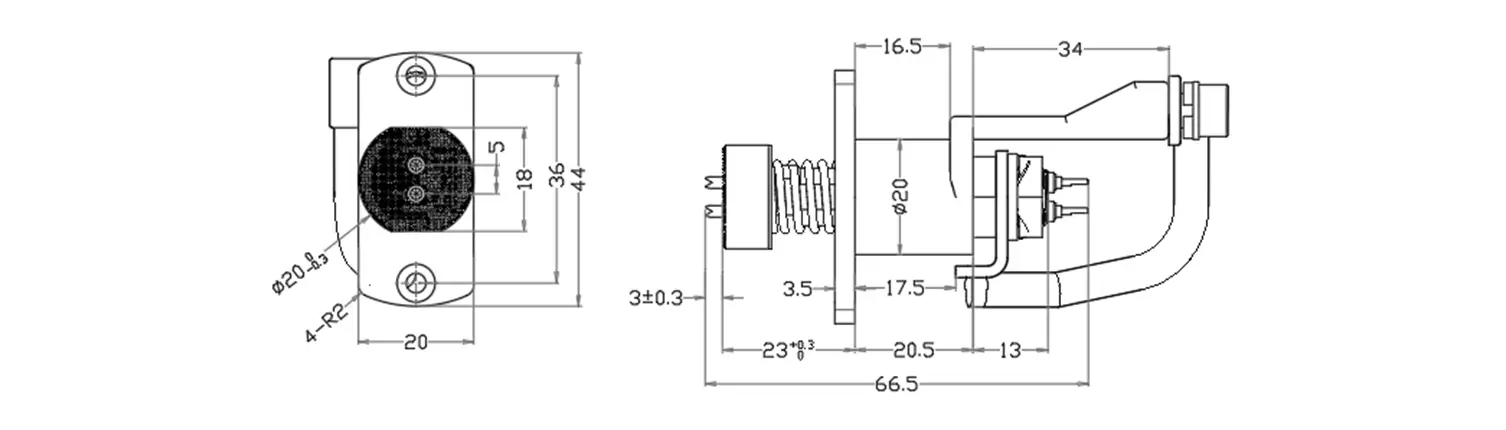

GP-10725 66.5*44*20mm 0-60A <1mΩ <120°C

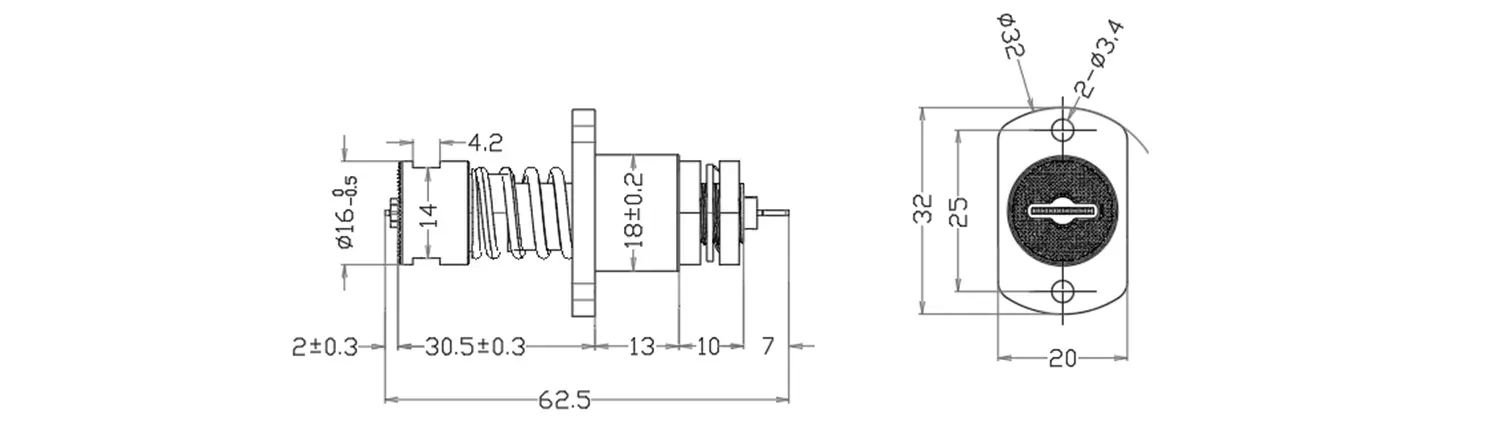

GP-10921 62.5*32*20mm 0-60A <0.5mΩ <120°C

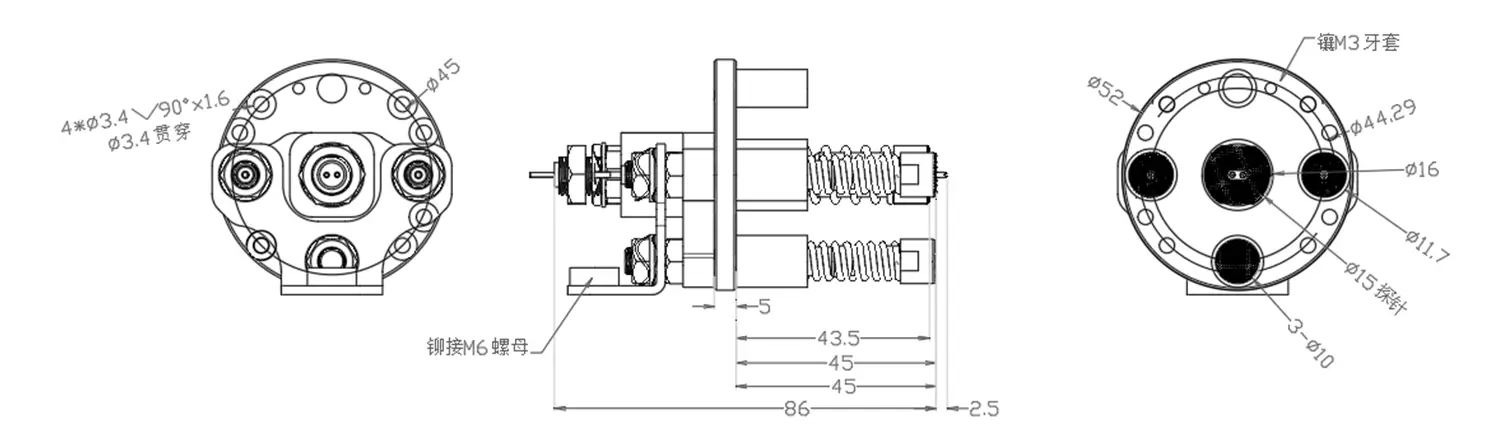

GP-11578 Ø52*86mm 0-60A <0.5mΩ <100°C

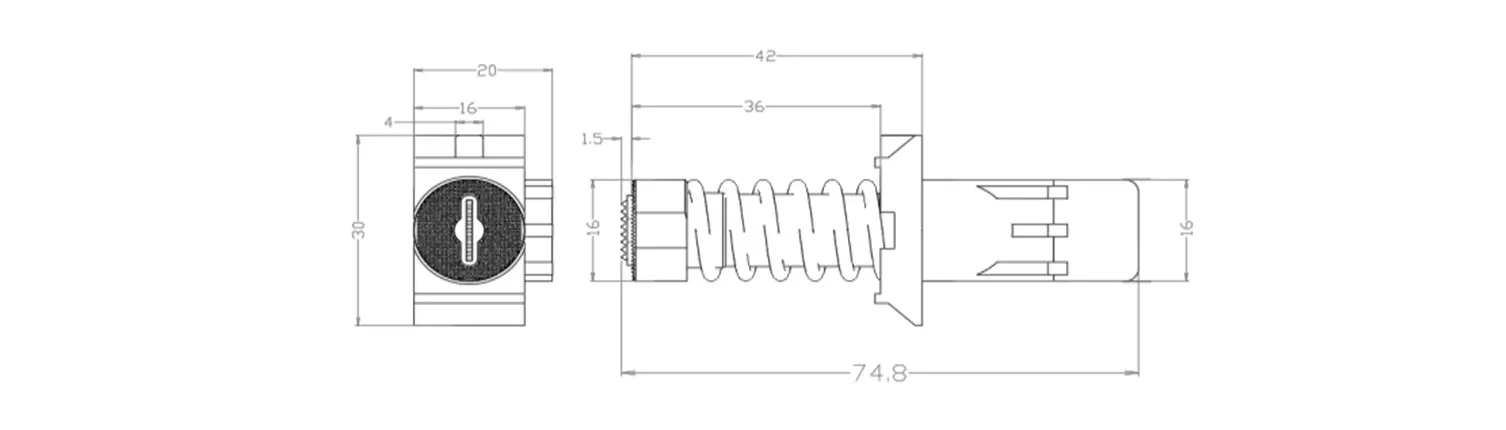

GP-11464 74.8*30*20mm 0-80A <0.5mΩ <120°C

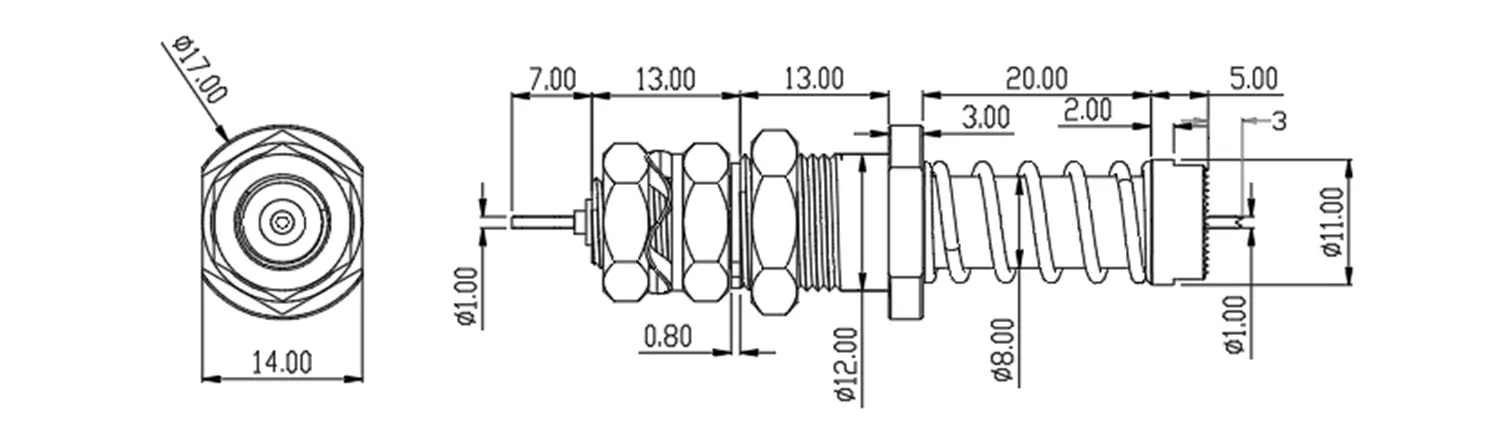

GP-10892 Φ11*61mm 0-80A <1mΩ <120°C

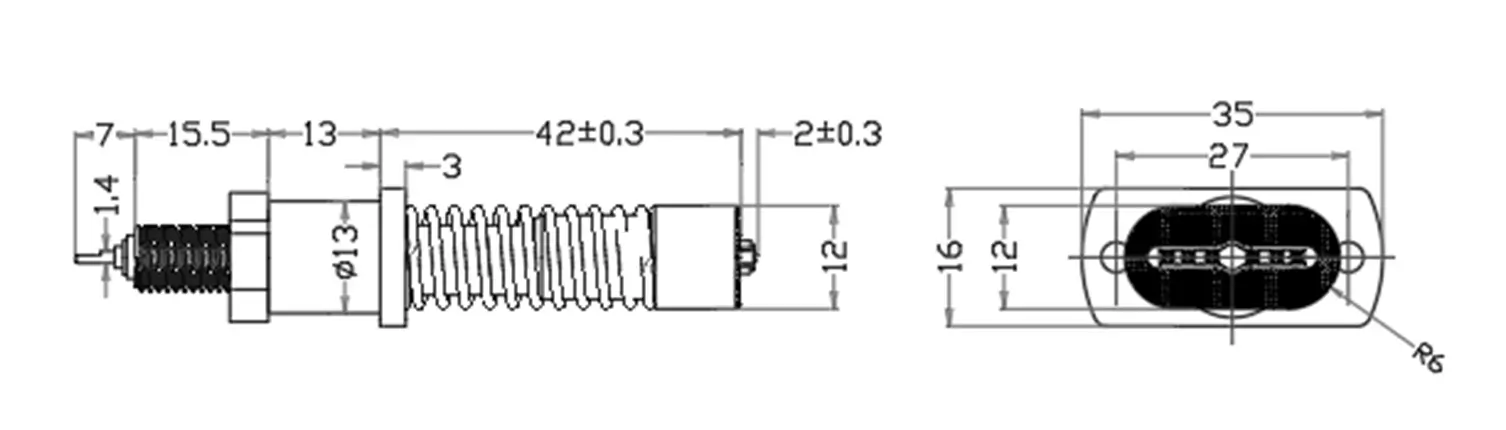

GP-10952 79.5*35*16mm 0-80A <0.3mΩ <120°C

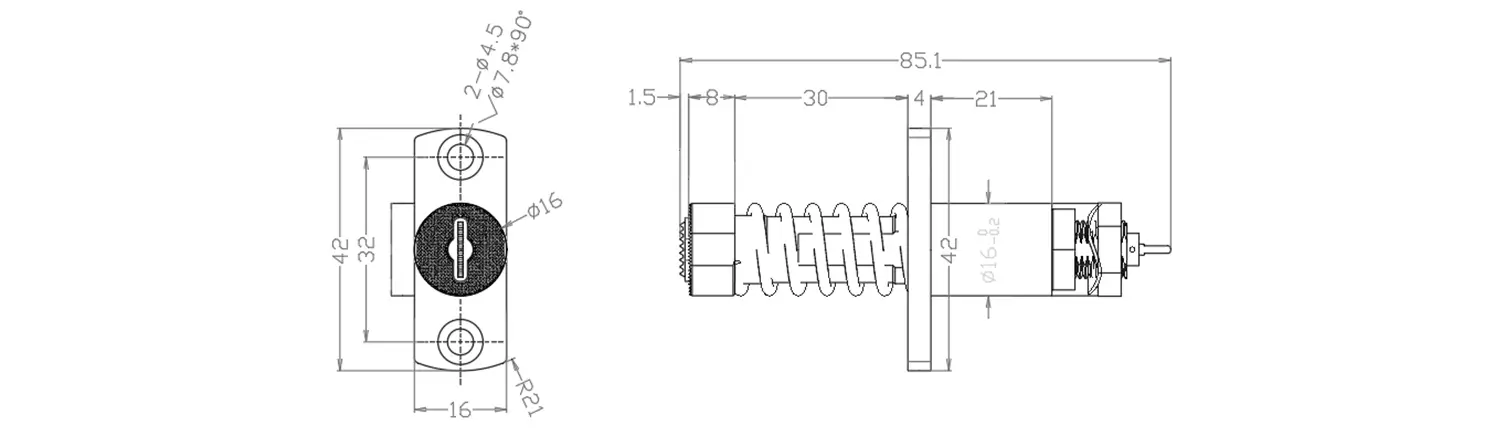

GP-11622 85.1*42*16mm 0-80A <0.5mΩ <120°C

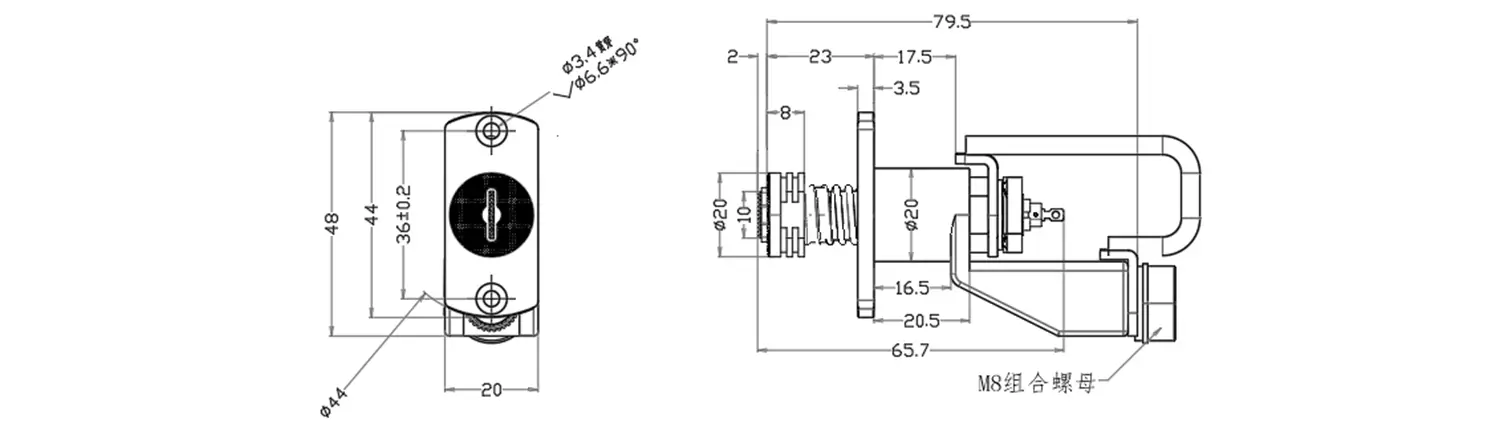

GP-11199 Ø20*65.7*48mm 0-100A <0.5mΩ <120°C

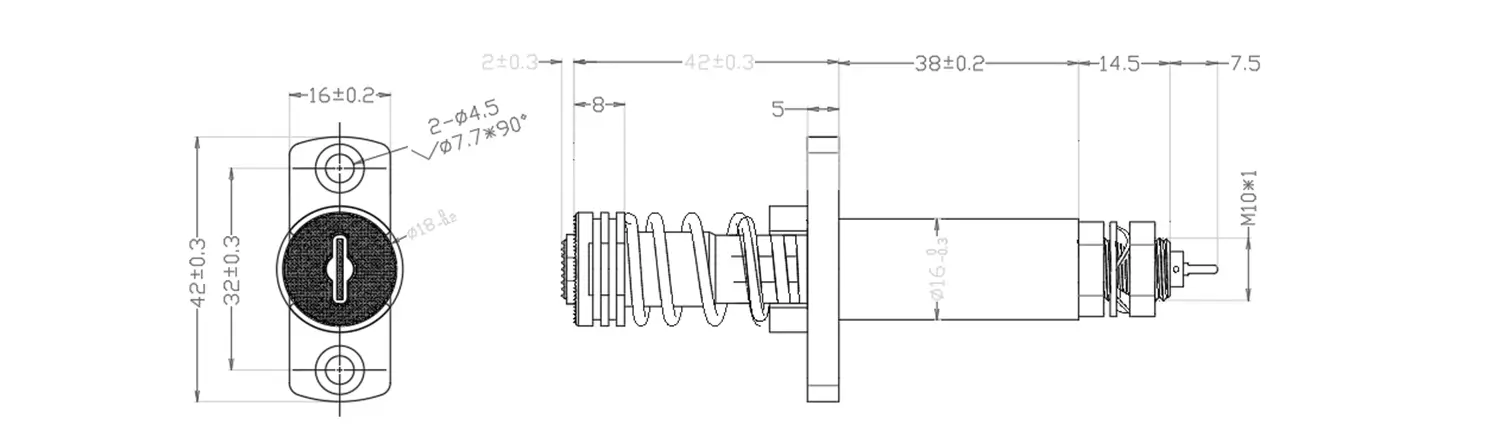

GP-11725 104*42*16mm 0-100A <0.5mΩ <120°C

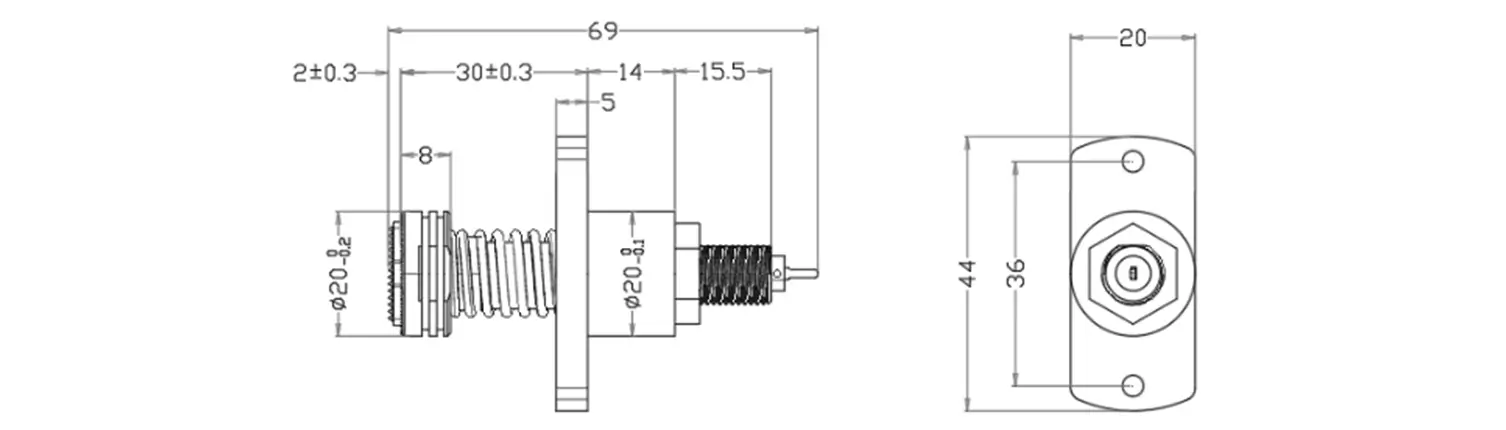

GP-11193 69*44*20mm 0-100A <0.5mΩ <120°C
GP-11349 69*44*20mm 0-100A <0.5mΩ <120°C

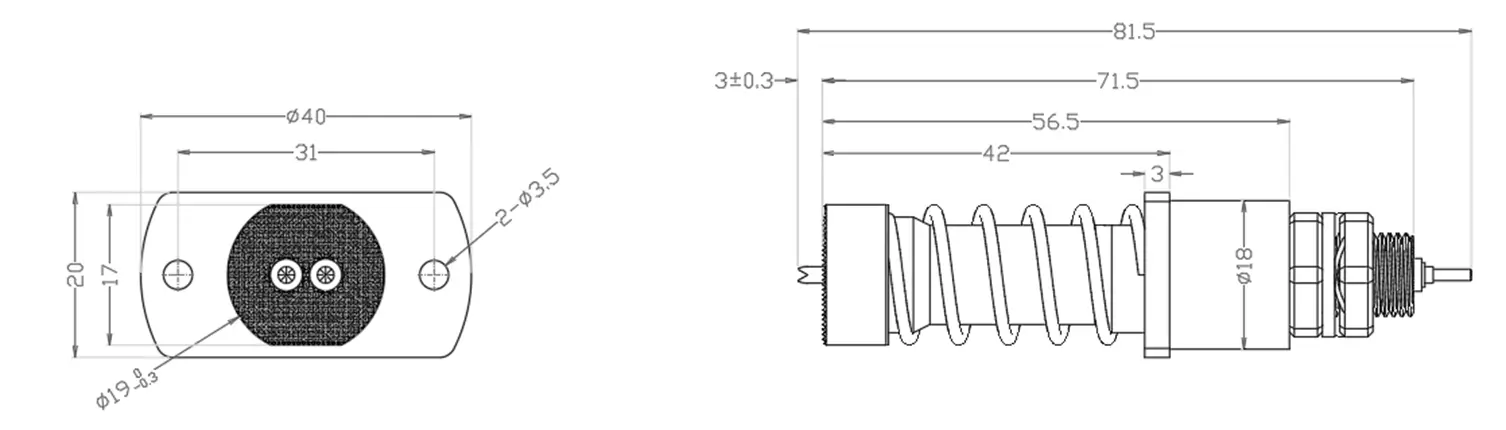

GP-10108 81.5*40*20mm 0-100A <0.5mΩ <120°C

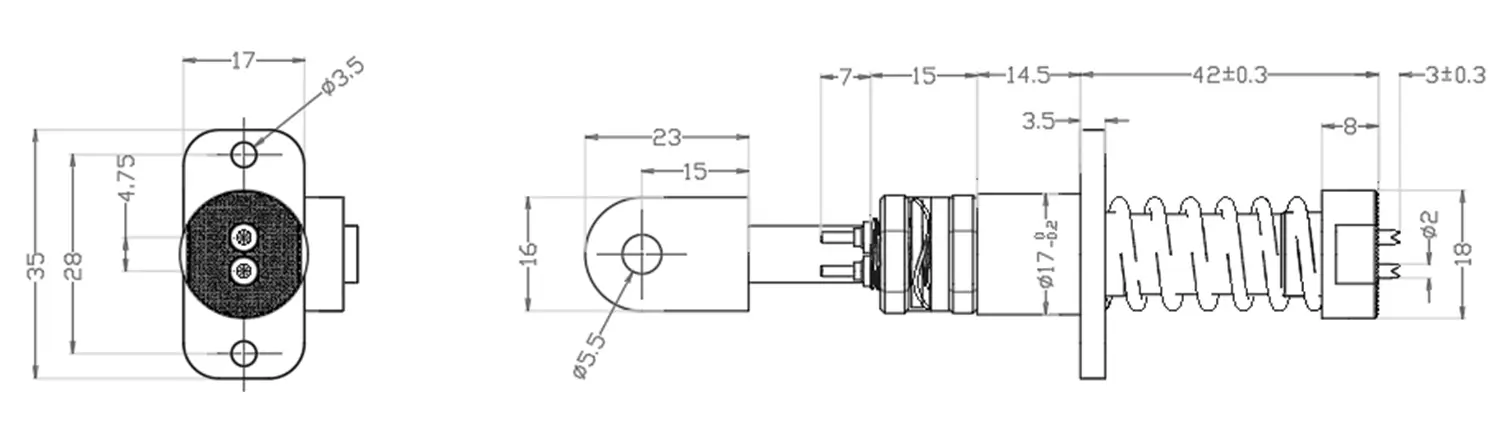

GP-11206 81.5*35*17mm 0-100A <0.5mΩ <120°C
GP-11451 Ø29*83.5mm 0-120A <1mΩ <120°C

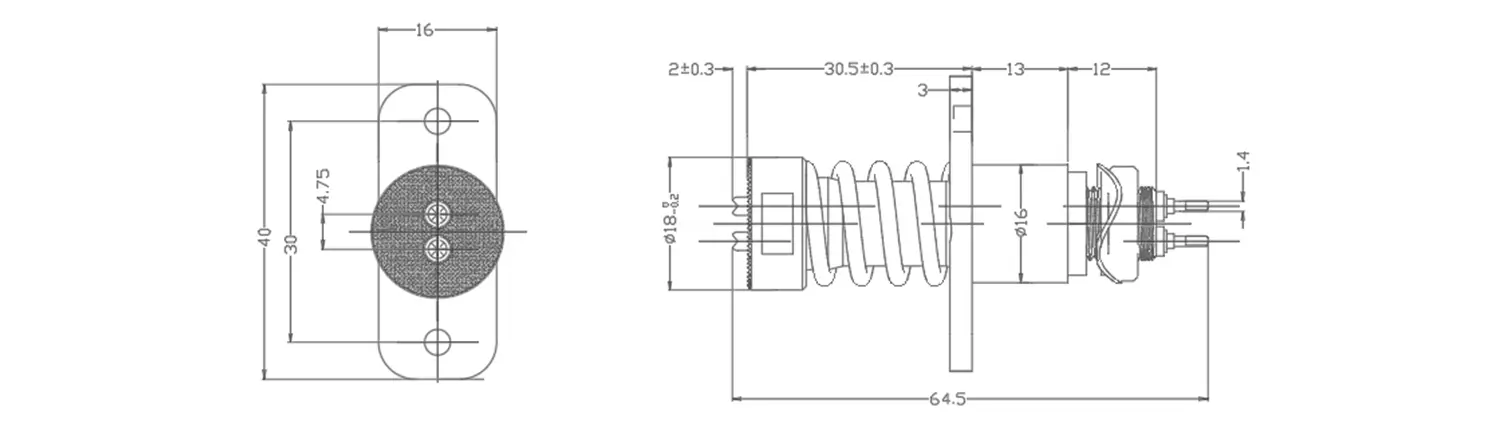

GP-10440 64.5*40*16mm 0-120A <0.5mΩ <120°C

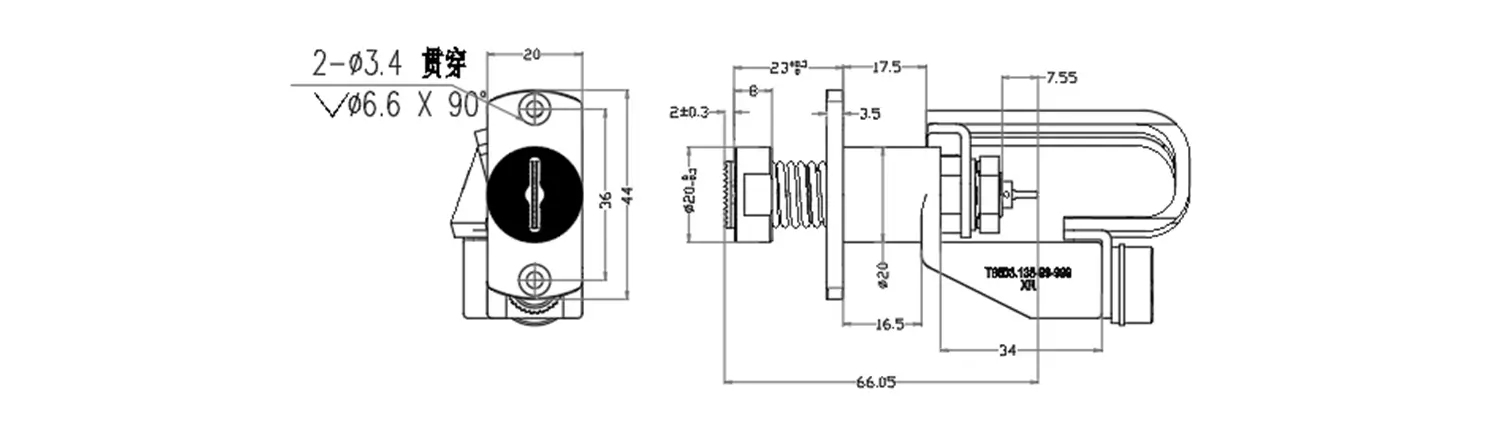

GP-10407 Ø20*66.05mm 0-120A <0.5mΩ <120°C

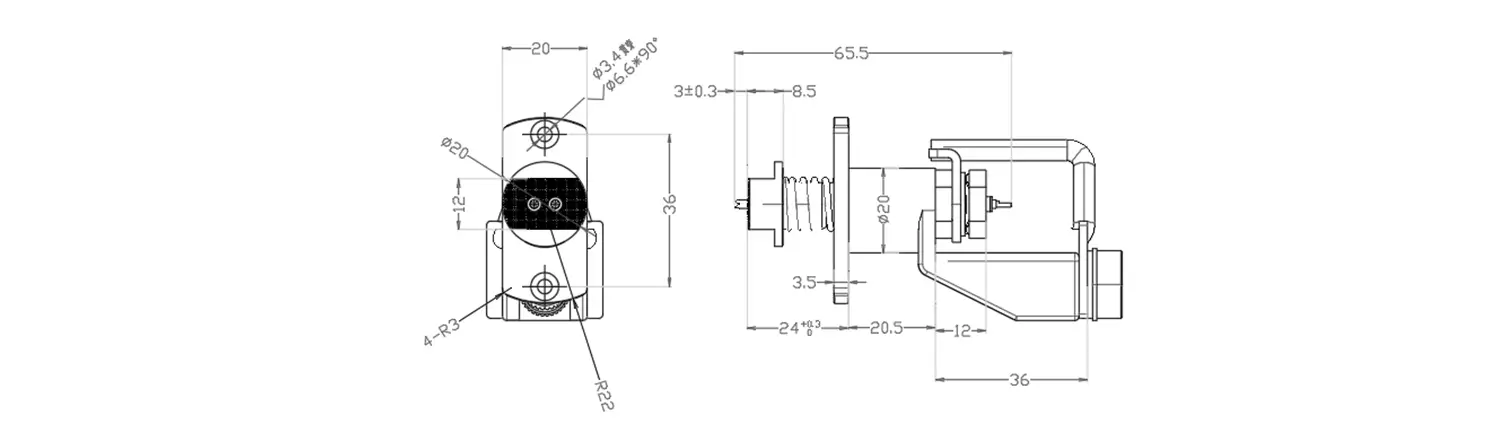

GP-10230 Ø20*65.5mm 0-120A <1mΩ <120°C

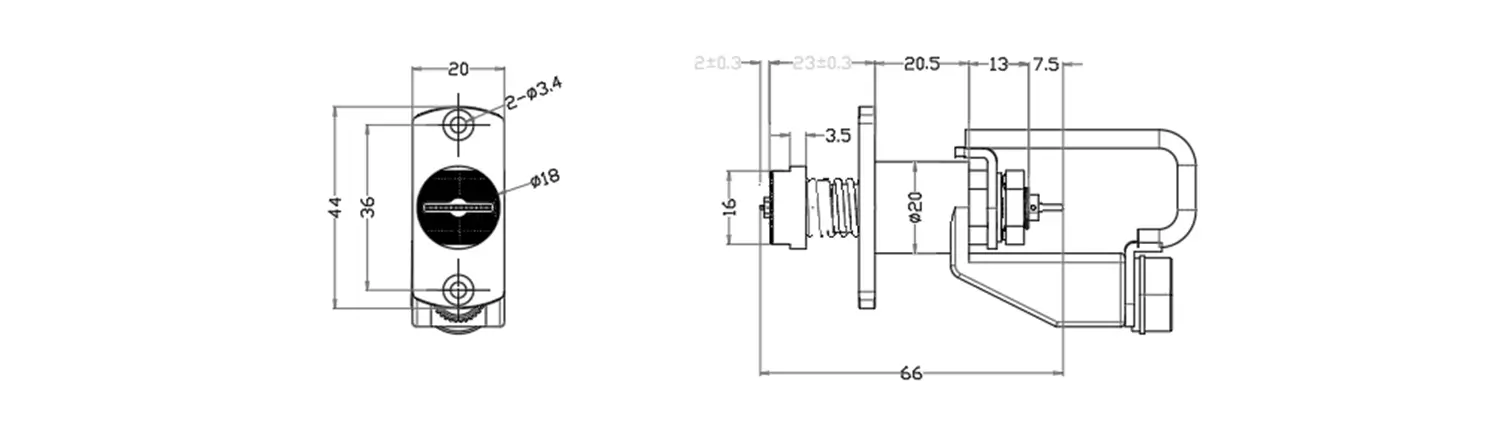

GP-11584 Ø20*66.05mm 0-120A <0.5mΩ <120°C
GP-11517 Ø20*66.05mm 0-120A <0.3mΩ <100°C

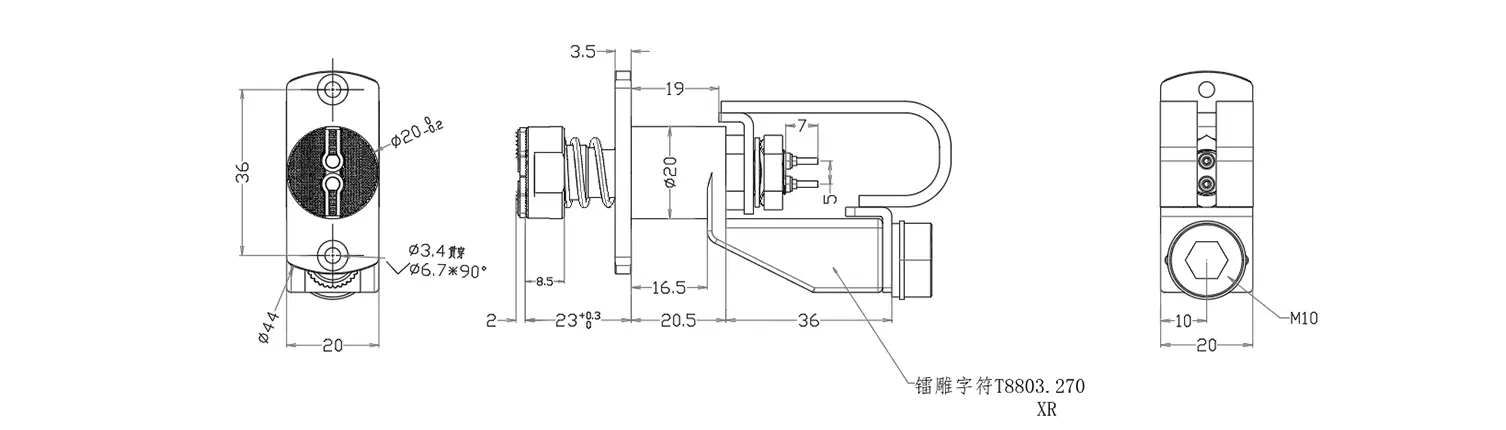

GP-11196 Ø20*65.4mm 0-120A <0.5mΩ <120°C

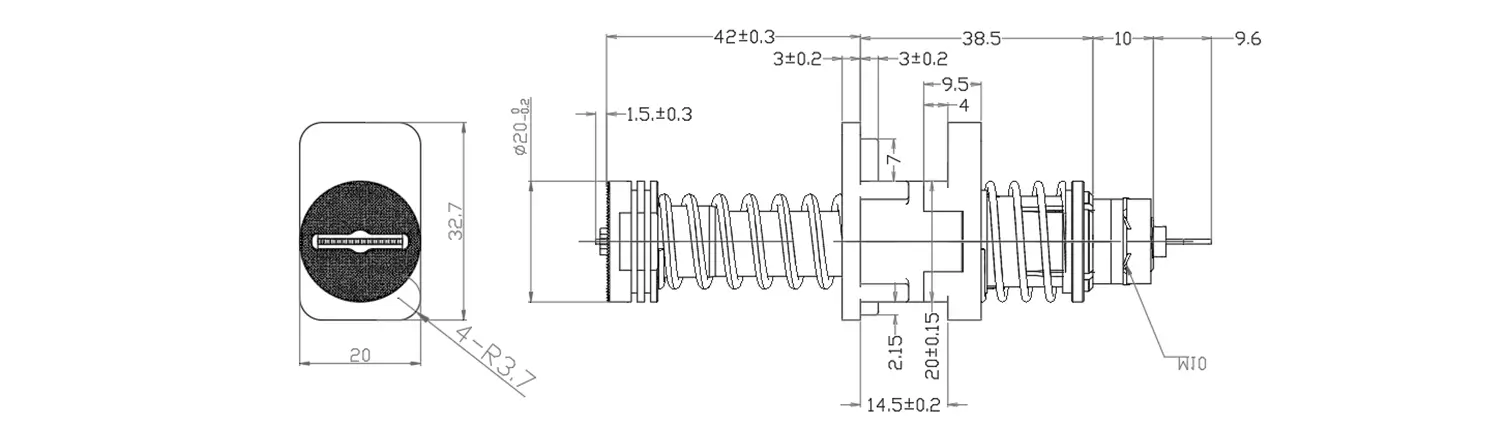

GP-10539 Ø20*90.5mm 0-120A <1mΩ <120°C

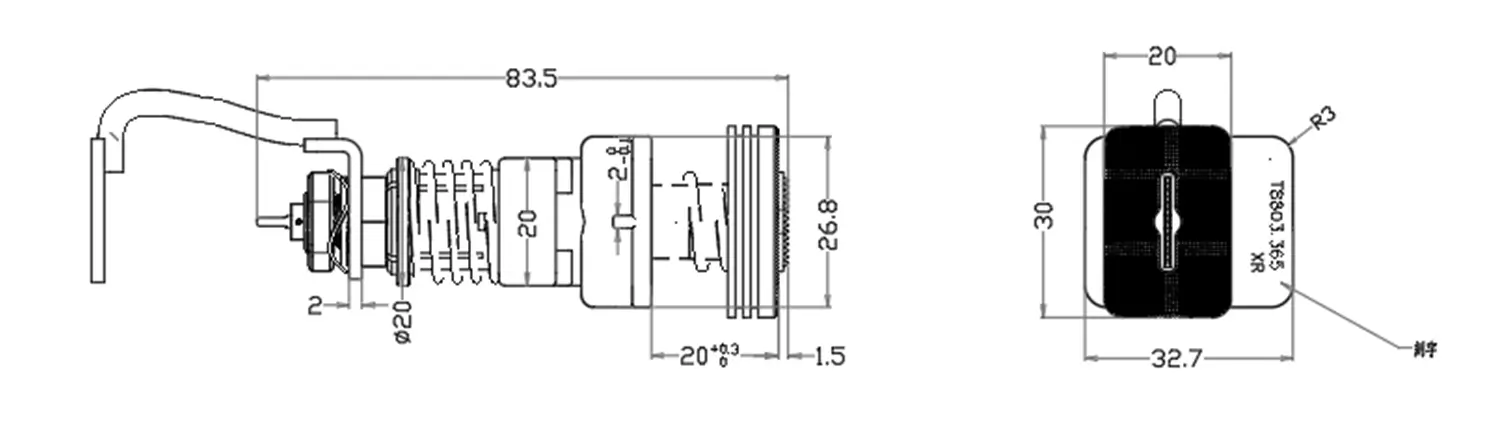

GP-11449 83.5*32.7*30mm 0-120A <0.3mΩ <120°C

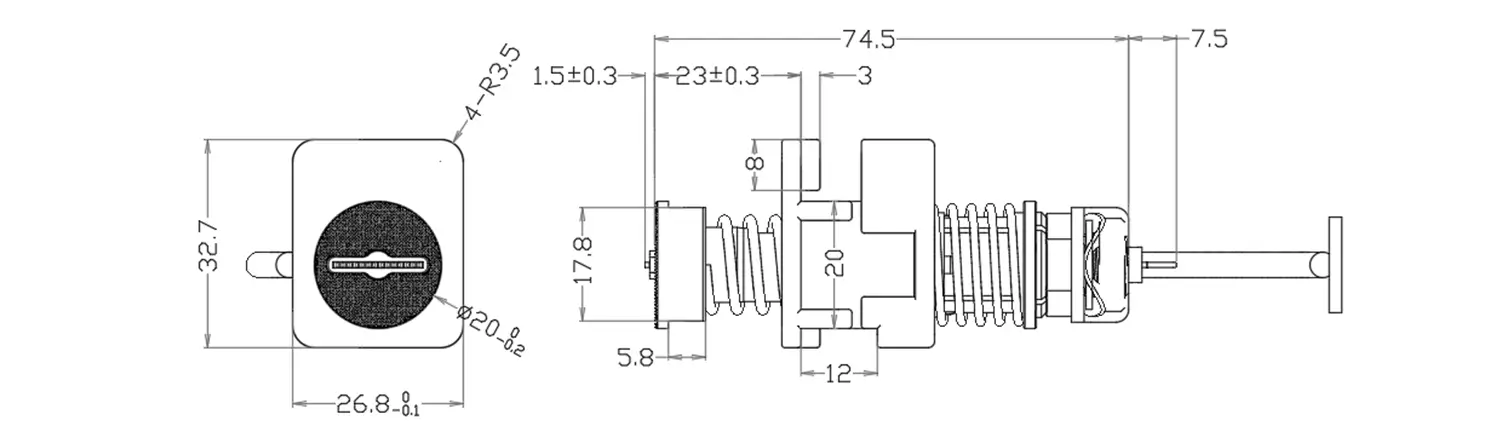

GP-10669 Ø20*82mm 0-120A <0.3mΩ <120°C

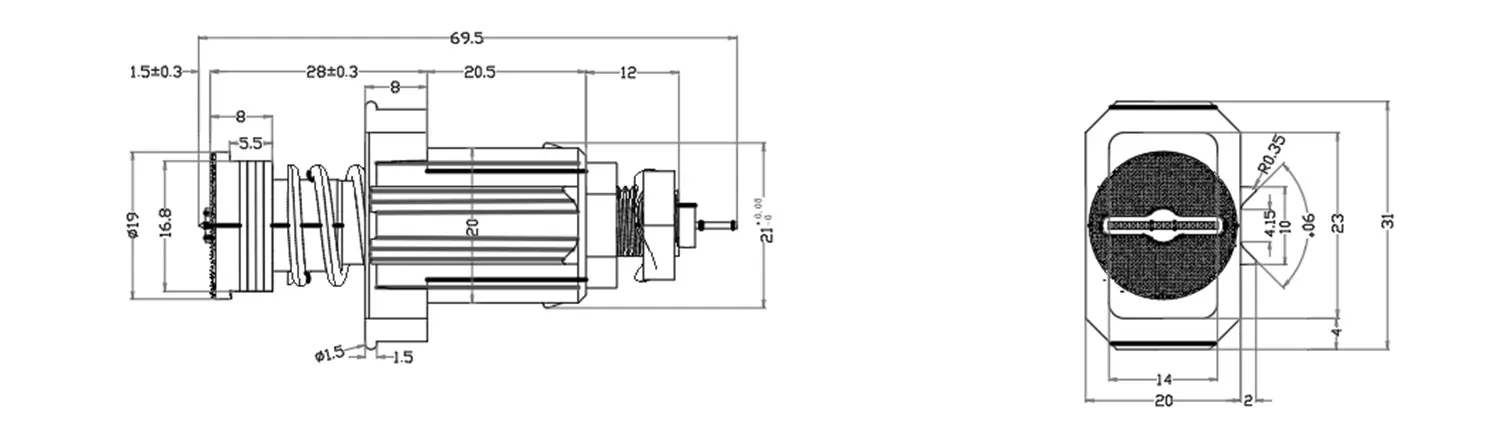

GP-10785 69.5*31*22mm 0-120A <0.5mΩ <120°C

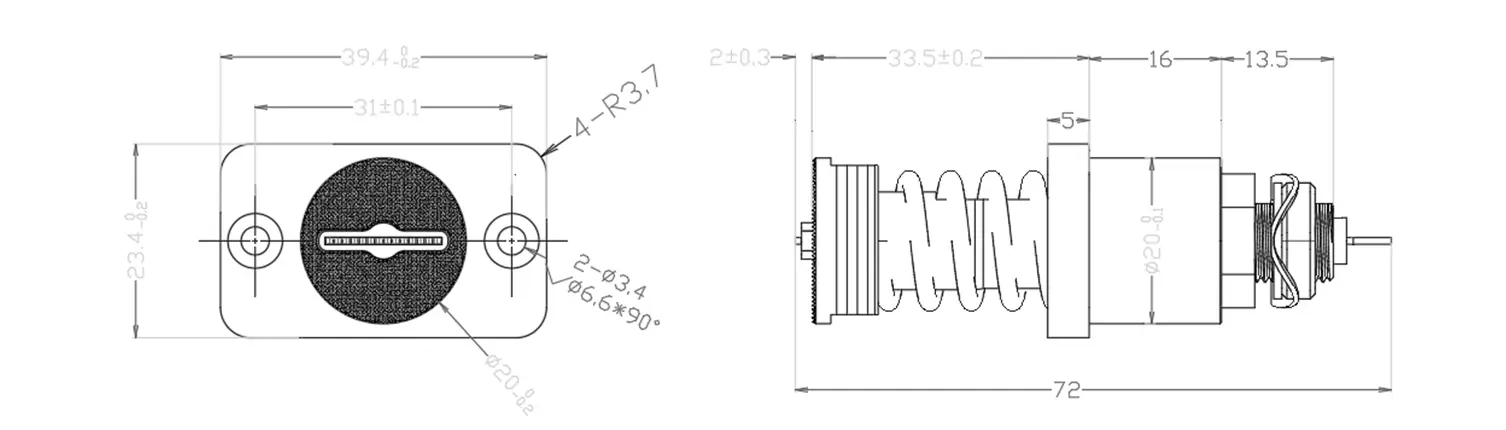

GP-11528 72*39.4*23.4mm 0-150A <0.5mΩ <120°C

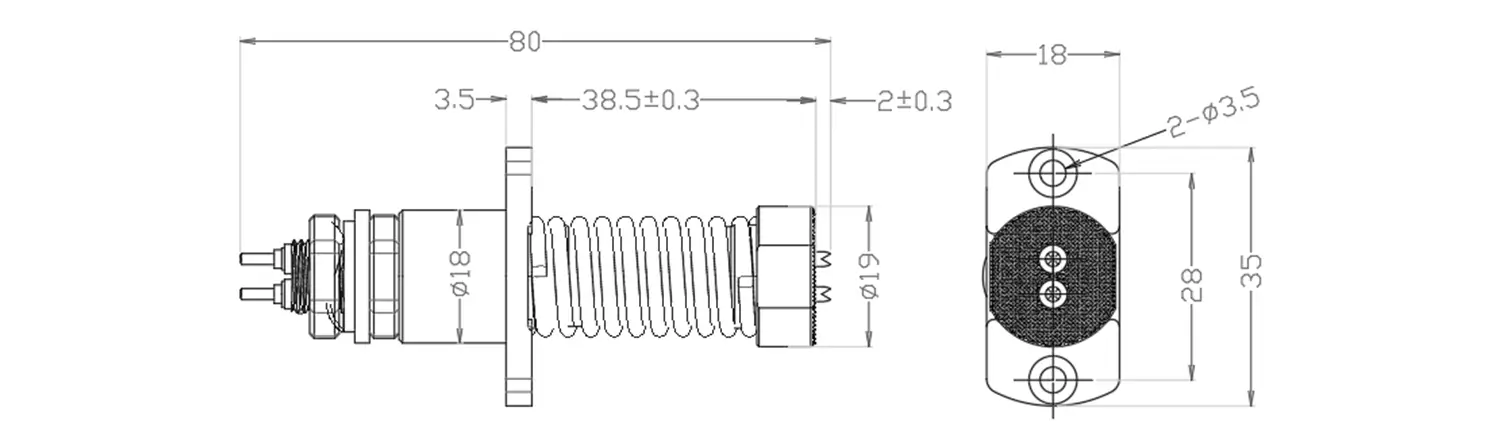

GP-10730 80*35*18mm 0-150A <0.5mΩ <120°C

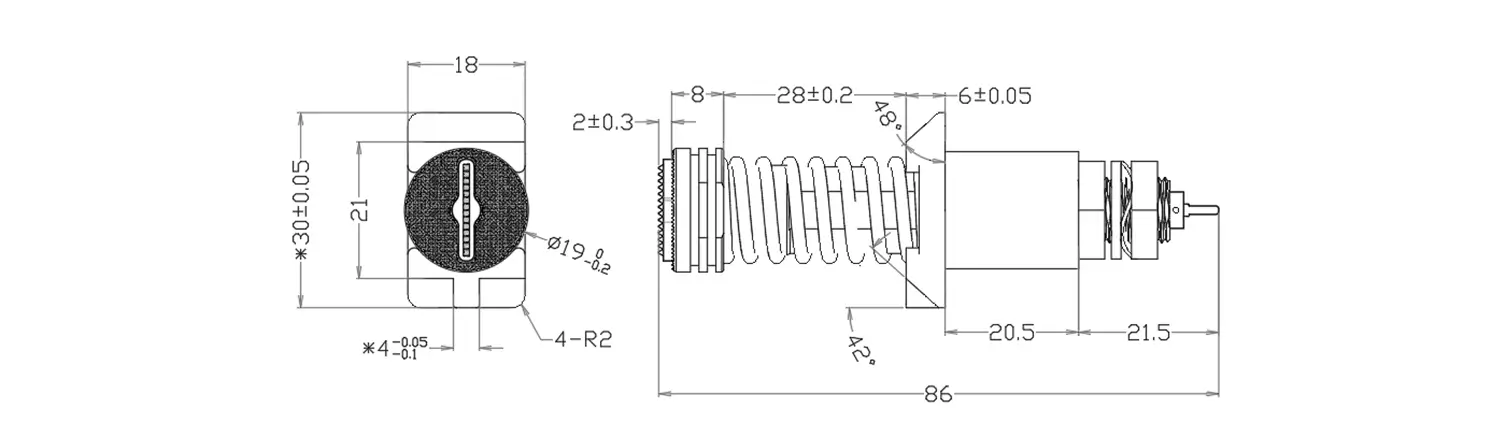

GP-11397 86*30*18mm 0-150A <0.5mΩ <120°C

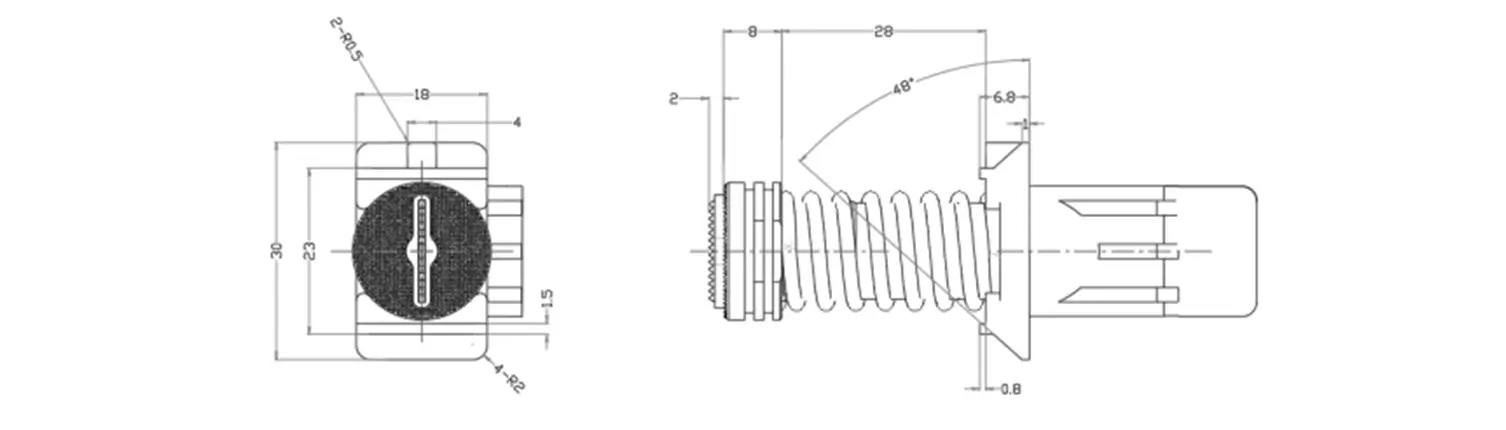

GP-11487 86*30*18mm 0-150A <0.5mΩ <120°C

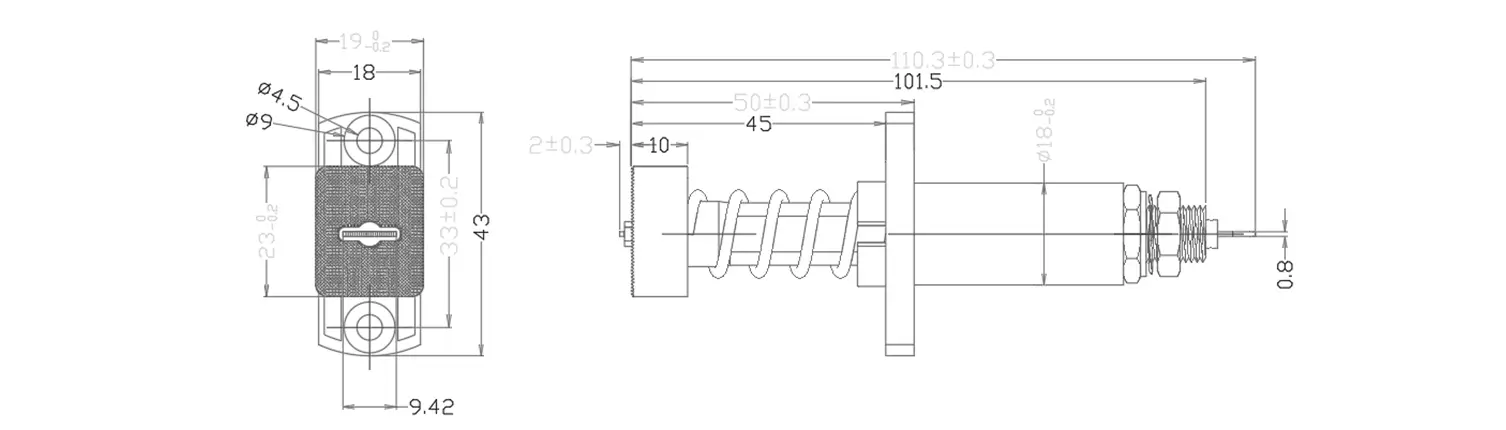

GP-11510 112.3*43*19mm 0-160A <0.5mΩ <120°C

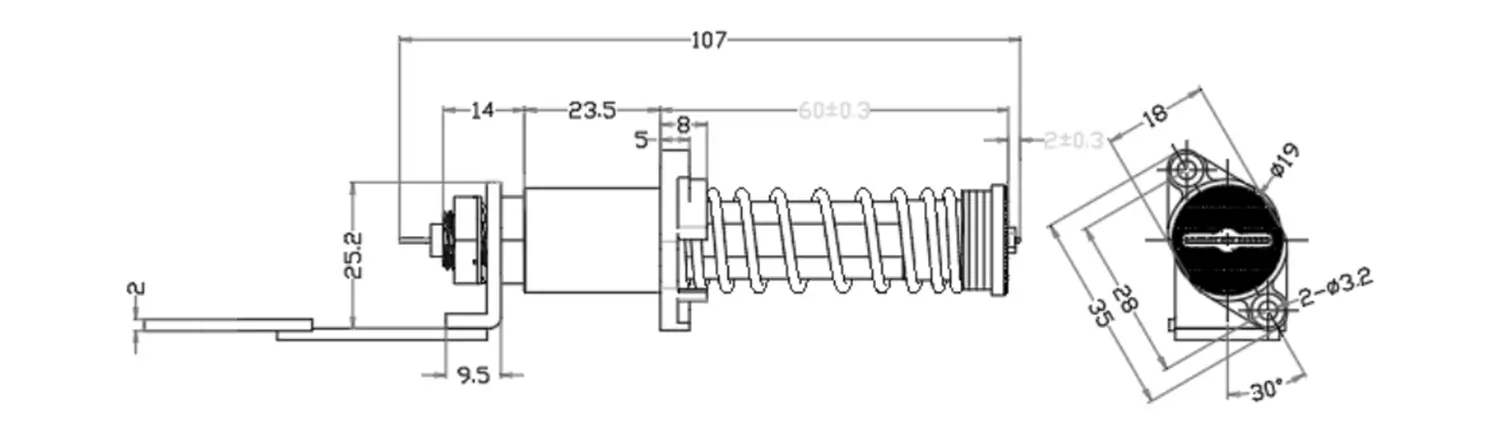

GP-11475 Ø19*107mm 0-160A <0.3mΩ <120°C

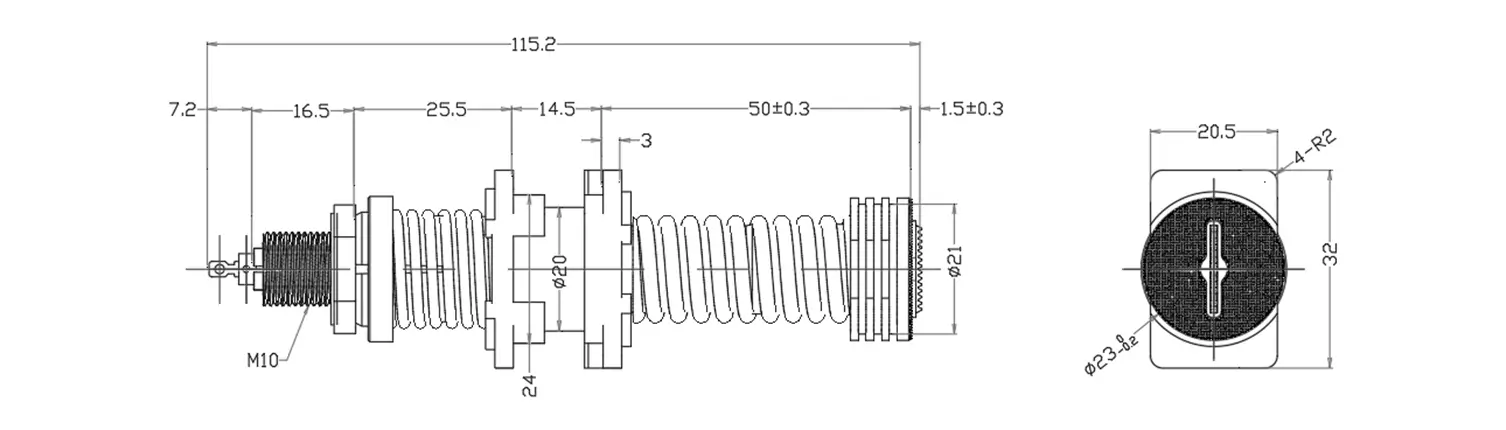

GP-10758 115.2*32*20.5mm 0-180A <0.1mΩ <120°C

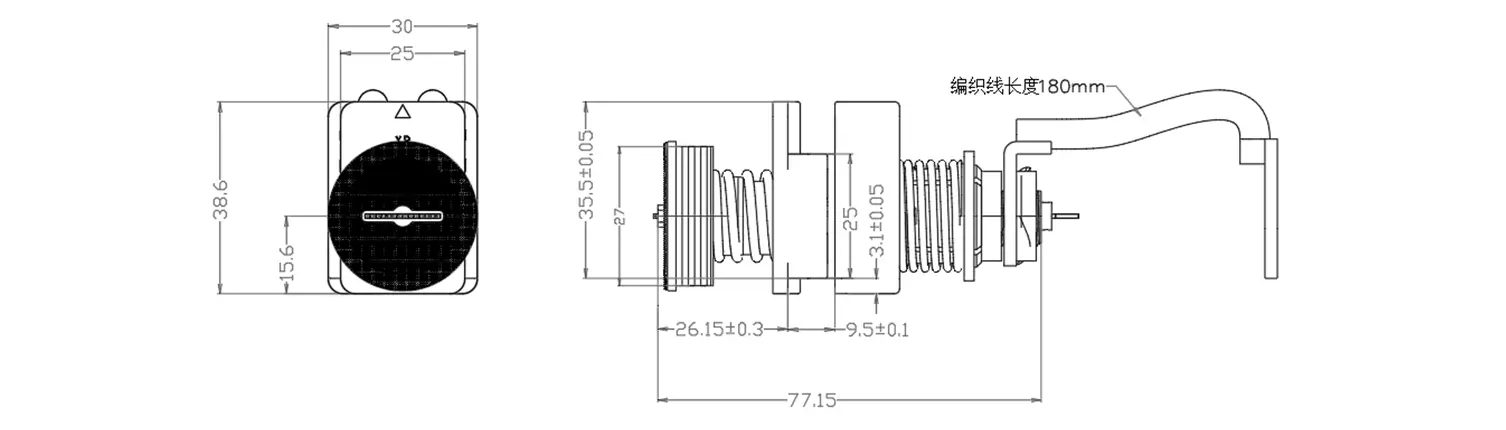

GP-11087 76*38.6*30mm 0-200A <0.5mΩ <120°C

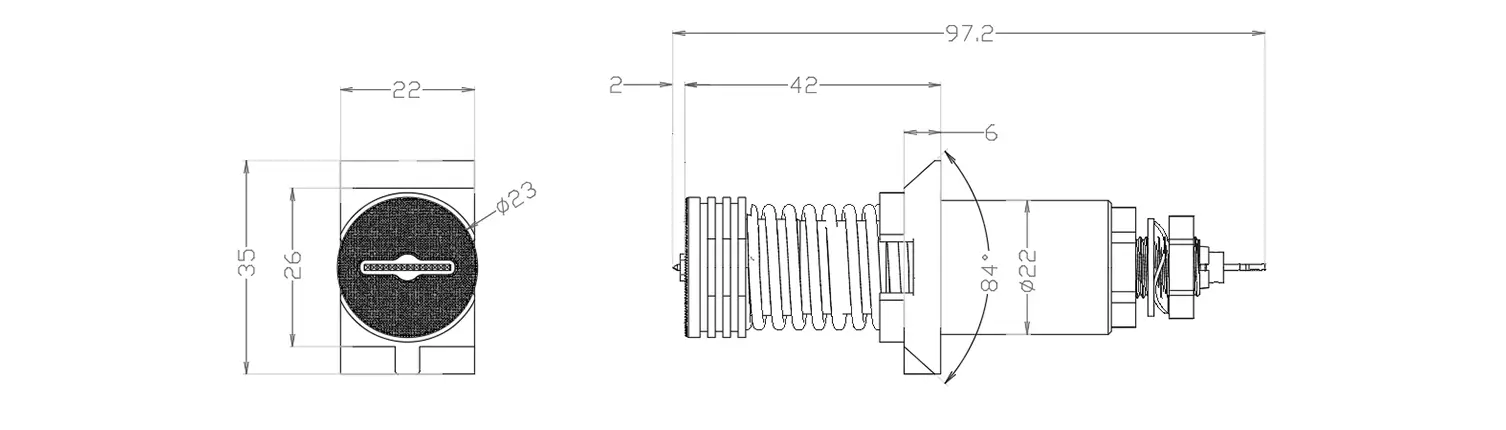

GP-11543 97.2*35*22mm 0-225A <0.5mΩ <120°C

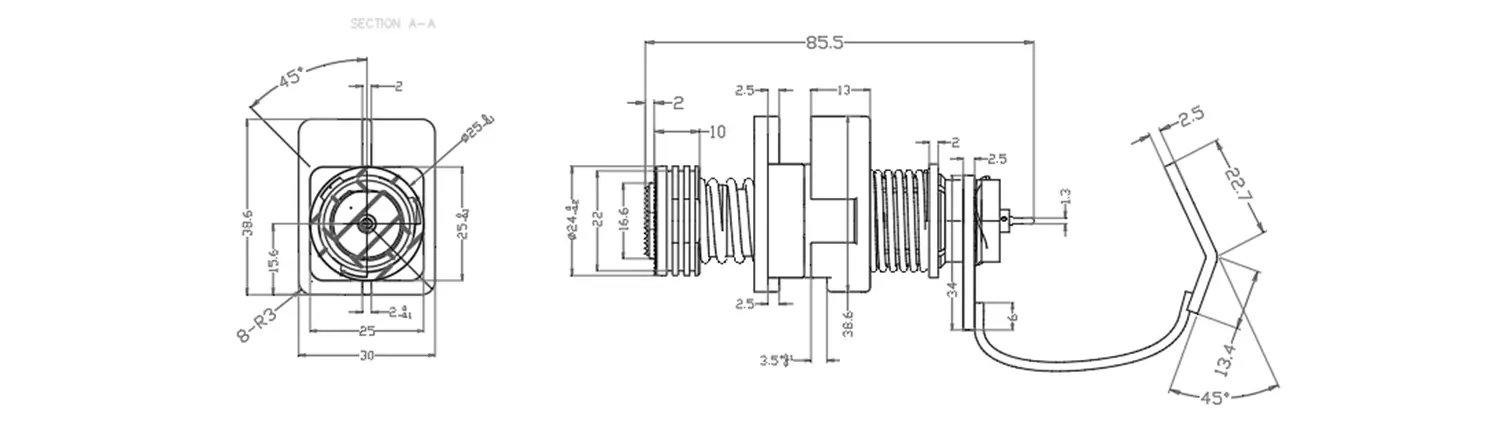

GP-11127 85.5*38.6*30mm 0-200A <0.3mΩ <120°C

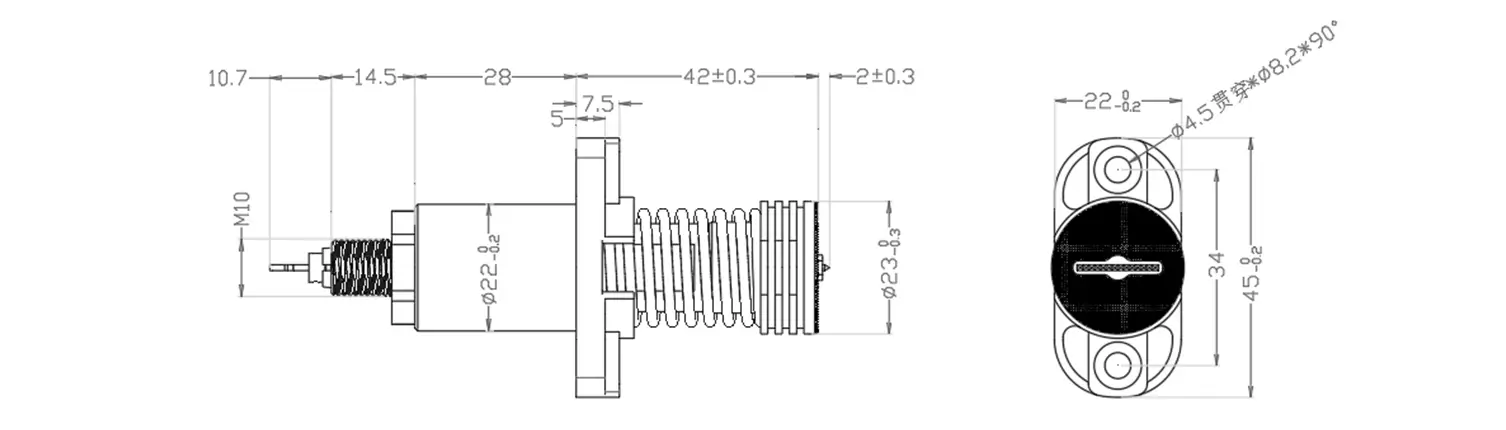

GP-11426 97.2*45*22mm 0-225A <0.5mΩ <120°C

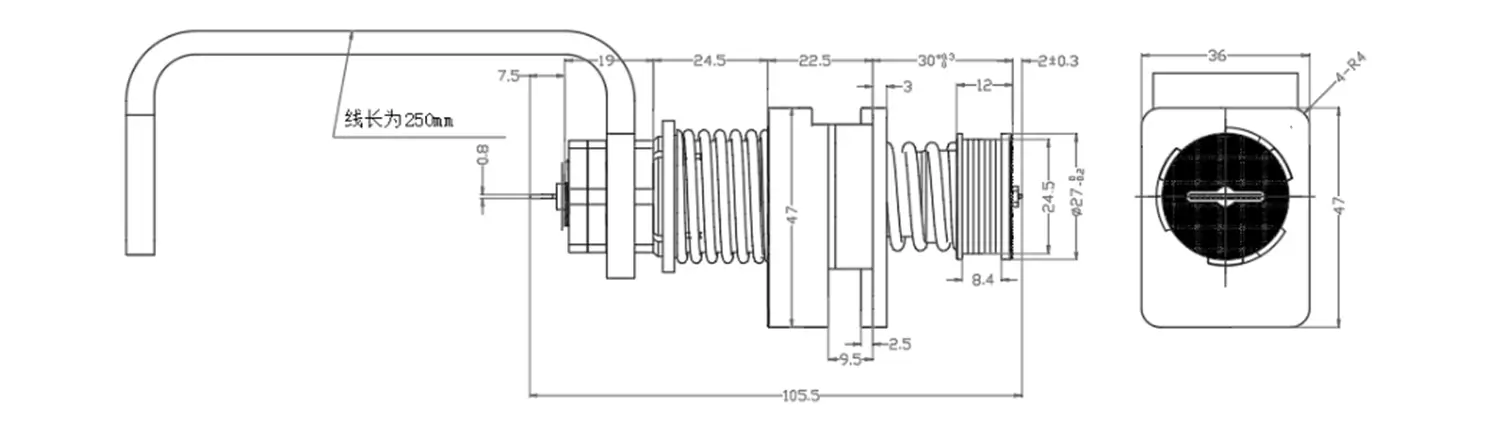

GP-10889 105.5*47*36mm 0-300A <0.6mΩ <120°C

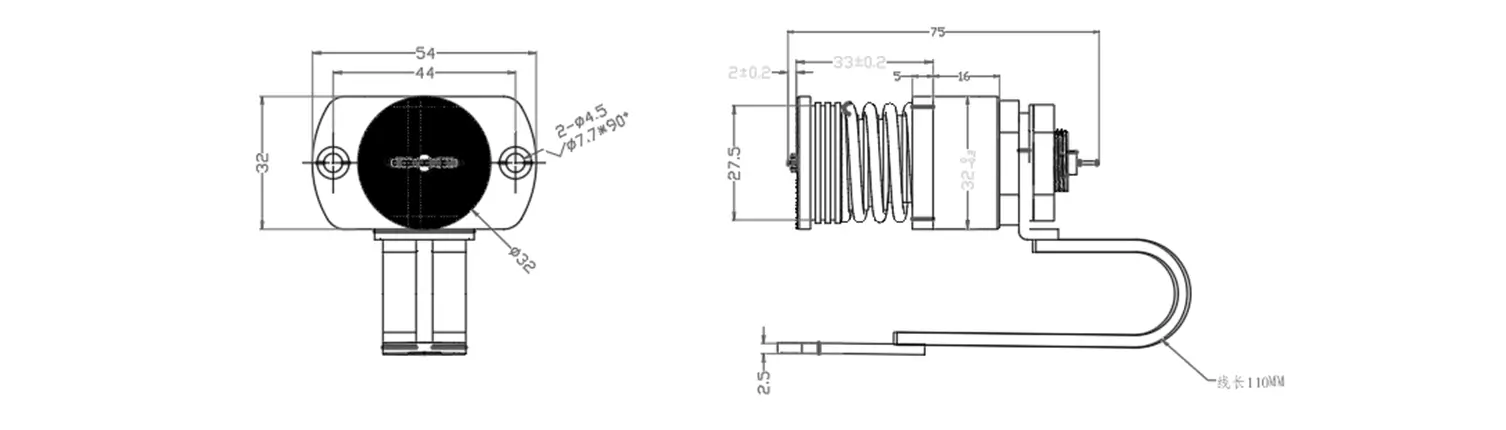

GP-11593 Ø32*54*75mm 0-300A <0.1mΩ <120°C

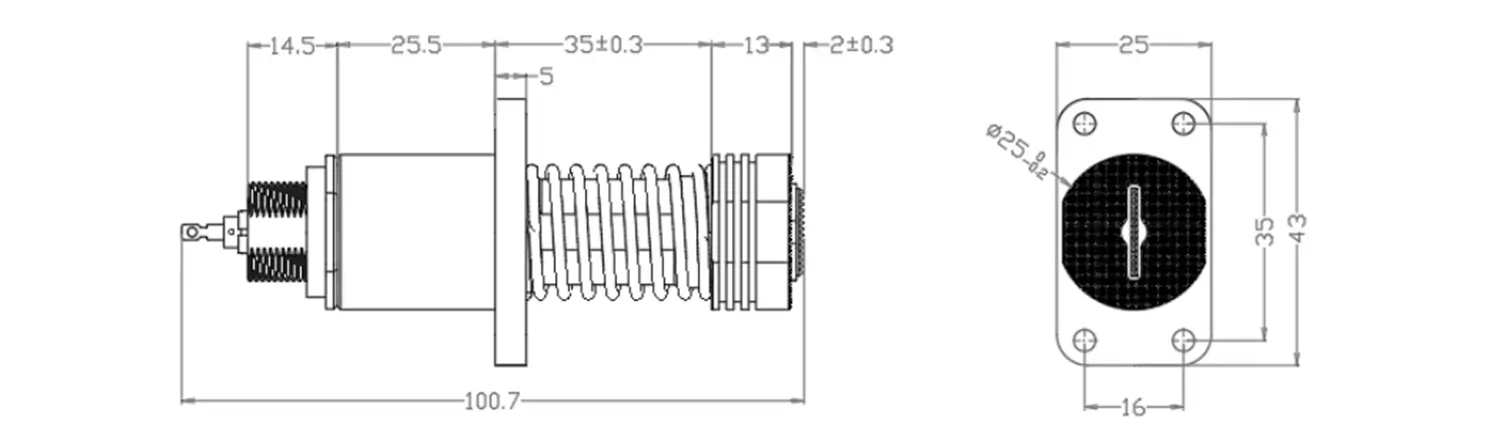

GP-11379 100.7*43*25mm 0-300A <0.5mΩ <120°C

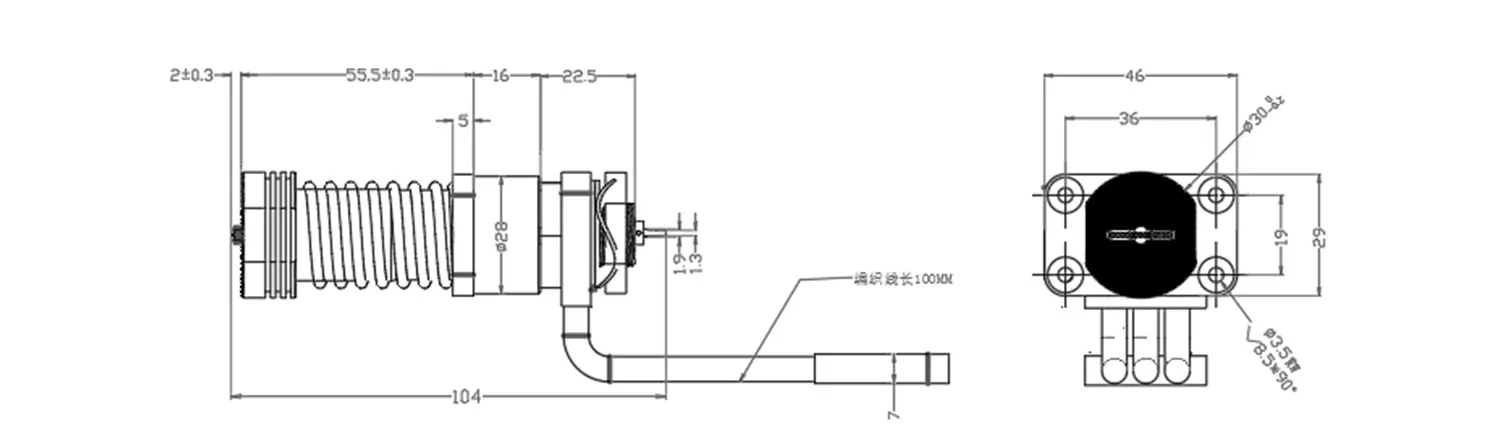

GP-11036 104*46*29mm 0-400A <0.5mΩ <120°C

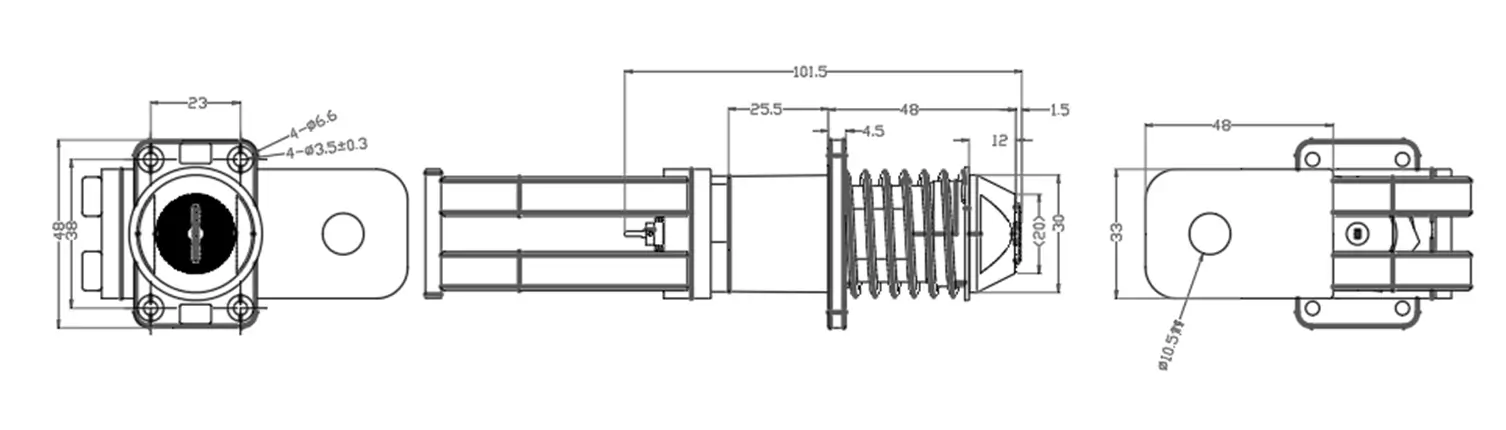

GP-10811 90*67*45mm 0-500A <0.2mΩ <120°C

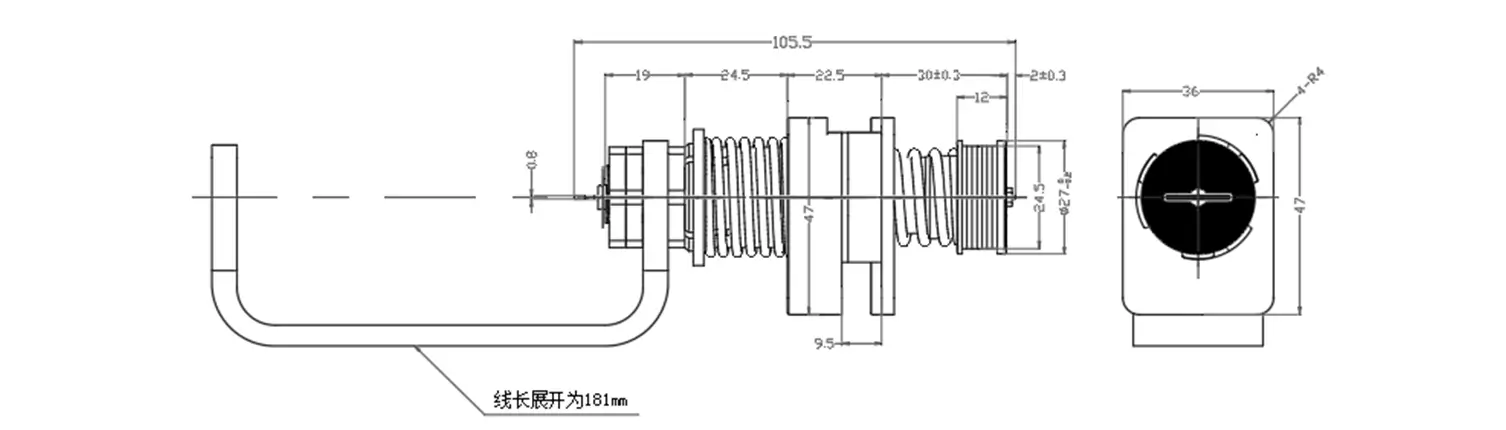

GP-10692 105.5*47*36mm 0-550A <0.10mΩ <120°C

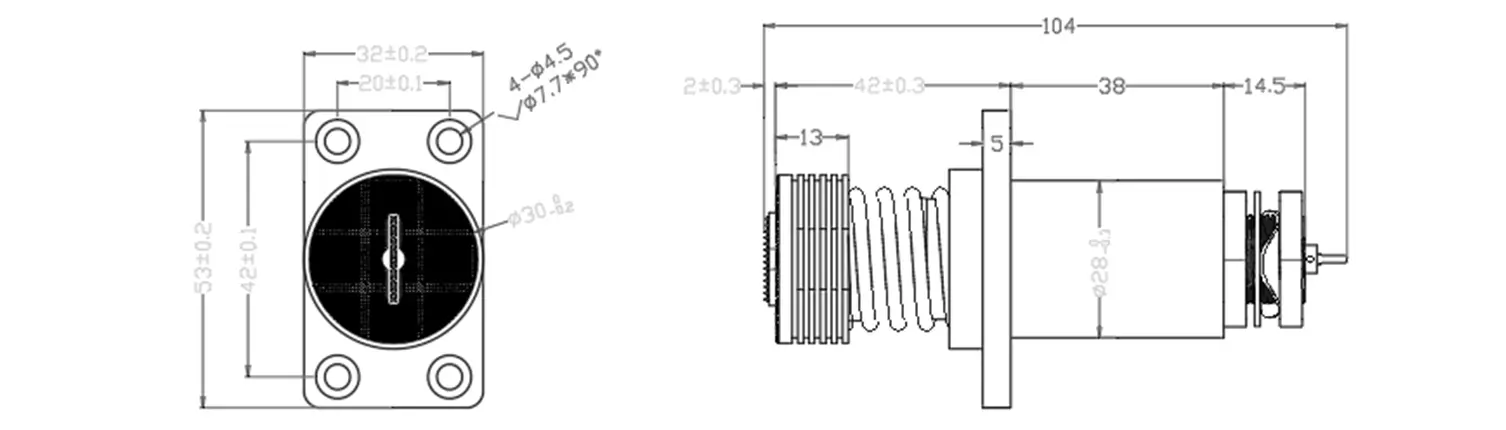

GP-11728 104*53*32mm 0-675A <0.2mΩ <120°C

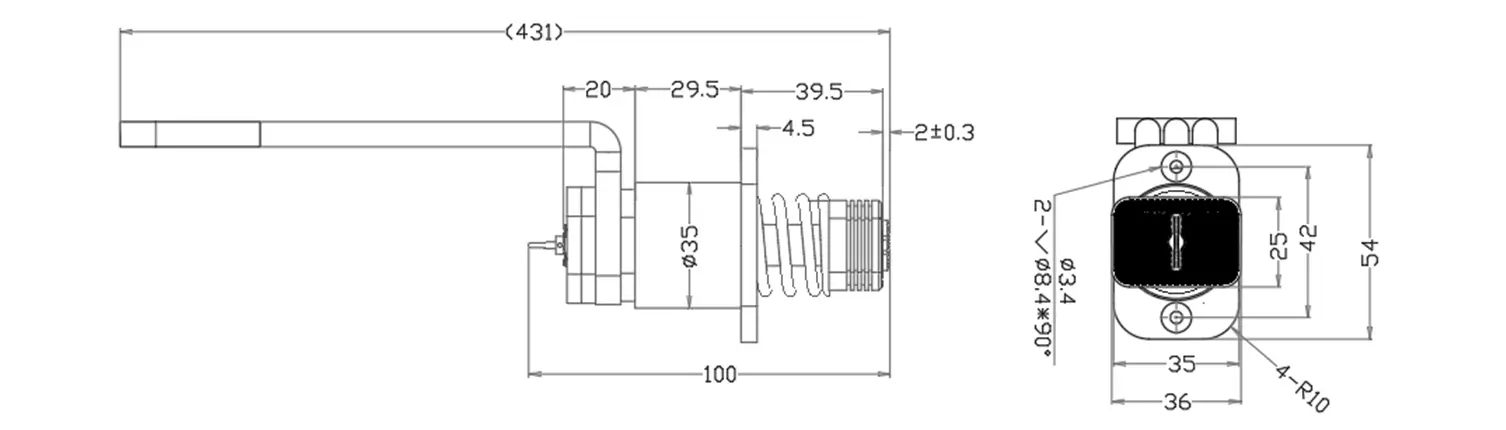

GP-10645 100*54*36mm 0-650A <0.1mΩ <120°C

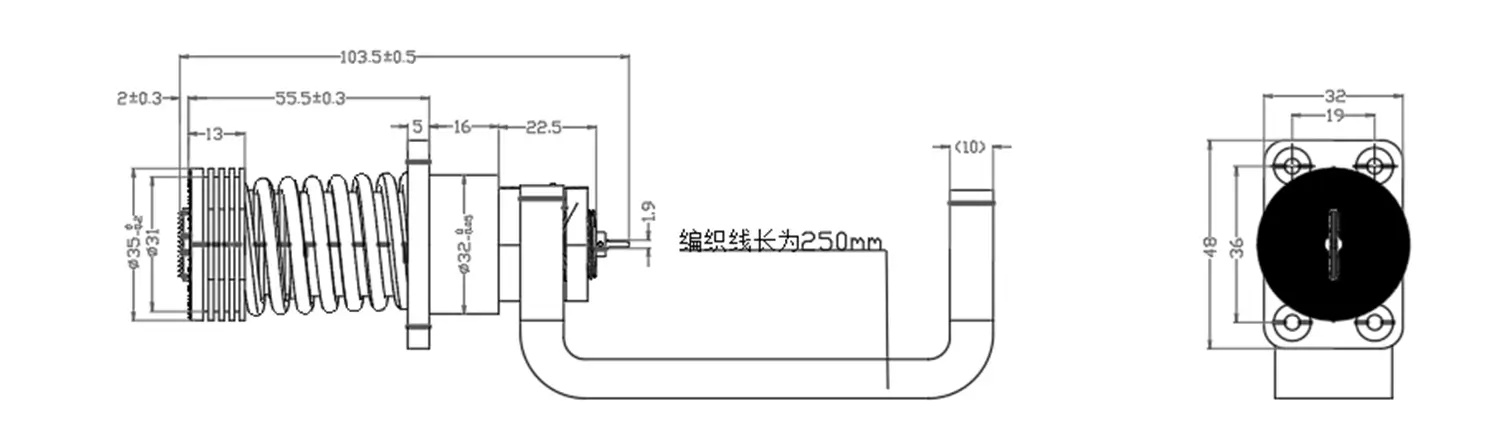

GP-10977 103.5*48*32mm 0-1000A <0.1mΩ <120°C

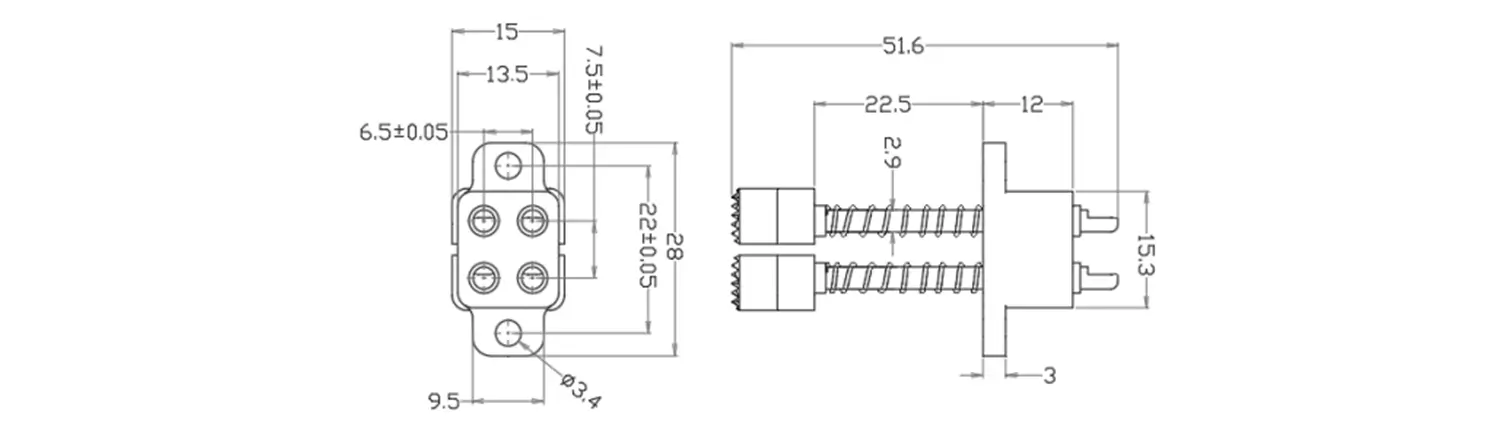

GP-10587 51.6*28*15mm 0-10A <5mΩ <100°C

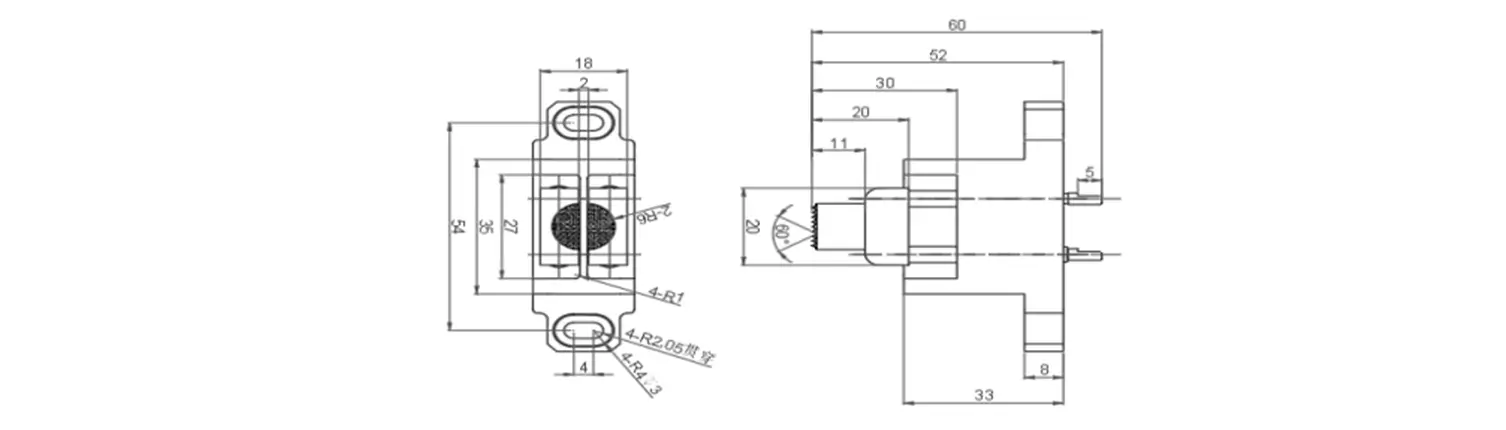

GP-10570 65*30*21mm 0-10A <5mΩ <100°C

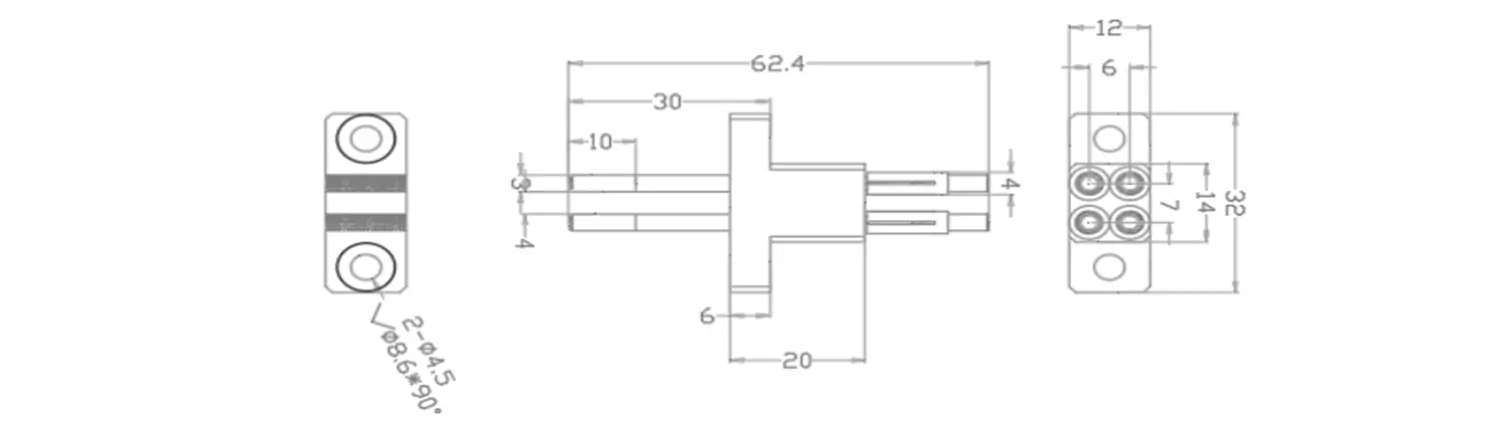

GP-11224 62.4*32*12mm 0-3A <5mΩ <100°C

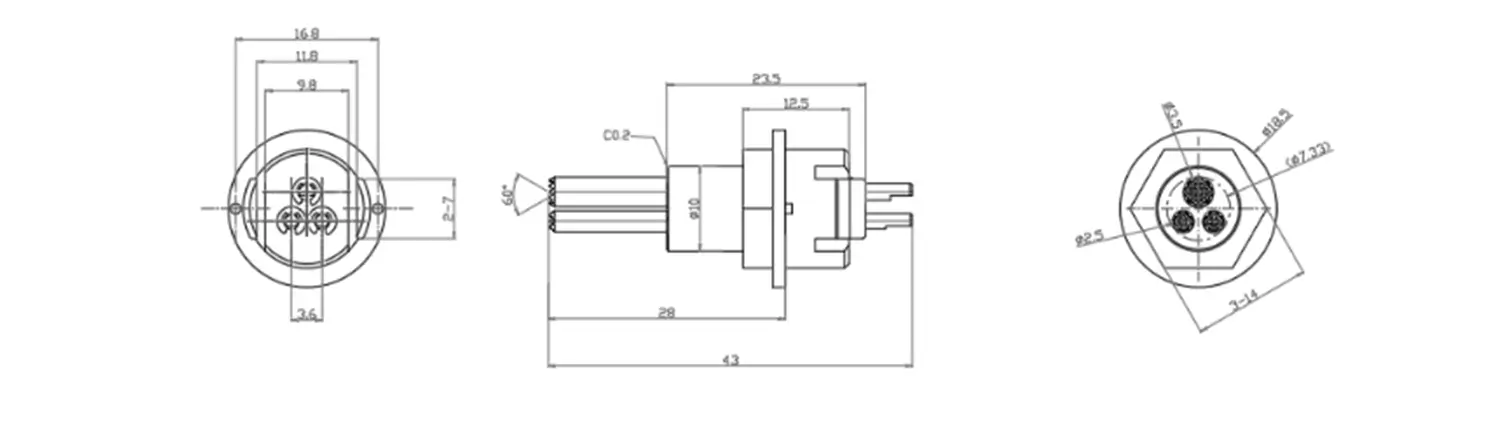

GP-11077 Φ18.5*43mm 0-6A <10mΩ <100°C

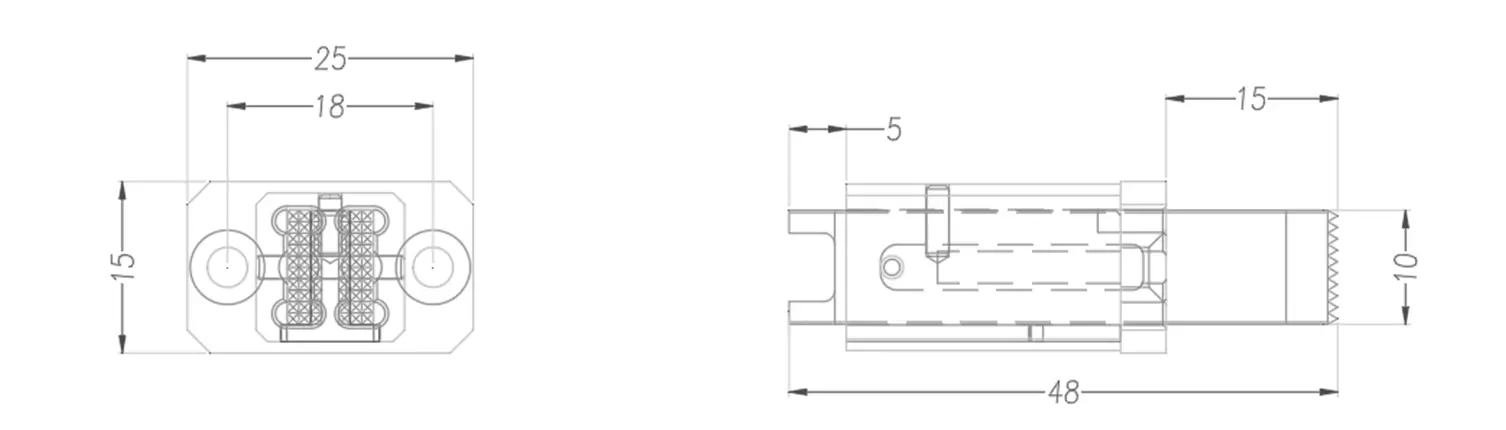

GP-10215 48*25*15mm 0-10A <30mΩ <100°C

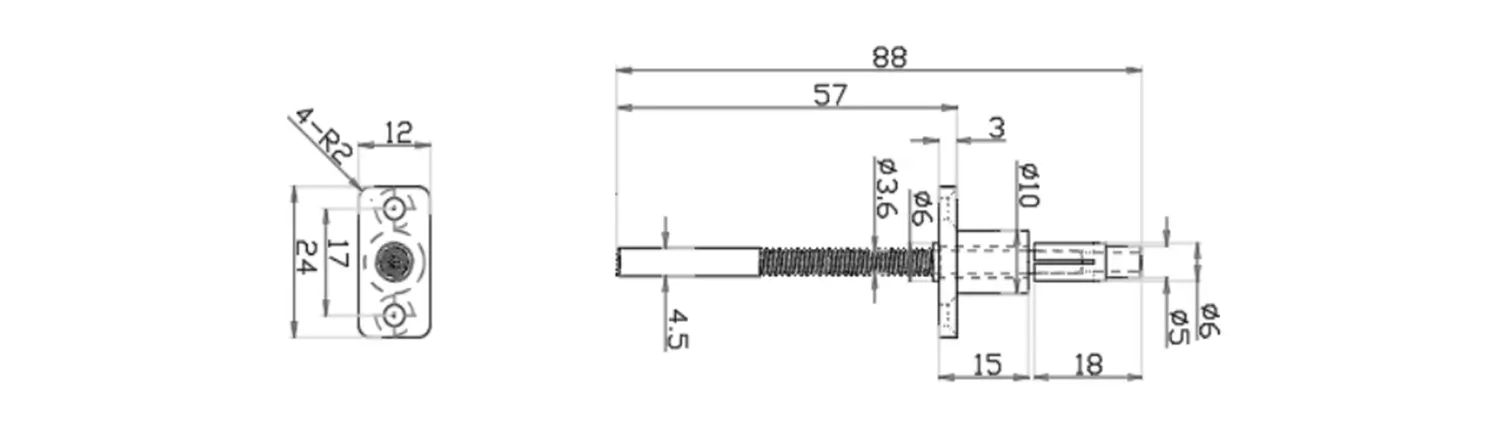

GP-10358 88*24*12mm 0-5A <1mΩ <100°C

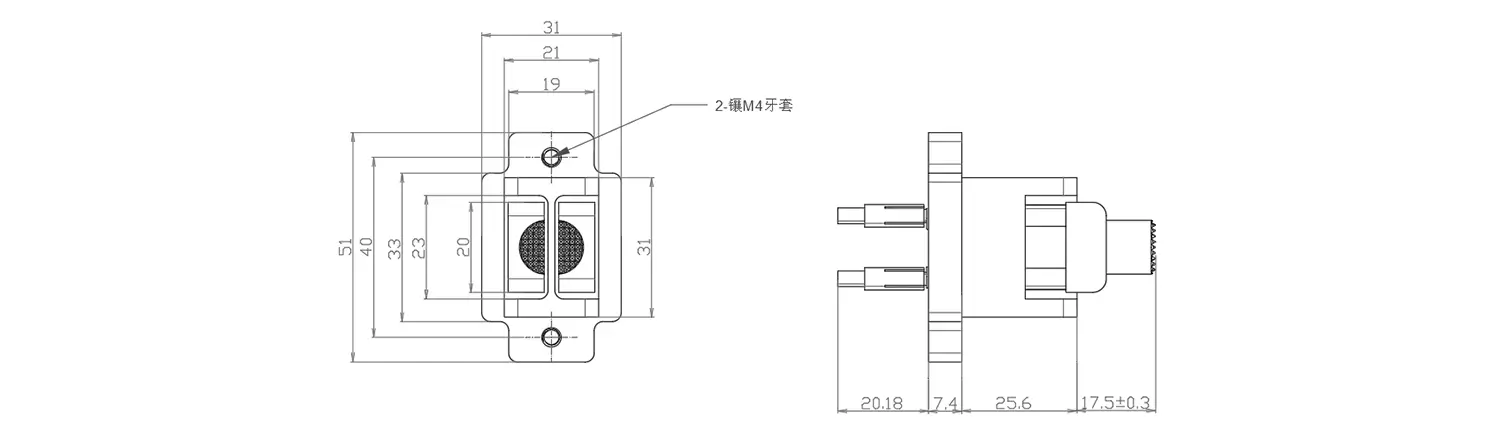

GP-11003 70.68*51*31mm 0-3A <5mΩ <100°C

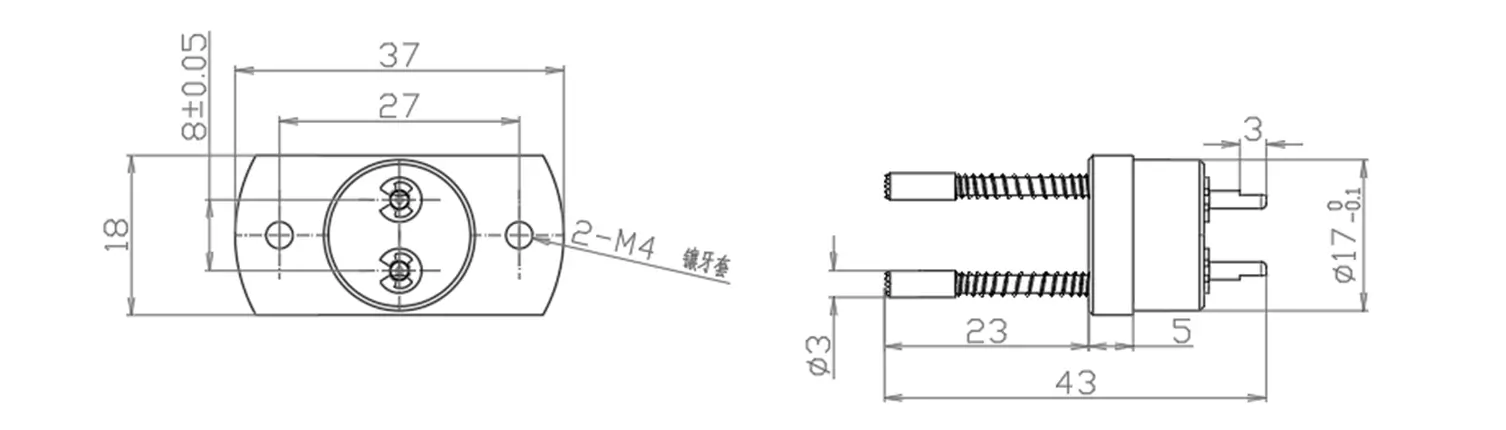

GP-11512 43*37*18mm 0-6A <5mΩ <100°C

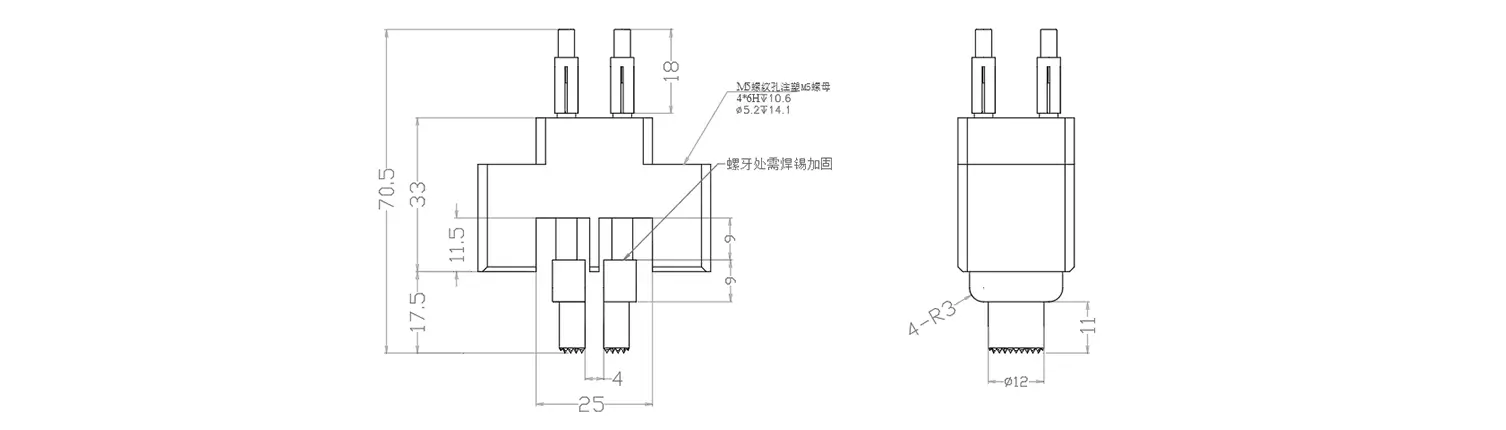

GP-10356 70.5*50*25mm 0-10A <5mΩ <100°C

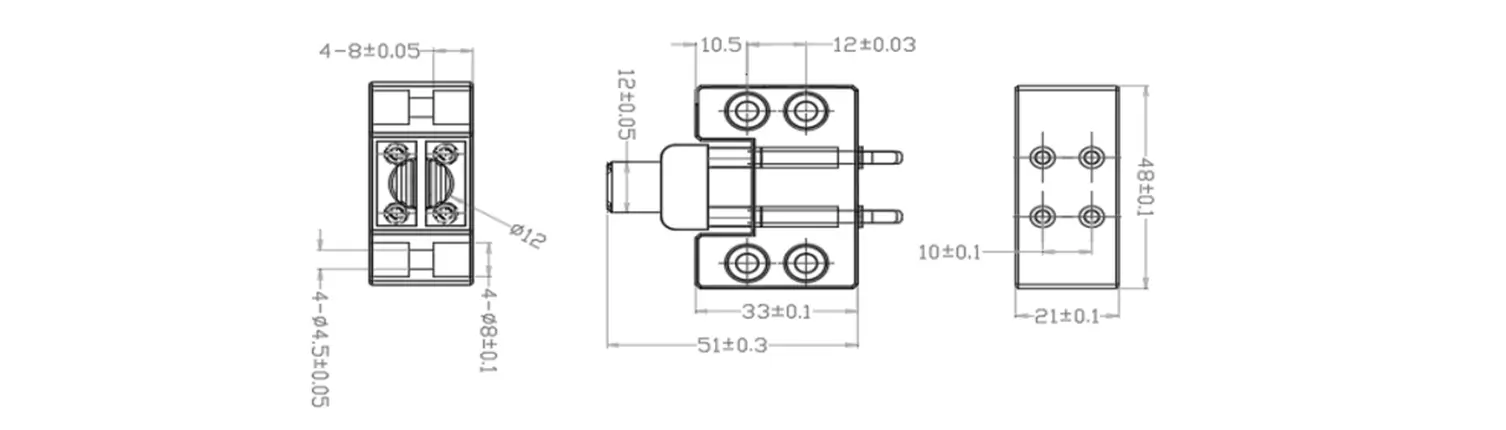

GP-11154 51*48*21mm 0-10A <5mΩ <100°C

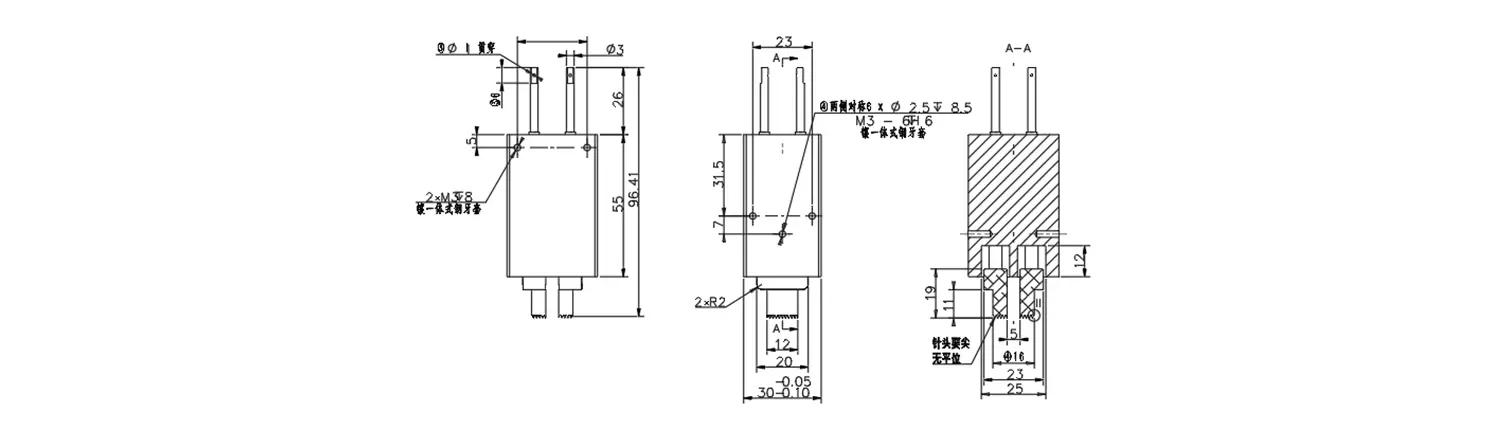

GP-11416 97*35*30mm 0-10A <5mΩ <100°C

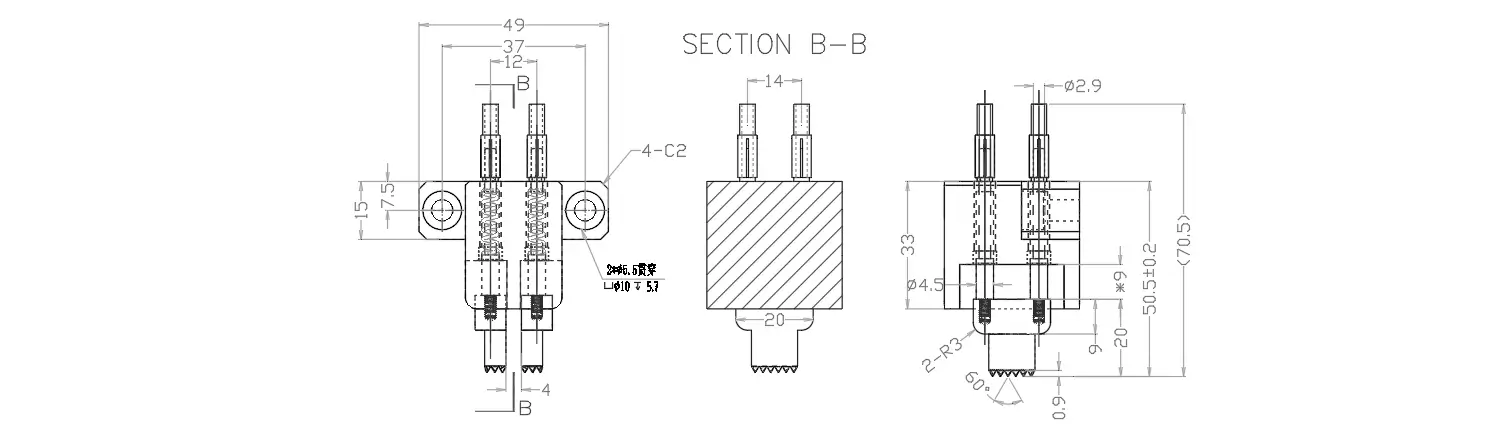

GP-10027 70.5*49*35mm 0-10A <5mΩ <100°C

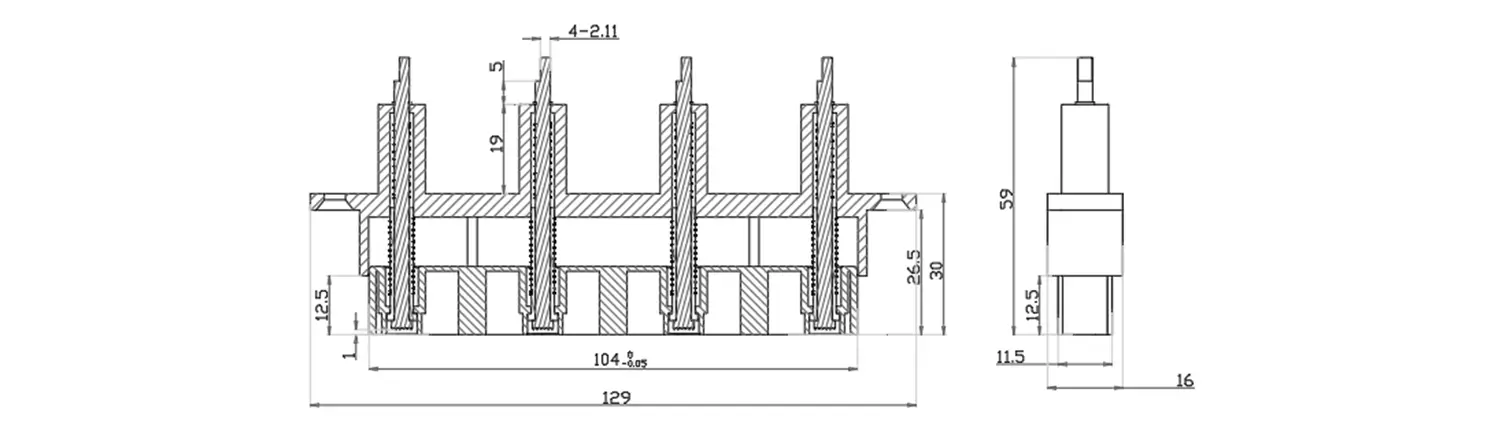

GP-10037 129*59*16mm 0-20A <5mΩ <100°C

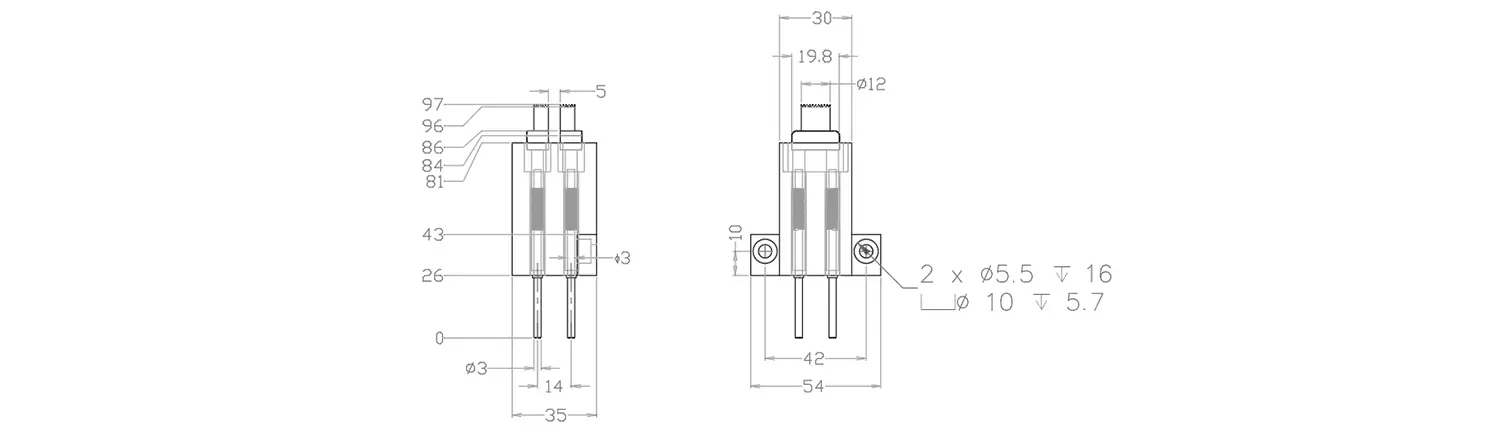

GP-10291 97*54*35mm 0-10A <5mΩ <100°C

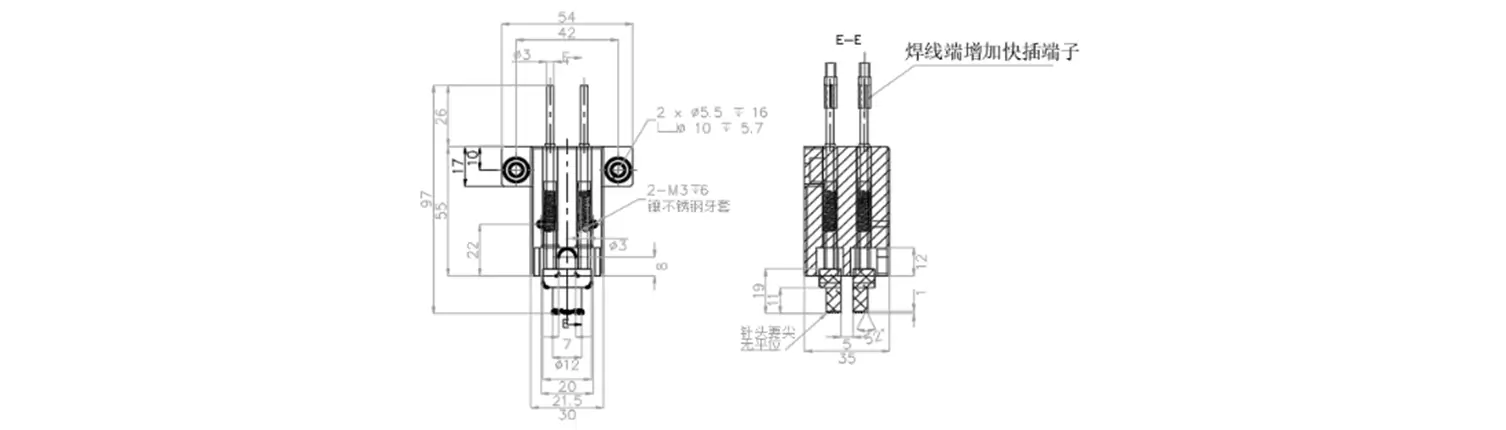

GP-10334 97*54*35mm 0-10A <5mΩ <100°C

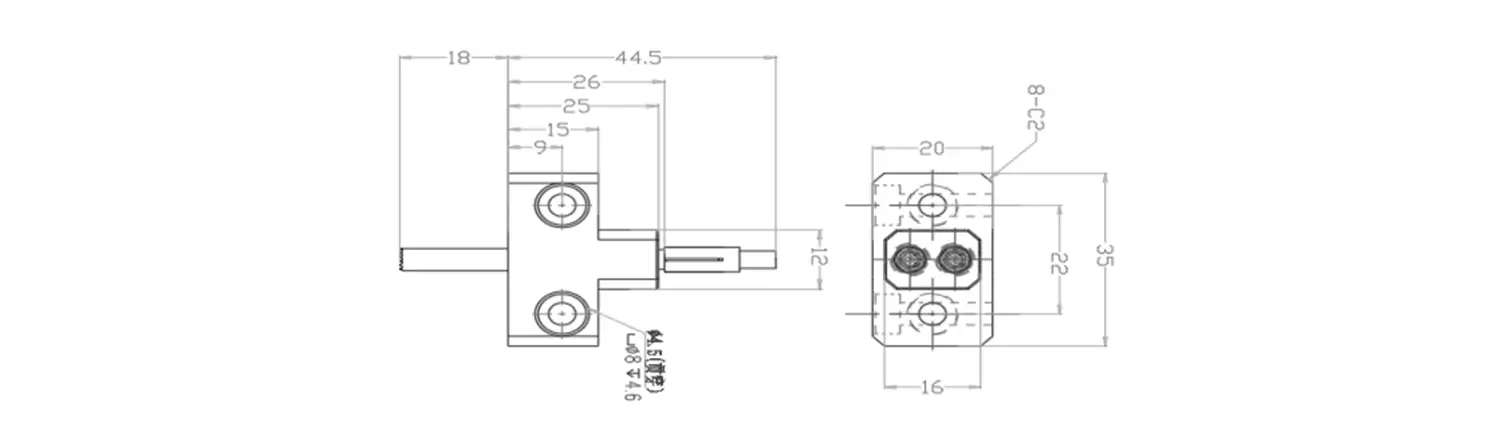

GP-10289 62.5*35*20mm 0-5A <5mΩ <100°C

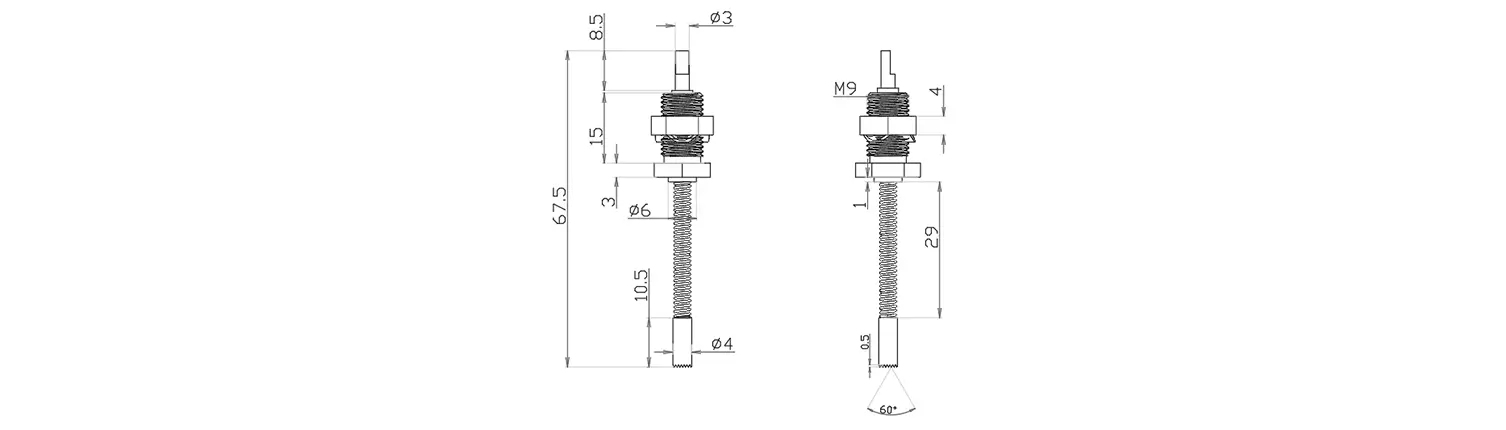

GP-10312 67.5*12mm 0-5A <5mΩ <100°C

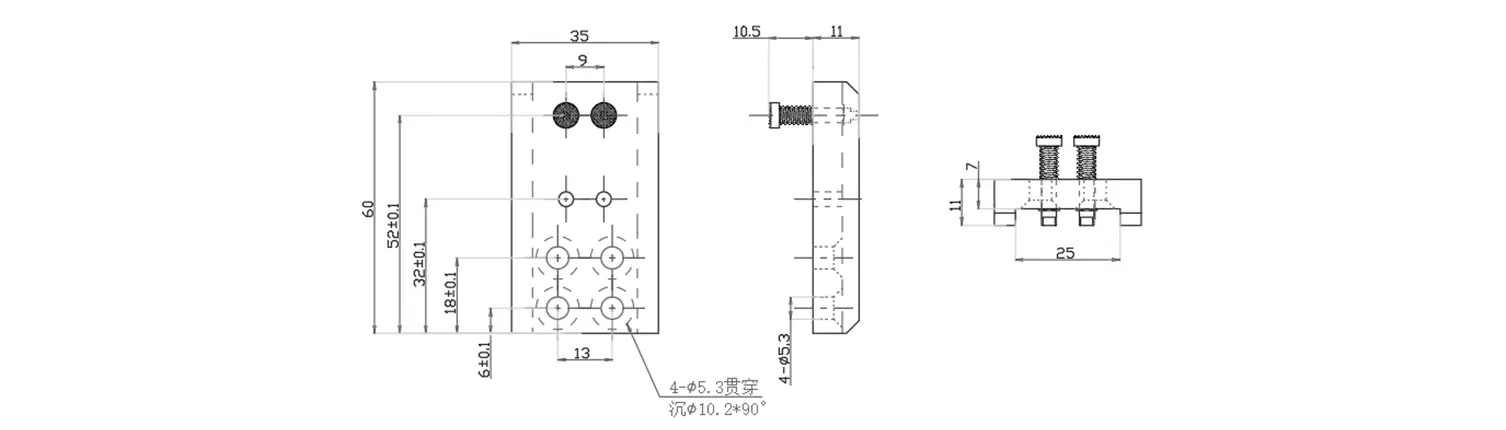

GP-10646 60*35*21.5mm 0-5A <2mΩ <100°C

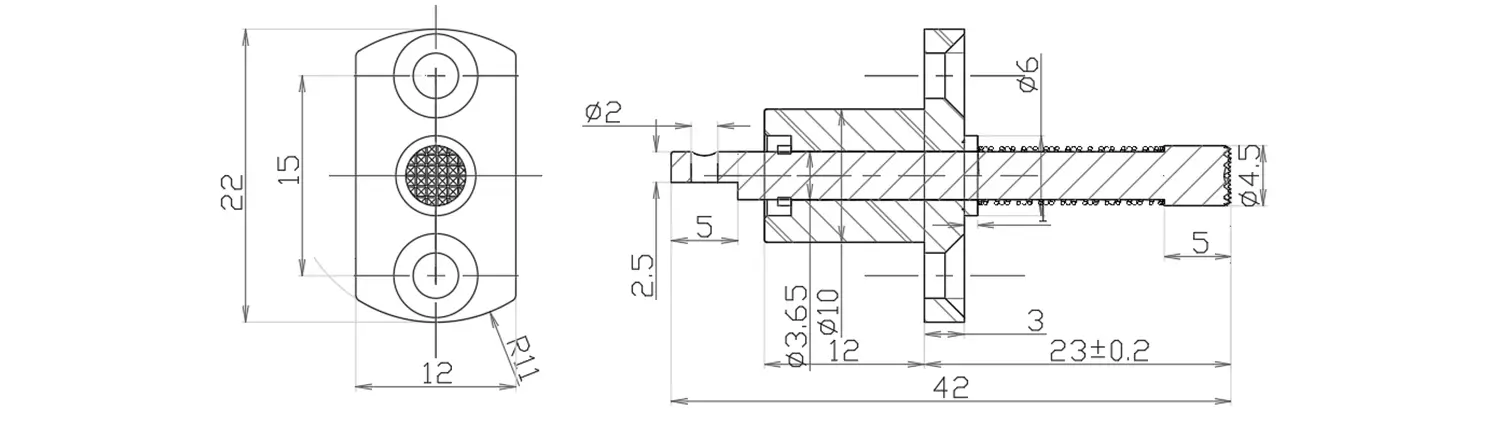

GP-11088 42*22*12mm 0-5A <5mΩ <100°C

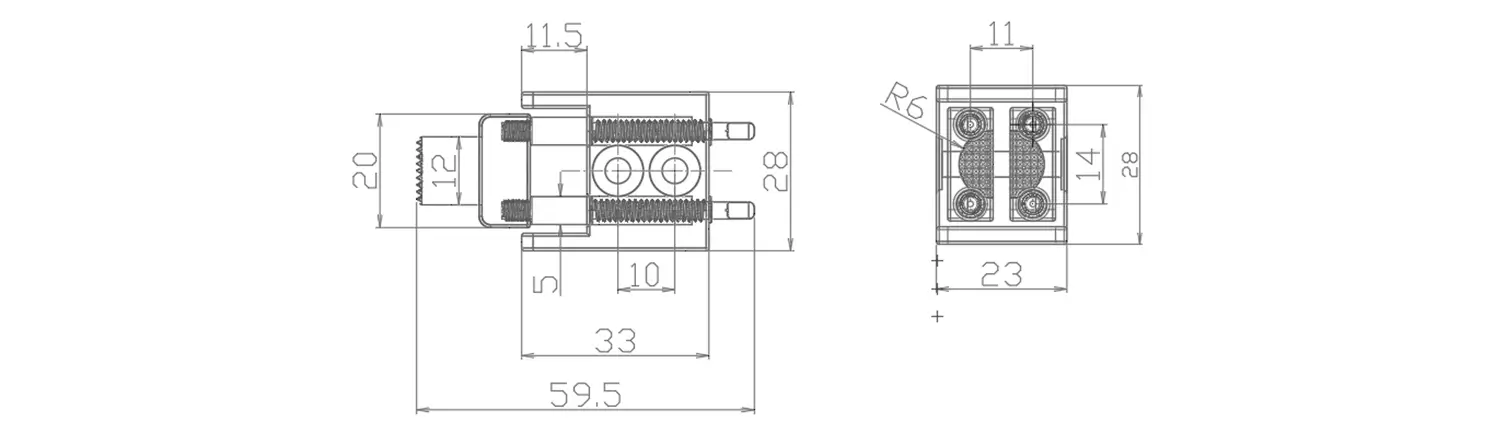

GP-10711 59.5*28*23mm 0-3A <5mΩ <100°C

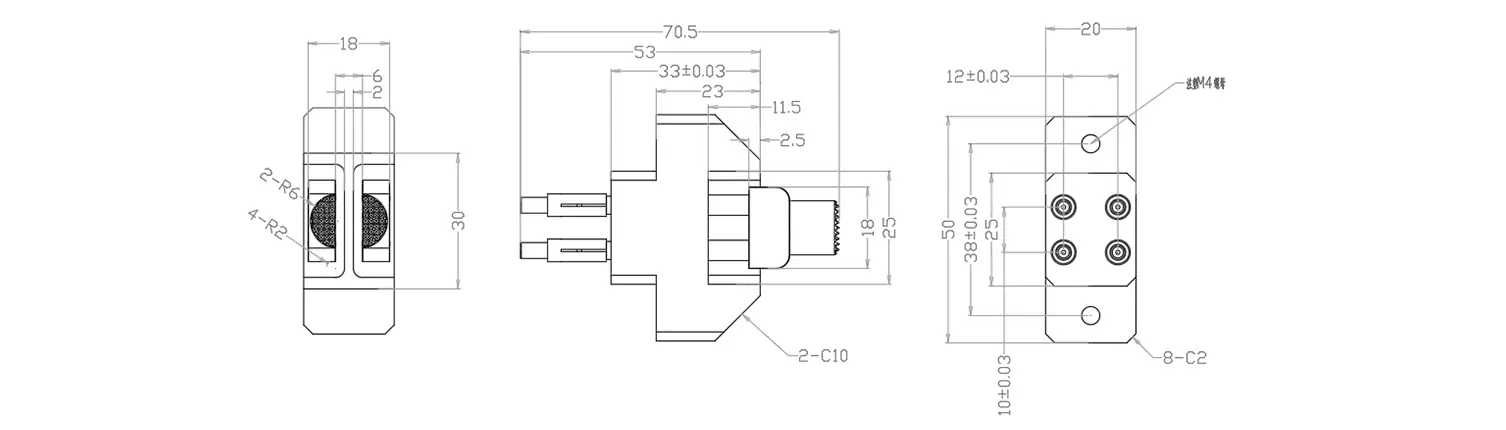

GP-10404 70.5*50*20mm 0-10A <5mΩ <100°C

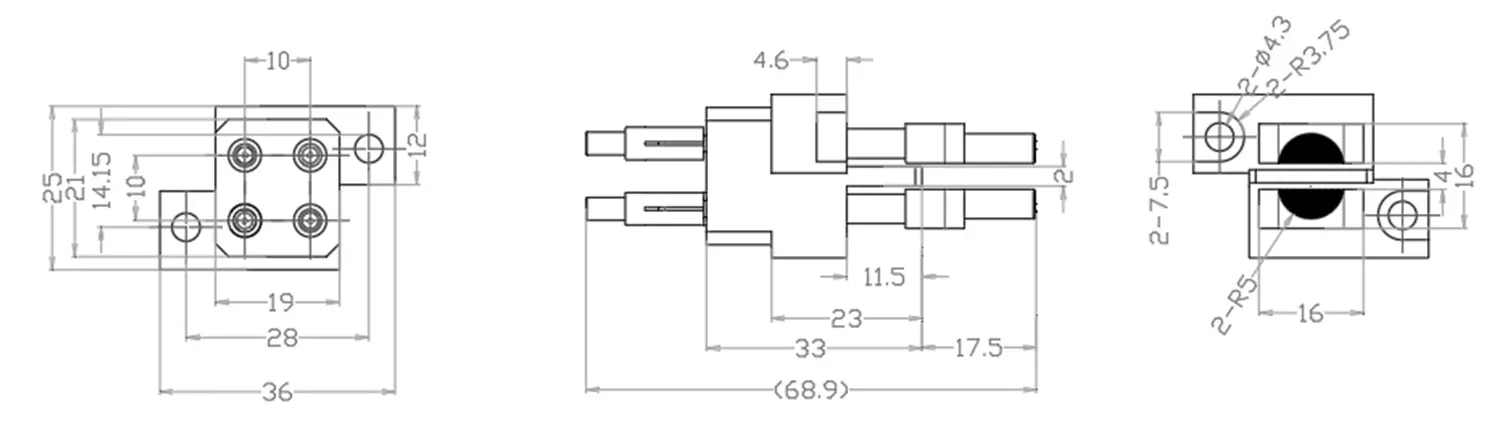

GP-11490 68.9*36*25mm 0-10A <5mΩ <100°C

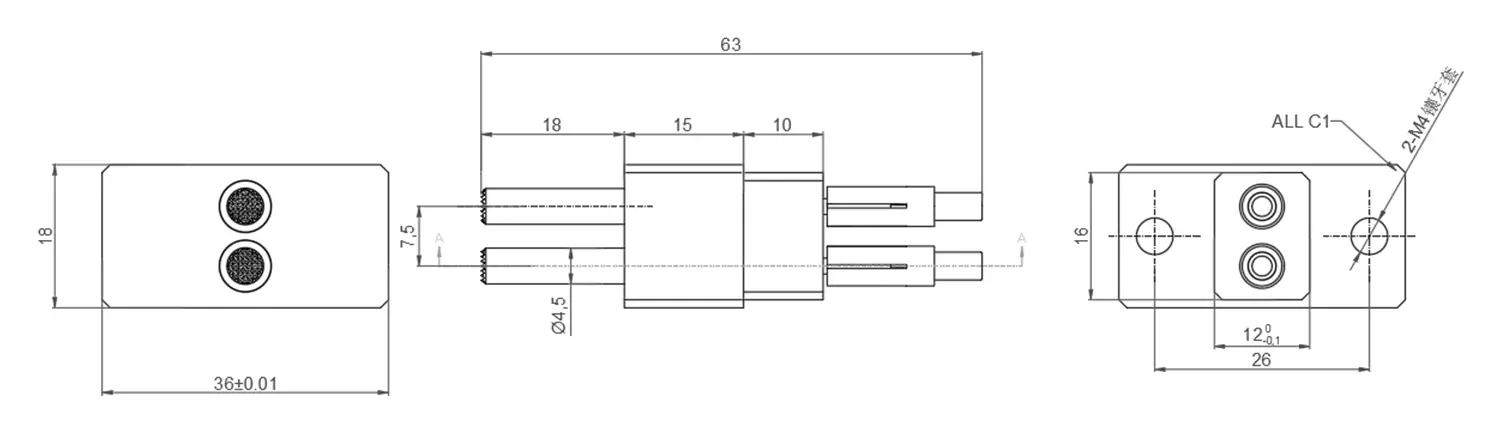

GP-11334 63*36*18mm 0-5A <5mΩ <100°C

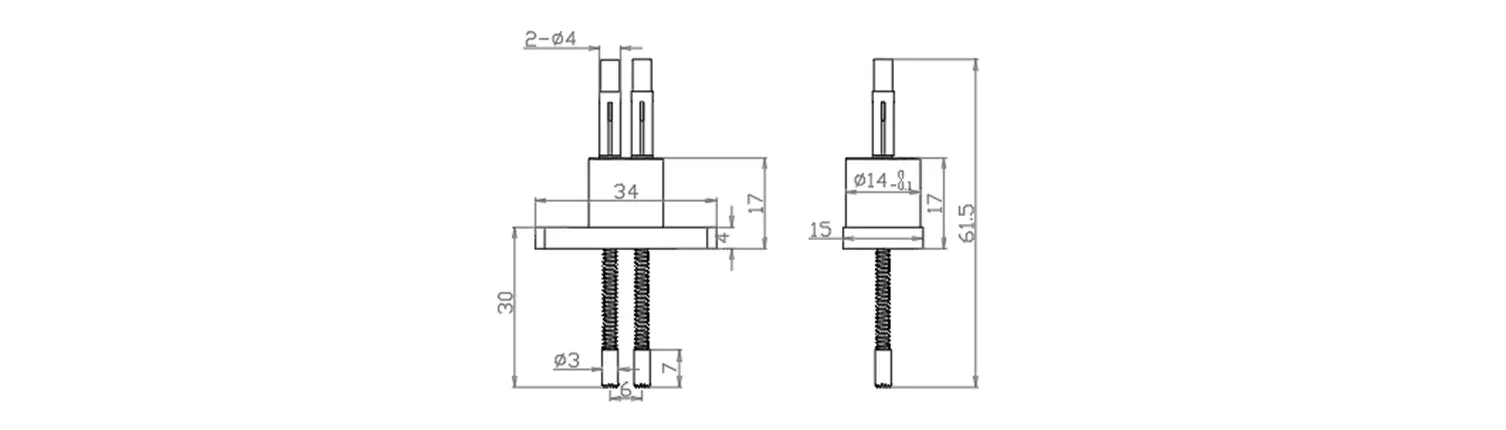

GP-11414 61.5*34*17mm 0-3A <5mΩ <100°C

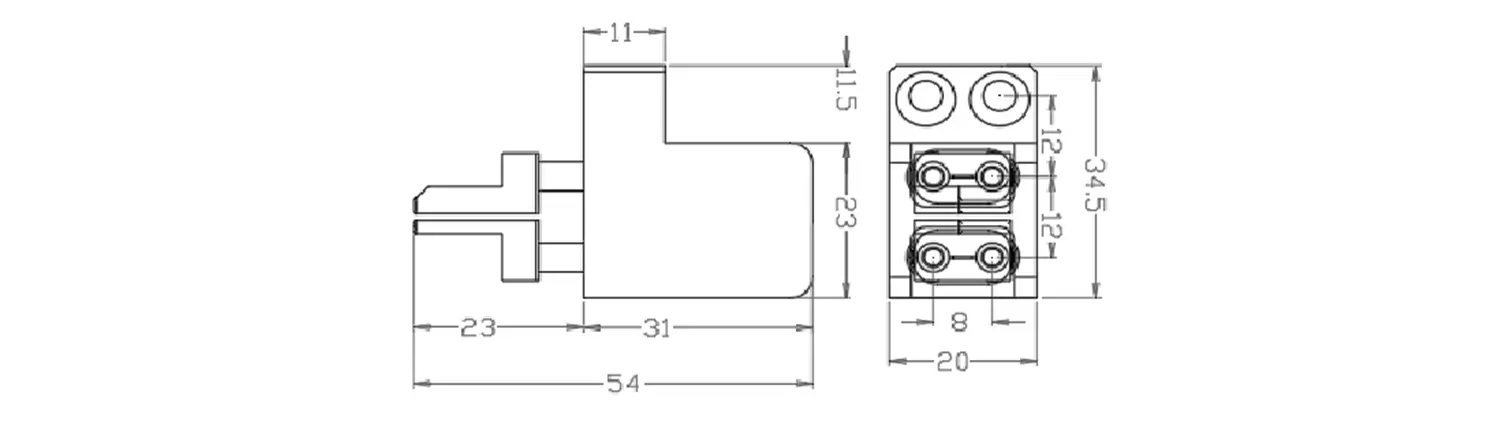

GP-11277 54*34.5*20mm 0-10A <3mΩ <100°C

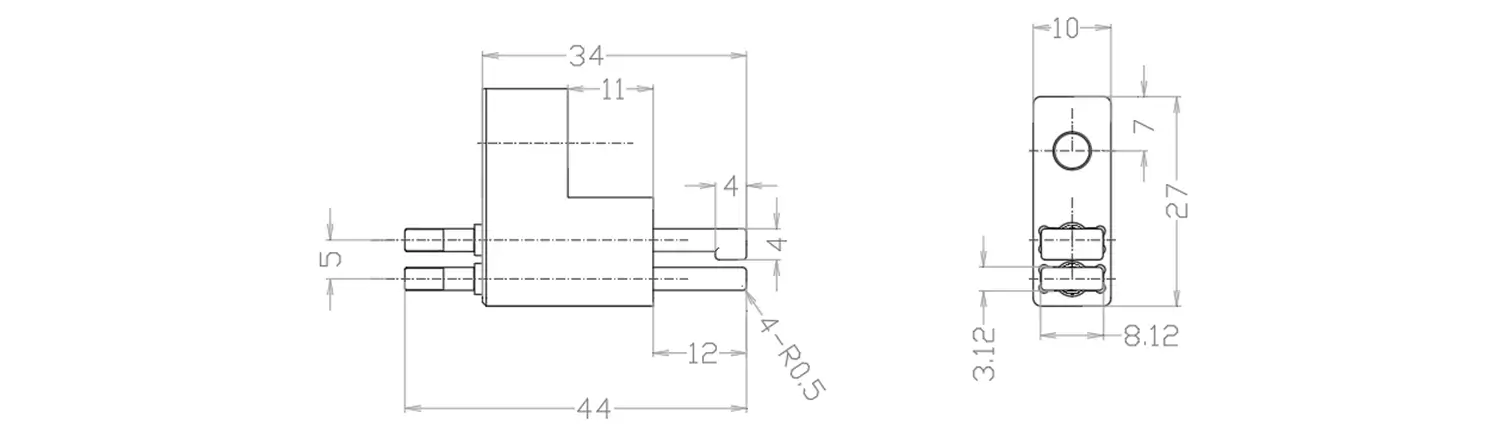

GP-10776 44*27*10mm 0-5A <30mΩ <100°C

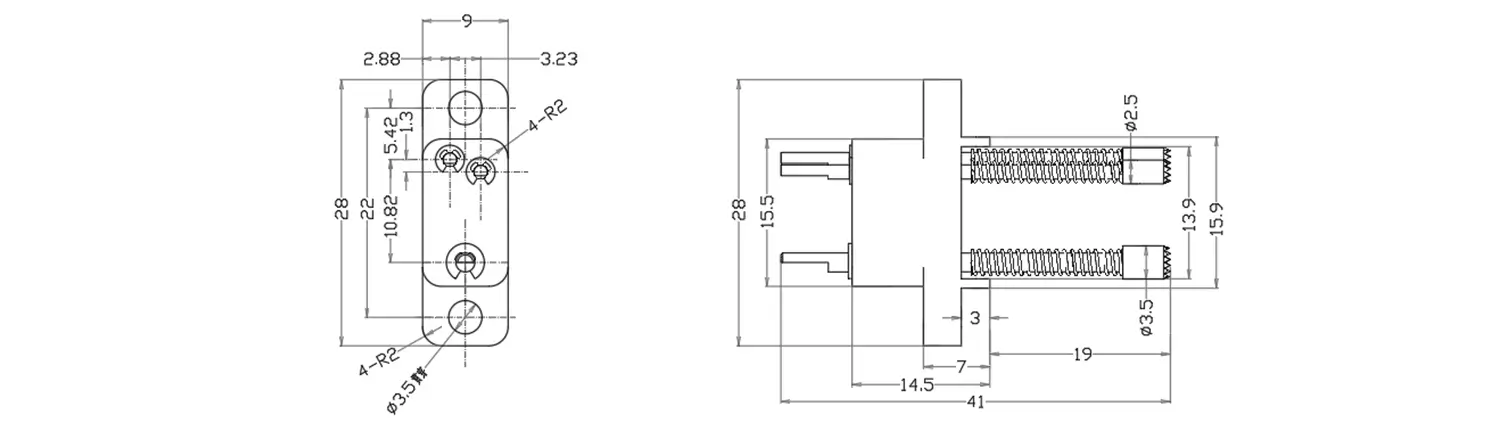

GP-10949 41*28*9mm 0-6A <10mΩ <100°C

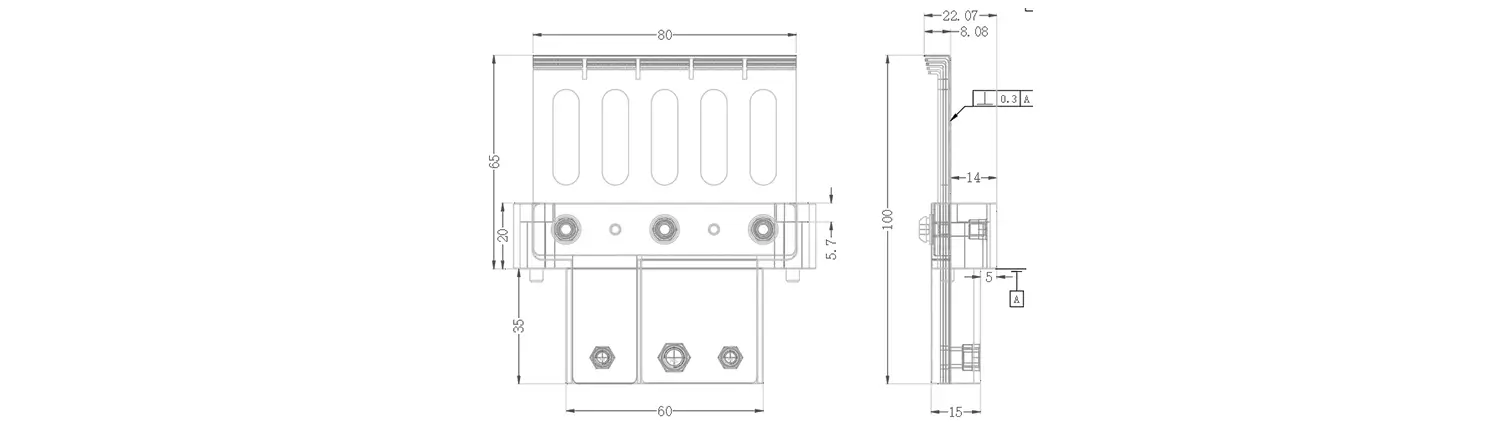

GP-11139 100*92*20mm 0-120A <1mΩ <120°C

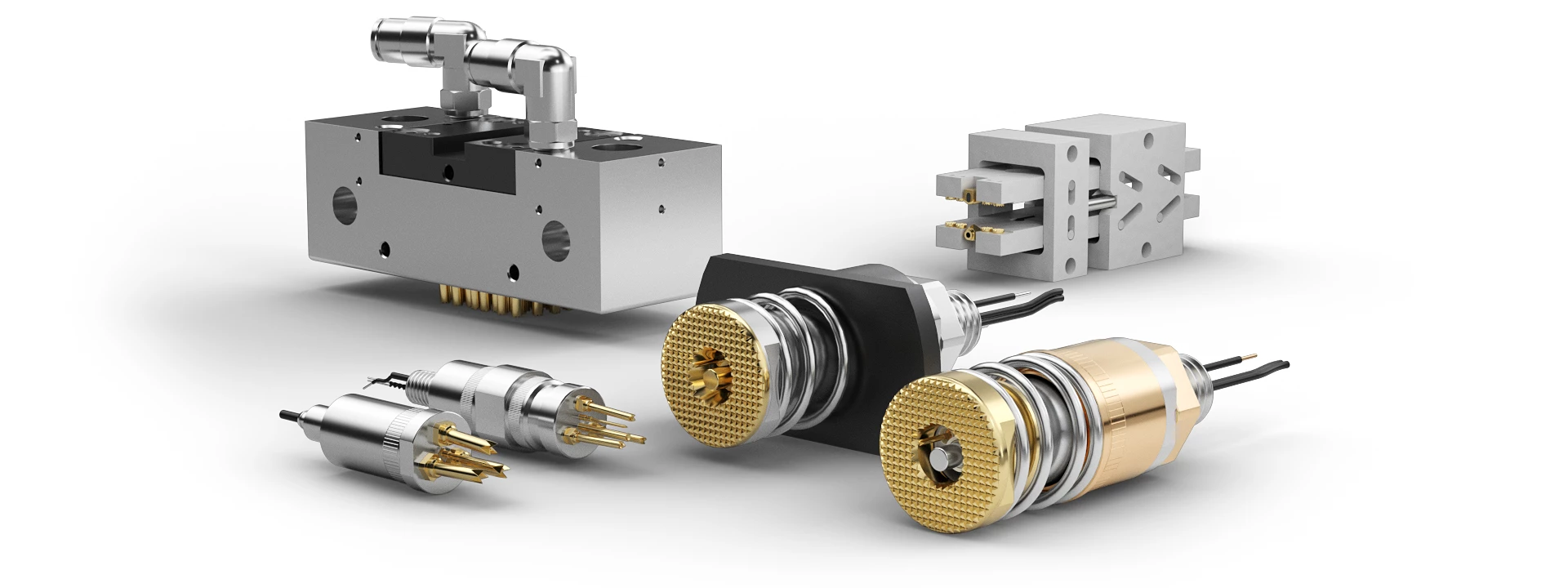

High Current Test Probes Solution

Anywhere high currents are flowing is no place for compromise. We offer an extensive portfolio for a variety of currents and requirements. Our high current test probes solution are perfectly coordinated to the market and our customer base to meet the challenges of today and tomorrow.
