XURUI
High Current Pogo Pin
Spring loaded high current pin
High current pogo pins are also called spring loaded high current pins, high current spring loaded contacts, springloaded high current pin, and through hole mount springloaded high current pins. Their core function is to connect conductive or signal conductors.
I Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance
I Installation method: SMT Surface Mount (SMD) Reflow Soldering or Placement by Insertion Machine and Fixation by Wave Soldering
I Contact Resistance: 30 milliohms Max.
I Rated Current: 10A~30A (Continuous Current)
I Rated Voltage: 36V AC/DC
I Durability: Min.10,000 Times (Reciprocating Motion Lifespan)
I Operating Temperature: -40°C to +120°C (Continuous Temperature)
I Salt Spray Resistance 96 Hours Corrosion Test
I High-Precision Mold And Parts Processing
I A variety of standards are available, and samples will be sent out as soon as the same day.
I Provide Customized Services
I Comply With EU RoHS And Reach Standards
xurui spring loaded high current pins
High Current Pogo Pin Product Details
What is a high current pogo pins
High current pogo pins are also called spring pin, current pin, Pogo Pin connector, Spring-loaded Pin. It has two types: High Current SMD (circuit board surface mount) Pogo Pin and High Current Dip (plug-in) Pogo Pin. The core function of High Current Pogo Pin is high current transmission.
Contact high current pin is designed with a bevel structure and built-in spring mechanism. It is mainly composed of three core components: Plunger, solidPin, Spring and Body, and is assembled through precision molds and special equipment. The role of the bevel structure design is to ensure that when the high current spring loaded contacts are working, the lateral force generated by the contact between the bevel and the spring is used to maintain a stable contact force between the needle and the inner wall of the needle tube, prompting the current path to mainly pass through the gold-plated Plunger and Body, thus achieving stability And with extremely low contact resistance, it can maintain a stable and reliable connection even during frequent plugging and unplugging. The purpose of adding SolidPin is to increase the current path, improve transmission efficiency, and achieve high current transmission.
How to install high current pogo pin
SMT automatic patch reflow technology: The SMT automatic patch machine automatically mounts the High Current Pogo Pin onto the PCB circuit board with solder paste printed on it, and then melts and solidifies the solder paste through the reflow soldering process to complete the bonding with the PCB pad. Fixed connection. This process is fast, highly precise and highly automated, which greatly improves production efficiency and product quality. High Current SMD Pogo Pin and some models of contact high current pin can be installed through the SMT automatic patch reflow soldering process.
Plug-in machine + wave soldering technology: The automatic plug-in machine automatically mounts the High Current Pogo Pin and accurately inserts the solder pins into the PCB circuit board with printed solder paste, and then melts and fixes the solder paste through the wave soldering process to complete soldering to the PCB fixed connection to the disk. The process is fast, accurate and highly automated, greatly improving production efficiency and product quality. Suitable for electronic components with extremely long solder legs that cannot be fixed through SMD reflow soldering
high current pogopin material & Parts
High current spring loaded contacts is a classification of Pogo Pin connectors. It is a built-in spring connector designed and manufactured based on the bevel structure. It usually consists of three core parts: plunger, spring, and body. It is characterized by its own soldering feet and precise positioning, high welding strength (stronger welding with PCB circuit board), low resistance, stable and reliable connection, long life, and more durable.

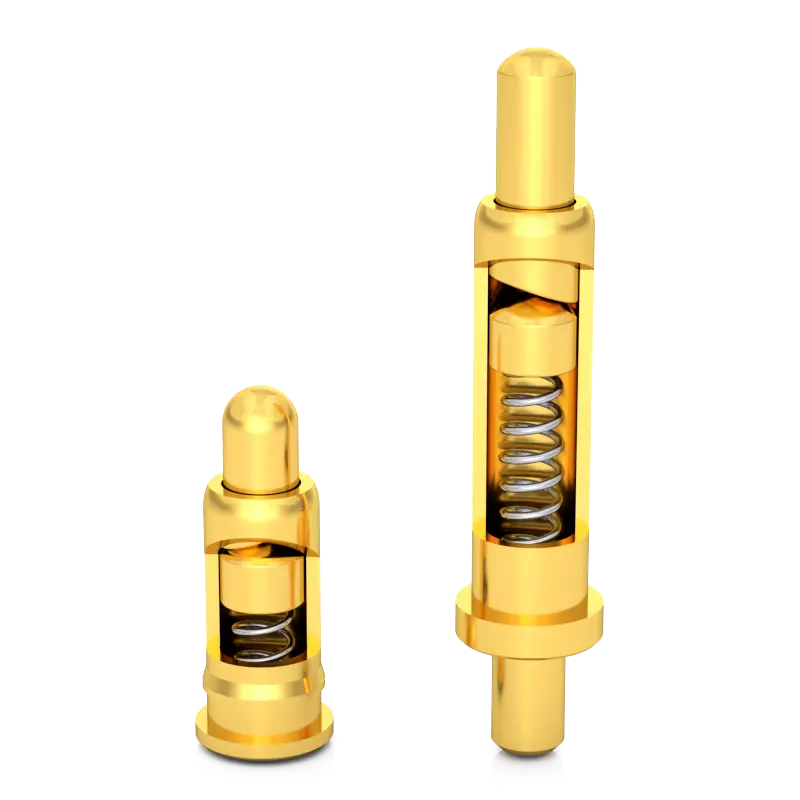

high current pogopin Internal structures
There are three commonly used internal structures of Xurui’s high current spring loaded contacts, namely Plunger bevel structure, Plunger bevel + steel ball structure and Plunger inner hole bevel structure.

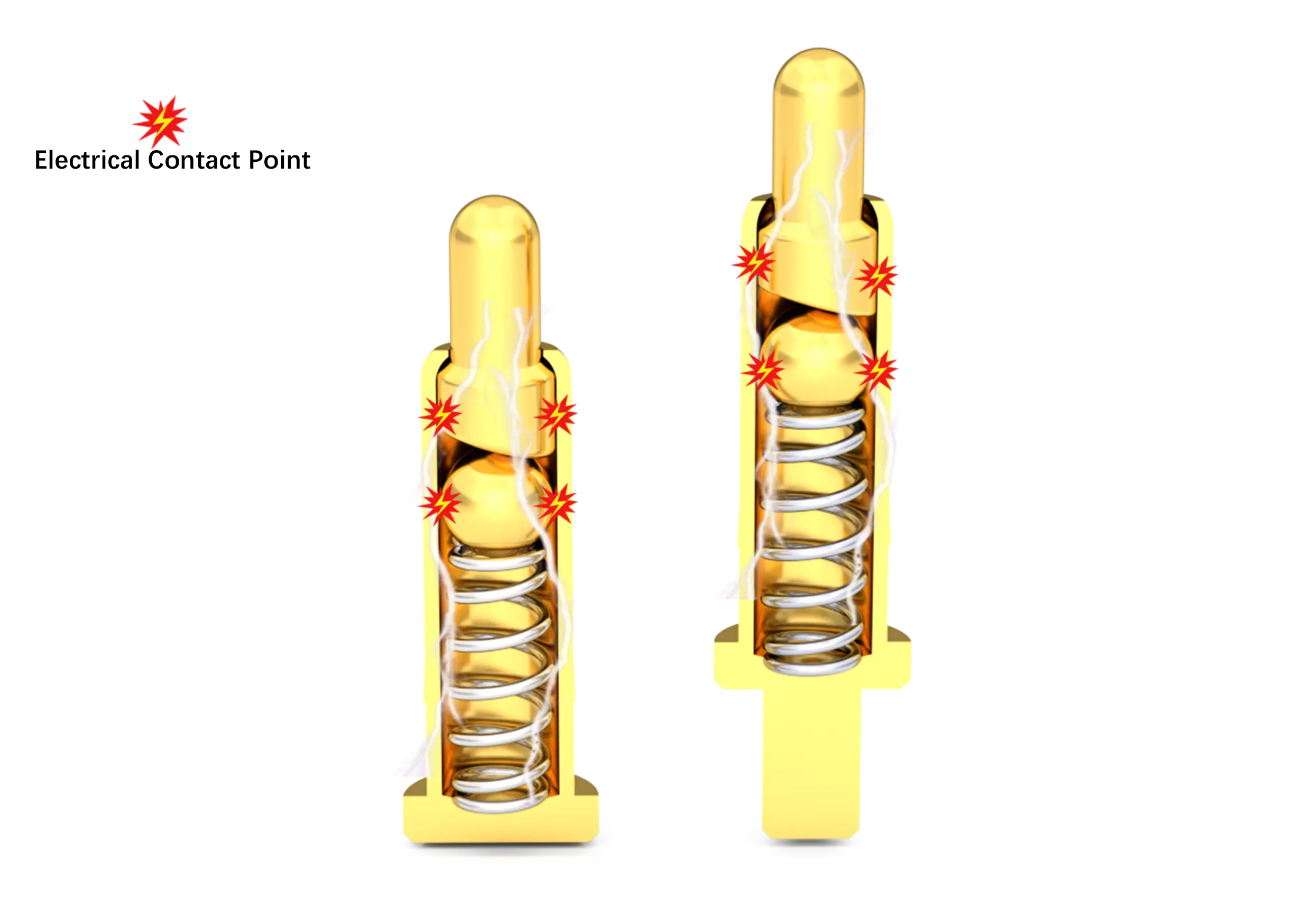

How do high current pogopin work
Contact force and contact resistance are the core factors forstable and reliable connections, and there is a direct relationship between contact force and contact resistance. lncreasing contact force can effectively reduce contact resistance. Therefore, achieving stable contact force and contact resistance is key to establishing a reliable connection.
When the bevel and spring are working, the lateral force generated is converted into contact force, allowing the gold-plated needle to maintain stable contact with the inner wall of the needle tube, thereby obtaining stable and extremely low contact resistance, ensuring a stable and reliable connection.
Xurui Technology
Vacuum blind hole plating technology is known for its excellent performance and can accurately plate a layer of gold inside and outside extremely fine blind holes. This advanced electroplating process not only ensures the overall beauty of the metal surface, but also provides excellent corrosion and wear resistance. Every detail, whether insideor outside the hole, shows a golden and shiny color, and there will be no peeling or gold falling off problems. The precision and stability of this technology ensure the durability and durability of the electroplated layer, meeting avariety of demanding application requirements.
High current pogopin contact resistance
Mature design, high-precision processing and advanced vacuum blind hole plating technology are combined to achieve extremely low and stable contact resistance.
XURUI spring-loaded high current pins
High Current Pogo Pin Technical Parameters
| Items | Details |
|---|---|
| Material | Plunger: Lead-Free High Conductivity Copper Alloy |
| Body: Lead-Free High Conductivity Copper Alloy | |
| Spring: Lead-Free Stainless Steel | |
| SolidPin: Lead-Free High Conductivity Copper Alloy | |
| Main Technical Parameters | Operating temperature: -40~+180°C（Standard） |
| Operating humidity: 20-85%RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85%RH | |
| Rating voltage: 36V AC/DC（Standard） | |
| Rating current: 10-30A/Pin Continuous（Standard） | |
| Contact resistance: 30 mΩ Max.（Standard） | |
| Withstanding voltage: 250V AC ,1 Minute | |
| Insulation resistance： 500 MΩ Min | |
| Durability：10,000 Cycle（Standard） | |
| Working Spring Force:80~200gf（Standard） | |
| Electroplating | Plunger: Nickel Plating and Gold Plating |
| Body: Nickel Plating and Gold Plating | |
| SolidPin: Nickel Plating and Gold Plating | |
| Contact Type | Vertical Contact Type/Side Contact Type |
| Installation Method | SMT automatic placement machine+Reflow soldering |
| Plugin machine + Wave soldering | |
| Environmental Protection Standard | Comply with EU RoHS and Reach standards |
XURUI spring loaded high current pins

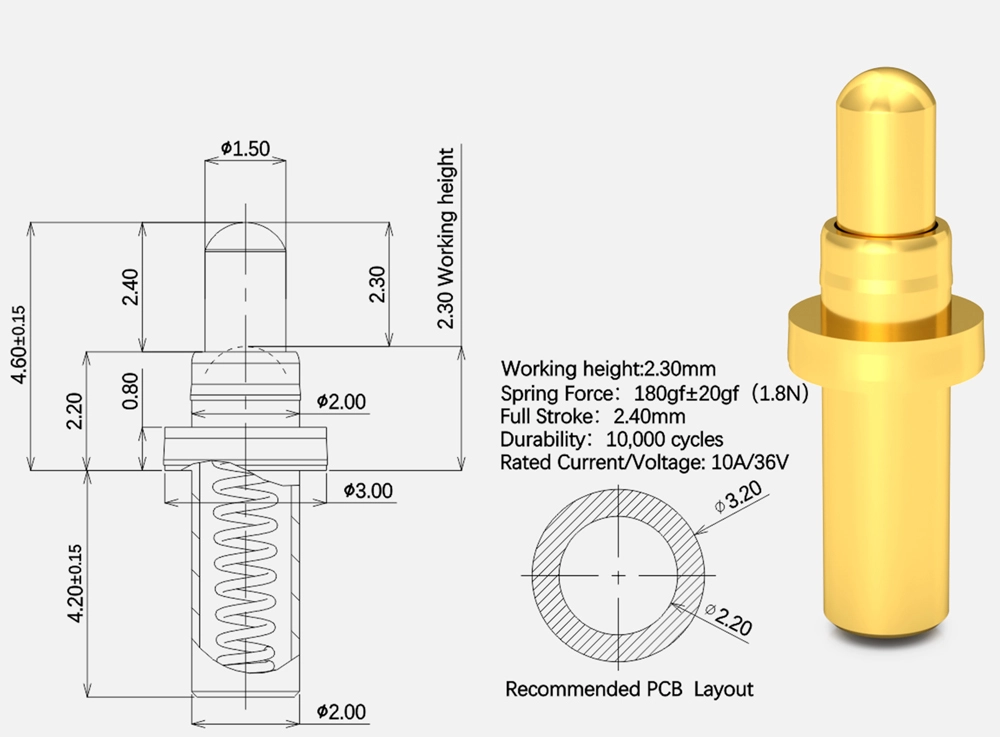

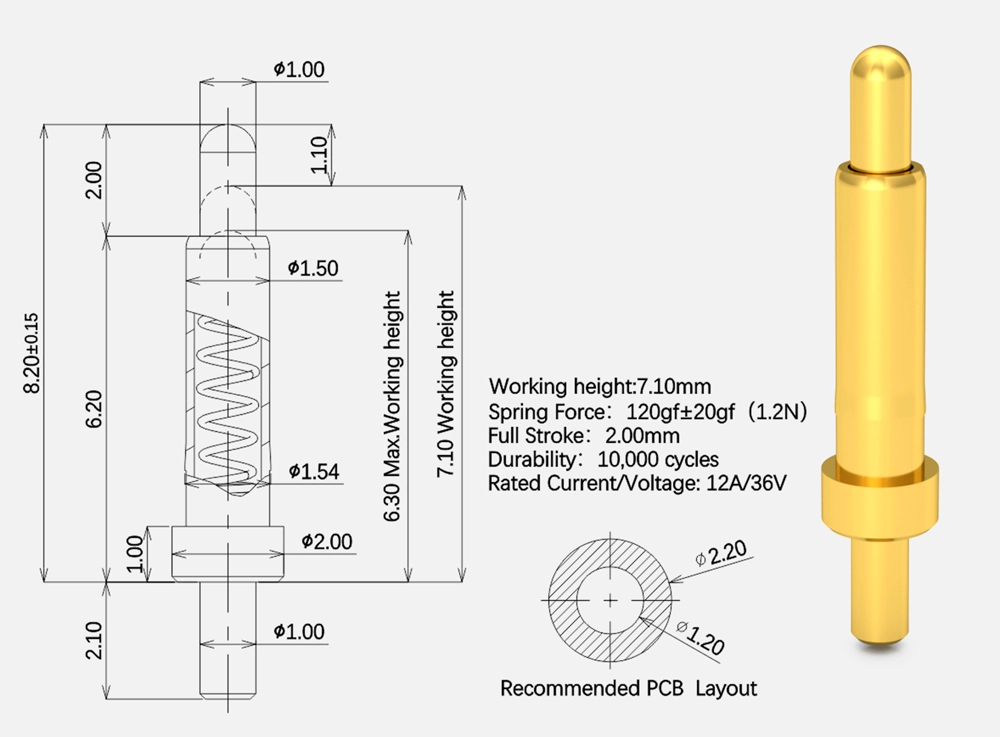

Selection Guide of High Current Pogo Pin
| SN | Product Image | Product Type | Initial Height | Working Height |
|---|---|---|---|---|
| 1 |
|

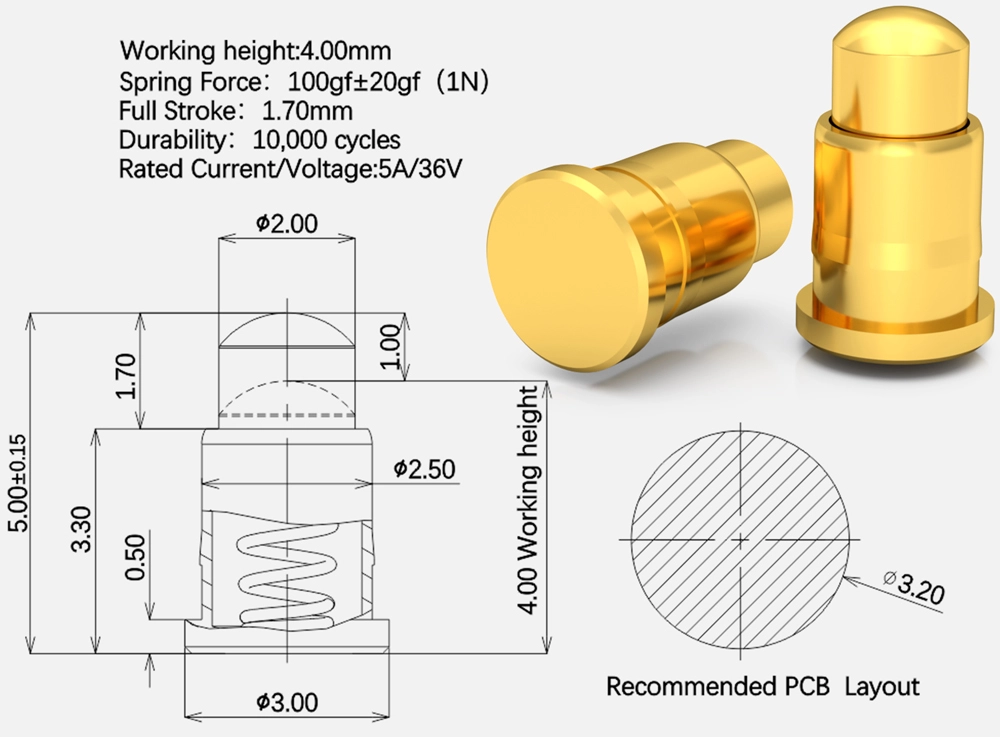

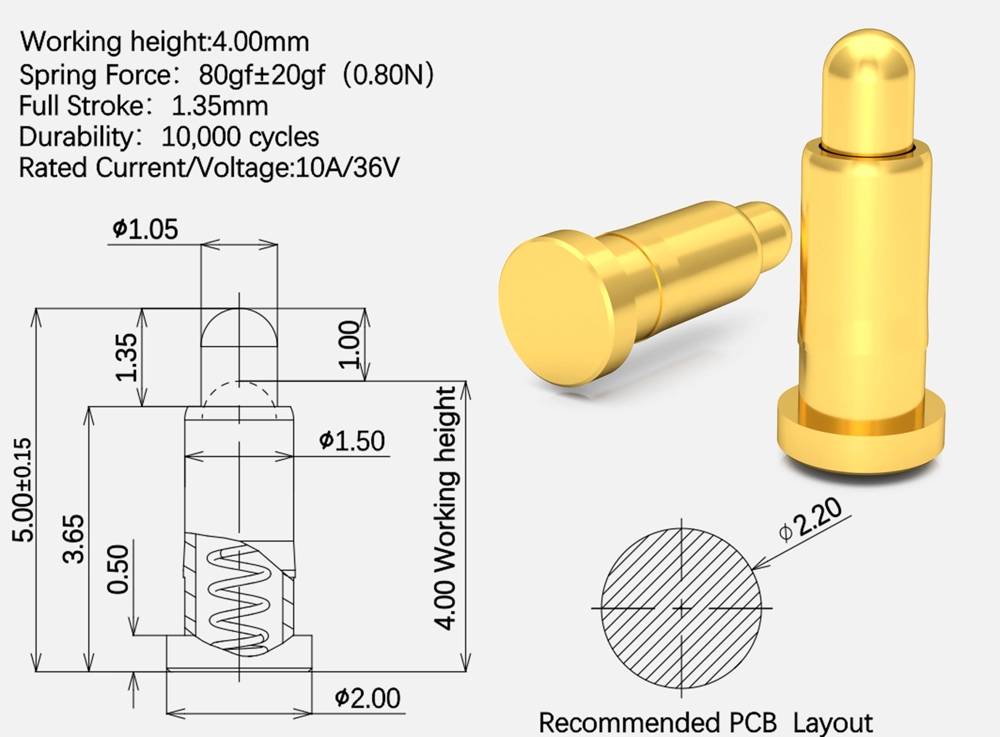

Flat-Bottom Type | 5.00~16.00 | 3.80~15.00 |
| 2 |
|

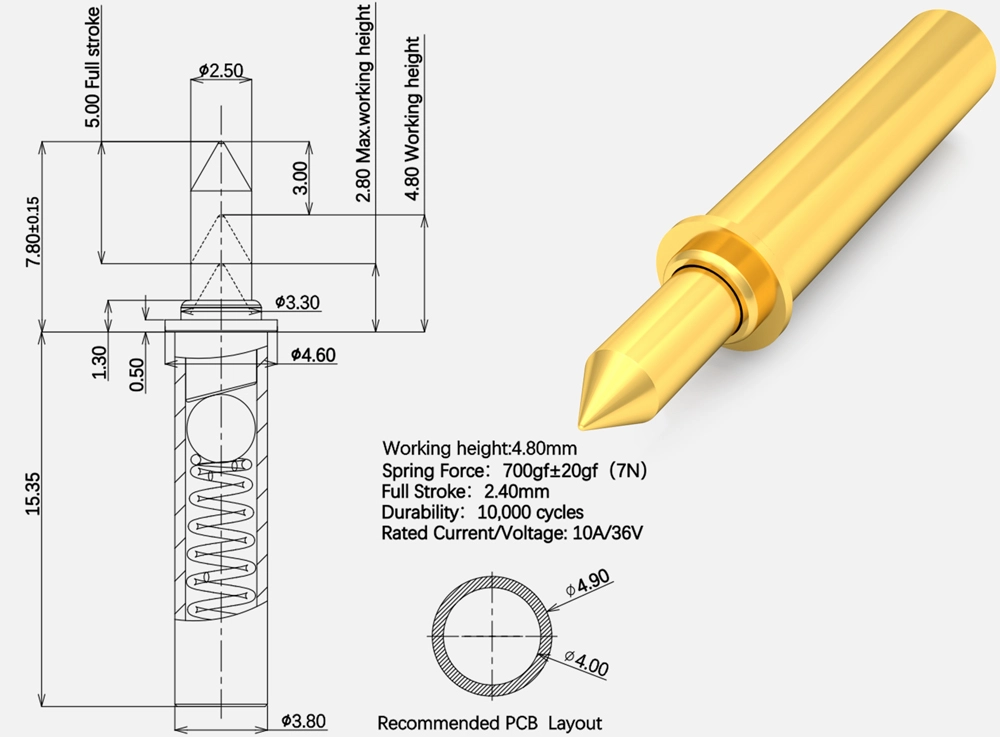

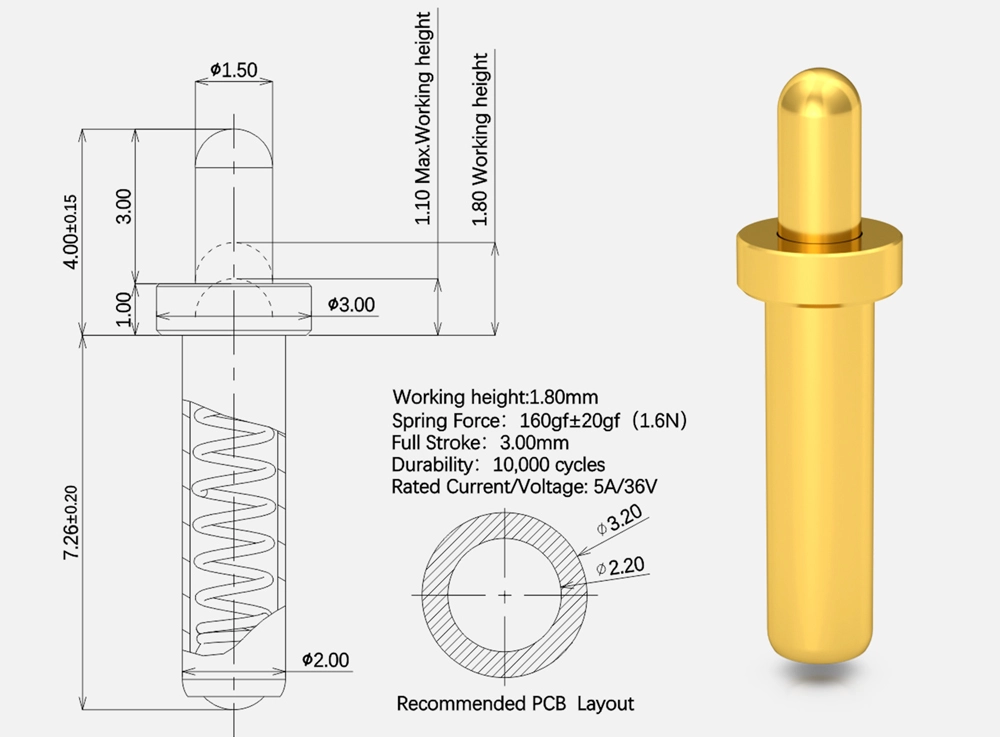

Plug-in Type | 5.00~16.00 | 3.80~15.00 |
xurui high current spring loaded contacts
High Current Pogo Pin Surface treatments

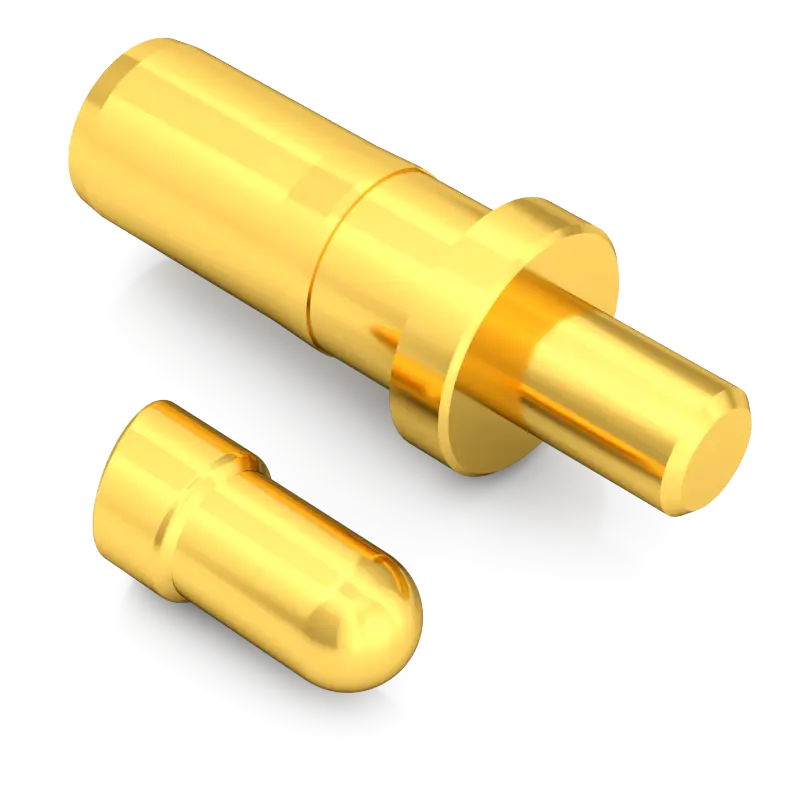

Electroplated Gold-Golden Yellow
Electroplated Nickel—Silver White

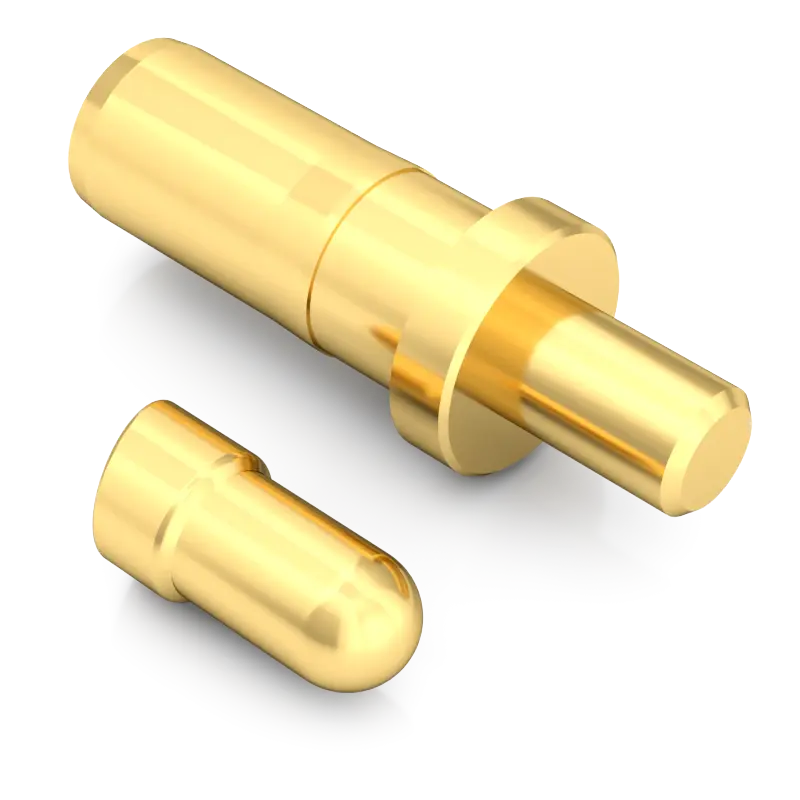

Before Electroplating - Brass Color
xurui contact high current pin
High Current Pogo Pin Packaging Method

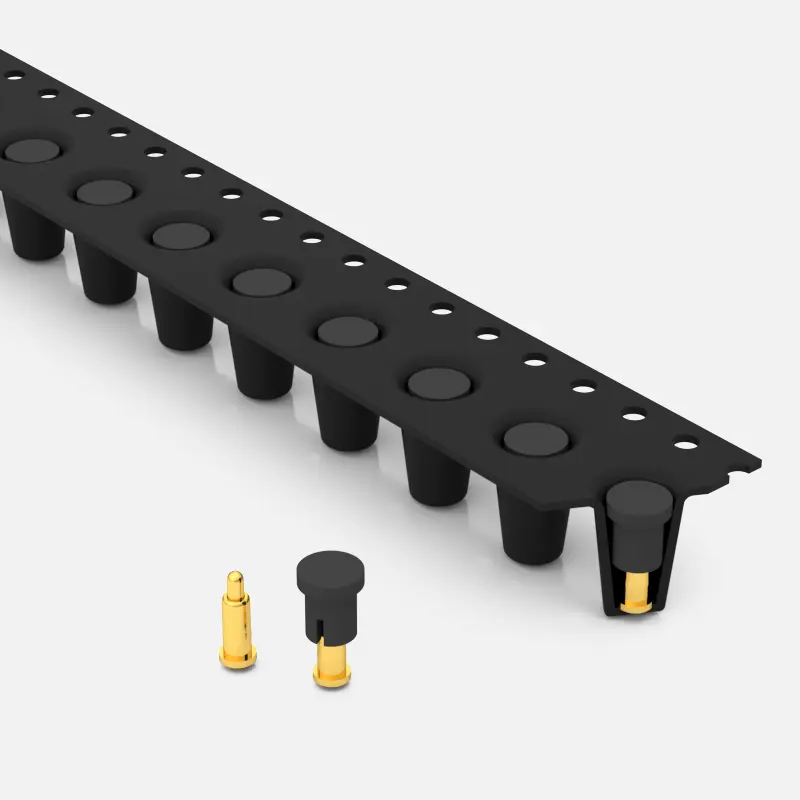

SMD Pogo Pins and Dip Pogo Pins Vacuum Carrier Tape Packaging

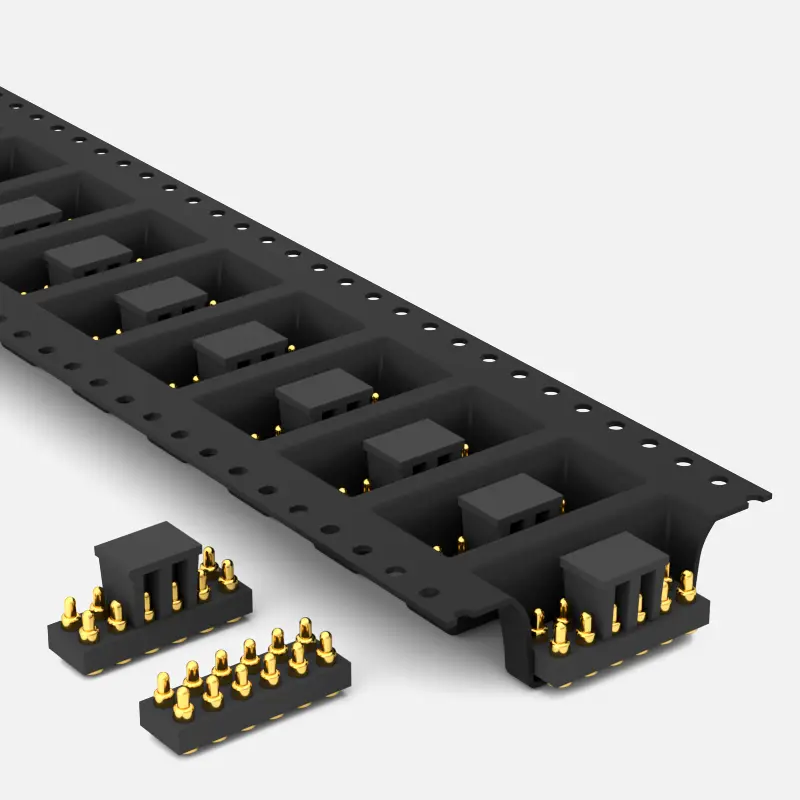

Multi-Contact Dip Pogo Pin Connector Vacuum Carrier Tape Packaging
springloaded high current pins
High Current Pogo Pin Standard Product
