Electronic Test Probes
With advanced manufacturing techniques and a dedication to precision
we provide electronic test probes that meet the high standards across diverse industries.
XURUI
I 360° portfolio
I Solutions for OSP coatings
I Flying Probes
I Frequencies over 40 GHz
I Extended service life
xurui
Electronic Test Probes Product Details
XURUI
Selection Guide of Printed Circuit Board Probe
| ----------Product image---------- | Current Rating | Contact Resistance | Spring Force at Stroke(The brackets are customized) | PDF Download | |
|---|---|---|---|---|---|
| P020 |
|
0.3A | 220 milliohm max(Rated Resistance) | 1.50mm(Full Stroke)-20g(Spring Force at Full Stroke) |
|

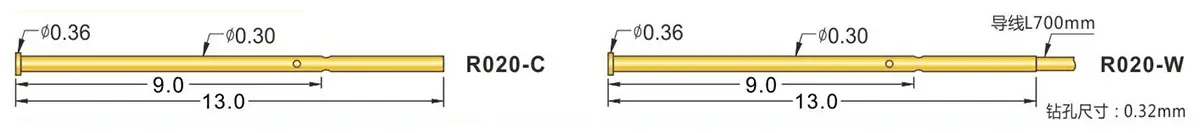

| R020 |
|
|
|||

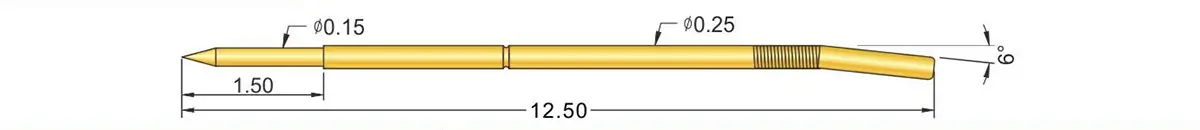

| P026 |
|
0.3A | 220 milliohm max(Rated Resistance) | 1.50mm(Full Stroke)-20g(Spring Force at Full Stroke) |
|

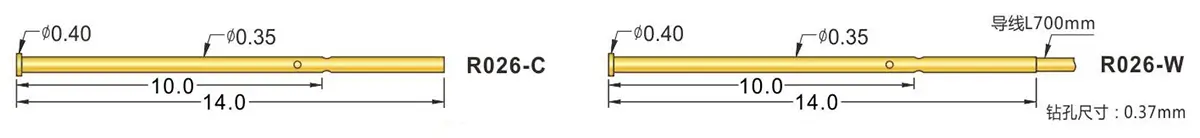

| R026 |
|
|
|||

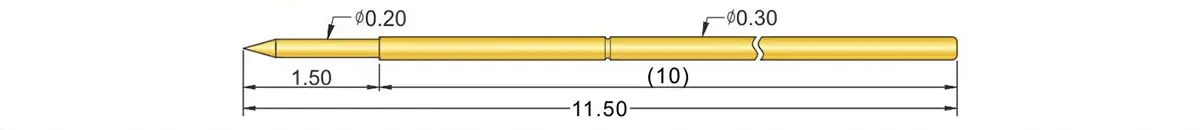

| P030 |
|
1A | 100 milliohm max(Rated Resistance) | 1.50mm(Full Stroke)-20g(Spring Force at Full Stroke) |
|

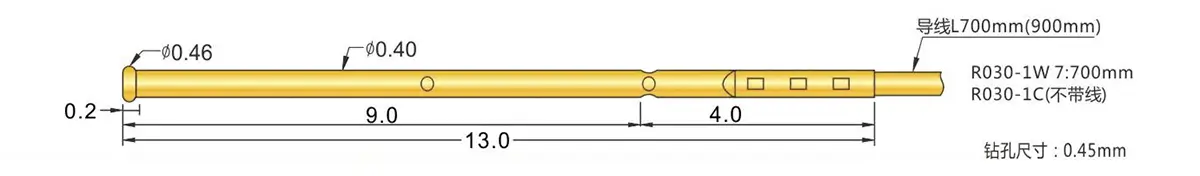

| R030 |
|
|
|||

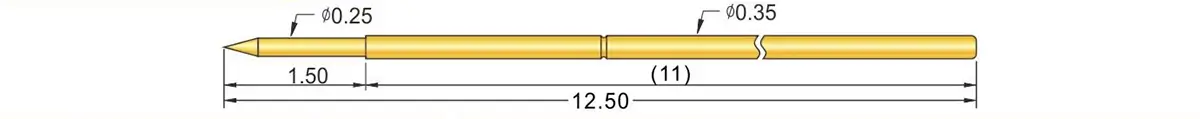

| P035 |
|
1A | 100 milliohm max(Rated Resistance) | 1.50mm(Full Stroke)-40g(Spring Force at Full Stroke) |
|

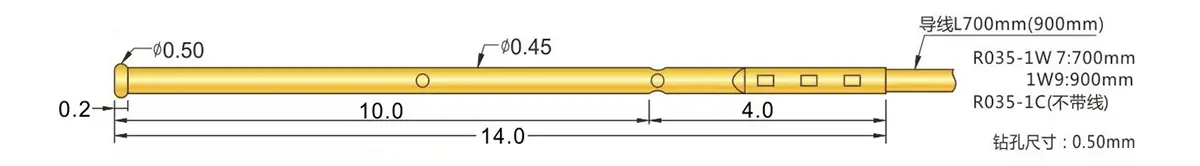

| R035 |
|
|
|||

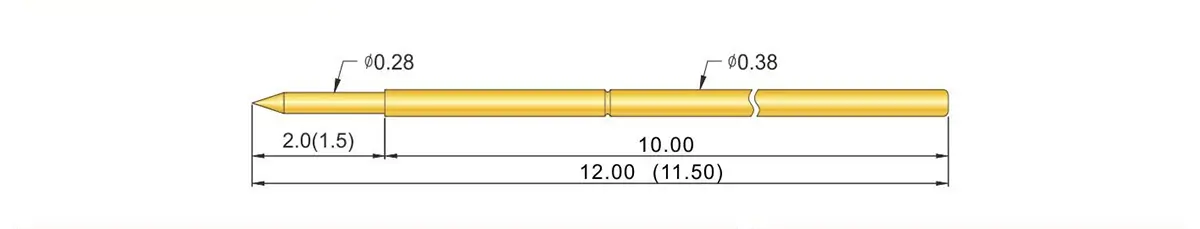

| P038 |
|
1A | 50 milliohm max | 1.50/2.0mm(Full Stroke)-40g(Spring Force at Full Stroke) |
|

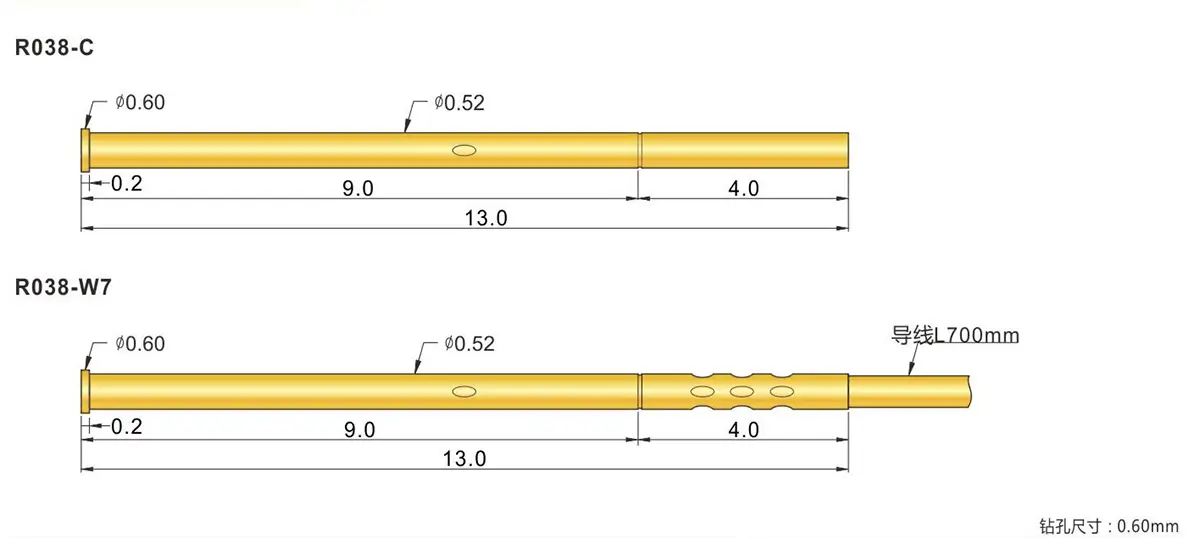

| R038 |
|
|
|||

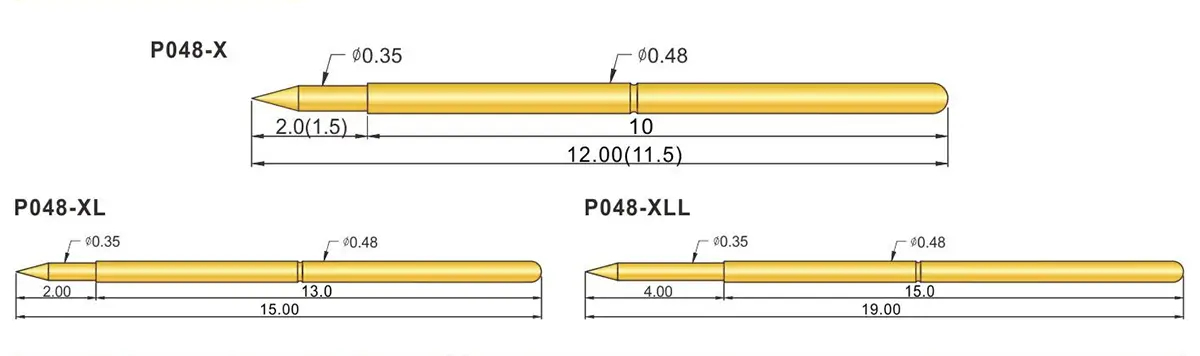

| P048 |
|
2A | 50 milliohm | (20g)40g |
|

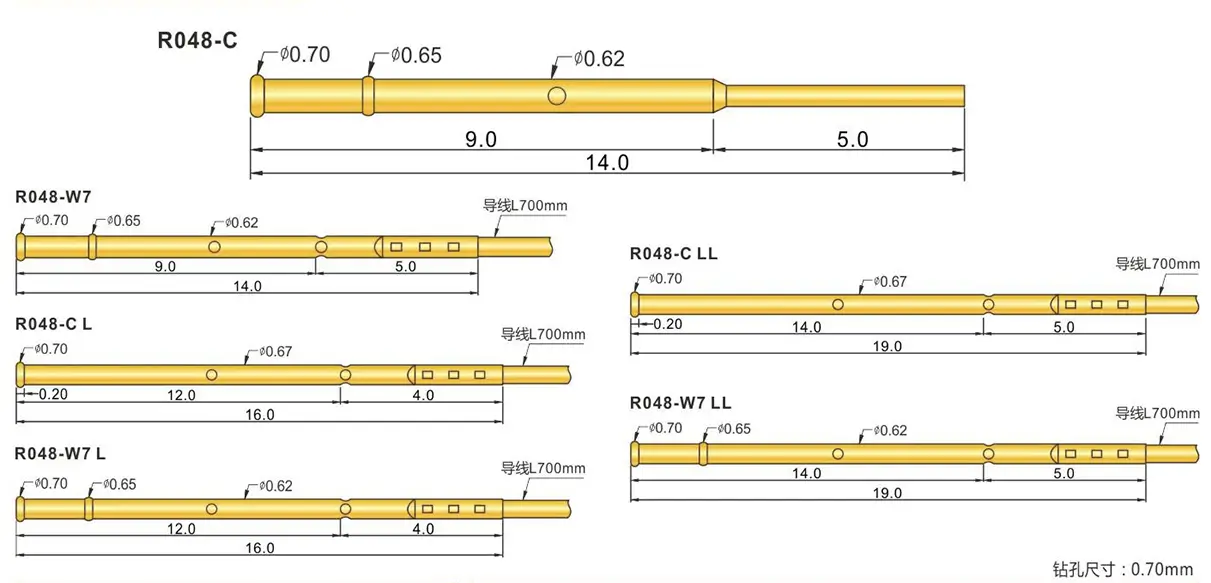

| R048 |
|
|
|||

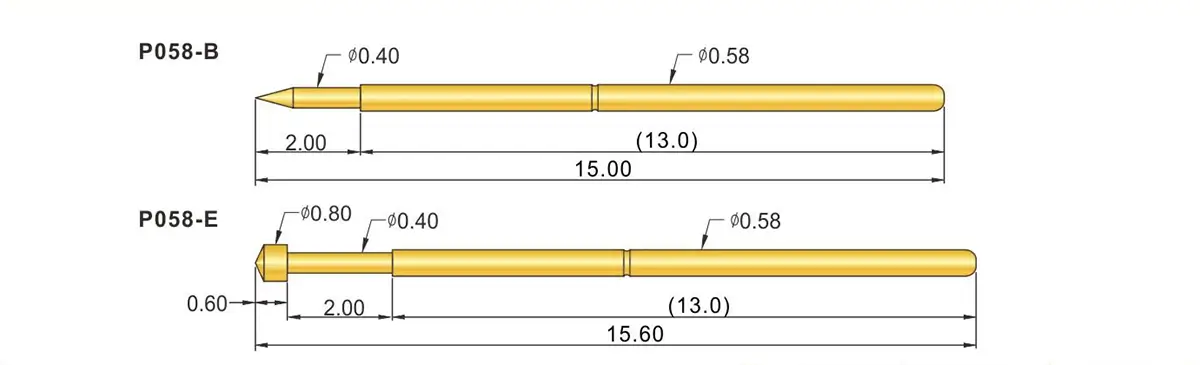

| P058 |
|
2A | 50 milliohm max | (20g)70g |
|

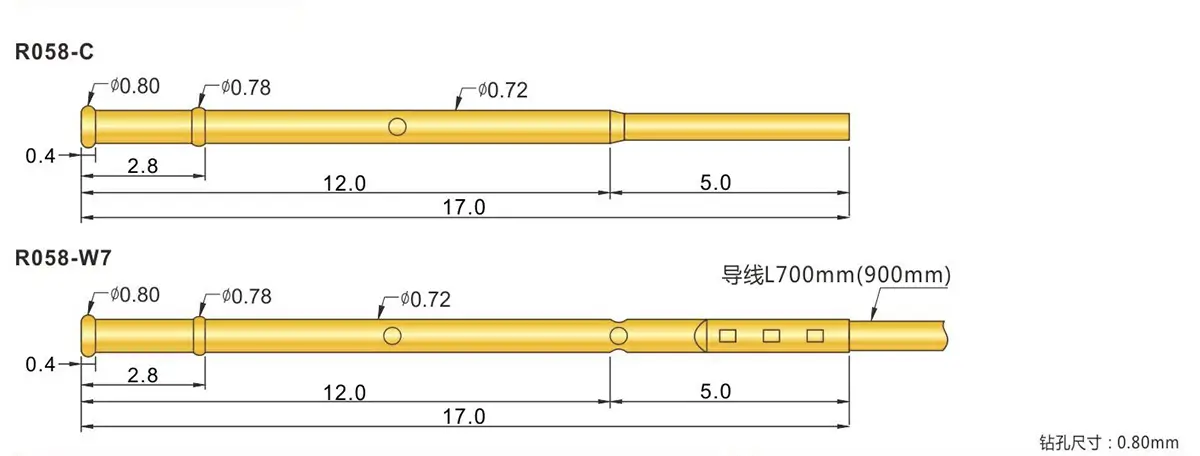

| R058 |
|
|
|||

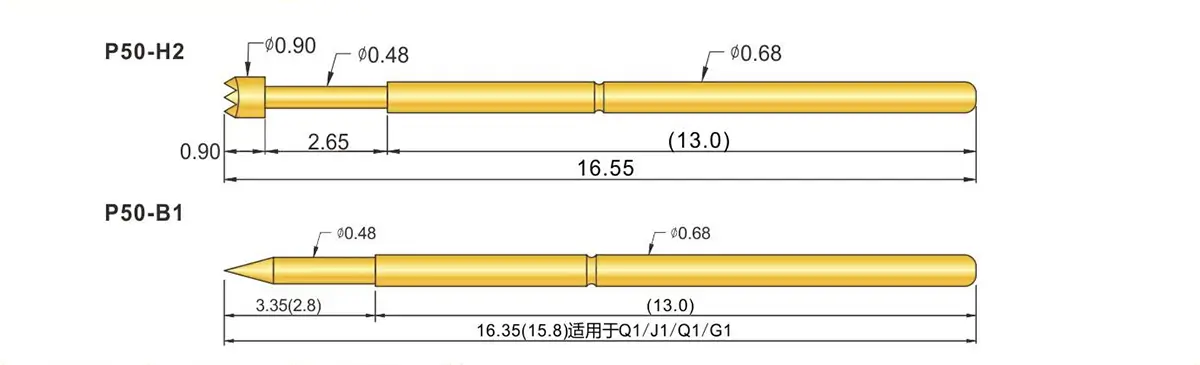

| P50 |
|
3A | 50 milliohm max | (20g)(40g)75g(120g) |
|

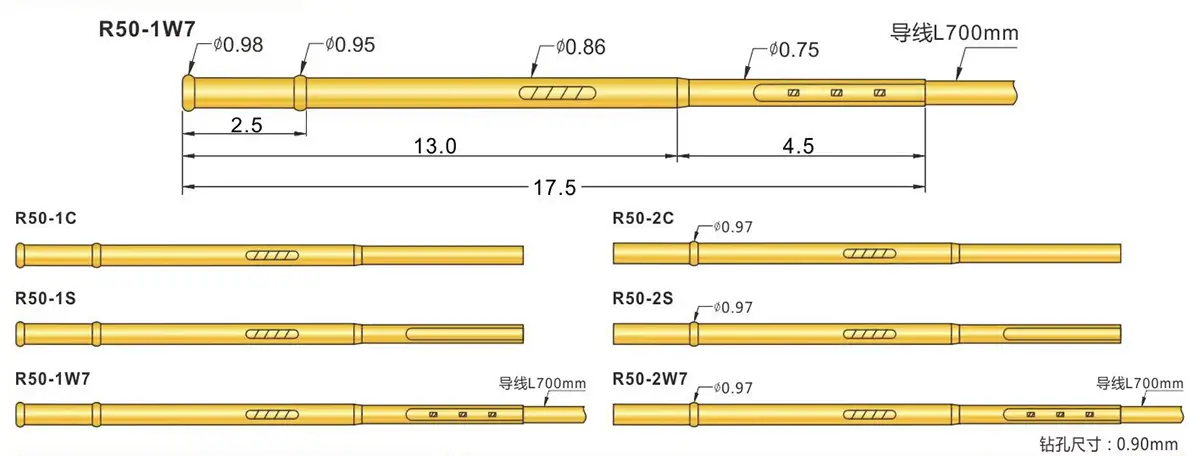

| R50 |
|
|
|||

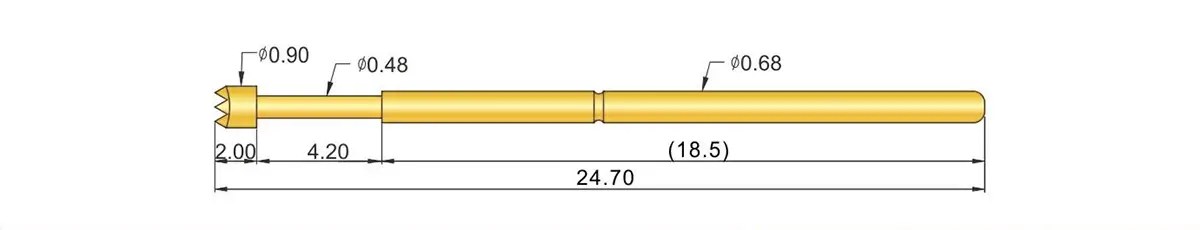

| P02 |
|
3A | 50 milliohm max | 90g(120g) |
|

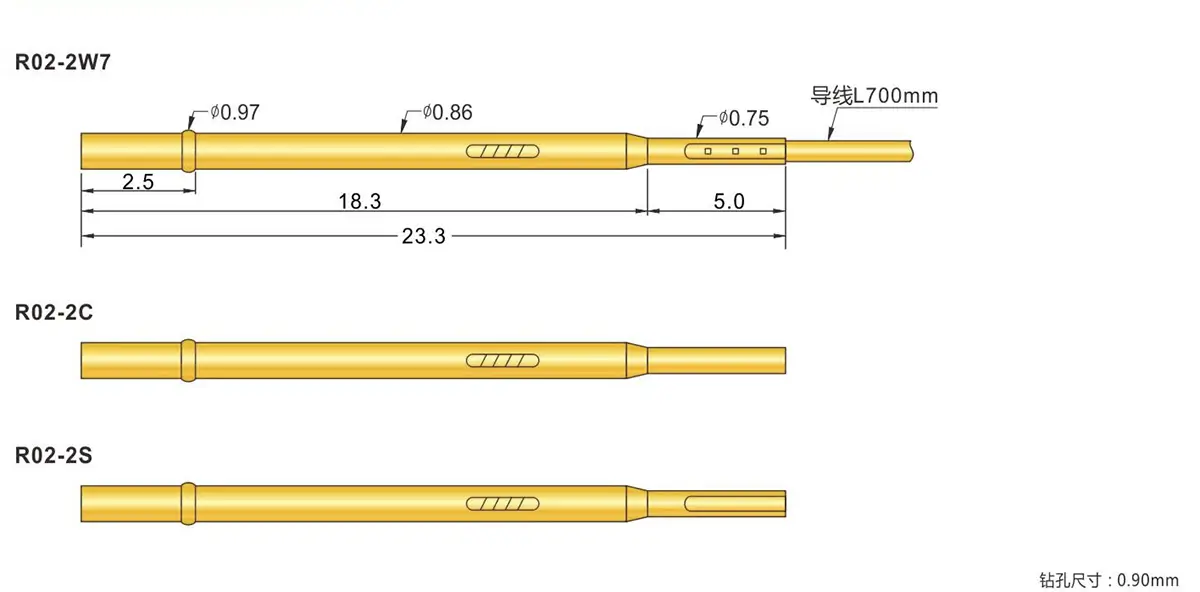

| R02 |
|
|
|||

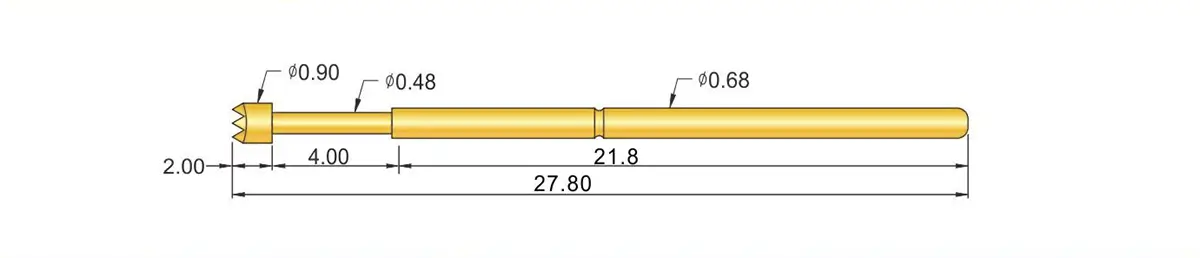

| PL50 |
|
3A | 50 milliohm max | 100g |
|

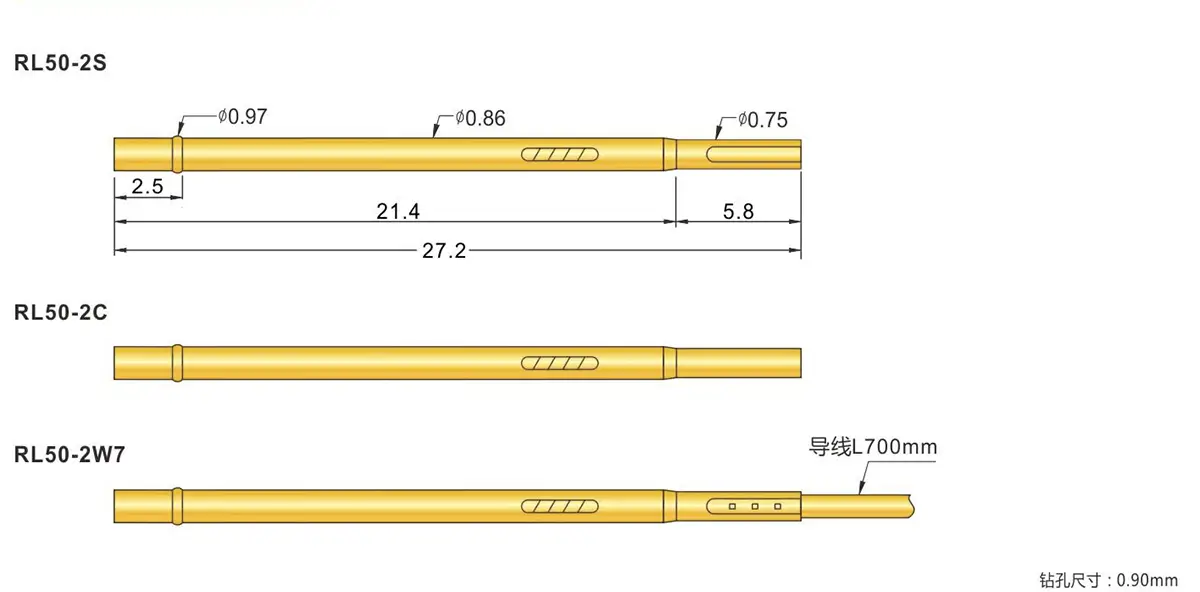

| RL50 |
|
|
|||

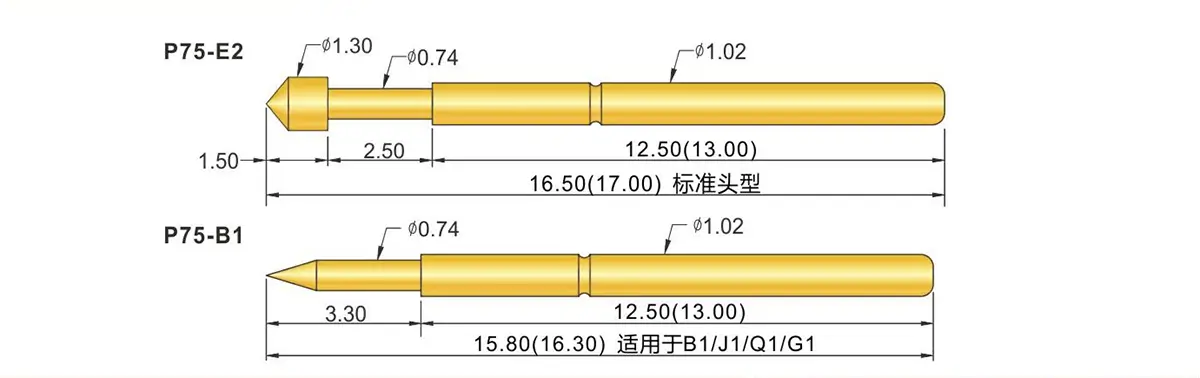

| P75 |
|
3A | 50 milliohm max | (60g)100g(180g)(220g) |
|

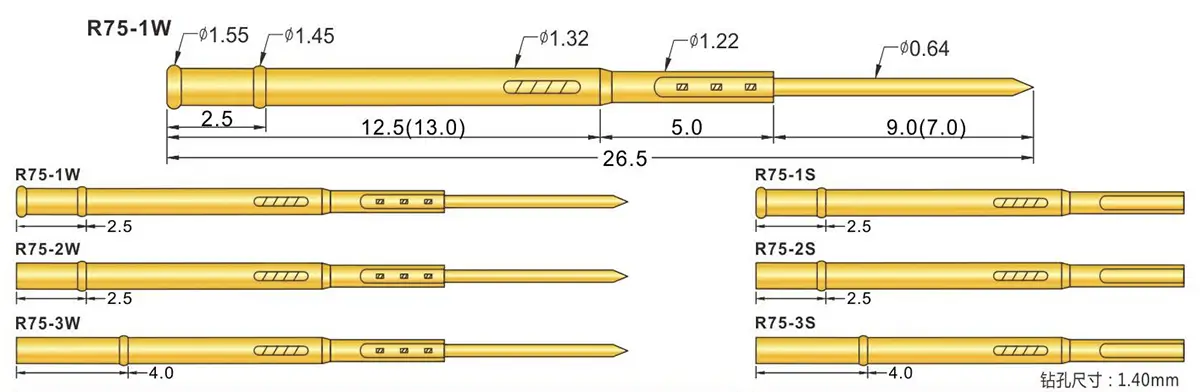

| R75 |
|
|
|||

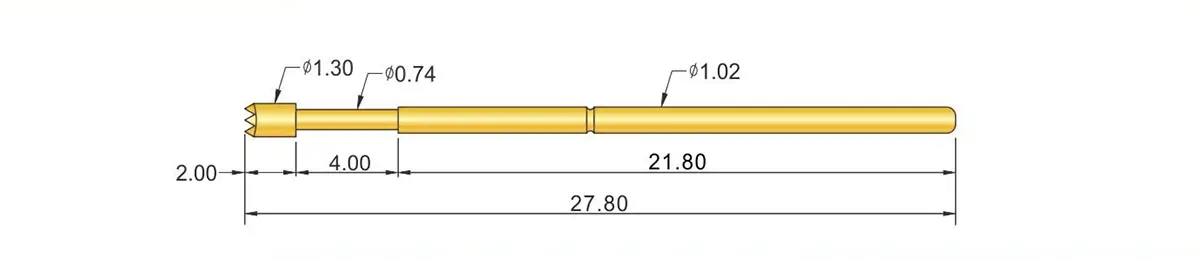

| PM75 |
|
3A | 50 milliohm max | (60g)(100g)120g |
|

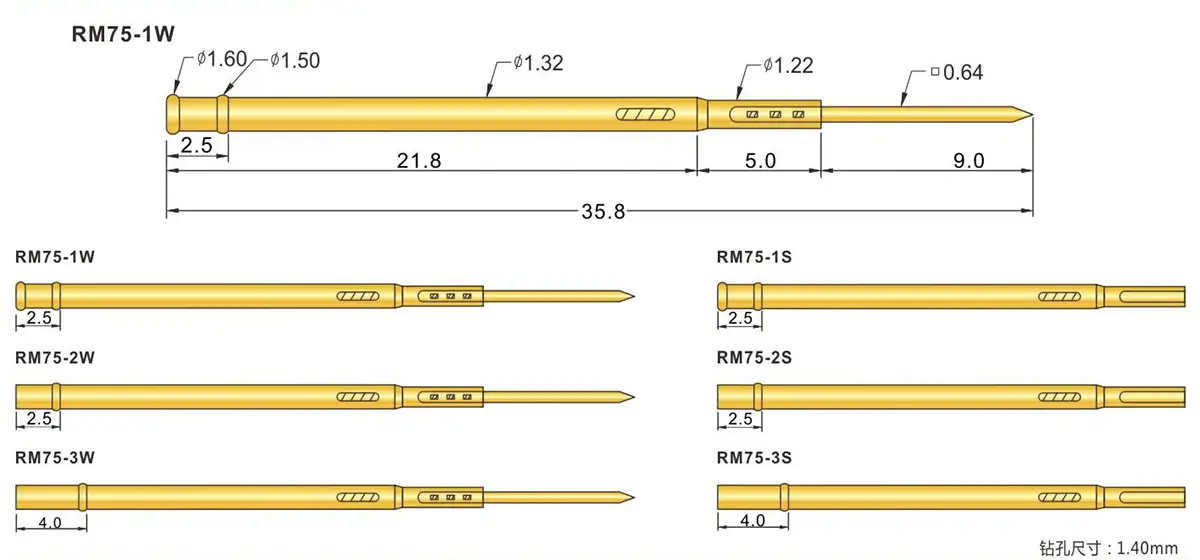

| RM75 |
|
|
|||

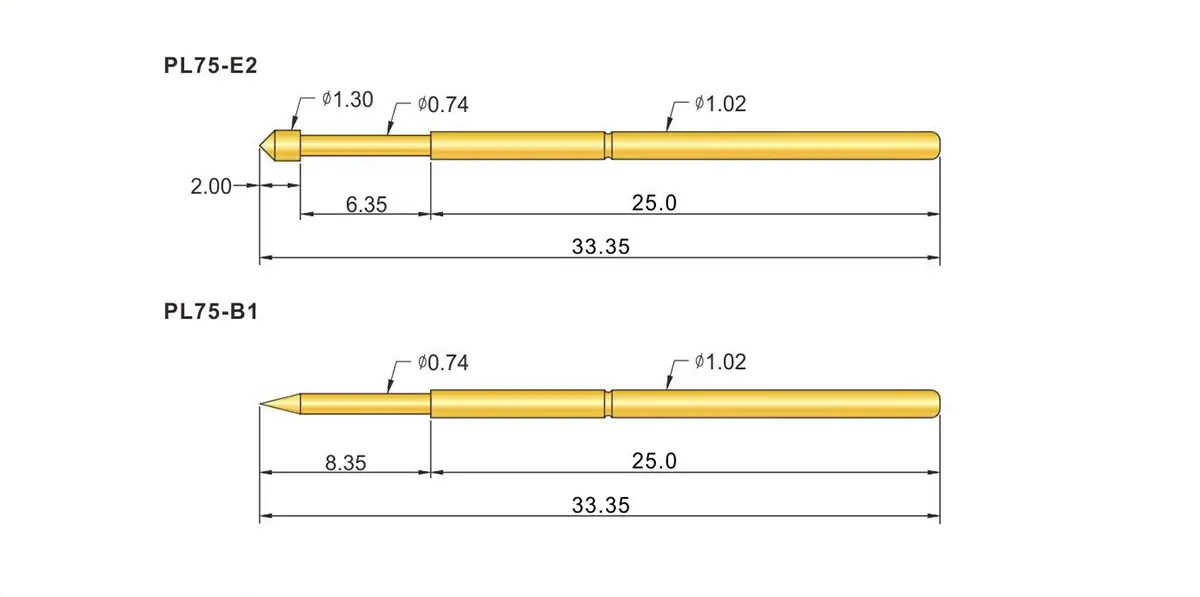

| PL75 |
|
3A | 50 milliohm max | (60g)(90g)120g(200g)(250g) |
|

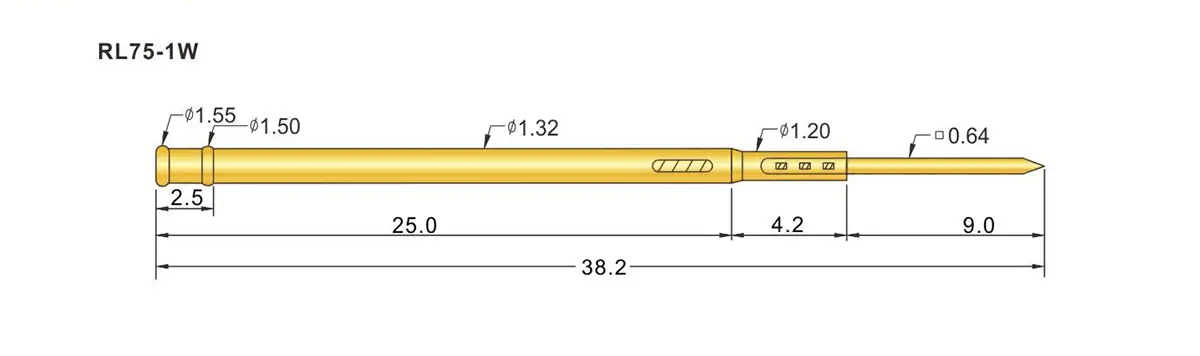

| RL75 |
|
|
|||

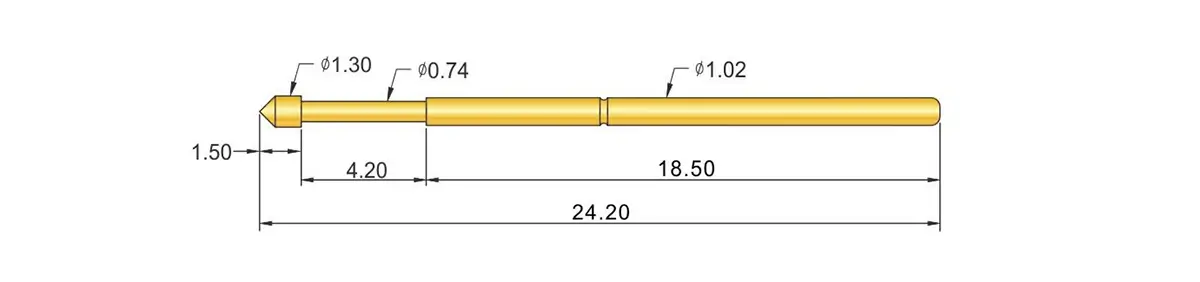

| P11 |
|
3A | 50 milliohm max | (80g)150g |
|

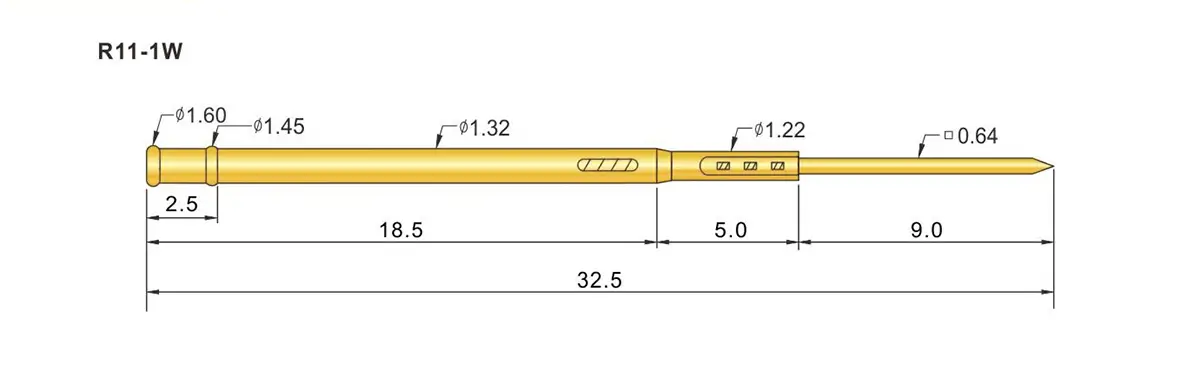

| R11 |
|
|
|||

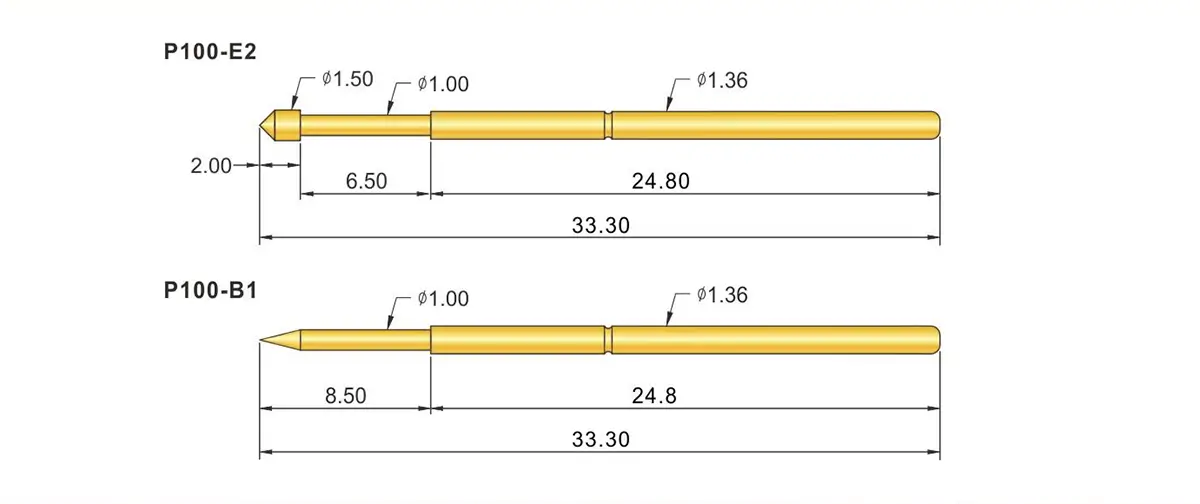

| P100 |
|
3A | 50 milliohm max | (40g)(90g)(120g)180g(250g)(280g)(350g) |
|
| R100 |
|
|
|||

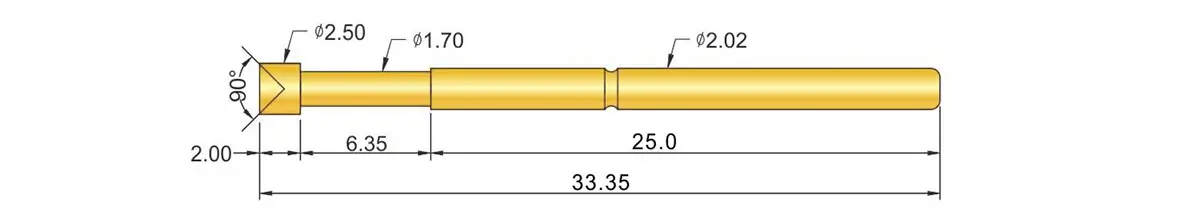

| P125 |
|
5A | 50 milliohm max | (70g)180g(250g)(350g) |
|

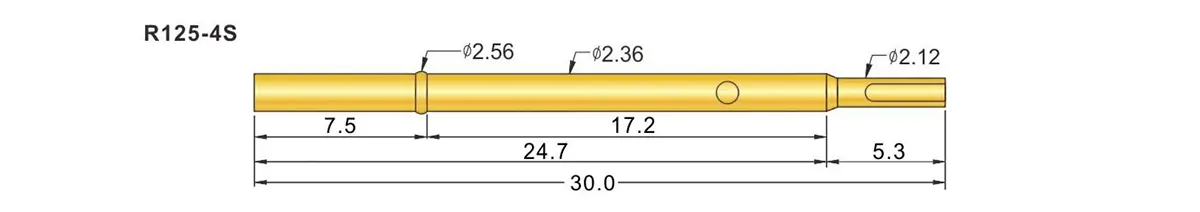

| R125 |
|
|
|||

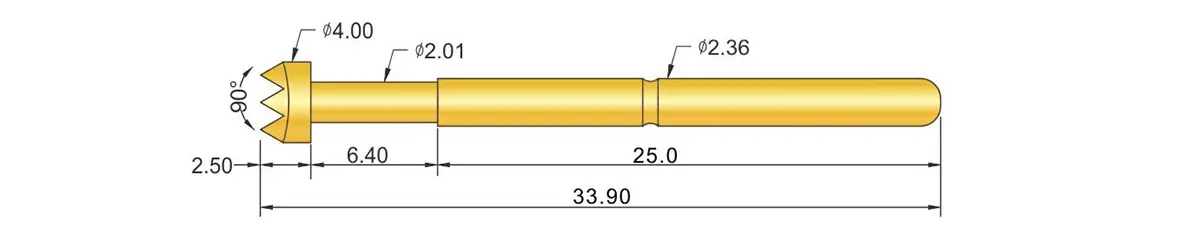

| P156 |
|
5A | 50 milliohm max | (50g)(200g)250g(280g)(380g) |
|

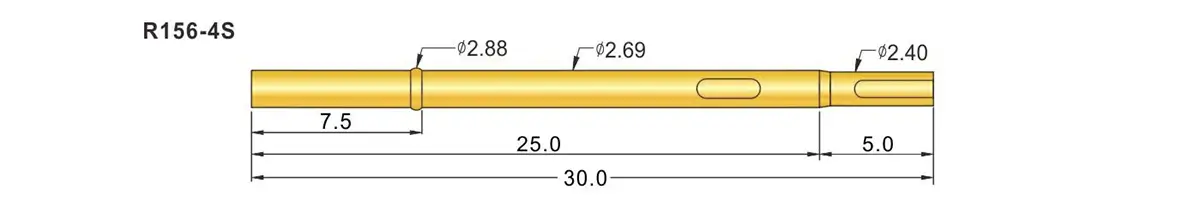

| R156 |
|
|
|||

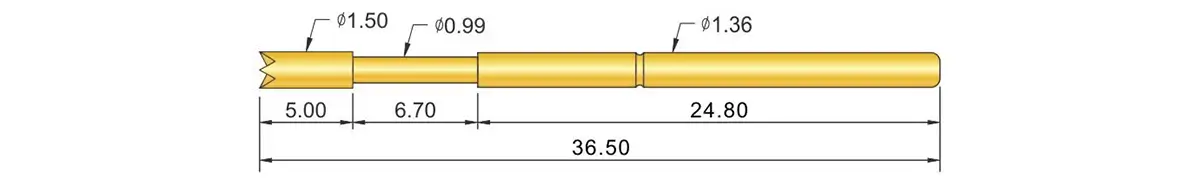

| G1353 |
|
3A | 50 milliohm max | 180g(280g) |
|

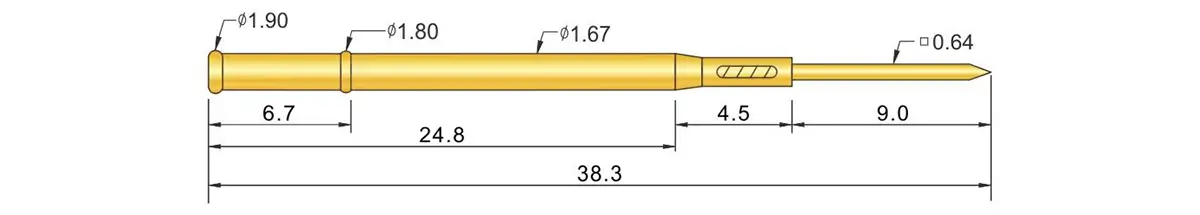

| R1353-4W |
|
|
|||

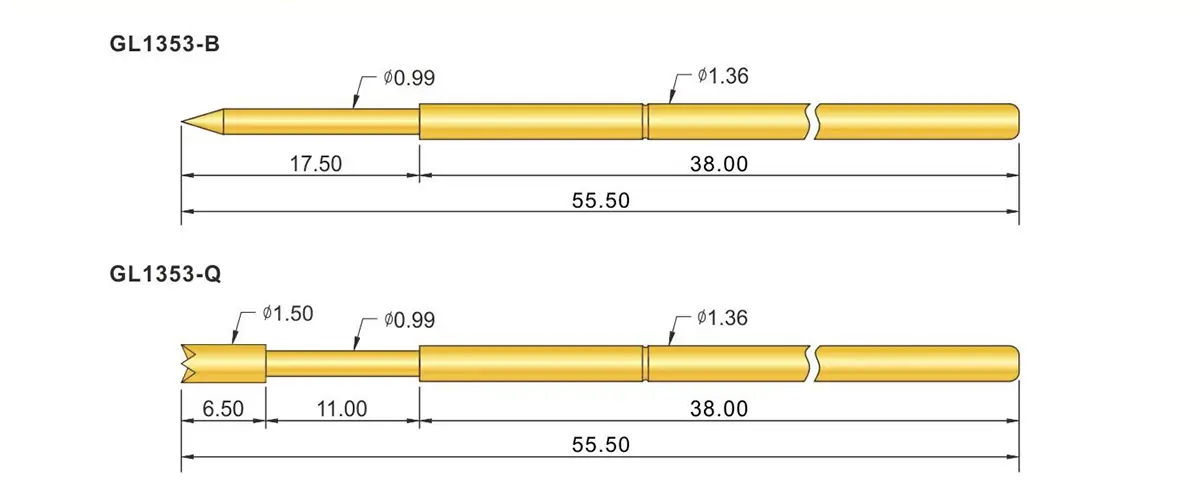

| GL1353 |
|
3A | 50 milliohm max | 250g |
|

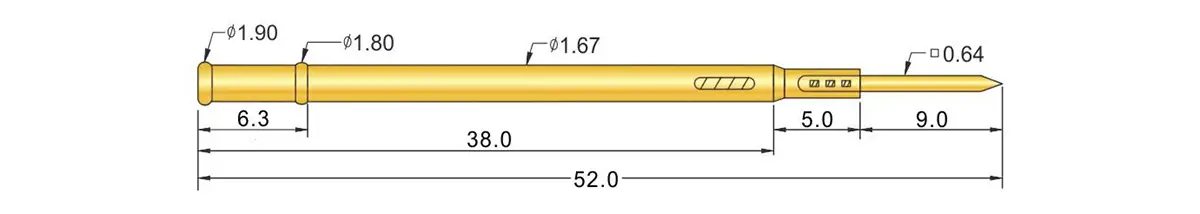

| GL1353-W |
|
|
|||

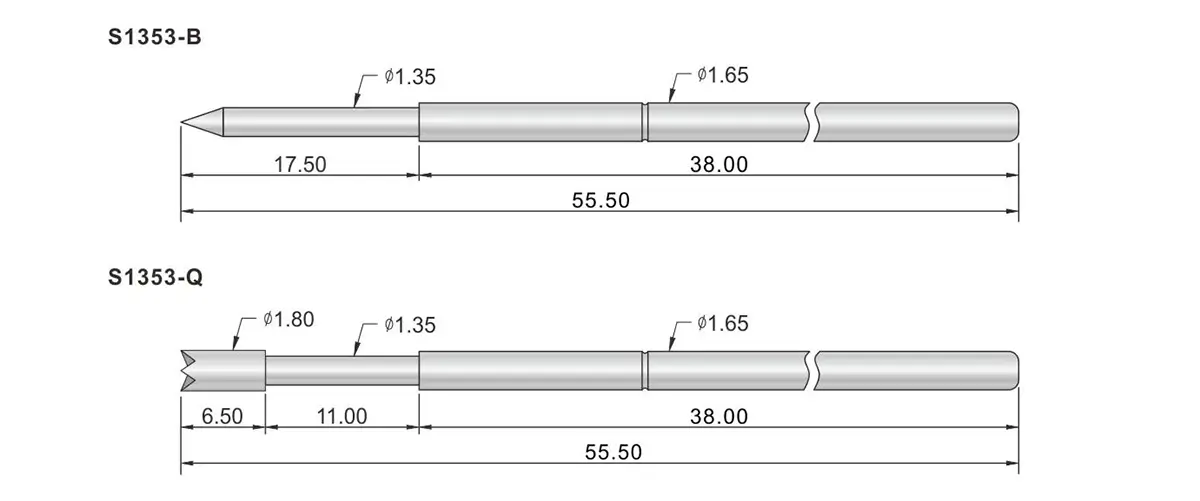

| S1353 |
|
3A | 50 milliohm max | (180g)340g |
|

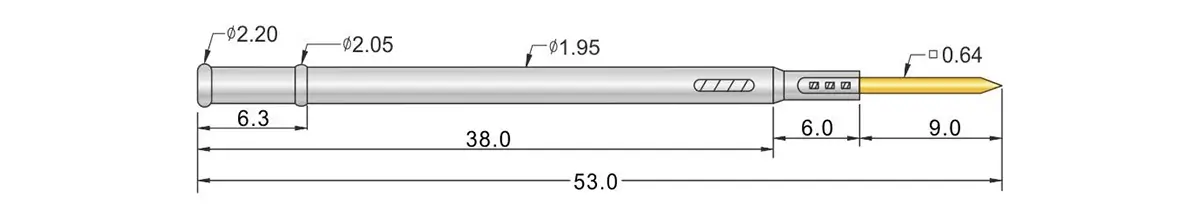

| RS1353-W |
|
|
|||

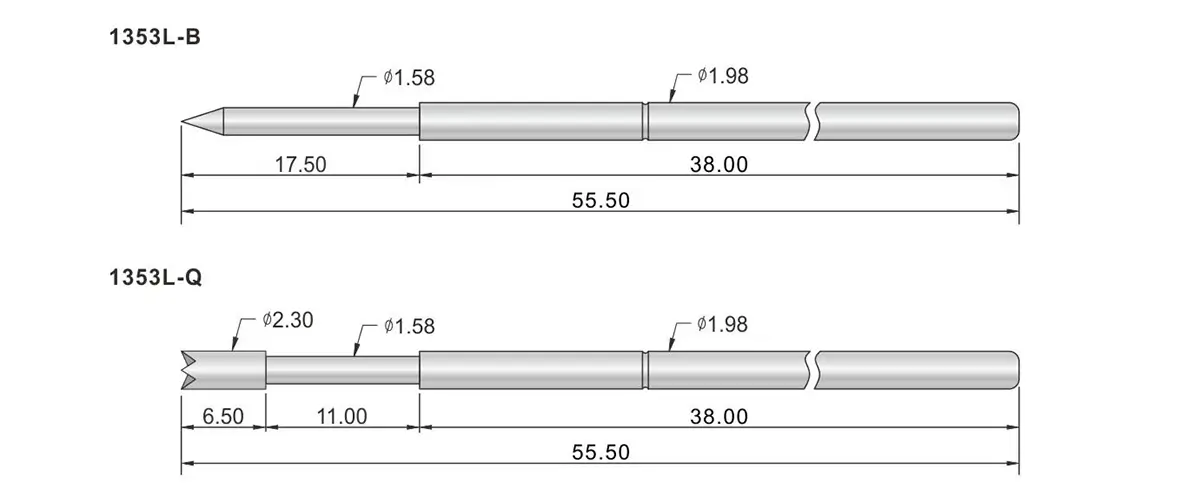

| 1353L |
|
3A | 50 milliohm max | 380g |
|

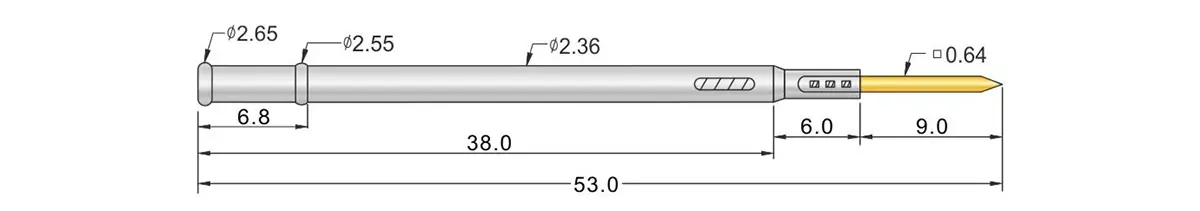

| RL1353-W |
|
|
|||

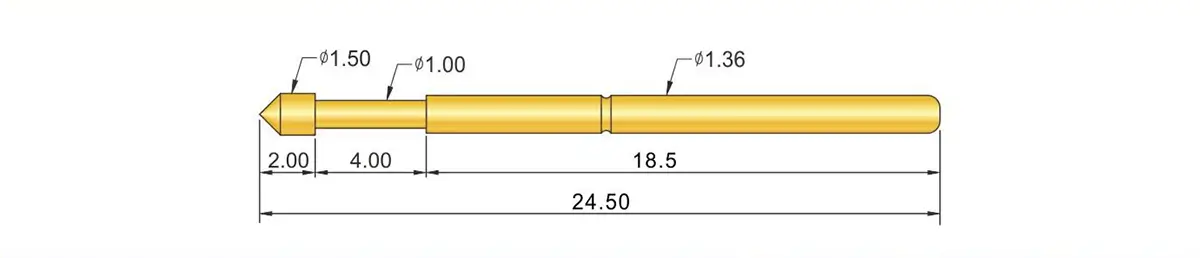

| P160 |
|
3A | 50 milliohm max | (40g)(60g)(100g)180g(280g)(340g) |
|

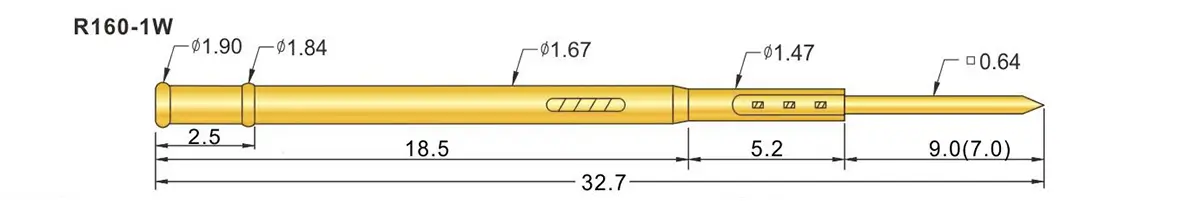

| R160 |
|
|
Electronic Test Probes Solution

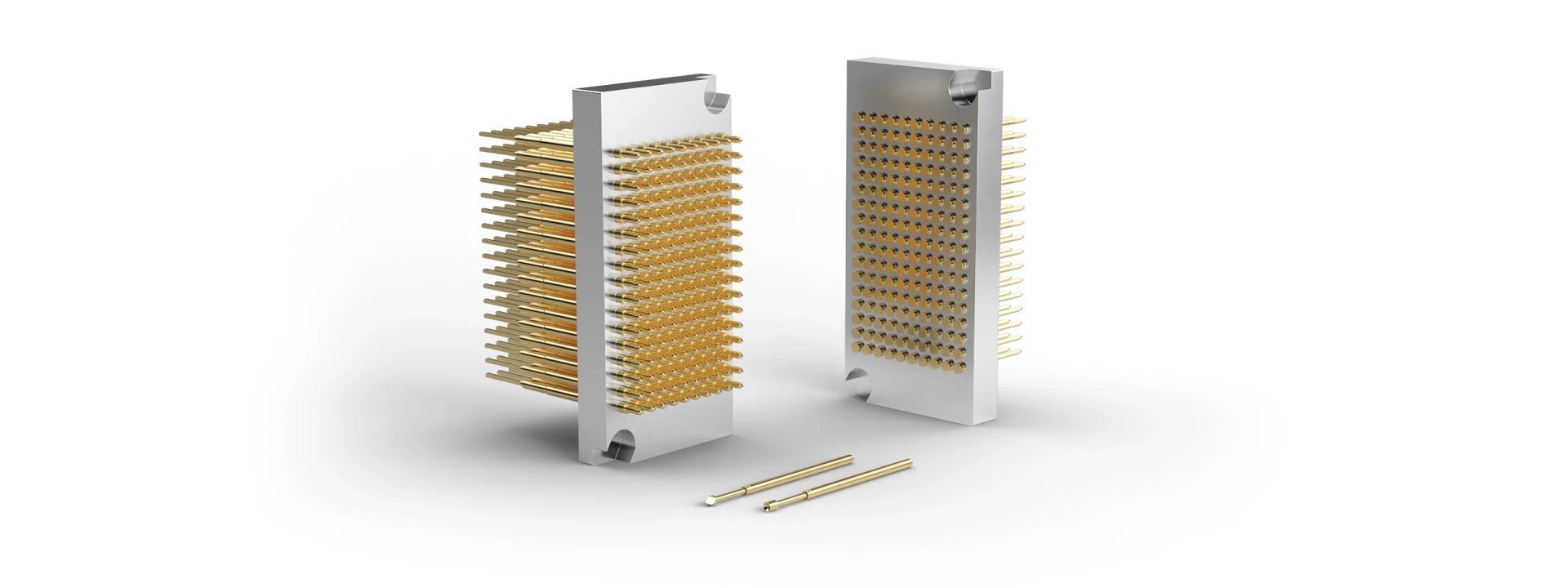

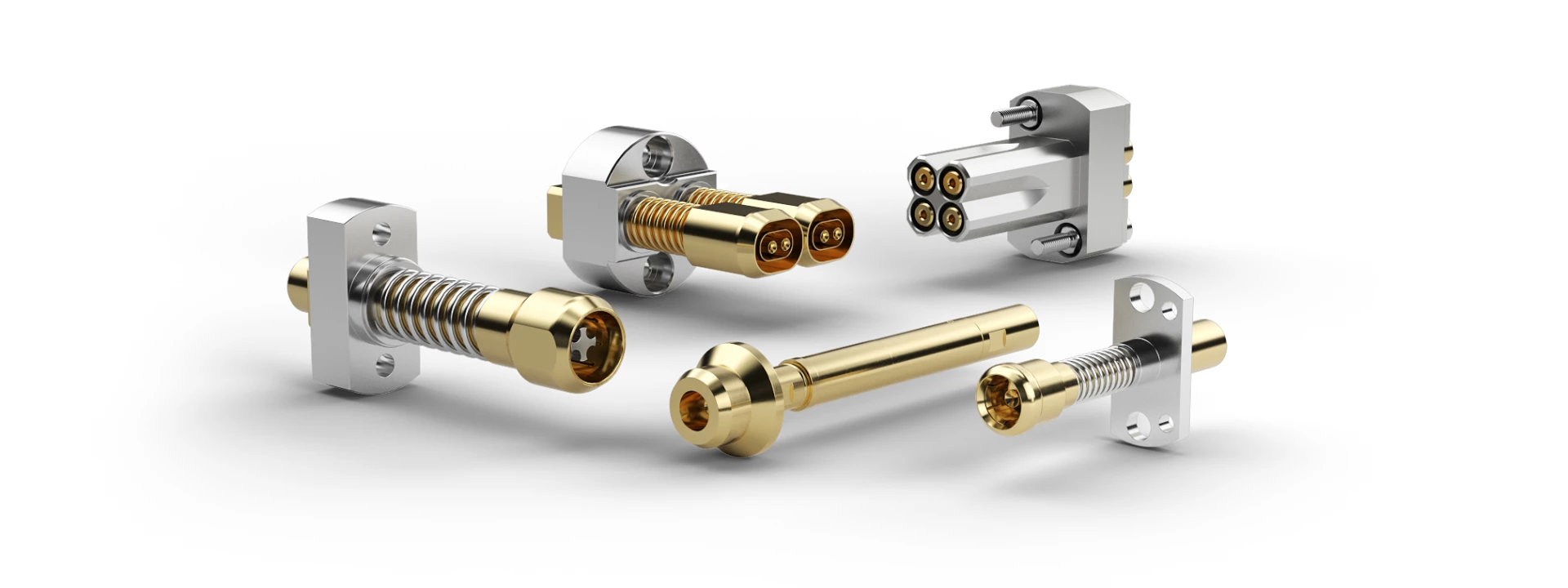

Xurui provides the perfect solutions for all the electronics industry’s testing needs. Our portfolio encompasses a variety of contacting solutions for circuit board testing as well as the necessary interfaces. Also included in the portfolio are Radio Frequency Probes for contacting coaxial and differential connectors as well as specialty solutions for testing Solar Wafers. No matter the application, our focus is on providing innovative stand-alone solutions that increase your added value.
