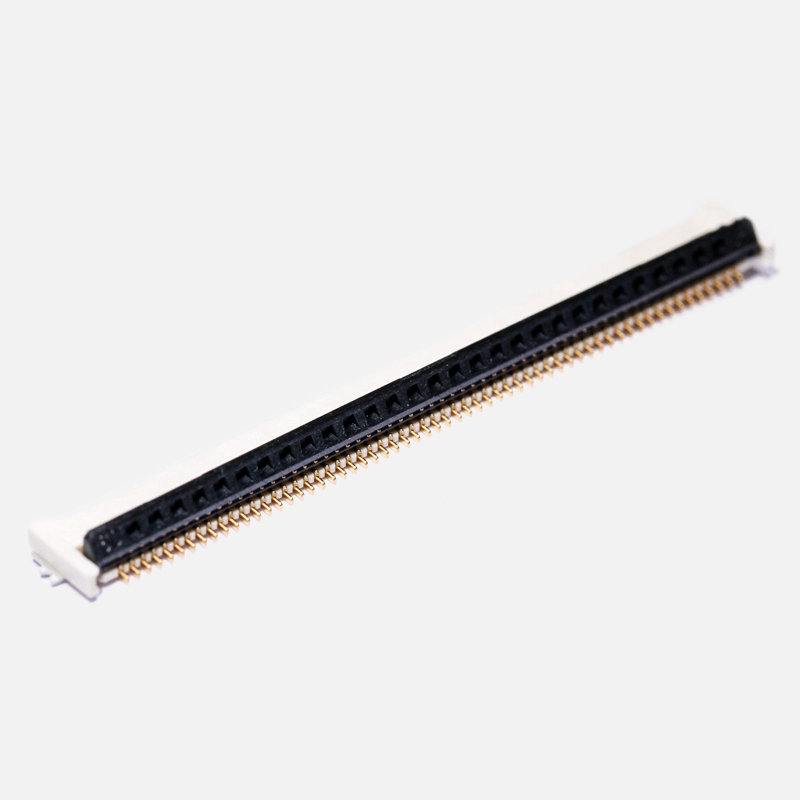

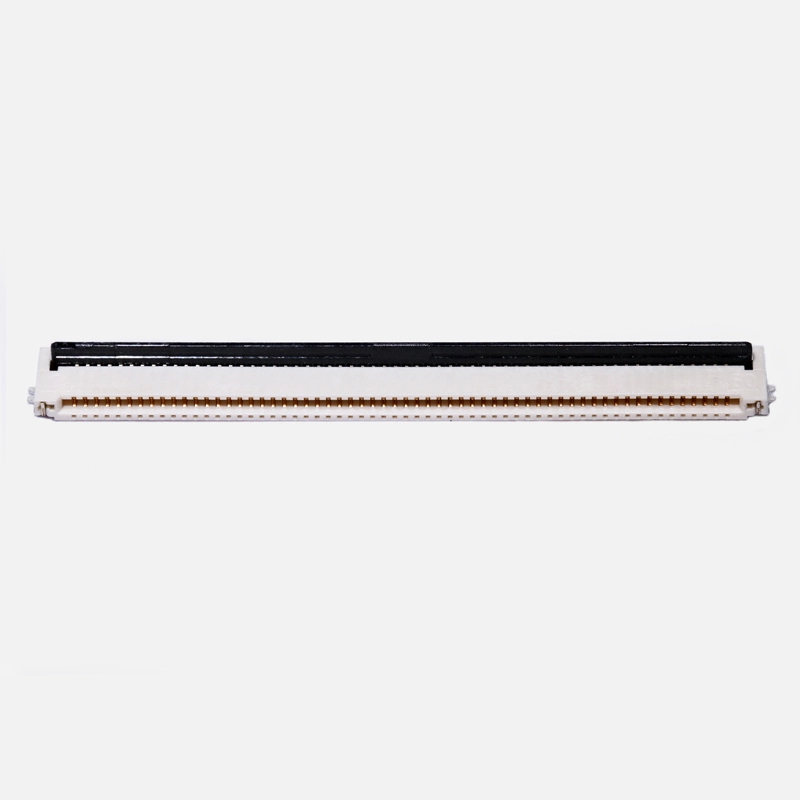

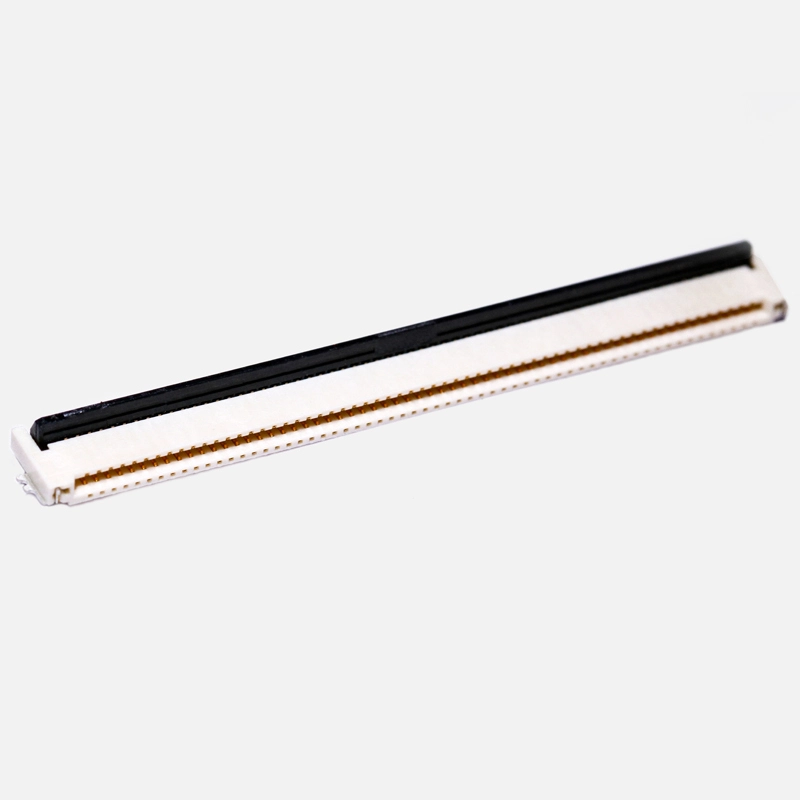

Pitch 0.5mm H=1.2mm FFC & FPC Connectors

The 0512 series FPC/FFC connectors are precision electronic connectors designed for compact electronic devices. They feature the following characteristics:

0.5mm pitch: This fine pitch allows for more connection points in a limited space, suitable for high-density wiring requirements.

Plastic height of 1.2mm: The connector’s vertical profile is very low, which helps in designing thinner electronic devices and reducing overall volume.

Double-sided contact: The connectors are designed to make contact from both sides, increasing the reliability and flexibility of the connection.

Rear locking mechanism: The connectors use a rear locking system to ensure that the FPC or FFC is firmly inserted and locked in place, preventing it from dislodging during use.

Easy on ffc fpc connectors: Fixed by reflow soldering with an SMT machine, when installing the FPC/FFC connector, first insert the FPC or FFC flex cable into the connector slot, and then secure it by pressing down or sliding the locking mechanism.

These connectors are suitable for a variety of electronic devices that require miniaturization and highly reliable connections, such as portable devices, smartphones, tablets, laptops, and other consumer electronics. Their design aims to simplify the assembly process while ensuring long-term stable connection performance.
