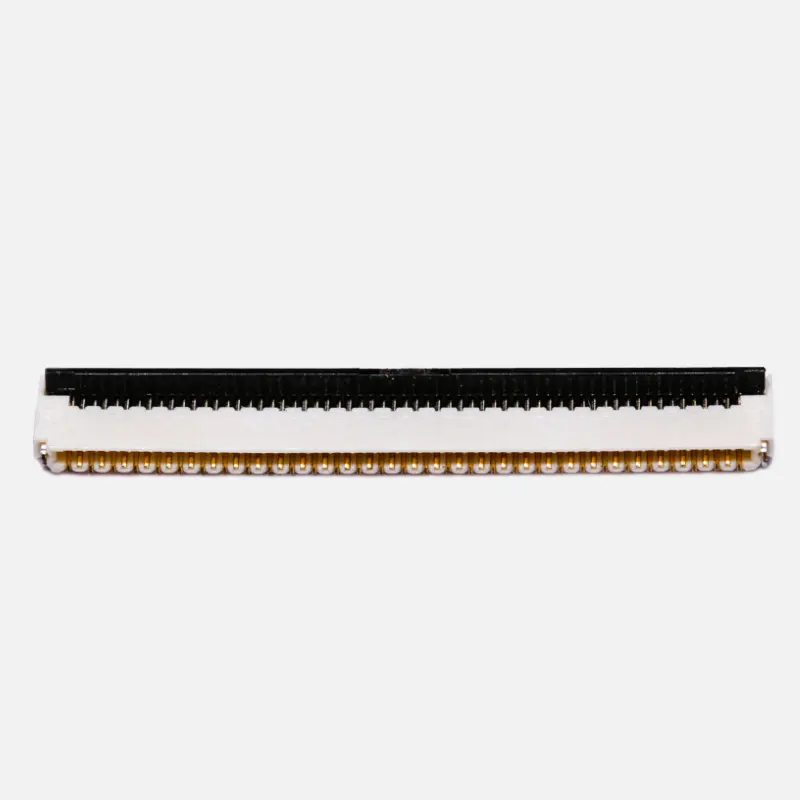

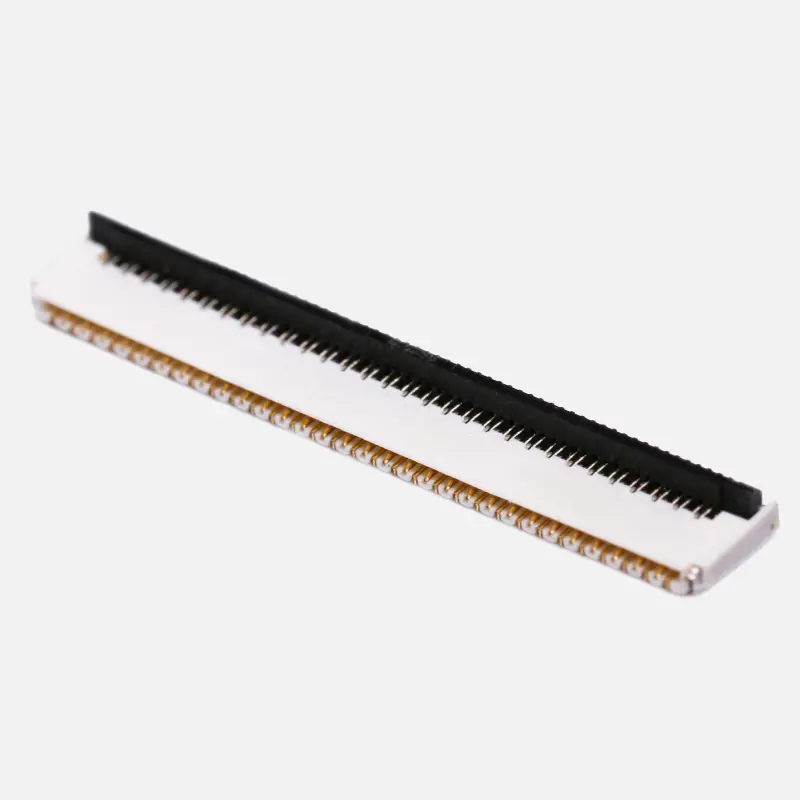

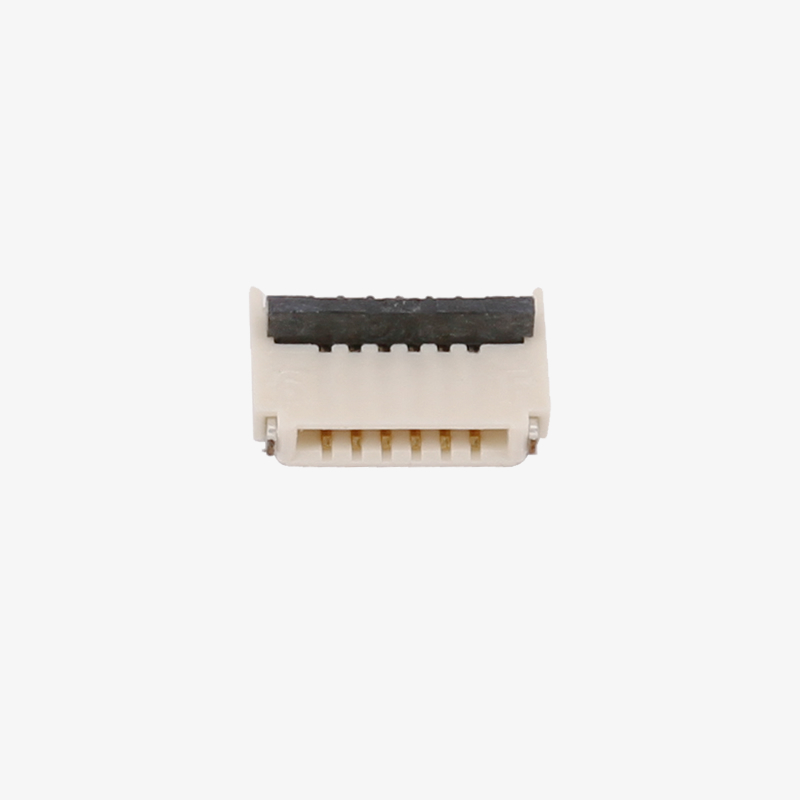

Pitch 0.5mm H=1.0mm FFC/FPC Connectors

The 0510 series FPC/FFC connectors are precision electronic connectors with the following features:

1. 0.5mm pitch ffc fpc connector: This fine pitch allows for more connection points within a limited space, making it especially suitable for electronic devices with compact structures and high-density PCB layouts.

2. Plastic Height of 1.00mm: The connectors’ low profile is conducive to designing thinner electronic devices, reducing the overall volume, and is suitable for designs that pursue extreme slimness.

3. Double-sided Contact: The connectors are designed for contact on both the top and bottom sides, enhancing the reliability of the connections.

4. Rear Locking Mechanism: The connectors feature a rear locking system that ensures the FPC or FFC flex cables are securely inserted and locked in place, preventing them from dislodging during use.

5. Easy on ffc fpc connectors: Fixed by SMD (Surface Mount Device) reflow soldering. When installing the FPC/FFC connectors, first insert the FPC or FFC flex cable into the connector slot, then press down the latch to secure it.

Due to their high compactness and reliability, the 0510 series connectors are suitable for a variety of electronic devices that require miniaturization and highly reliable connections, such as smartphones, tablets, laptops, wearable devices, and other consumer electronics. The design of these connectors aims to simplify the assembly process while ensuring long-term stable connection performance.
