Dip side contact pogo pin connector
Dip side contact spring loaded connector
Dip side contact pogo pin connector also known as dip side contact spring loaded connectors, dip side contact magnetic pogo pin connector, and through hole mount dip side contact spring connector, serve the core function of conducting electricity or signals.
I Innovative design: Slope Structure Design, More Stable Contact, Lower Resistance
I Installation method: SMT Surface Mount (SMD) Reflow Soldering or Placement by Insertion Machine and Fixation by Wave Soldering
I Contact Resistance: 30 milliohms Max.
I Rated Current: 2A~15A (Continuous Current)
I Rated Voltage: 36V AC/DC
I Durability: 10,000~100,000 Times (Reciprocating Motion Lifespan)
I Operating Temperature: -40°C to +120°C (Continuous Temperature)
I Salt Spray Resistance 96 Hours Corrosion Test
I High-Precision Mold And Parts Processing
I A variety of standards are available, and samples will be sent out as soon as the same day.
I Provide Customized Services
I Comply With EU RoHS And Reach Standards
xurui dip side contact spring loaded electrical connectors
Dip Side Contact Pogo Pin Connector Product Details
What is a dip side contact magnetic pogo pin
The Dip Side Contact Pogo Pin Connector, also known as the Right Angle Pogo Pin Connector, Pogo Pin Connector, and Dip Side Contact Spring-loaded Connector, is primarily used for conducting electricity or signals.
dip side contact pogo connectors uses an inclined structure and an internal spring mechanism design. It is mainly composed of several Pogo Pins and housing, which are assembled through precision molds and special equipment. The purpose of the inclined structure design is to ensure that when the Pogo Pin is working, the lateral force generated by the inclined surface and the spring contact keeps the contact force between the pin head and the inner wall of the pin barrel stable, prompting the current path to mainly go through the gold-plated pin head (Plunger) and pin barrel (Body). This results in a stable and extremely low contact resistance, maintaining a stable and reliable connection even with frequent plugging and unplugging.
How to install dip side contact pogo pin connectors

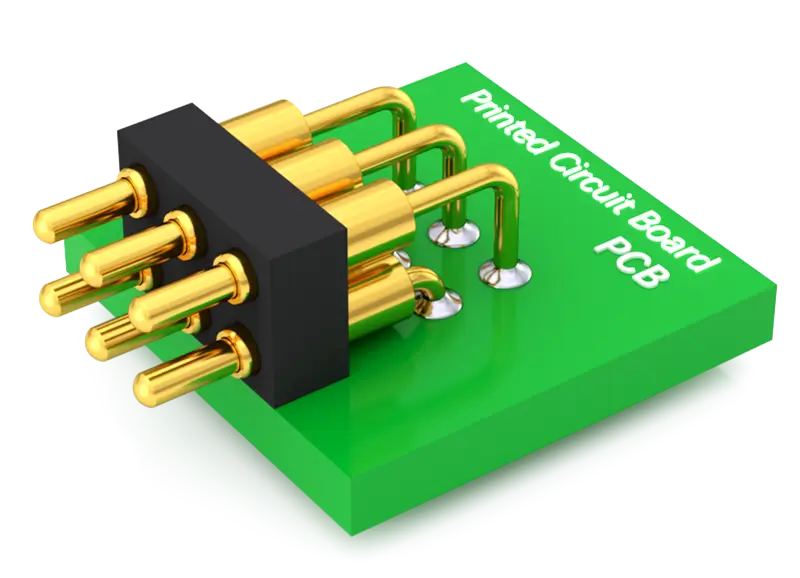

SMT automatic patch reflow soldering technology: The SMT automatic patch machine automatically mounts the DIP Pogo Pins on the PCB circuit board that has printed solder paste, and the solder legs are precisely inserted into the holes of the PCB circuit board. Then, the solder paste is melted and solidified through the reflow soldering process, completing the fixed connection with the PCB pad. This process is fast, highly accurate, highly automated, significantly improving production efficiency and product quality.
Plug-in machine + wave soldering technology: The automatic plug-in machine automatically mounts the dip side contact pogo pin female connector and precisely inserts the solder legs into the PCB circuit board with printed solder paste. Then, the solder paste is melted and fixed through the wave soldering process, completing the fixed connection with the PCB pad. This process is fast, accurate, highly automated, significantly improving production efficiency and product quality. It is suitable for electronic components with ultra-long solder legs that cannot be fixed by SMD reflow soldering.

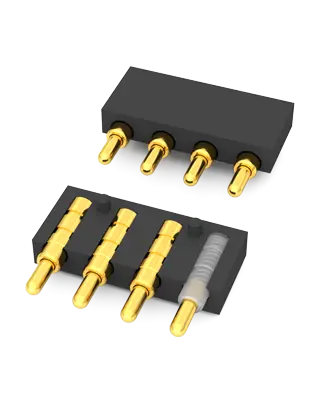

dip side contact pogo connectors material & Parts
The Dip Side Contact Pogo Pin Connector is a type of Pogo Pin Connector, which is designed and manufactured based on an inclined structure. It is an internal spring-loaded pin connector, typically composed of two core components: the Pogo Pin and the housing. Its characteristics are side contact type, with its own solder legs, suitable for SMT automatic patch reflow soldering or wave peak soldering fixing. The welding strength is high (more firmly welded with the PCB circuit board), the resistance is very low, the connection is stable and reliable, the lifespan is long, and it is more durable.
Xurui Technology

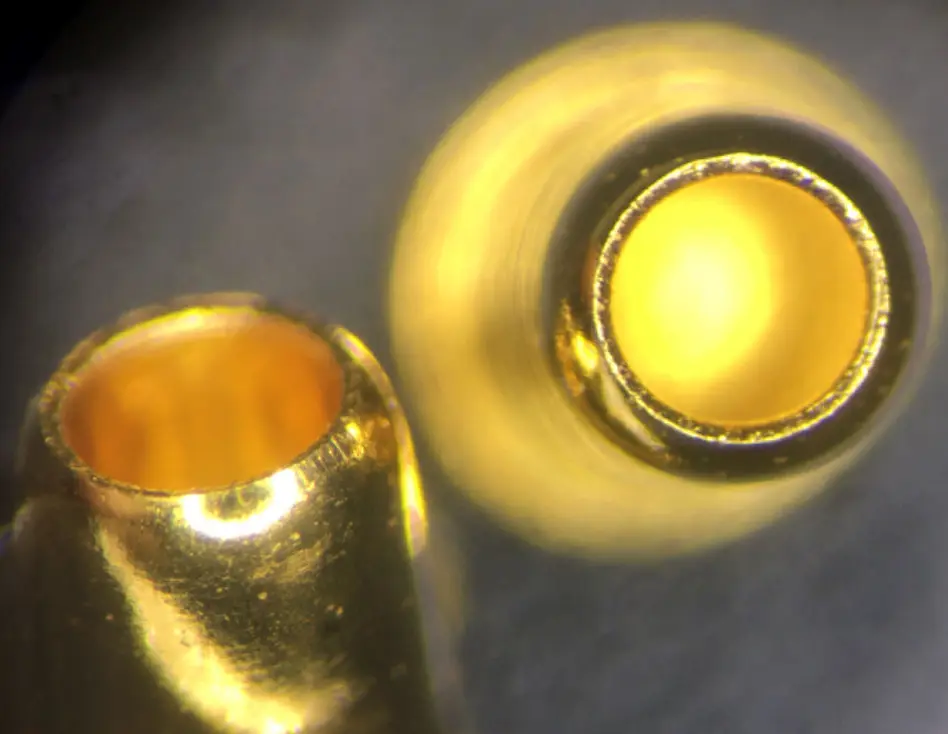

The vacuum blind hole electroplating technology is known for its superior performance, capable of quickly and accurately electroplating a layer of gold inside and outside extremely fine blind holes. This excellent electroplating process not only ensures the overall aesthetics of the metal surface but also has outstanding corrosion resistance and wear resistance. Both the inside and the outside of the hole present a bright golden color, and there will be no peeling or gold dropping issues.

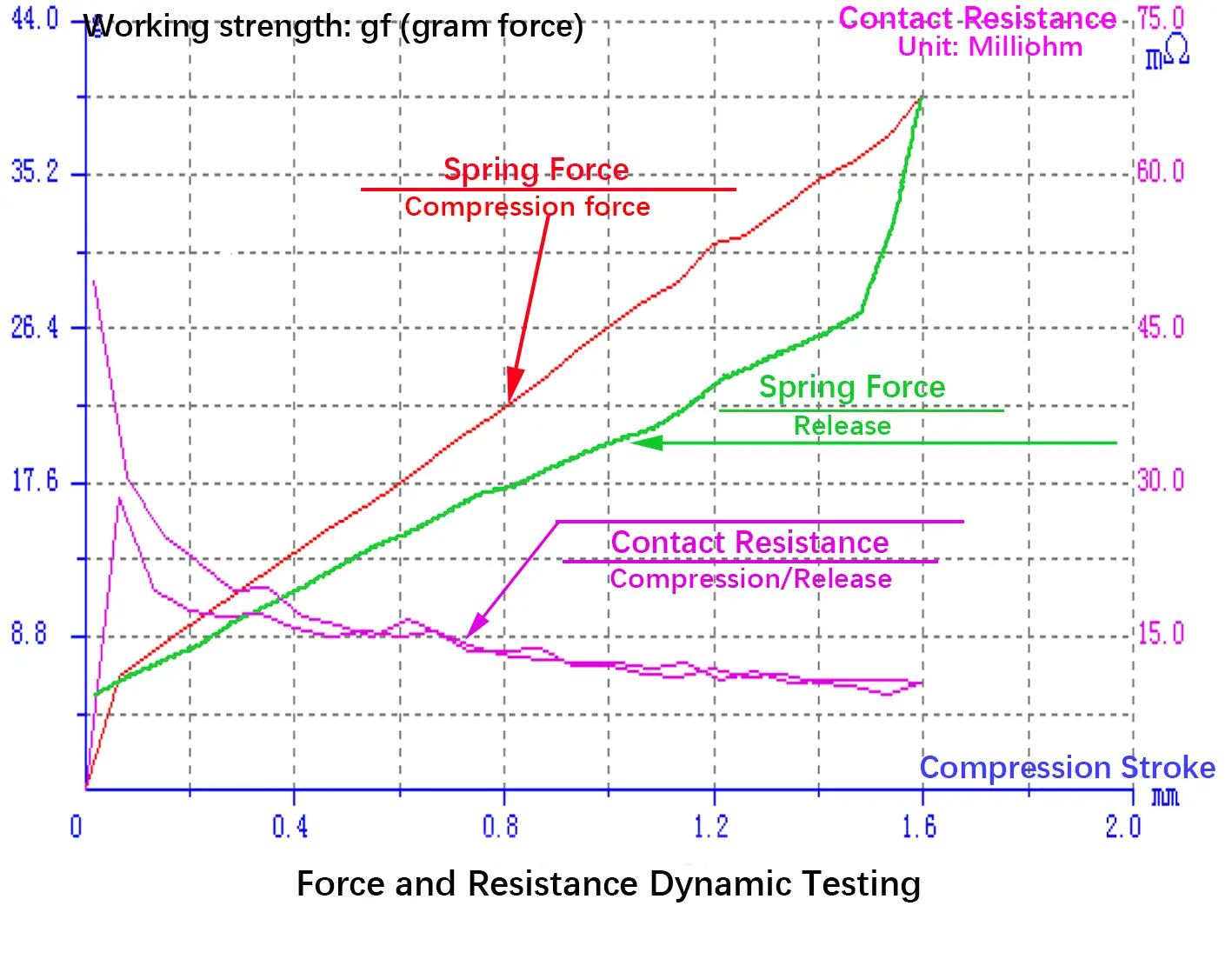

dip side contact pogo pin female connector contact resistance
By combining mature design concepts, high-precision processing techniques, and excellent vacuum blind hole electroplating technology, we can achieve extremely low and stable contact resistance.
XURUI
Dip Side Contact Pogo Pin Connector Technical Parameters
| Items | Details |
|---|---|
| Material | Plunger: Lead-Free Copper Alloy |
| Body: Lead-Free Copper Alloy | |
| Spring: Stainless Steel | |
| SolidPin: Lead-Free Copper Alloy | |
| Housing: Lead-Free-High Temperature Nylon | |
| Main Technical Parameters | Operating temperature: -40~+120°C（Standard） |
| Operating humidity: 20-85%RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85%RH | |
| Rating voltage: 36V AC/DC（Standard） | |
| Rating current: 2A/Pin Continuous（Standard） | |
| Contact resistance: 30 mΩ Max.（Standard） | |
| Withstanding voltage: 250V AC ,1 Minute | |
| Insulation resistance： 500 MΩ Min | |
| Durability：10,000 Cycle（Standard） | |
| Working Spring Force:50~180gf（Standard） | |
| Electroplating | Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm |
| Body: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| Contact Type | Side Contact Type |
| Installation Method | SMT automatic placement machine+Reflow soldering |
| Plugin machine + Wave soldering | |
| Environmental Protection Standard | Comply with EU RoHS and Reach standards |
XURUI
Selection Guide of Vertical Dip Pogo Pin Connectors

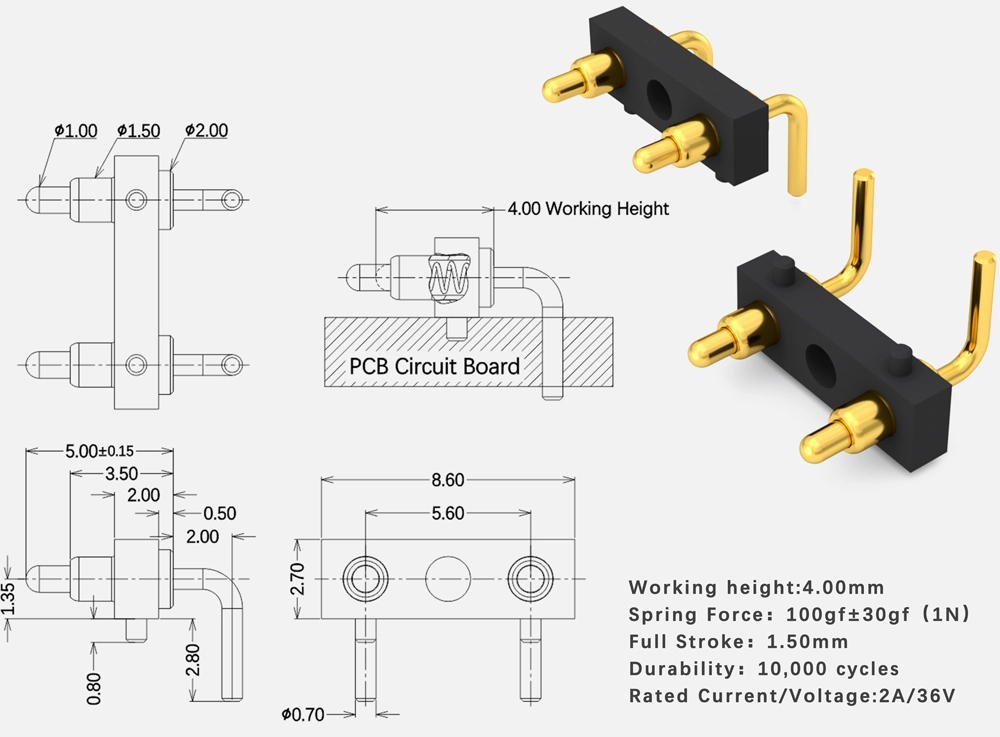

| SN | Product Image | Number Of Pins | Pitch |
|---|---|---|---|
| 1 |
|

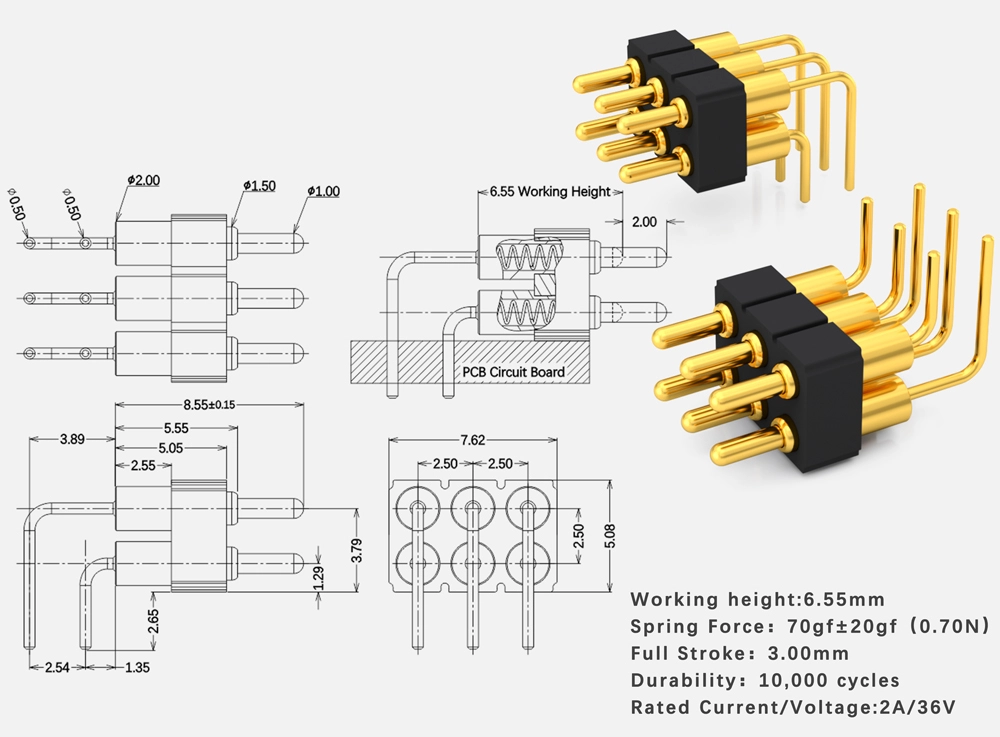

2Pin | 5.6 |
| 2 |
|

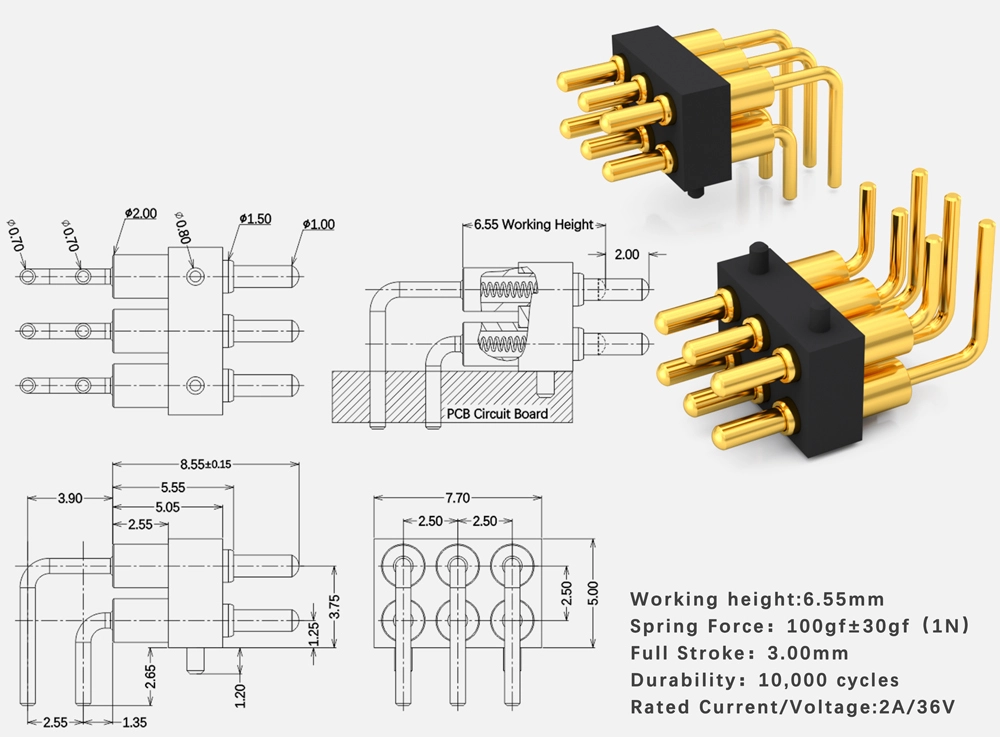

6Pin | 2.54 |
| 3 |
|
6Pin | 2.50 |
| 4 |
|

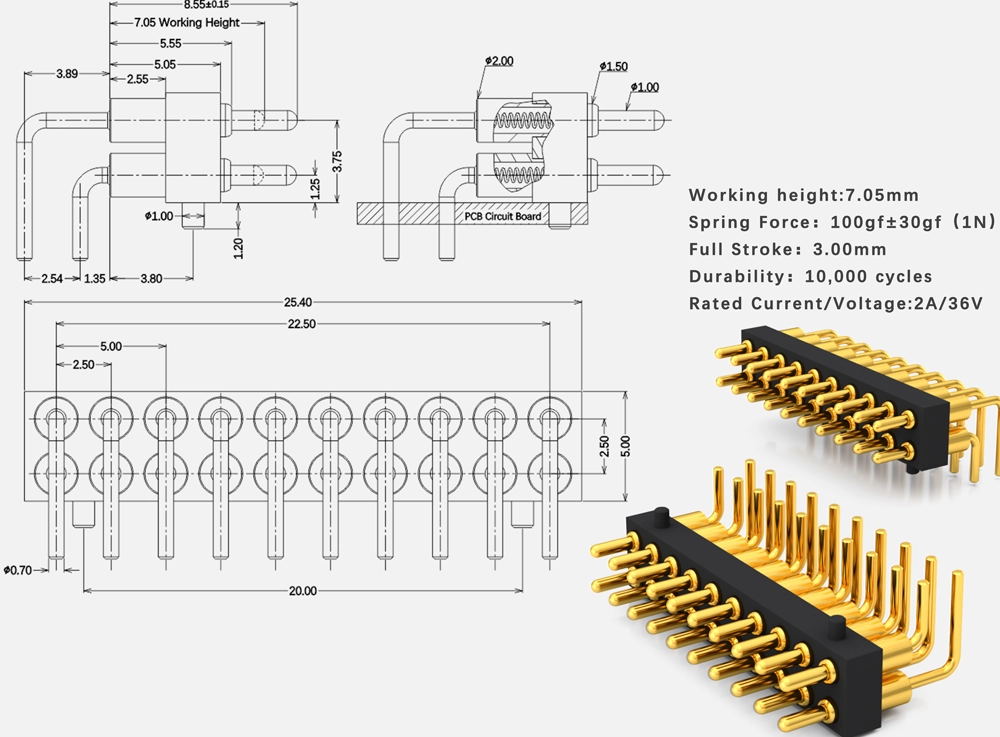

10Pin | 2.50 |
| 5 |
|
20Pin | 2.50 |
