Dip Pogo Pin
Spring Loaded Dip Pin
Dip pogo pins are also called spring loaded dip pins, dip spring loaded contacts, springloaded dip pin, and through hole mount springloaded dip pins. Their core function is to connect conductive or signal conductors.
I Pogo Pin Design: Slope Structure Design, More Stable Contact, Lower Resistance
I Mounting Method: SMT (Surface Mount Technology) using either reflow soldering or wave soldering for attachment.
I Pogo Pin Contact Resistance: 30 milliohms Max.
I Pogo Pin Rated Current: 2A~30A (Continuous Current)
I Rated Voltage: 36V AC/DC
I Durability: 10,000~100,000 Times (Reciprocating Motion Pogo Pin Life Cycle)
I Operating Temperature: -40°C to +120°C (Continuous Temperature)
I Salt Spray Resistance 96 Hours Corrosion Test
I High-Precision Mold And Parts Processing
I A variety of standards are available, and samples will be sent out as soon as the same day.
I Provide Customized Services
I Comply With EU RoHS And Reach Standards
xurui spring loaded dip pin
Dip pogopin Product Details
What is a dip pogo pin
DIP Pogo Pins are also called spring pins, Pogo Pin connectors, and through hole mount spring-loaded Pins. Their core function is to connect conductive or signal conductors.
Dip Pogo Pins are designed with a bevel structure and built-in spring mechanism. They are mainly composed of three core components: Plunger, Spring and Body, and are assembled through precision molds and special equipment.
The function of the bevel structure design is to ensure that when the Pogo Pins are working, the lateral force generated by the contact between the bevel and the spring is used to maintain a stable contact force between the needle and the inner wall of the needle tube, prompting the current path to mainly pass through the gold-plated needle (Plunger) and needle tube ( Body), resulting in stable and extremely low contact resistance, maintaining a stable and reliable connection even during frequent plugging and unplugging.
How to install dip pogo pins
SMT automatic patch reflow technology: The SMT automatic patch machine automatically mounts DIP Pogo Pins onto the PCB circuit board with solder paste printed on it. The solder pins are accurately inserted into the PCB circuit board holes, and then the solder paste is melted and soldered through the reflow soldering process. Curing to complete the fixed connection with the PCB pad. This process is fast, highly precise and highly automated, greatly improving production efficiency and product quality.
Plug-in machine + wave soldering technology: The automatic plug-in machine automatically mounts DIP Pogo Pins and accurately inserts the solder pins into the PCB circuit board with printed solder paste, and then melts and fixes the solder paste through the wave soldering process to complete the soldering process with the PCB pad fixed connection. The process is fast, accurate and highly automated, greatly improving production efficiency and product quality. Suitable for electronic components with extremely long solder legs that cannot be fixed through SMD reflow soldering.

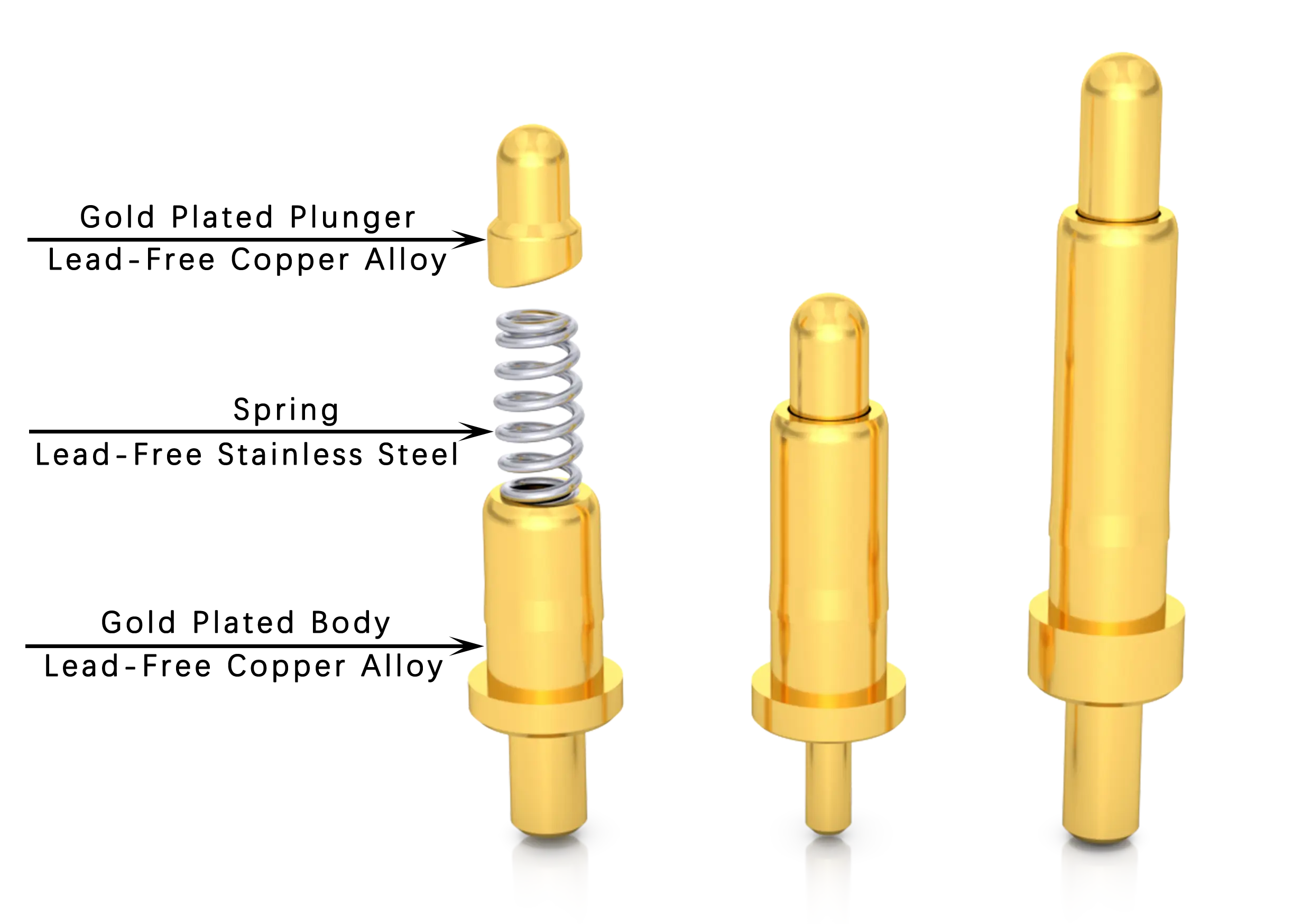

Dip pogopin material & Parts
DIP Pogo Pins is a classification of Pogo Pin connectors. It is a built-in spring connector designed and manufactured based on the bevel structure. It usually consists of three core parts: plunger, spring, and body. It is characterized by its own soldering feet and precise positioning, high welding strength (stronger welding with PCB circuit board), low resistance, stable and reliable connection, long life, and more durable.
Dip pogopin Internal structures

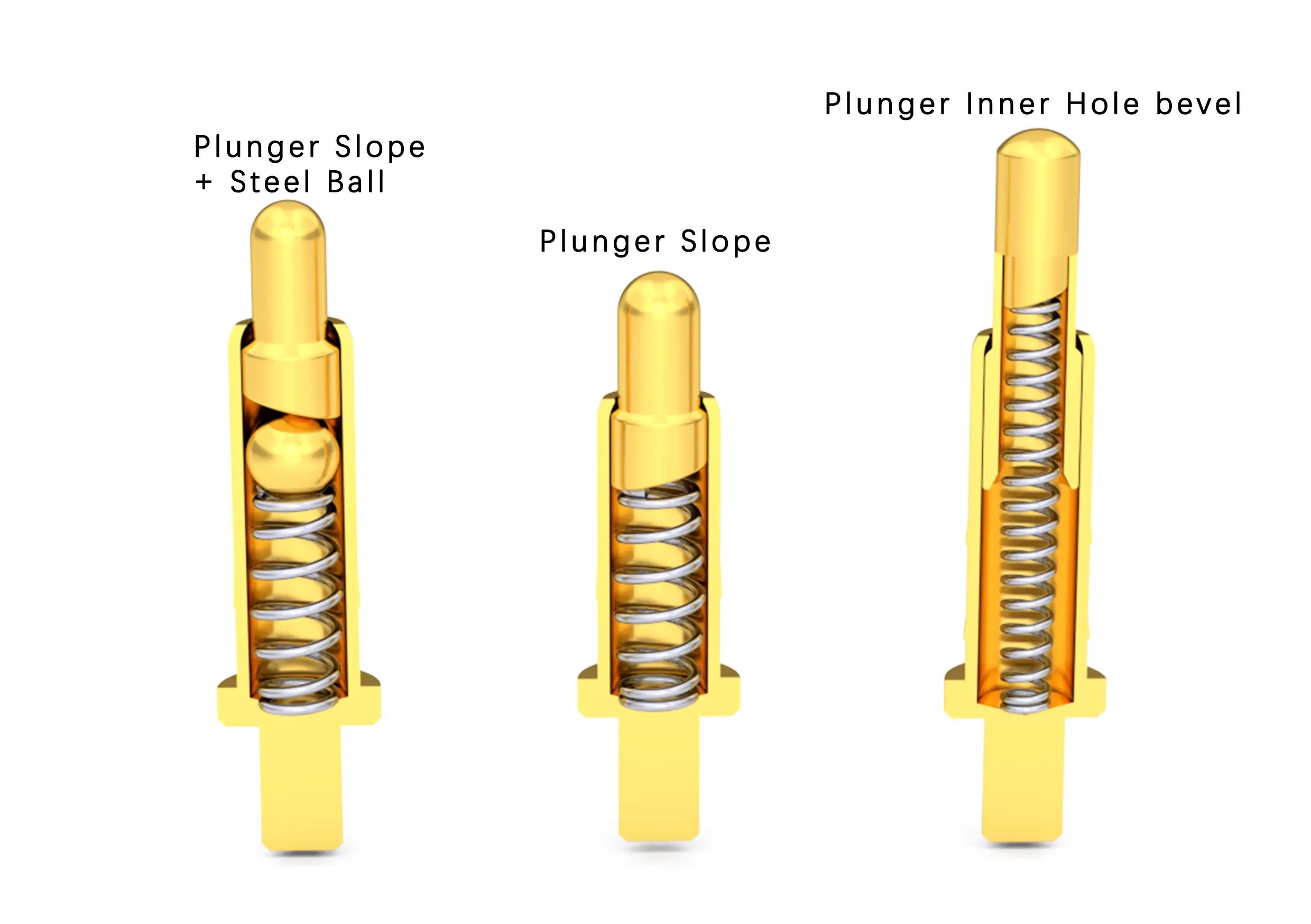

There are three commonly used internal structures of Xurui’s Dip Pogo Pins, namely Plunger bevel structure, Plunger bevel + steel ball structure and Plunger inner hole bevel structure.
How do dip pogopin work
Contact force and contact resistance are the core factors forstable and reliable connections, and there is a direct relationship between contact force and contact resistance. lncreasing contact force can effectively reduce contact resistance. Therefore, achieving stable contact force and contact resistance is key to establishing a reliable connection.
When the bevel and spring are working, the lateral force generated is converted into contact force, allowing the gold-plated needle to maintain stable contact with the inner wall of the needle tube, thereby obtaining stable and extremely low contact resistance, ensuring a stable and reliable connection.
Xurui Technology
Vacuum blind hole plating technology is known for its excellent performance and can accurately plate a layer of gold inside and outside extremely fine blind holes. This advanced electroplating process not only ensures the overall beauty of the metal surface, but also provides excellent corrosion and wear resistance. Every detail, whether insideor outside the hole, shows a golden and shiny color, and there will be no peeling or gold falling off problems. The precision and stability of this technology ensure the durability and durability of the electroplated layer, meeting avariety of demanding application requirements.
Dip pogopin contact resistance
Mature design, high-precision processing and advanced vacuum blind hole plating technology are combined to achieve extremely low and stable contact resistance.
XURUI spring loaded dip pin
Dip Pogo Pin Technical Parameters
| Items | Details |
|---|---|
| Material | Plunger: Lead-Free Copper Alloy |
| Body: Lead-Free Copper Alloy | |
| Spring: Stainless Steel | |
| SolidPin: Lead-Free Copper Alloy | |
| Main Technical Parameters | Operating temperature: -40~+120°C（Standard） |
| Operating humidity: 20-85%RH | |
| Storage temperature: -10~+50°C | |
| Storage humidity: 20-85%RH | |
| Rating voltage: 36V AC/DC（Standard） | |
| Rating current: 2A/Pin Continuous（Standard） | |
| Contact resistance: 30 mΩ Max.（Standard） | |
| Withstanding voltage: 250V AC ,1 Minute | |
| Insulation resistance： 500 MΩ Min | |
| Durability：10,000 Cycle（Standard） | |
| Working Spring Force:40~120gf（Standard） | |
| Electroplating | Plunger: Ni Plating 1.4μm, Gold Plating 0.30μm |
| Body: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| SolidPin: Ni Plating 1.4μm, Gold Plating 0.10μm | |
| Contact Type | Vertical Contact Type |
| Installation Method | SMT automatic placement machine+Reflow soldering |
| Plugin machine + Wave soldering | |
| Environmental Protection Standard | Comply with EU RoHS and Reach standards |

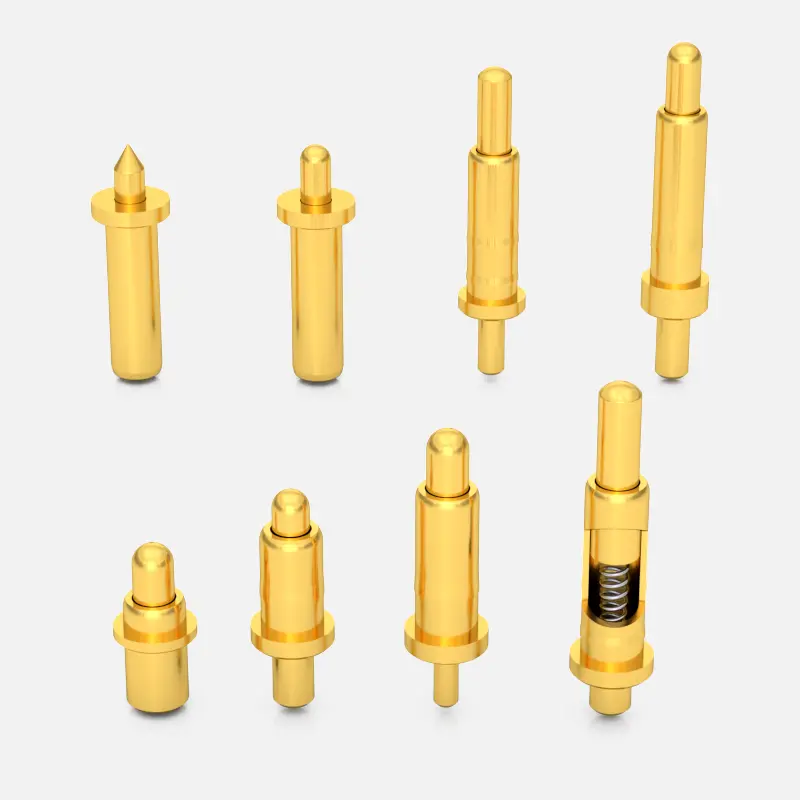

Different Types of Dip Pogo Pin
Selection Guide of Dip Pogo Pin
| SN | Product Image | full stroke | Initial Height | Working Height |
|---|---|---|---|---|
| 1 |
|
0.4~0.8 | 1.80~3.00 | 1.40~2.60 |
| 2 |
|
1.00 | 3.15~6.30 | 1.50~5.60 |
| 3 |
|
1.50 | 4.50~10.00 | 3.20~9.00 |
| 4 |
|
2.00 | 5.80~16.00 | 4.00~15.00 |
| 5 |
|
2.50 | 7.10~16.00 | 4.80~15.00 |
| 6 |
|
3.00 | 8.40~20.00 | 5.60~19.00 |
| 7 |
|
3.50~5.00 | 9.70~20.00 | 6.40~19.00 |
xurui spring loaded dip pin
Dip Pogo Pin Surface treatment

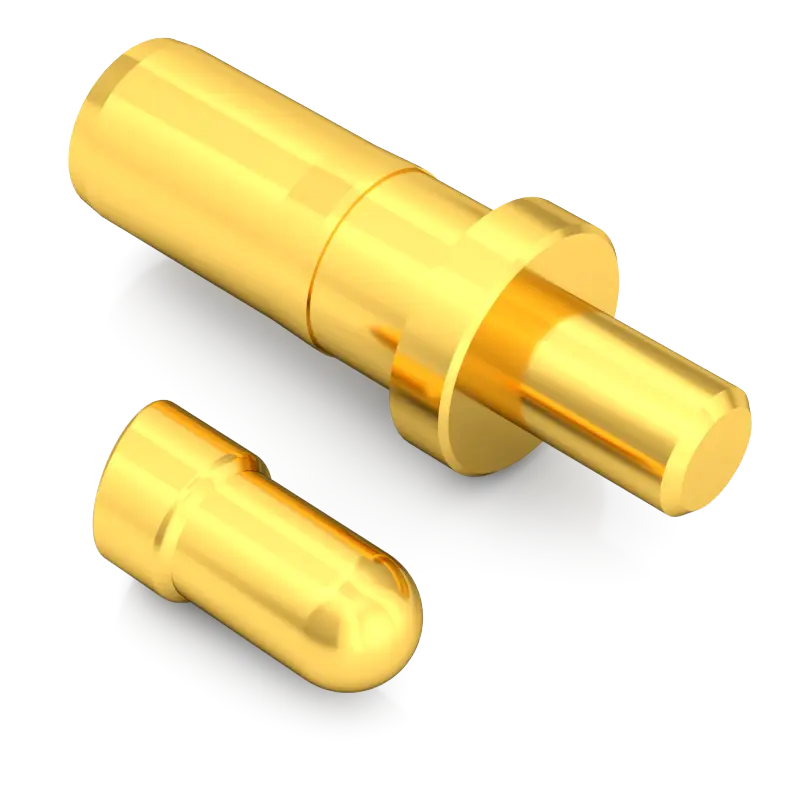

Electroplated Gold-Golden Yellow

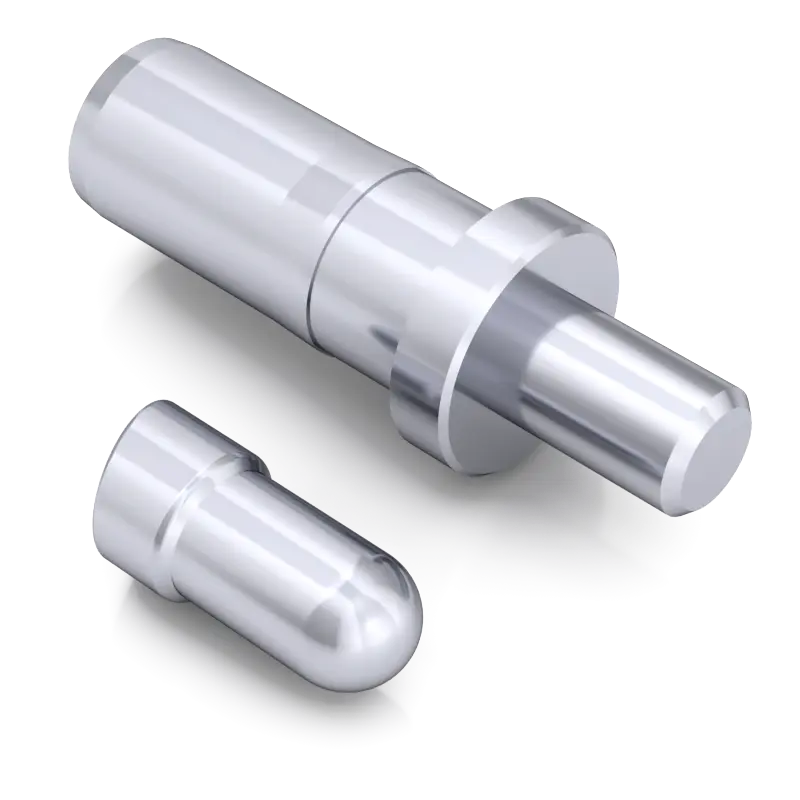

Electroplated Nickel—Silver White

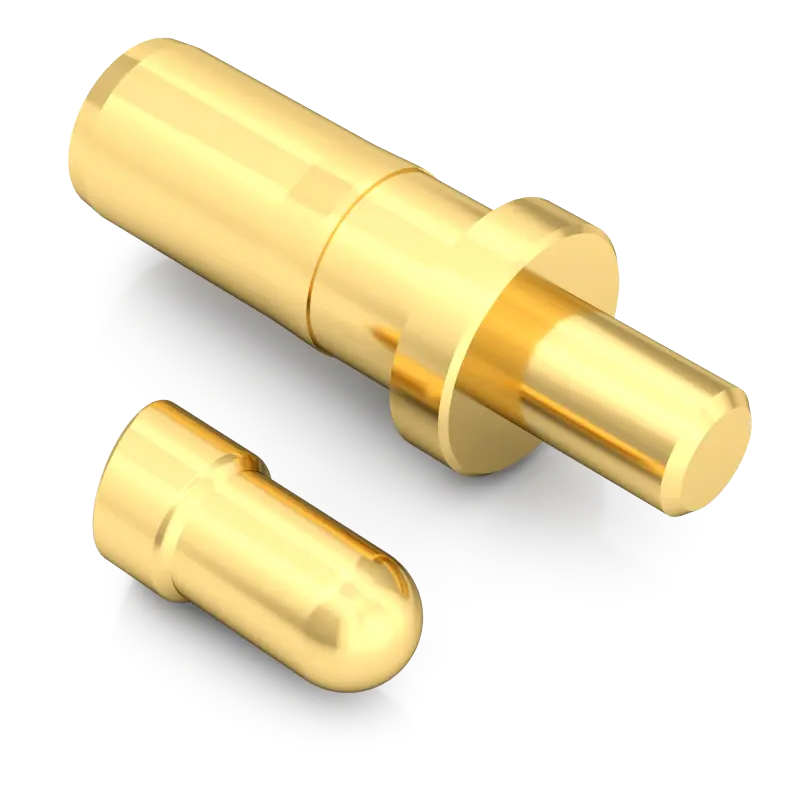

Before Electroplating - Brass Color
xurui spring loaded dip pin
Dip Pogo Pin Packaging Method
SMD Pogo Pins and Dip Pogo Pins Vacuum Carrier Tape Packaging
Multi-Contact Dip Pogo Pin Connector Vacuum Carrier Tape Packaging
xurui spring loaded dip pin

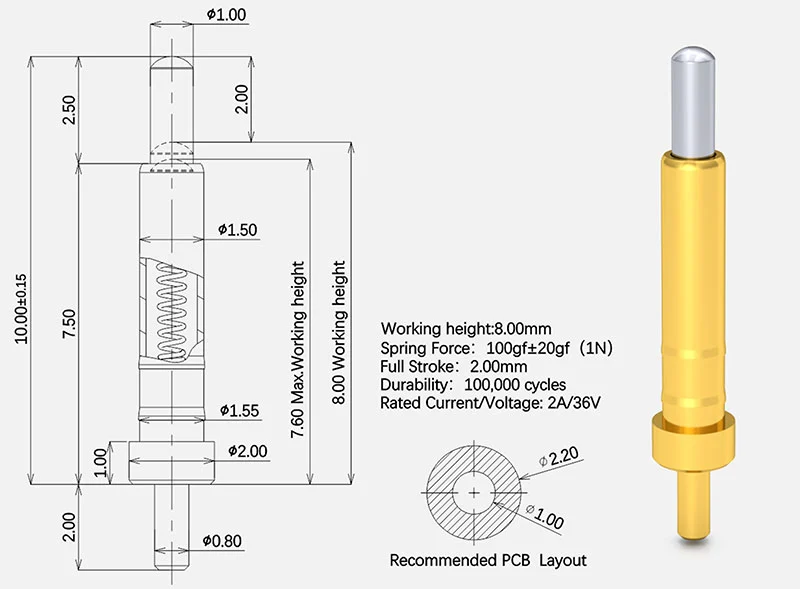

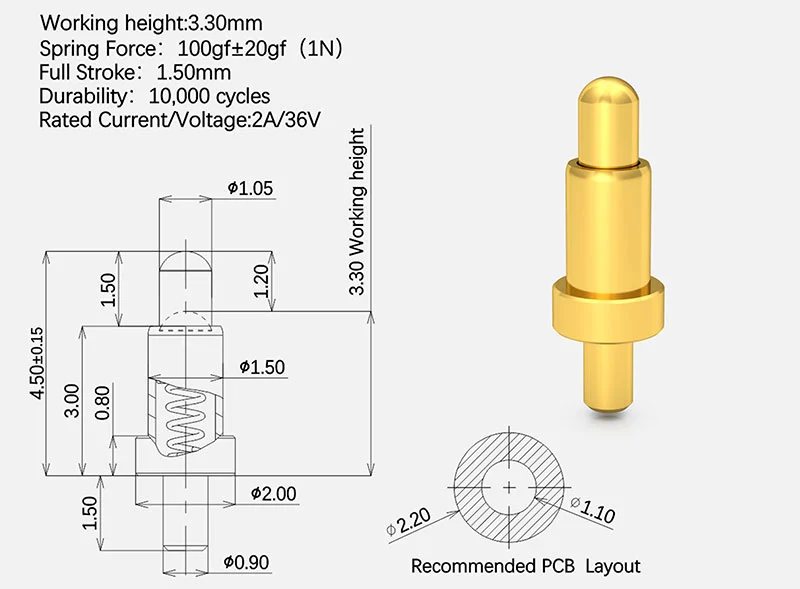

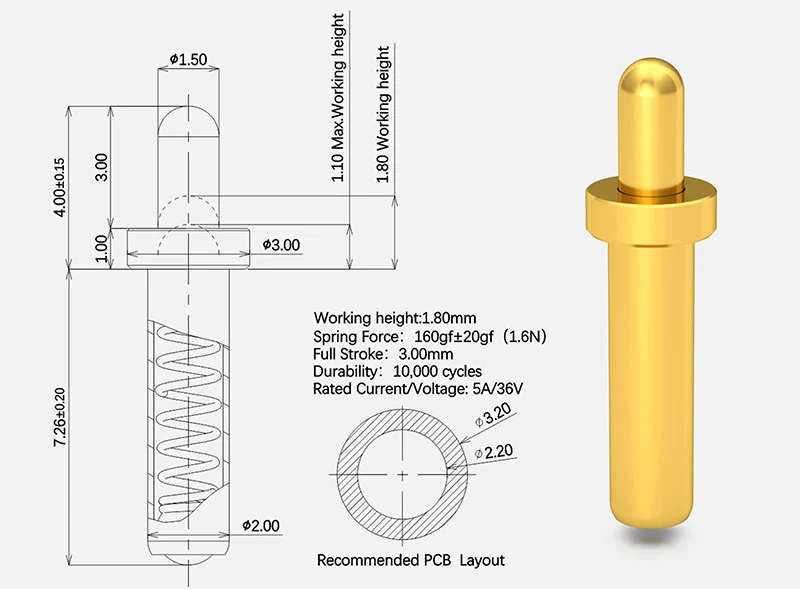

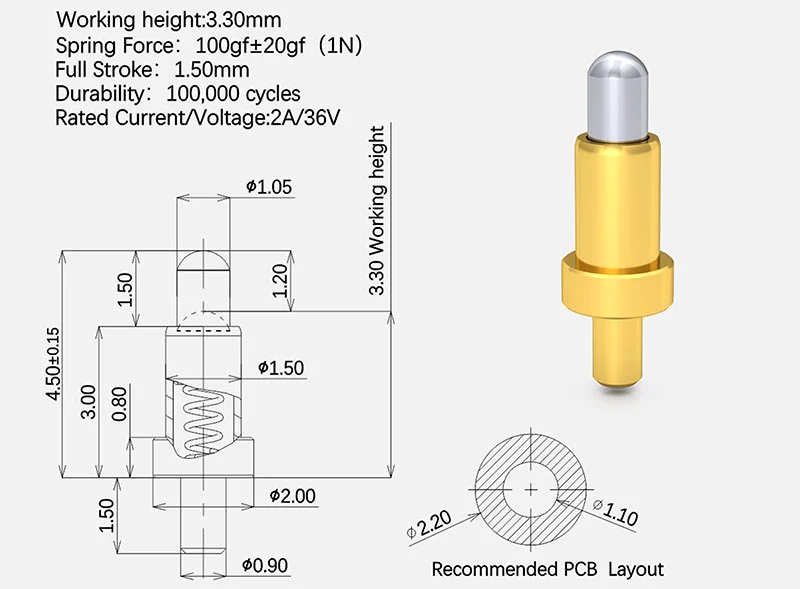

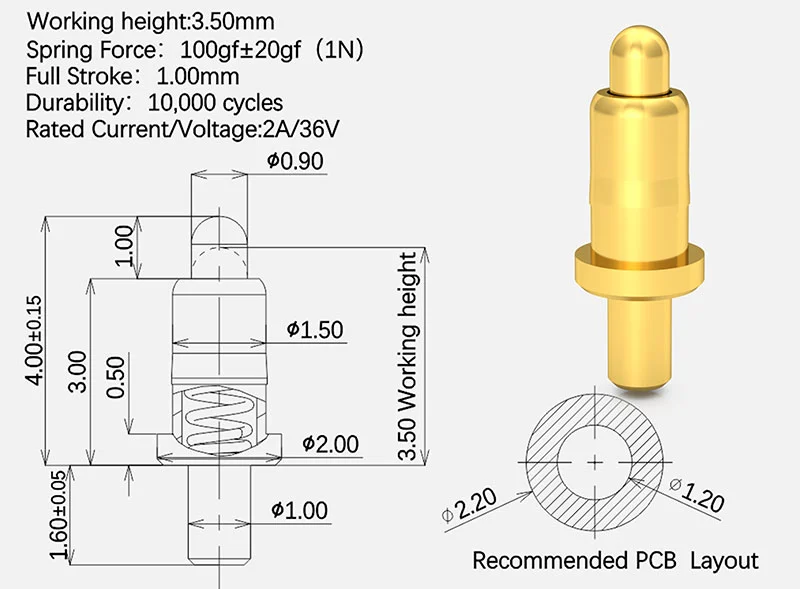

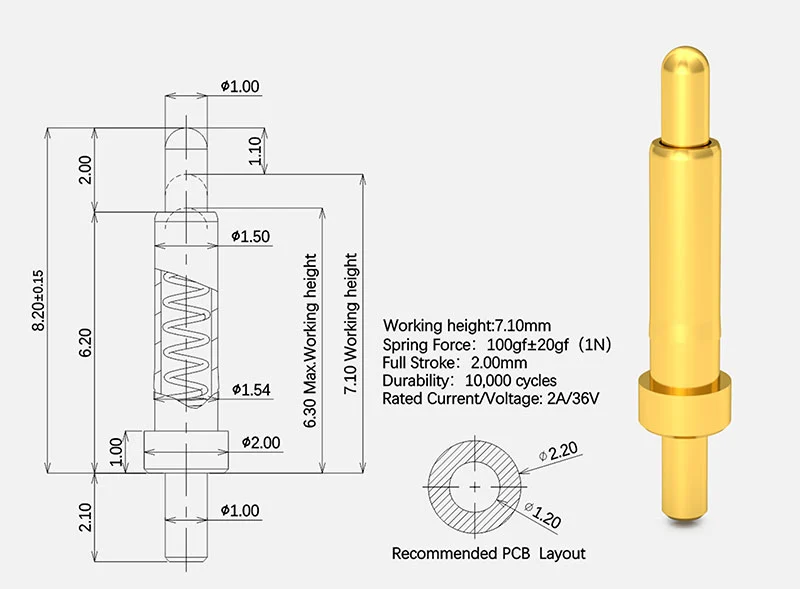

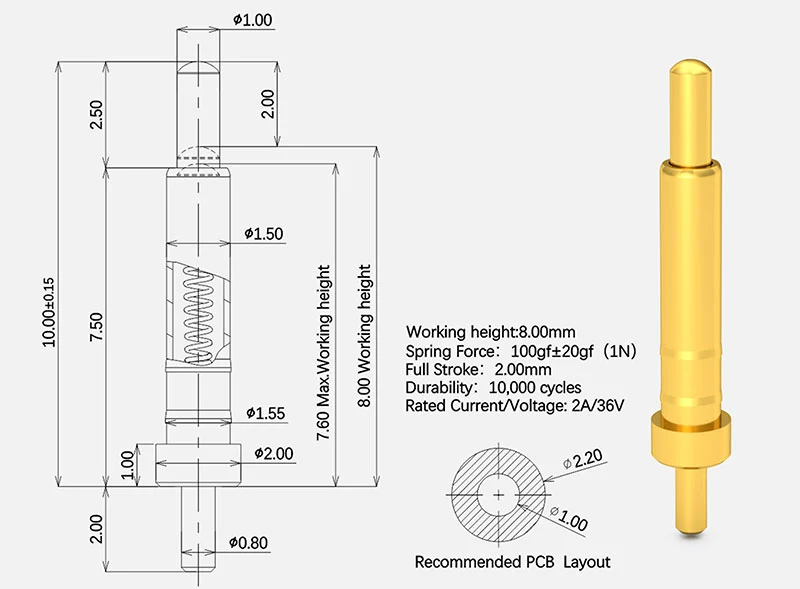

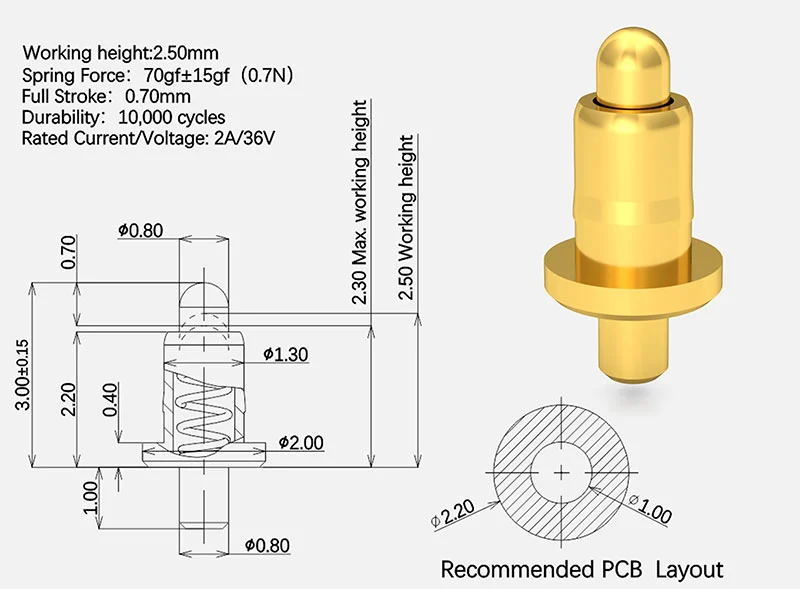

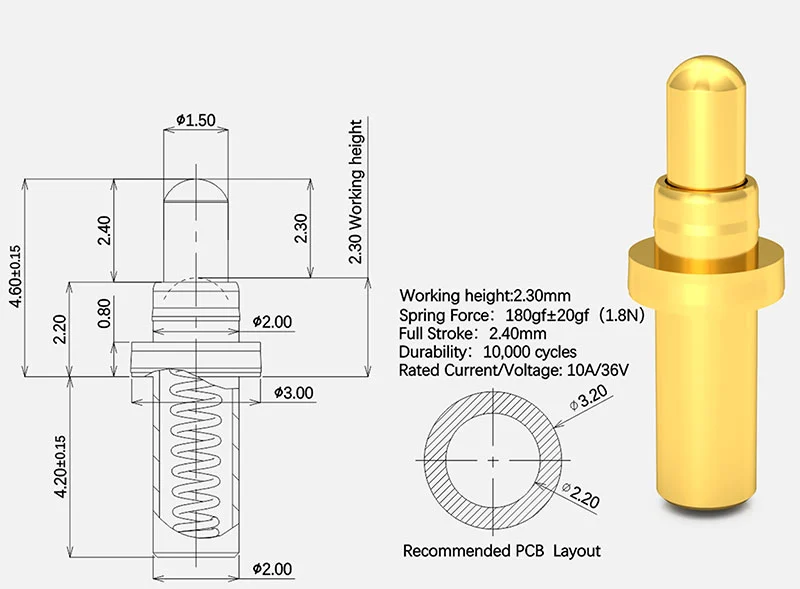

Dip Pogo Pin Standard Product
Pop Up Your Dreams
XURUI offers 24/7 ongoing global support, ensuring we’re there for clients whenever needed.
