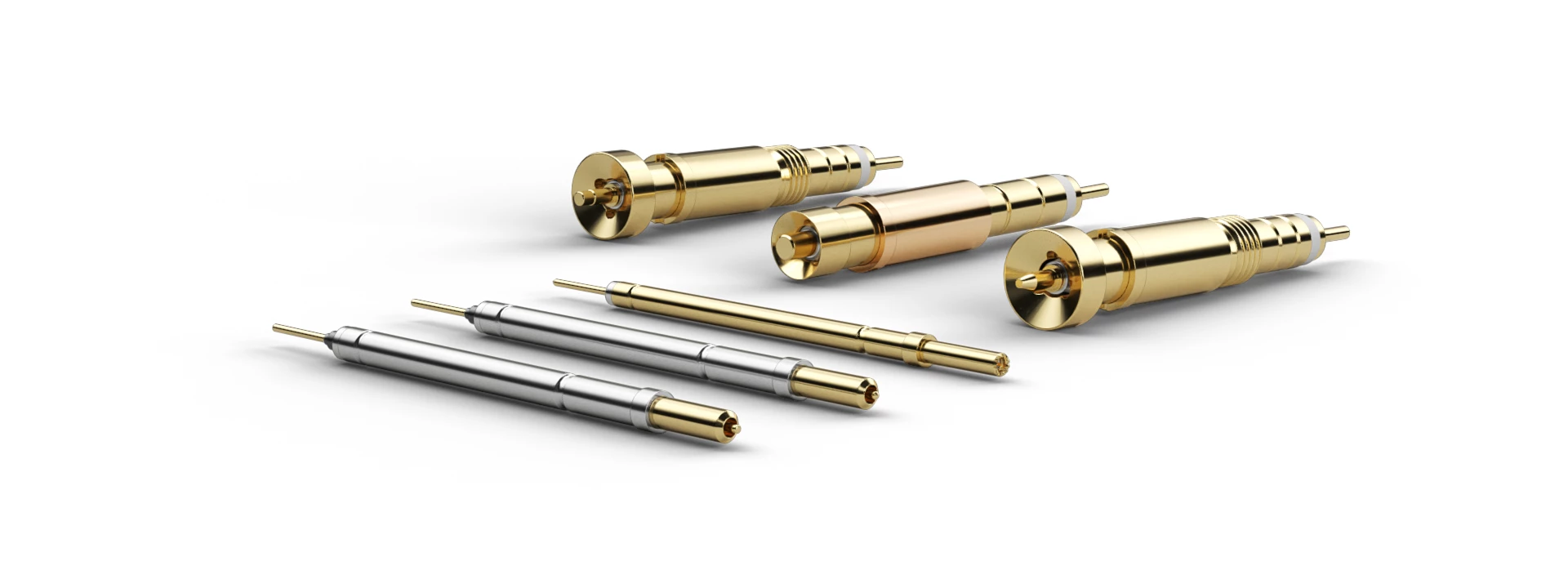

Cable Harness Test Probes
With advanced manufacturing techniques and a dedication to precision
we provide cable harness test probes that meet the high standards across diverse industries.
XURUI
We’re right there wherever cables need to transmit signals reliably. As the market leader in Contact Probes for Wire Harness Testing, we boast the most comprehensive portfolio of any manufacturer.
I Switch Probes
I Threaded Probes
I Step Probes
I Twist Proof Probes
I Push Back Probes
I Kelvin Probes
xurui
Cable Harness Test Probes Product Detail
Step Probes confirm proper positioning of the terminal inside the connector housing. If a terminal is missing or improperly installed, the Step Probe doesn’t make electrical contact.
XURUI
Selection Guide of Cable Harness Test Probes
| ----------Product image---------- | Current Rating | Rated Resistance | Full Stroke | Rated Stroke | Spring Force | PDF Download | |
|---|---|---|---|---|---|---|---|

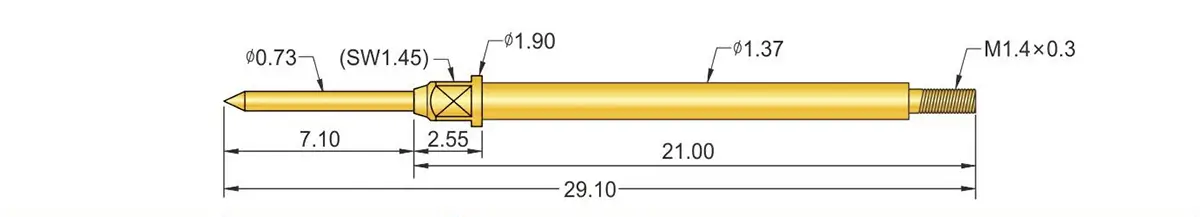

| CH137-x-2.5G(B) |
|
3A | 100 milliohm max | 7.1mm | 3.0mm | 70±20gf@load 3.0mm |
|

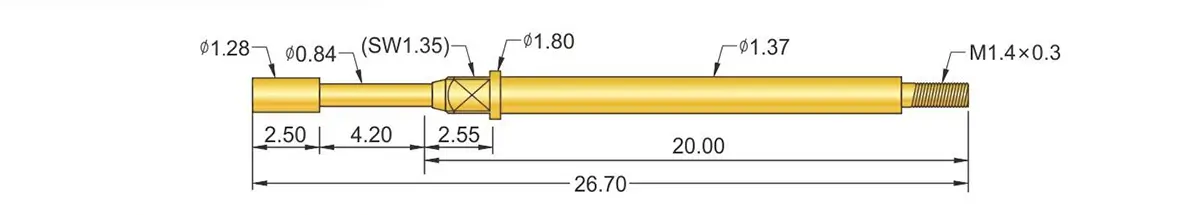

| CH137(20)-x-3.5G(B) |
|
3A | 100 milliohm max | 4.2mm | 2.8mm | 100±30gf@load 2.8mm |
|

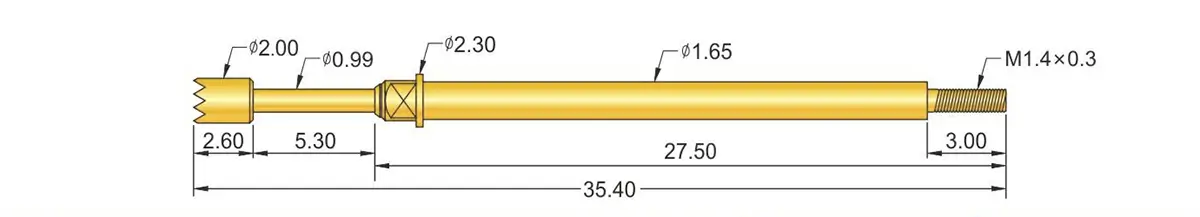

| CH165-x-4G(B) |
|
3A | 100 milliohm max | 5.3mm | 3.5mm | 113±35gf@load 3.5mm |
|

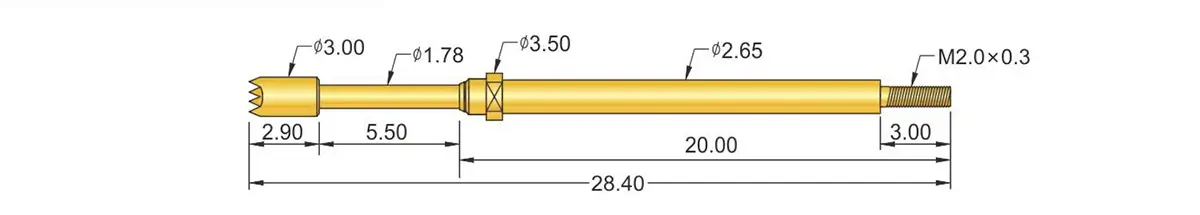

| CH265-x-4G(B) |
|
3A | 100 milliohm max | 5.5mm | 3.5mm | 113±35gf@load 3.5mm |
|

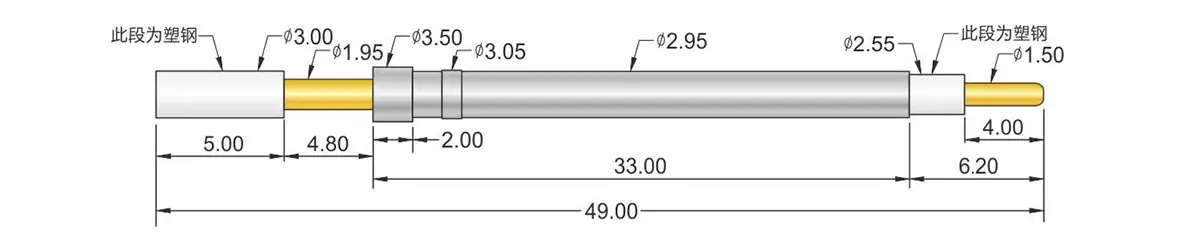

| Switch Probe (Normally Open) |
|
|
|||||

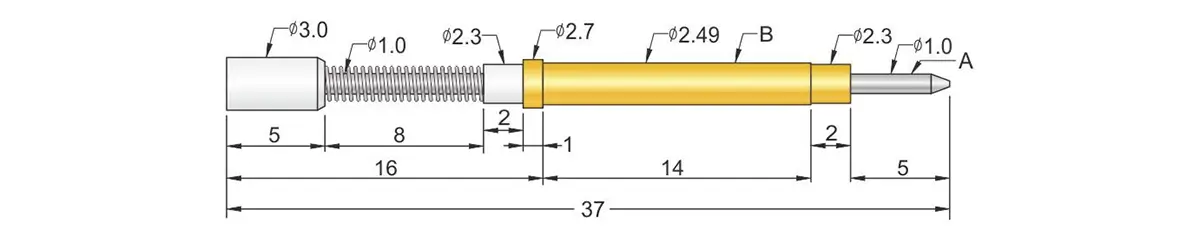

| Switch Probe KG-250G (Normally Closed) |
|
|
Cable Harness Test Probes Solution
Our contacting solutions enable reliable Function Testing of Wire Harness and Plug Connectors to guarantee error-free installation.
xurui
